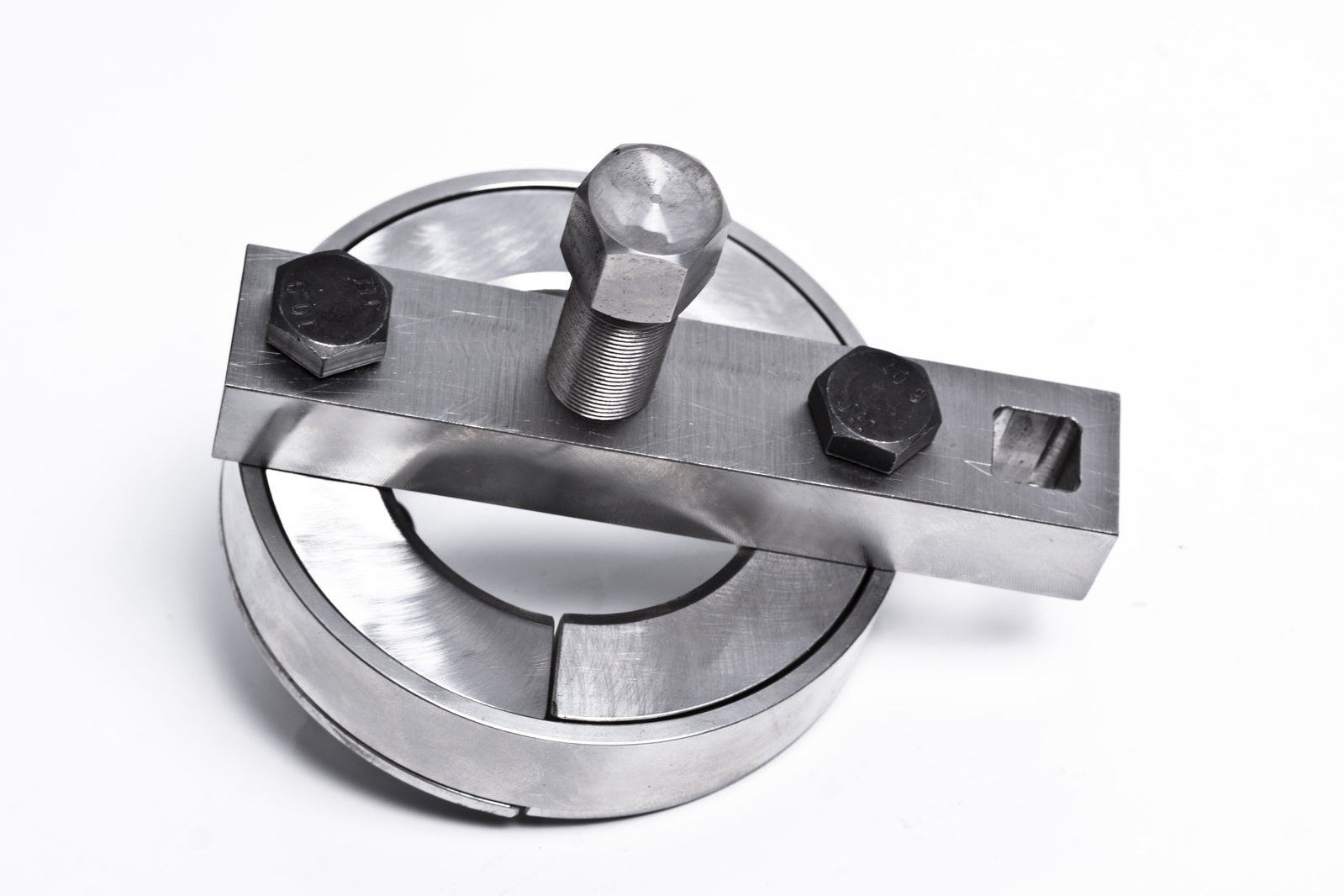

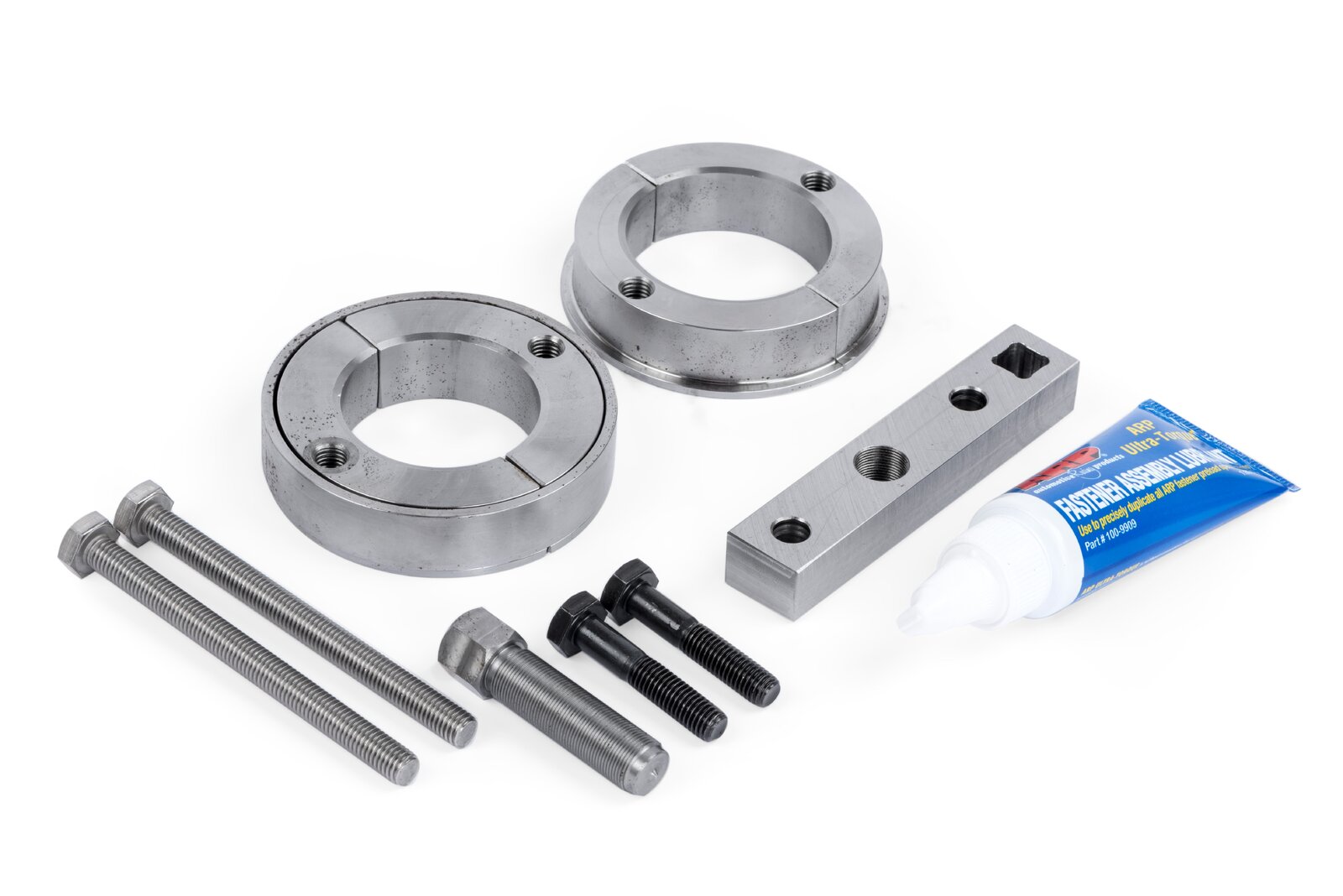

The APR Supercharger Pulley Installation Kit is a tool kit for removing the pressed-on factory drive pulley from the Gen 1 supercharger on 3.0 TFSI Audi A6, A7, A8, Q5, Q7, S4, S5 and SQ5 models. The factory pulley sits on the supercharger's input shaft and cannot be removed without damaging the pulley or the supercharger unless special care is taken. APR designed the tool to enclose the whole pulley and pull evenly over its full surface, and it is compact enough that the front end of the vehicle does not need to come off completely. A provision for a 1/2 inch drive breaker bar lets the assembly be counter-held, which APR says makes the job possible for one person, and a complete install manual is included.
Features
- Encapsulates the entire pulley
- Pulls evenly across the whole pulley surface
- Compact, no complete front end removal needed
- Provision for a 1/2 inch drive breaker bar
- Allows a one person job, per APR
- Complete install manual
Specifications
- Brand: APR
- Product Type: Supercharger Pulley Installation Tool Kit
- Application: Pressed-on Gen 1 supercharger drive pulley
- Drive: 1/2 inch drive breaker bar provision for counter-holding
- Documentation: Complete install manual
- Part Number: MS100025
Vehicle Compatibility: 8 applications across 1 make. Select a make to view.
Audi (8)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A6 | 3.0 TFSI | ||
| A7 | 3.0 TFSI | ||
| A8 | 3.0 TFSI | ||
| Q5 | 3.0 TFSI | ||
| Q7 | 3.0 TFSI | ||
| S4 | 3.0 TFSI | ||
| S5 | 3.0 TFSI | ||
| SQ5 | 3.0 TFSI |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
