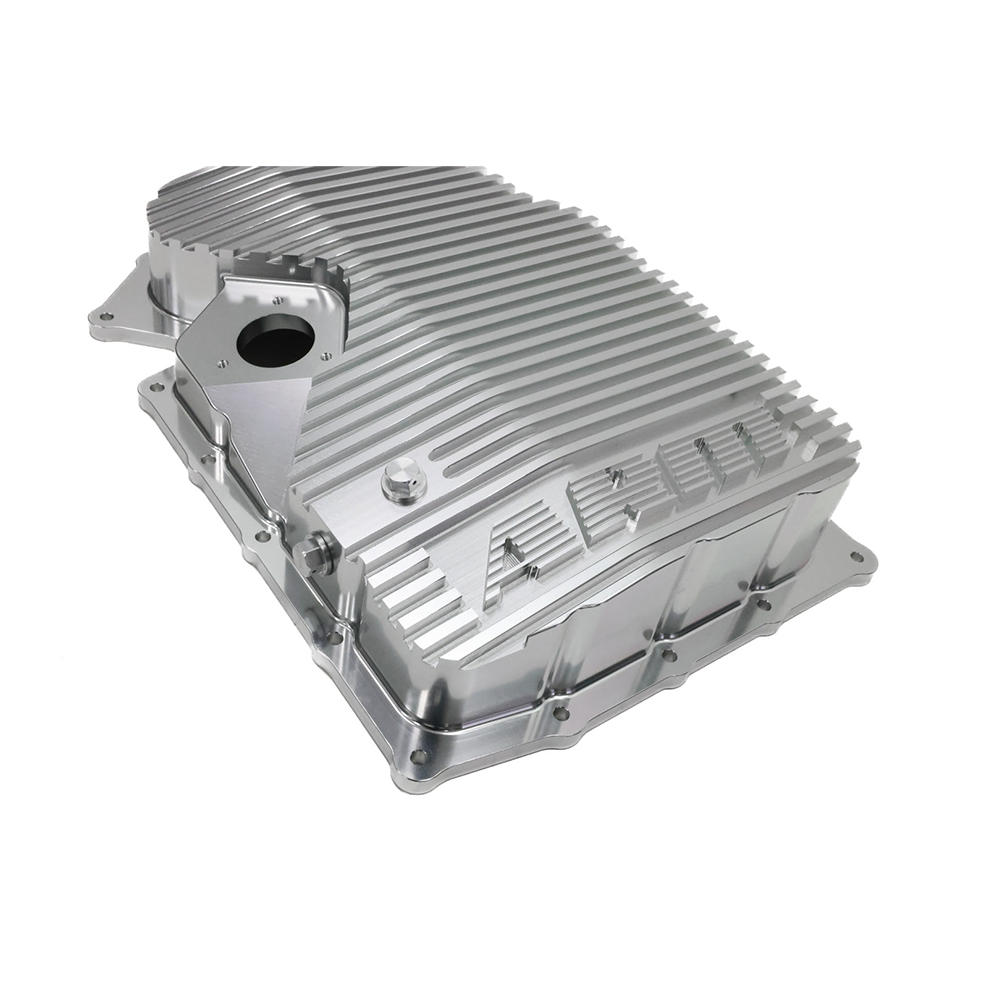

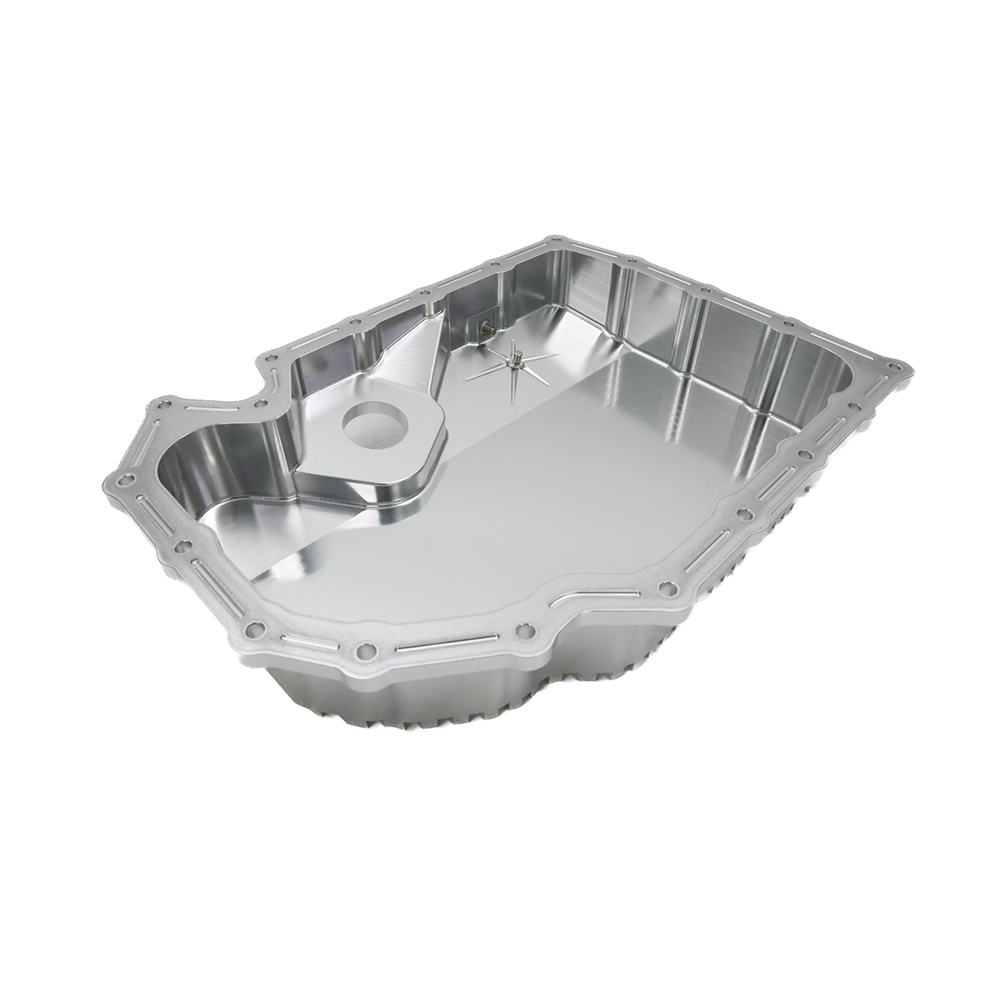

ARM Motorsports MQB Billet Oil Pan

The ARM Motorsports MQB Billet Oil Pan replaces the plastic OEM oil pan on MQB platform 2.0T Audi and Volkswagen models with a one-piece aluminium design. ARM says the factory pan has no baffling around the oil pickup, so long sweeping turns and hard acceleration can pull oil away from the pickup and risk oil starvation, and its pan keeps the pickup submerged. It is built from a single piece of T6061 aluminium with integrated cooling fins to promote rapid heat dissipation, and it has a six-channel drain port with a magnetic drain plug. ARM notes that the pan needs one additional quart of oil over the OEM pan, and three threaded studs and nuts allow the OEM oil level sensor to be reinstalled.

Features

• Replaces the plastic OEM oil pan
• Built from one solid piece of T6061 aluminium
• Integrated cooling fins for cooler oil
• Keeps the oil pickup submerged to avoid oil starvation, per ARM
• Six drain channels and a magnetic drain plug
• Three threaded studs and nuts to reinstall the OEM oil level sensor
• Requires one extra quart of oil over the OEM pan

Specifications

• Brand: ARM Motorsports
• Product Type: Billet Oil Pan
• Material: T6061 aluminium, one solid piece
• Cooling: Integrated cooling fins
• Drain: Six drain channels with magnetic drain plug
• Oil Level Sensor: OEM sensor reinstalls using three threaded studs and nuts
• Oil Capacity: Requires an additional quart of oil over the OEM pan
• Options: Available with or without an OE gasket
• Part Number: MK7OP, MK7OP + OE GASKET

Vehicle Compatibility: 8 applications across 2 makes. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
