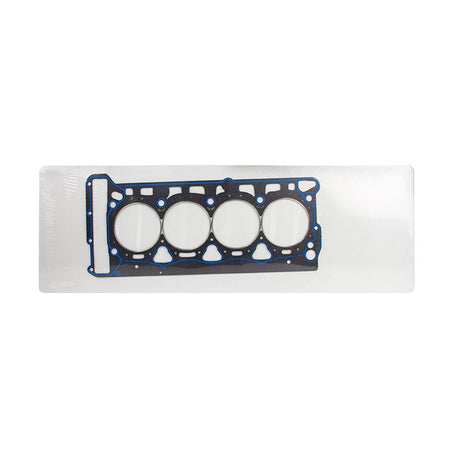

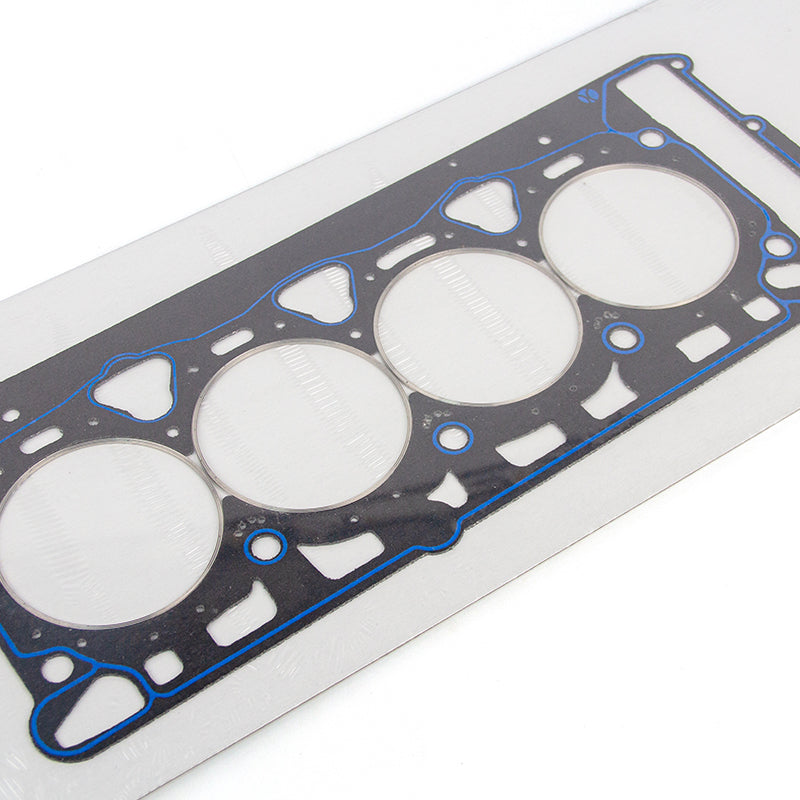

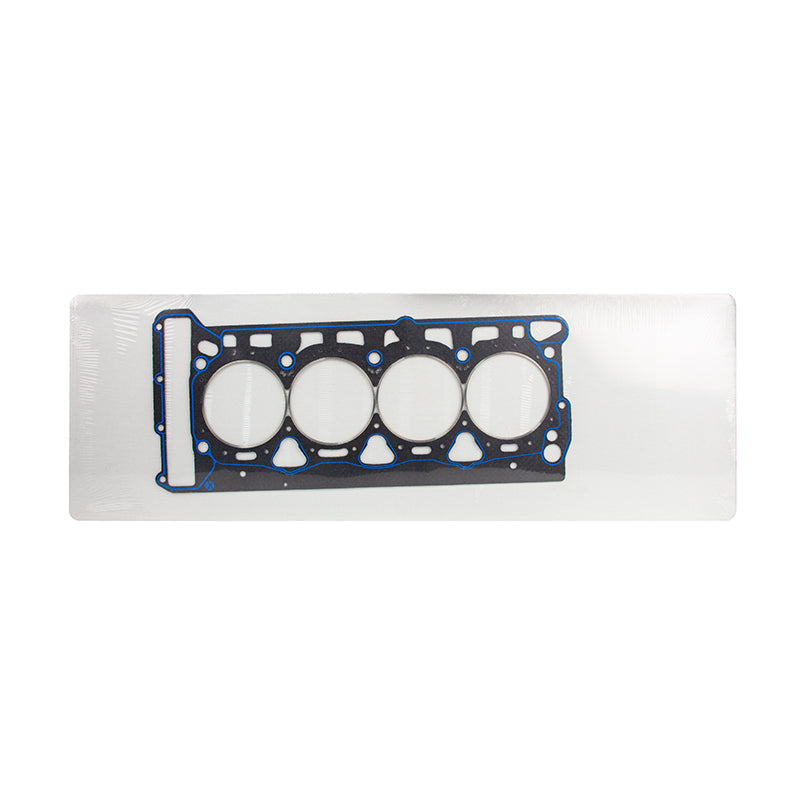

This cut ring racing head gasket from Athena is listed for 2.0 TSI EA888 Gen 1 and Gen 2 engines. It is 1.4mm thick with an 83.5mm bore, and the body is Motorgasket, a reinforced material with a steel core and two outer layers of asbestos-free aramid fibre. Separate AISI 304 stainless steel support rings, known as Cooper Rings, seal around the cylinder bores so the block does not need irreversible modification for ring seats. Athena says this holds compression on applications such as NOS or turbos running more than 2 bar of boost.
Features
- Cut Ring design with separate recessed Cooper Rings
- No irreversible block modification for ring seats
- Motorgasket body: steel core with two aramid fibre layers
- Asbestos-free construction
- AISI 304 stainless steel support rings
- Silicone bead on oil and coolant passages
- 1.4mm thick with an 83.5mm bore
Specifications
- Brand: JDY Performance
- Product Type: Head Gasket
- Manufacturer: Athena
- Style: Cut ring racing head gasket
- Thickness: 1.4mm
- Bore: 83.5mm
- Body: Motorgasket, steel core with two layers of asbestos-free aramid fibre
- Support Rings: AISI 304 stainless steel
- Sealing: Silicone bead at oil and coolant passages
- Part Number: 330147R
Vehicle Compatibility: Suits EA888 Gen 1 and Gen 2 2.0 TSI engines; check your engine code before ordering.
Images shown are generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
