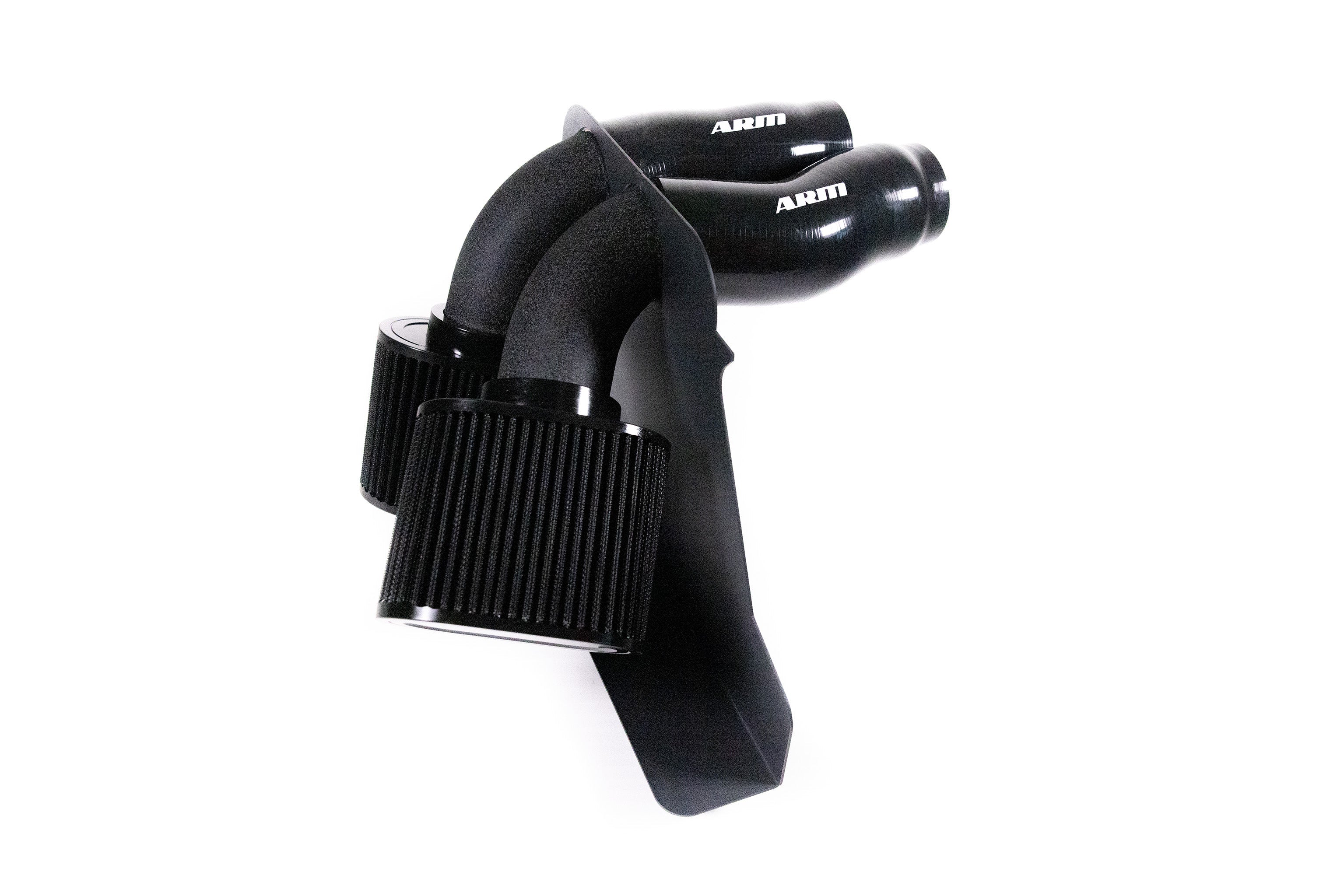

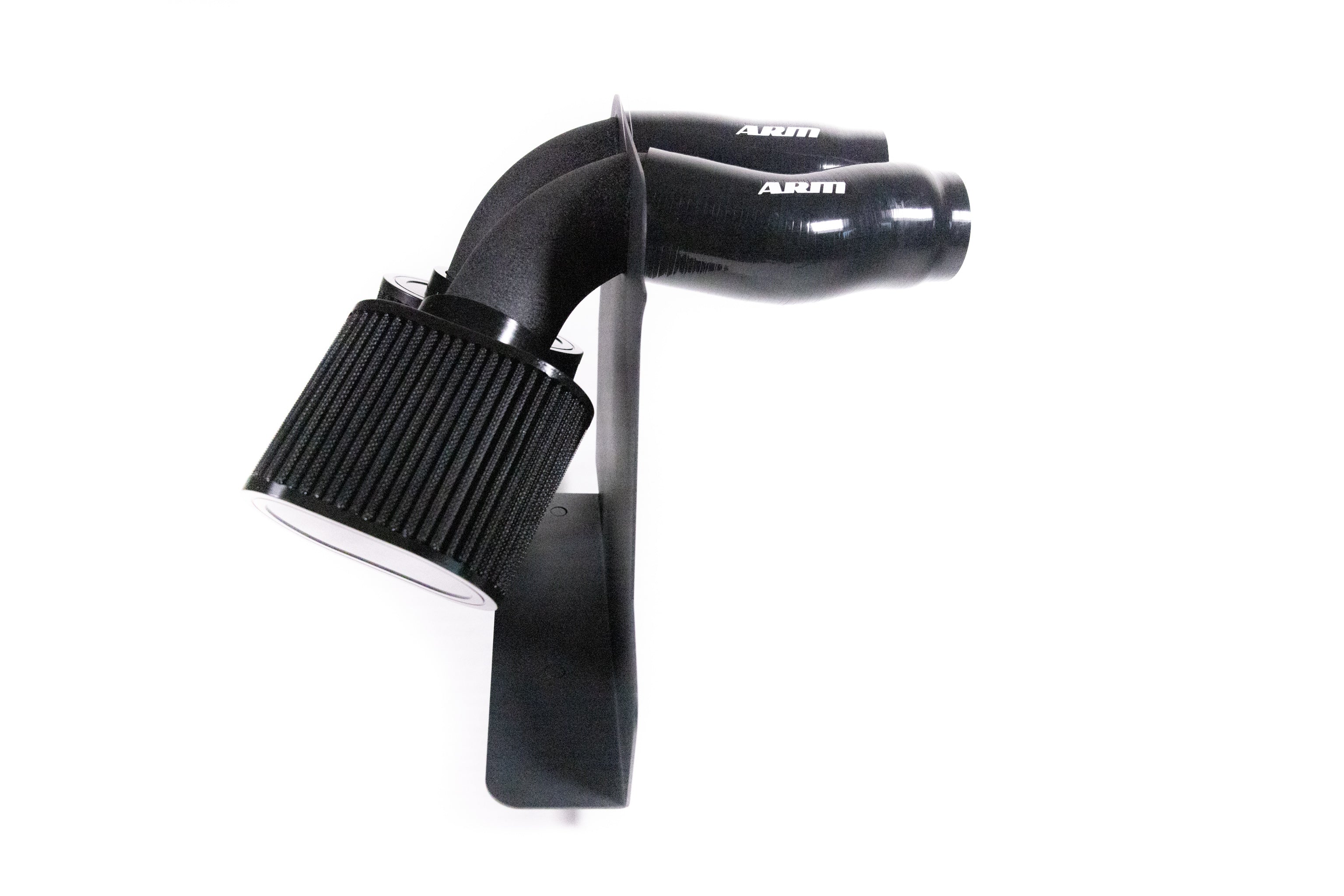

The ARM Motorsports Audi 4.0T Intake is a dry-filter intake kit for the C7 and C7.5 Audi S6, S7 and RS7 with the 4.0T V8, designed to improve airflow to the turbochargers. It uses two dry media filters with 136 cubic inches of total filter area, chosen over oiled filters that ARM says can damage the MAF sensors, connected to T6061 aluminium intake runner pipes measuring 70mm, which is 55% larger than the plastic 45mm OEM runners. The runners transition to 6-layer reinforced silicone couplers, with OEM inlet couplers or RS inlet couplers selected to suit the car's inlets. ARM says the intake must be paired with upgraded inlets to meet the requirements of Stage 2 and higher tunes, and it offers its own inlets and a heat shield as options.
Features

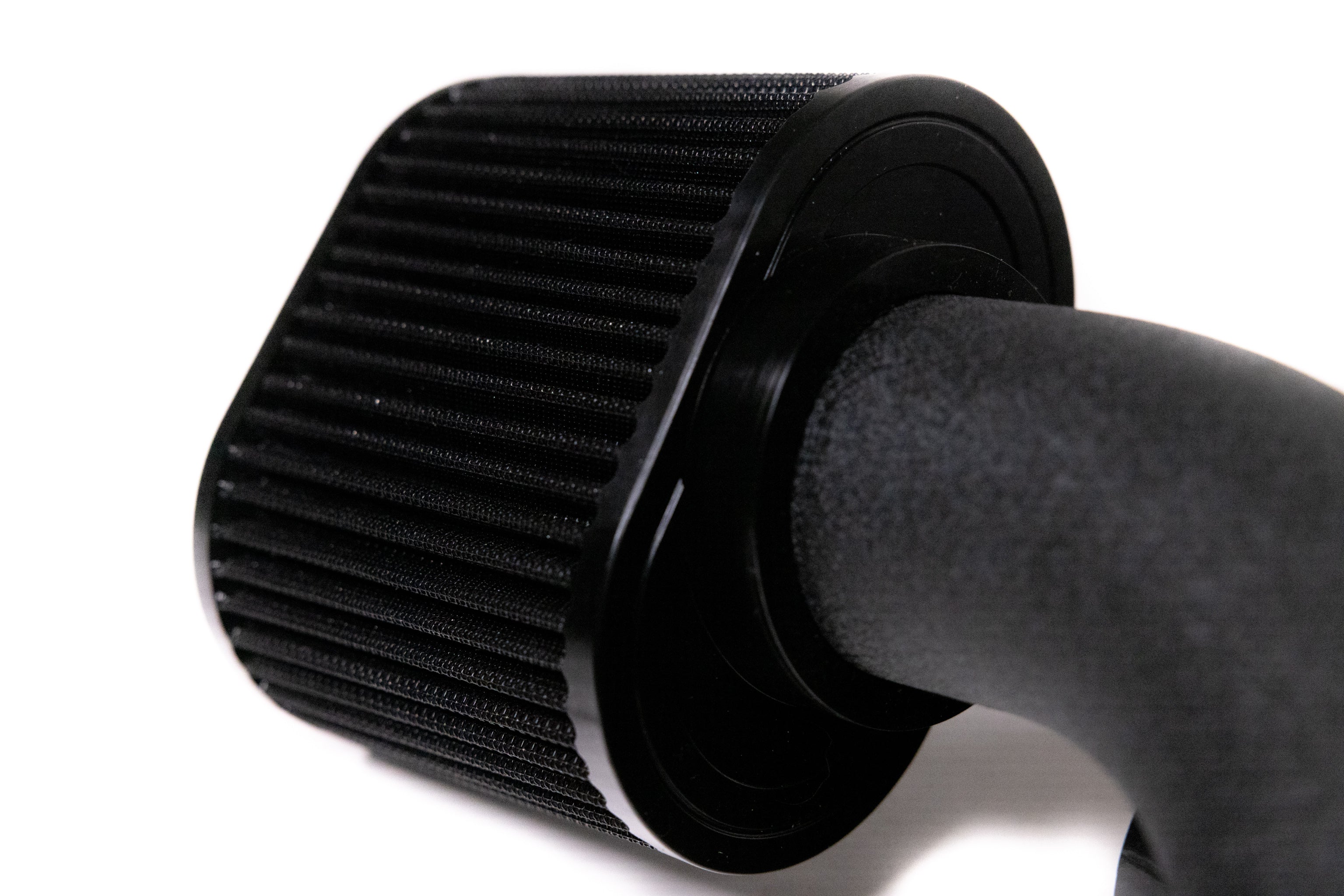

- Two dry media filters, 136 cubic inches of total filter area

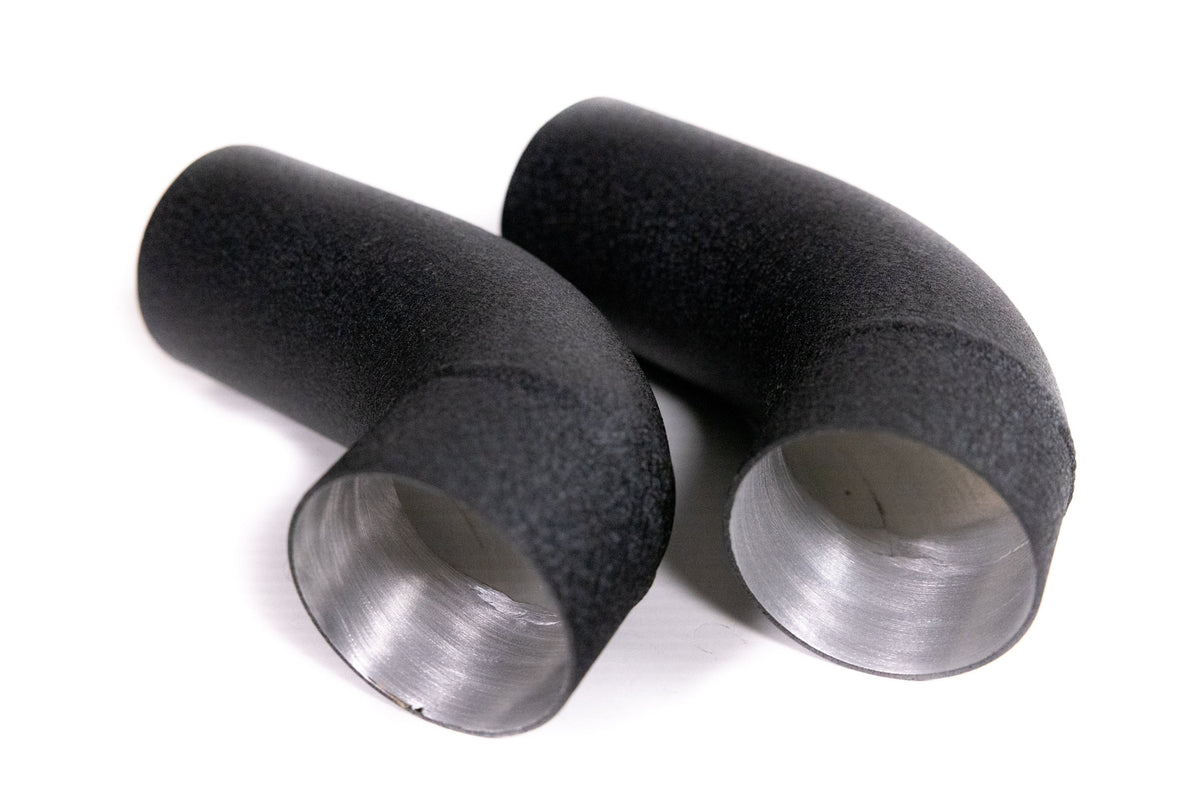

- T6061 aluminium intake runner pipes, 70mm

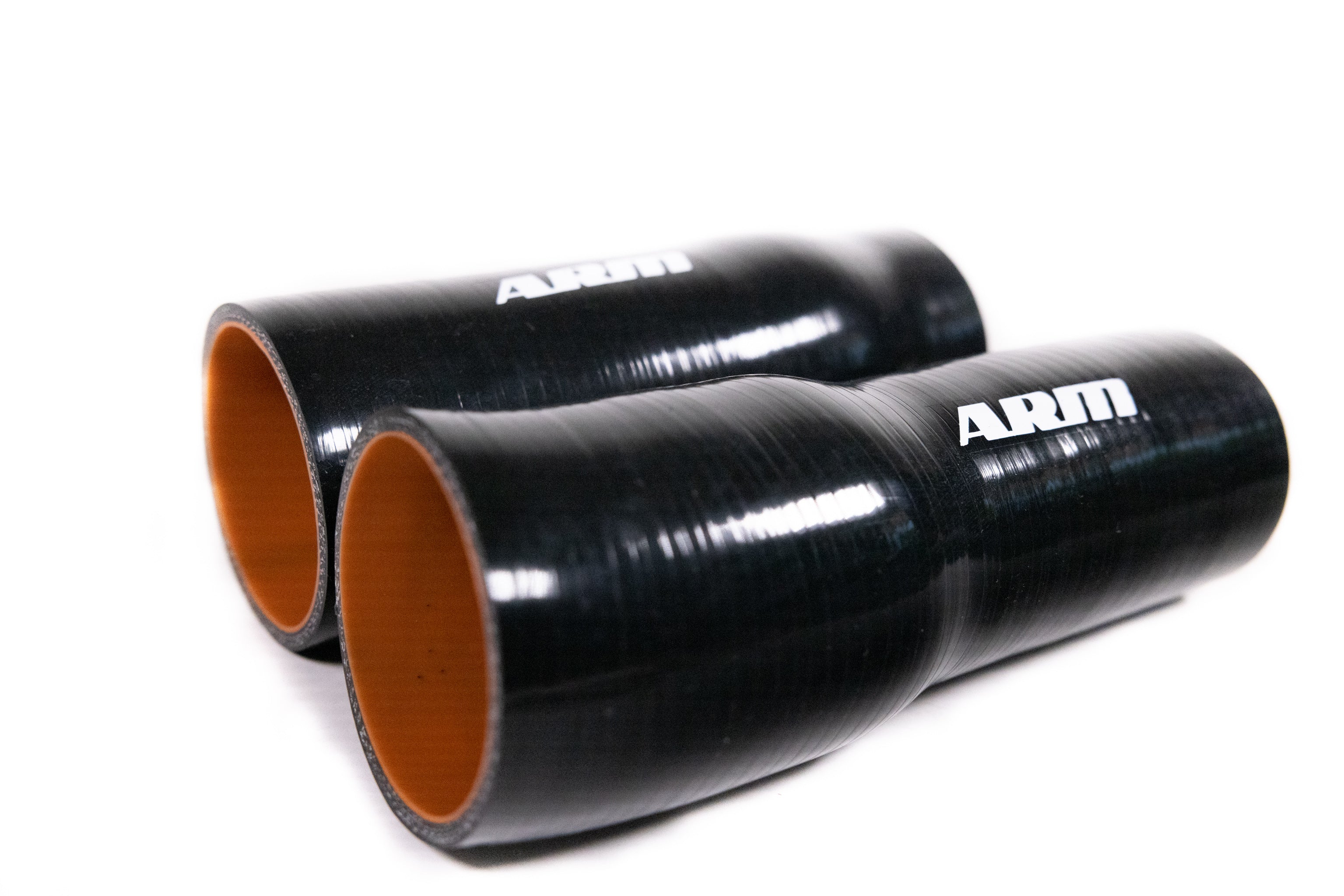

- 6-layer reinforced silicone couplers
- OEM or RS inlet couplers to suit the car's inlets

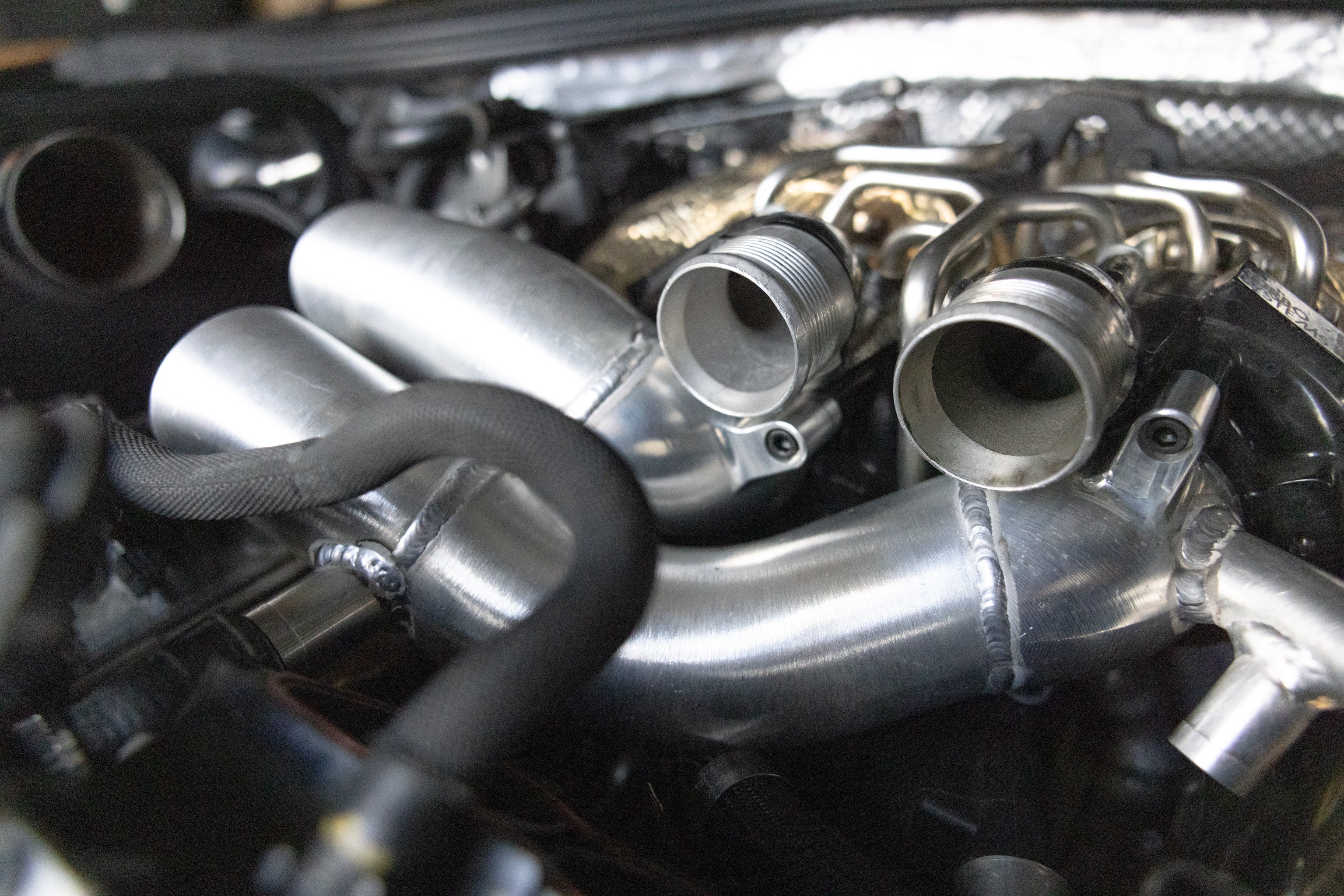

- Optional ARM 4.0T Inlets for a full intake upgrade

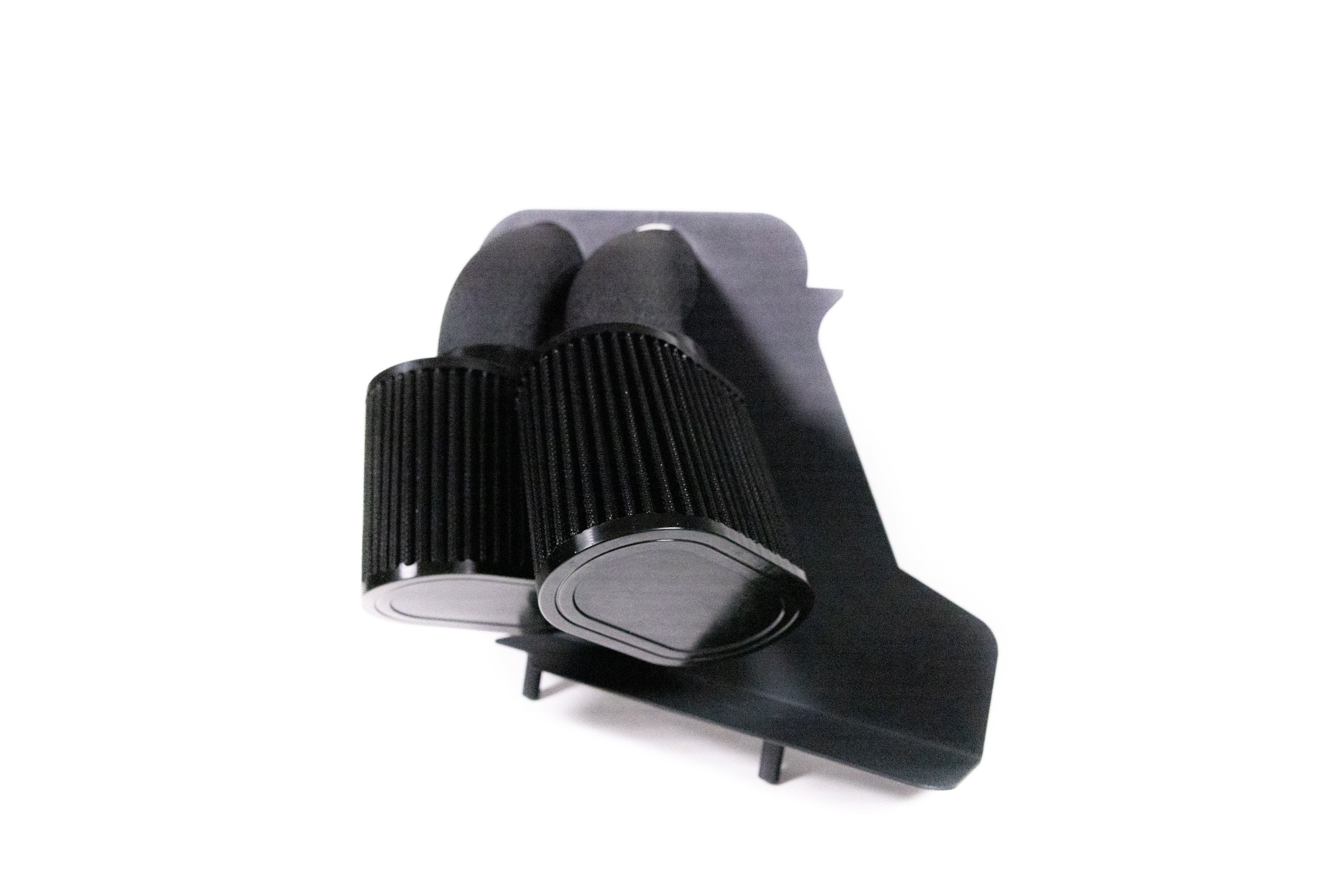

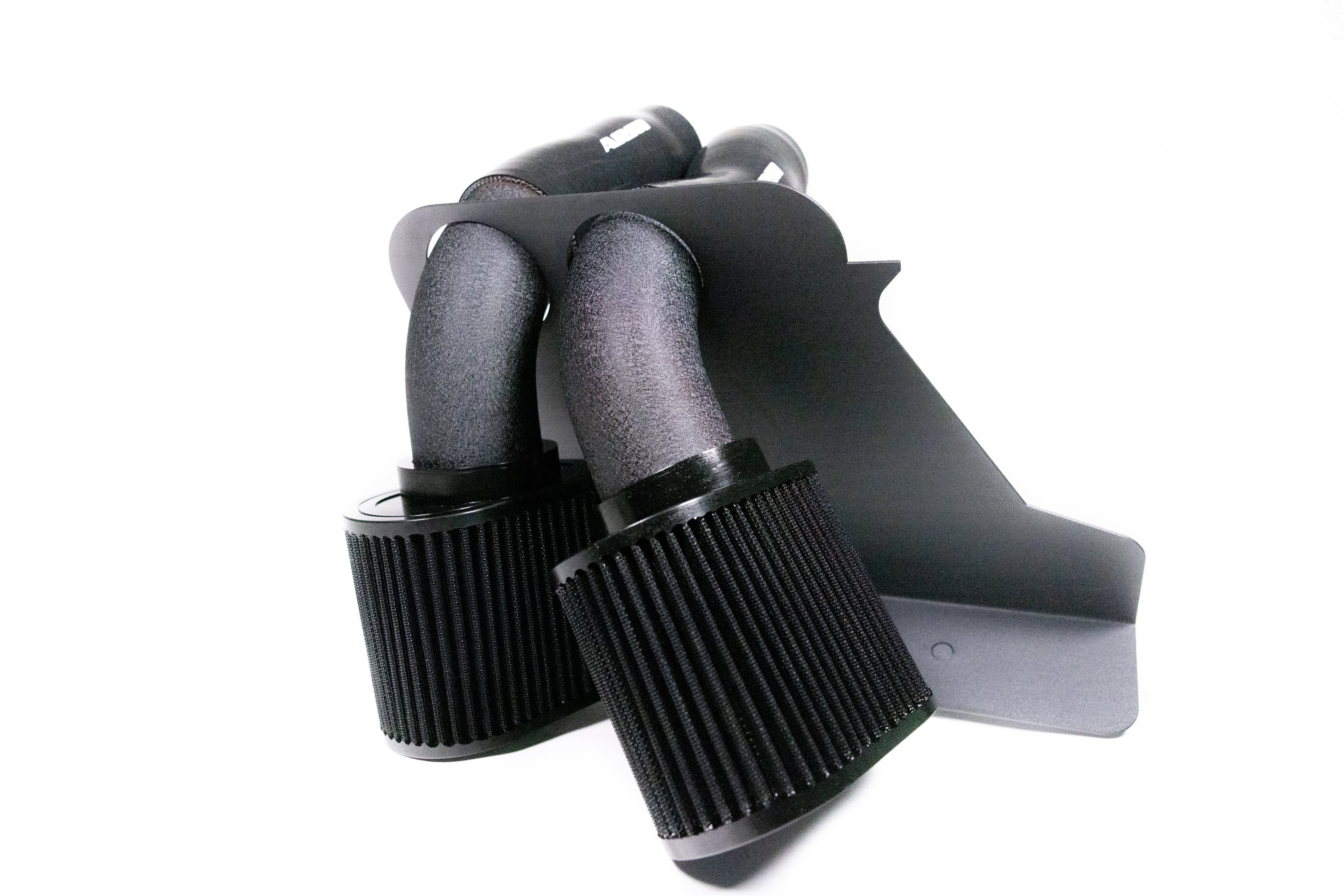

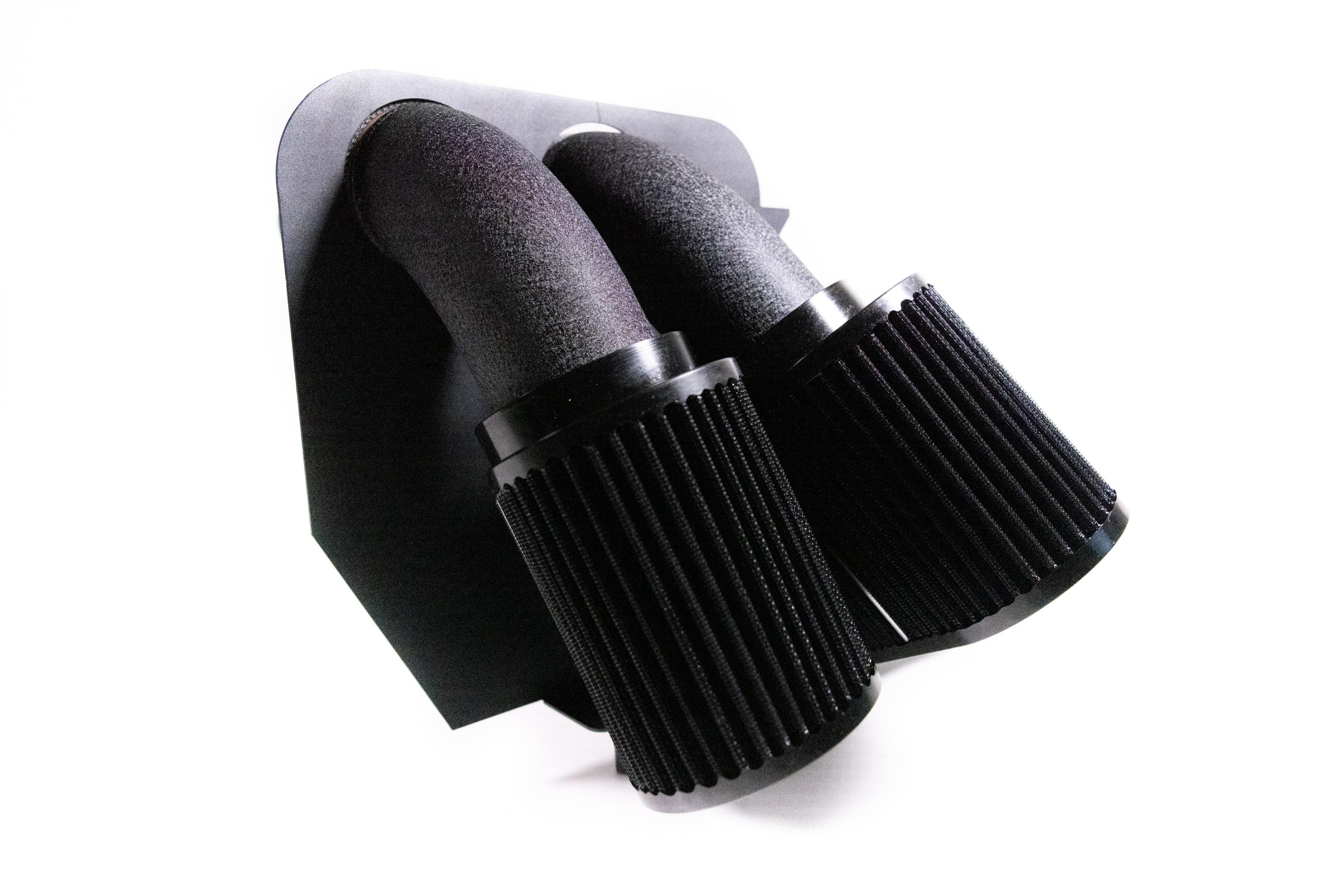

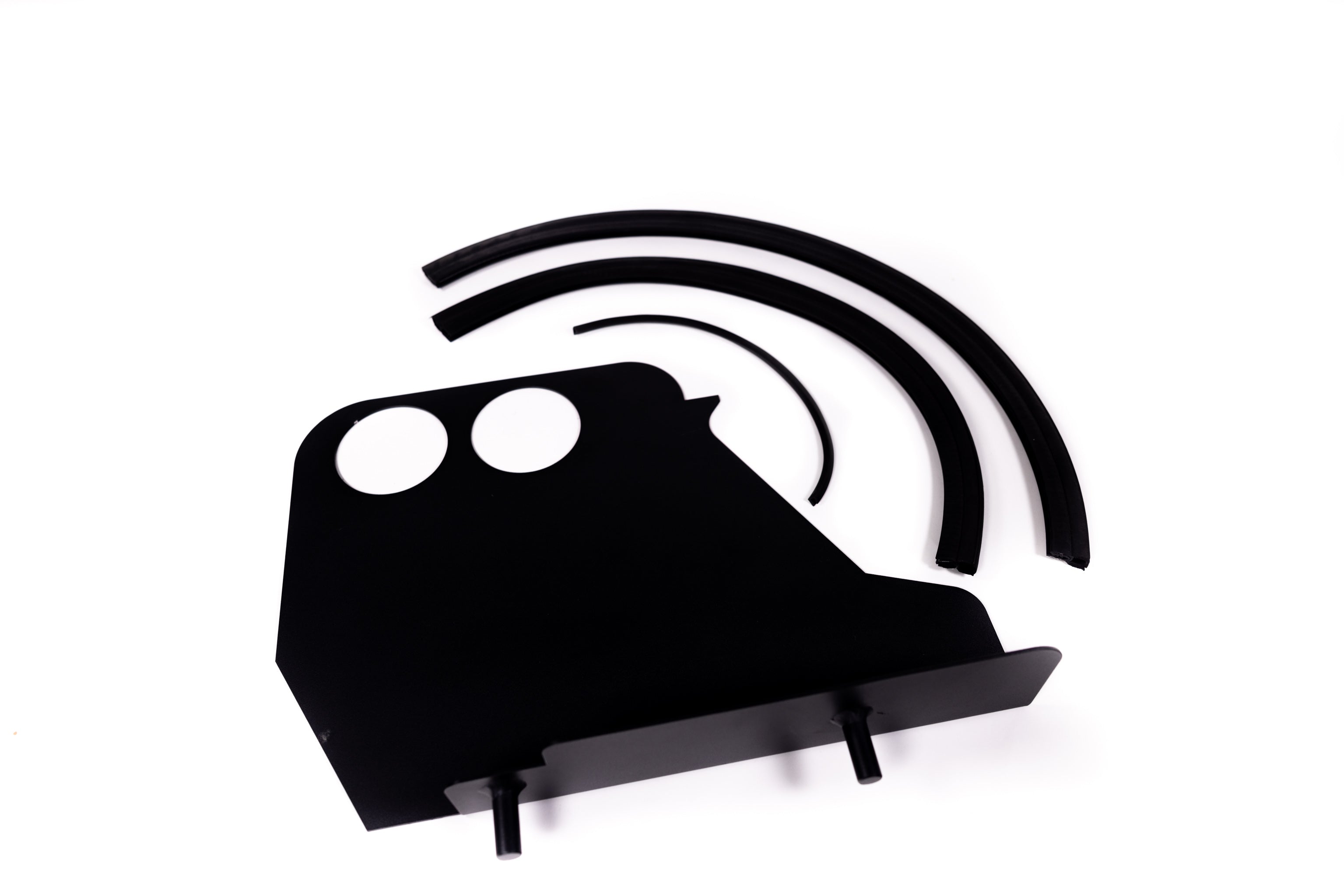

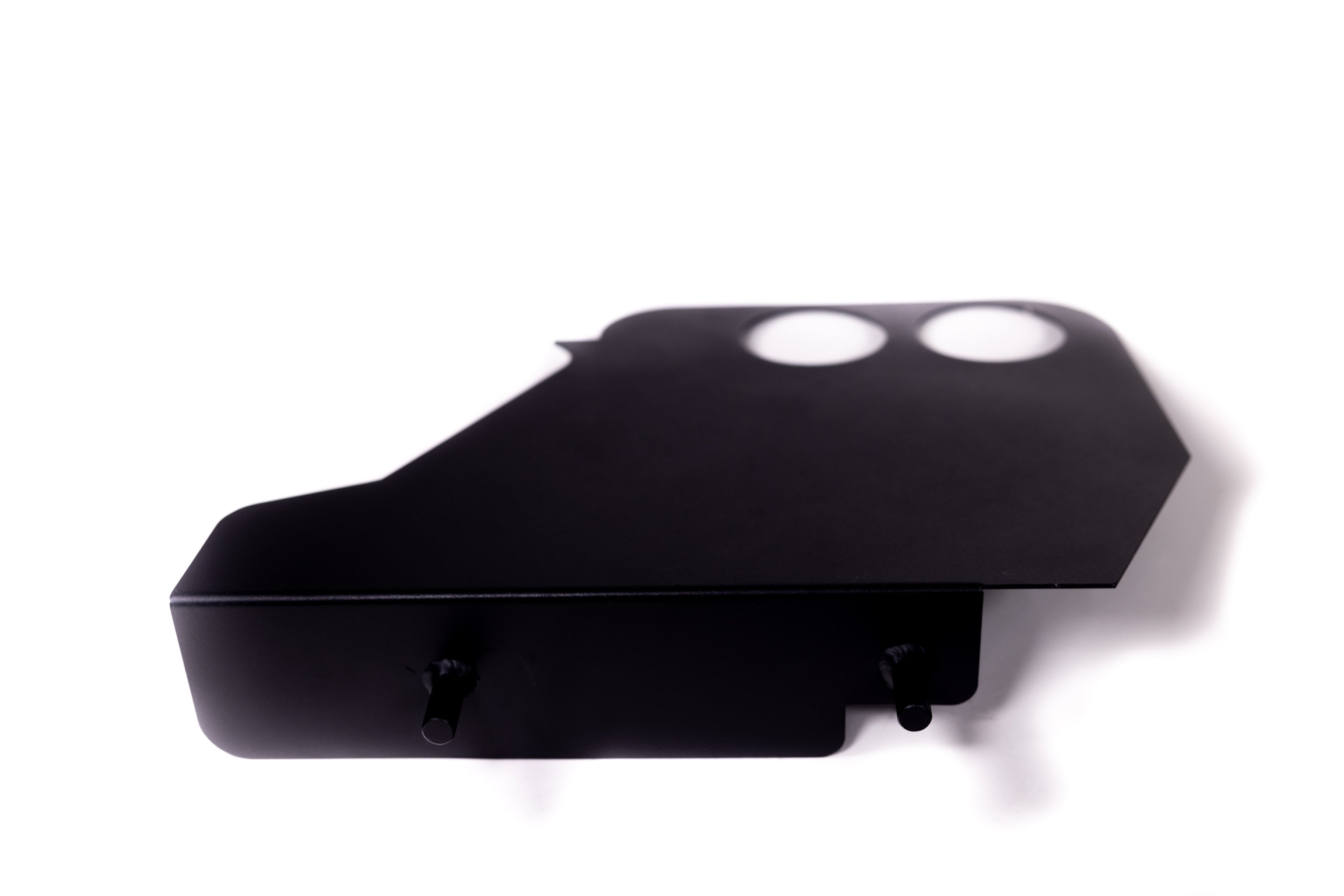

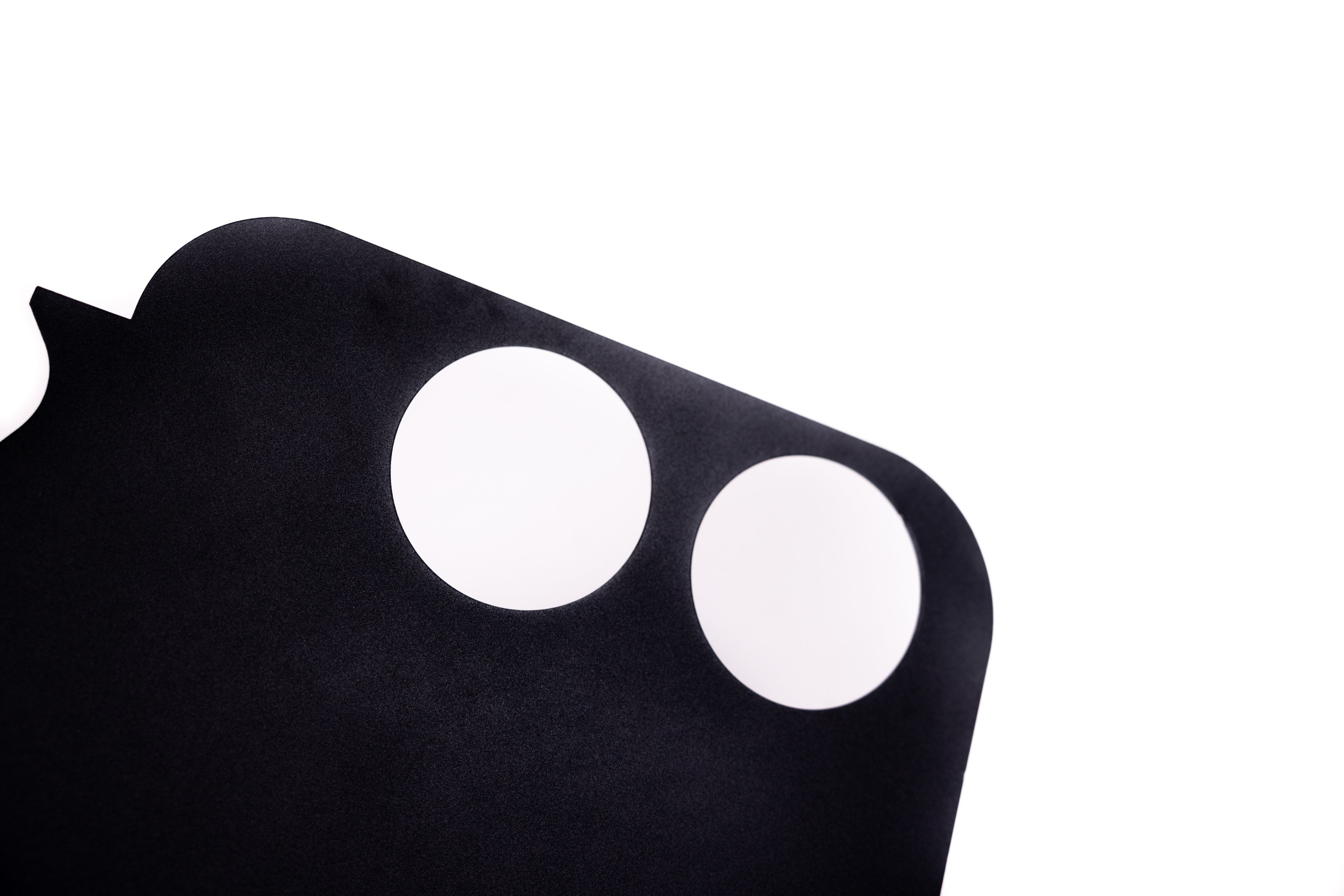

- Optional aluminium heat shield for cooler intake air
- No cutting or trimming, 30 minute installation per ARM
Specifications
- Brand: ARM Motorsports
- Product Type: Intake System

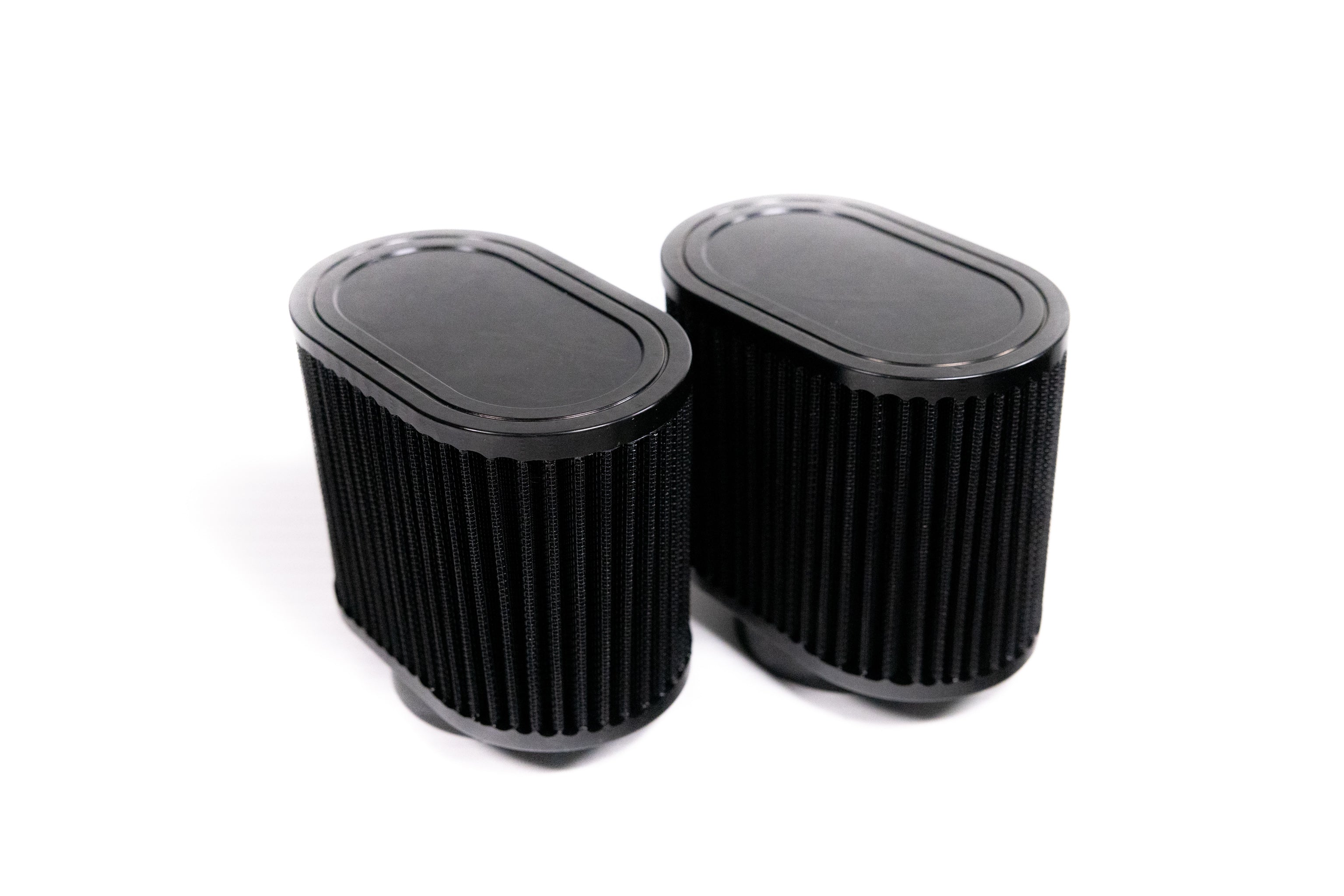

- Filters: Two dry media filters, 68 cubic inches each (136 total)

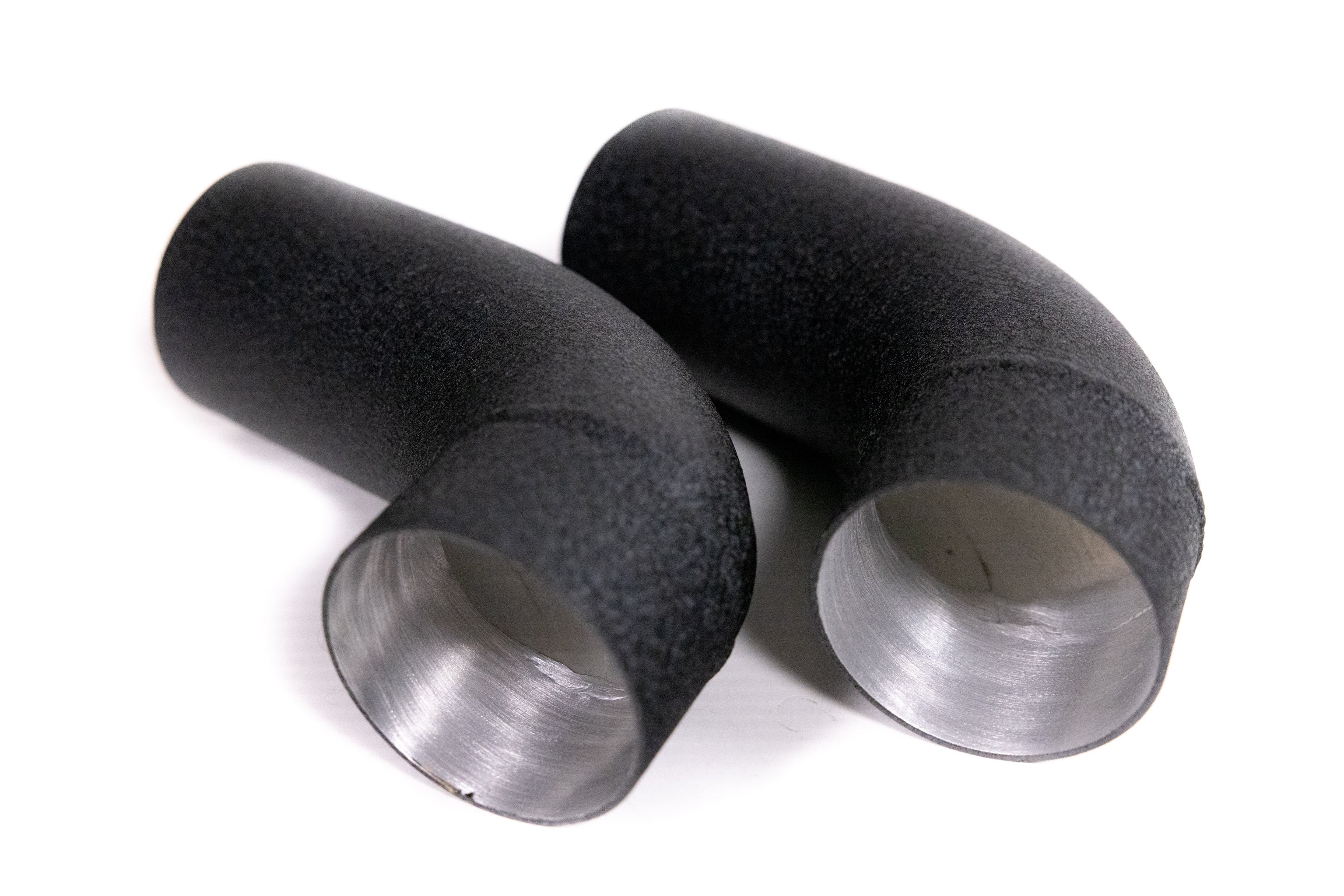

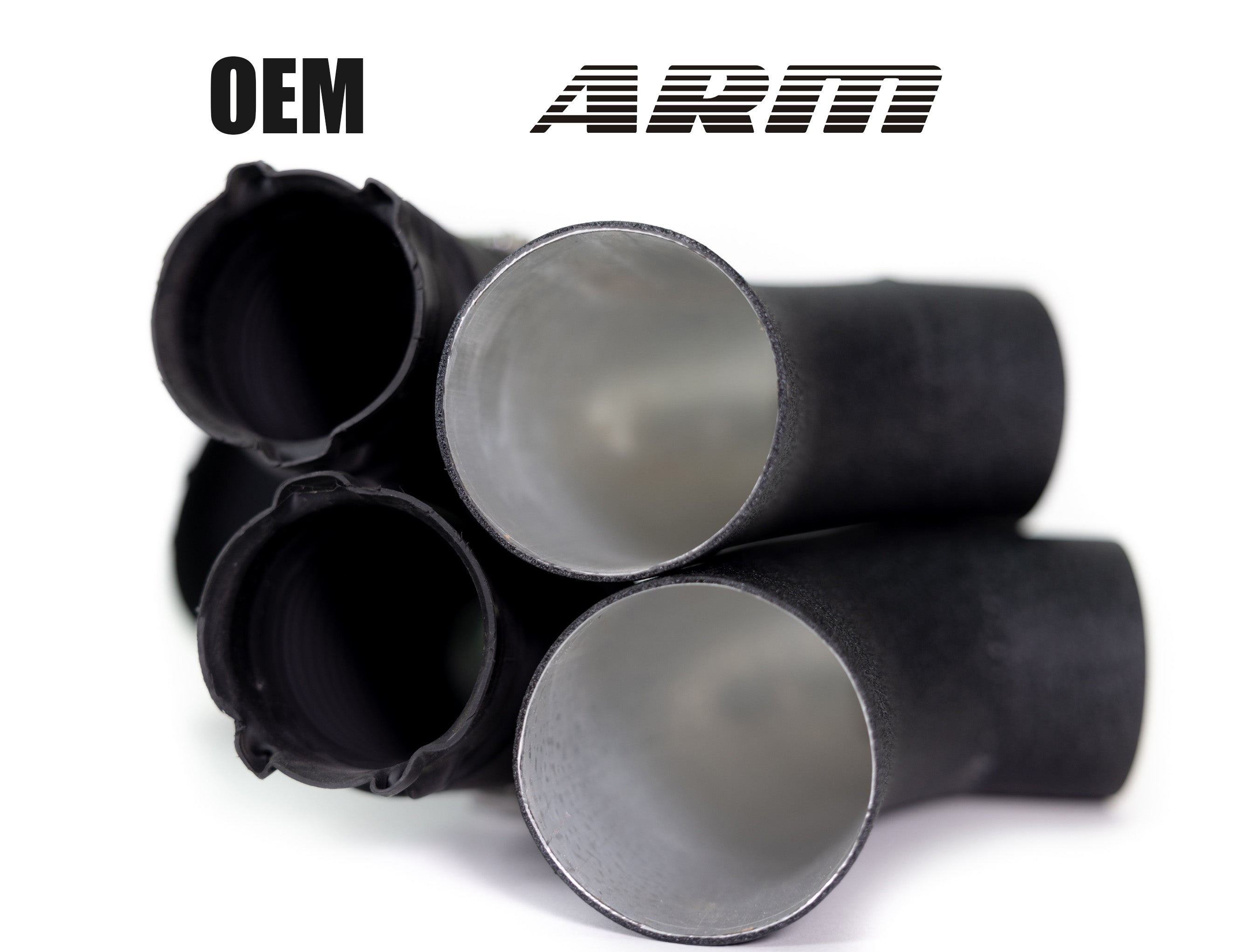

- Intake Runner Pipes: T6061 aluminium, 70mm (OEM plastic runners are 45mm)

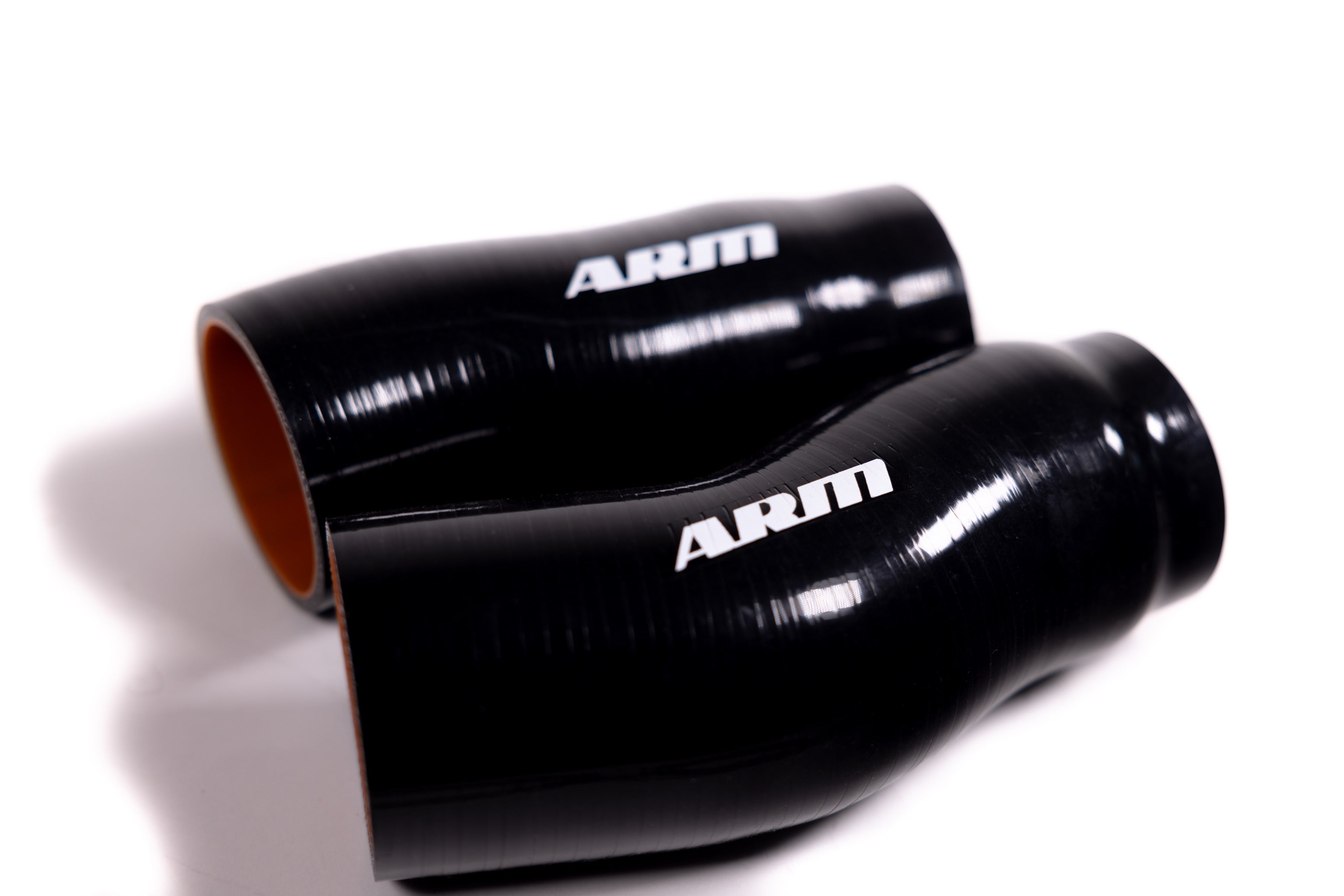

- Couplers: 6-layer reinforced silicone; OEM inlet couplers (70mm to 55mm) or RS inlet couplers (70mm to 66mm)
- Options: ARM 4.0T Inlets (supplied with their own couplers) and aluminium heat shield

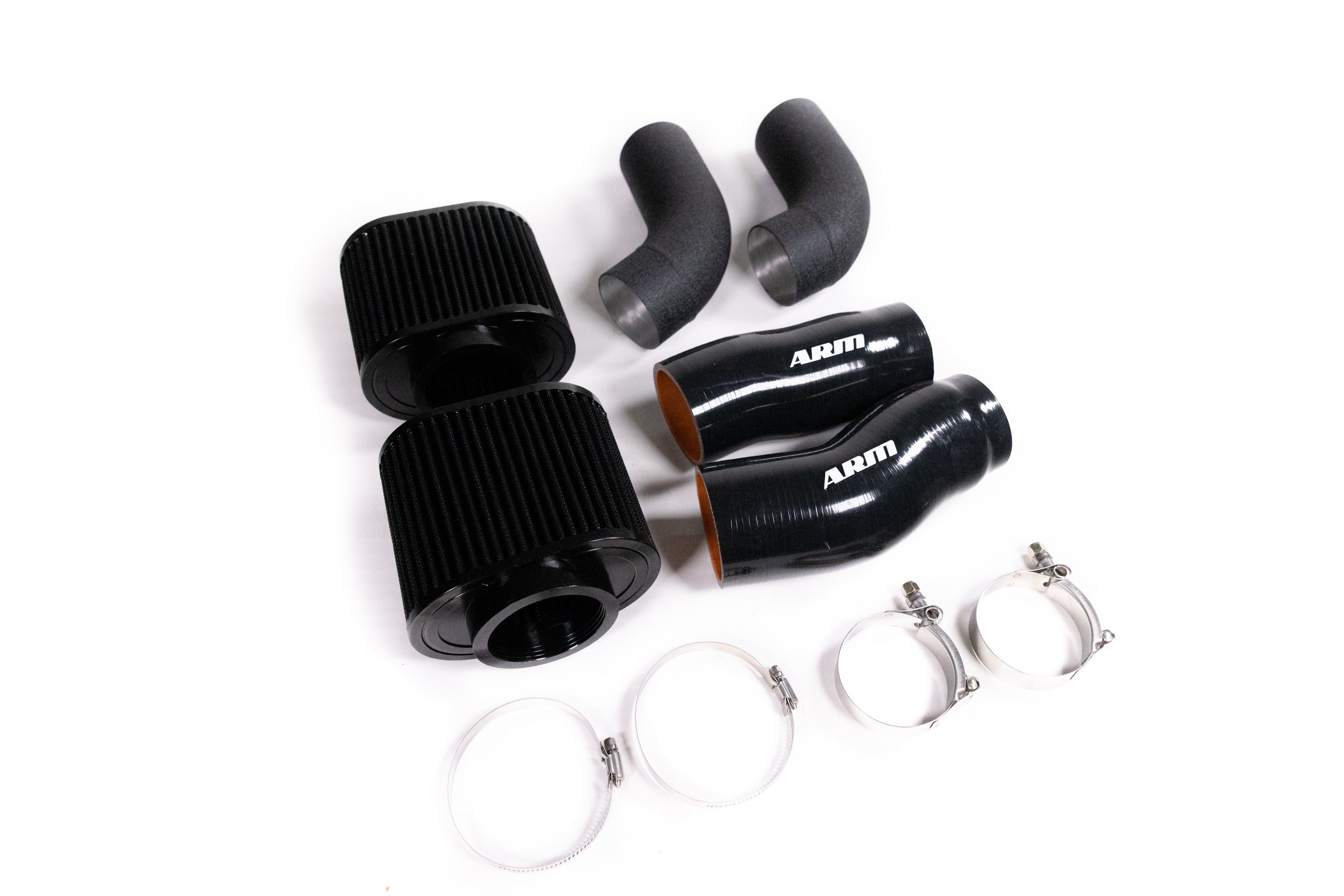

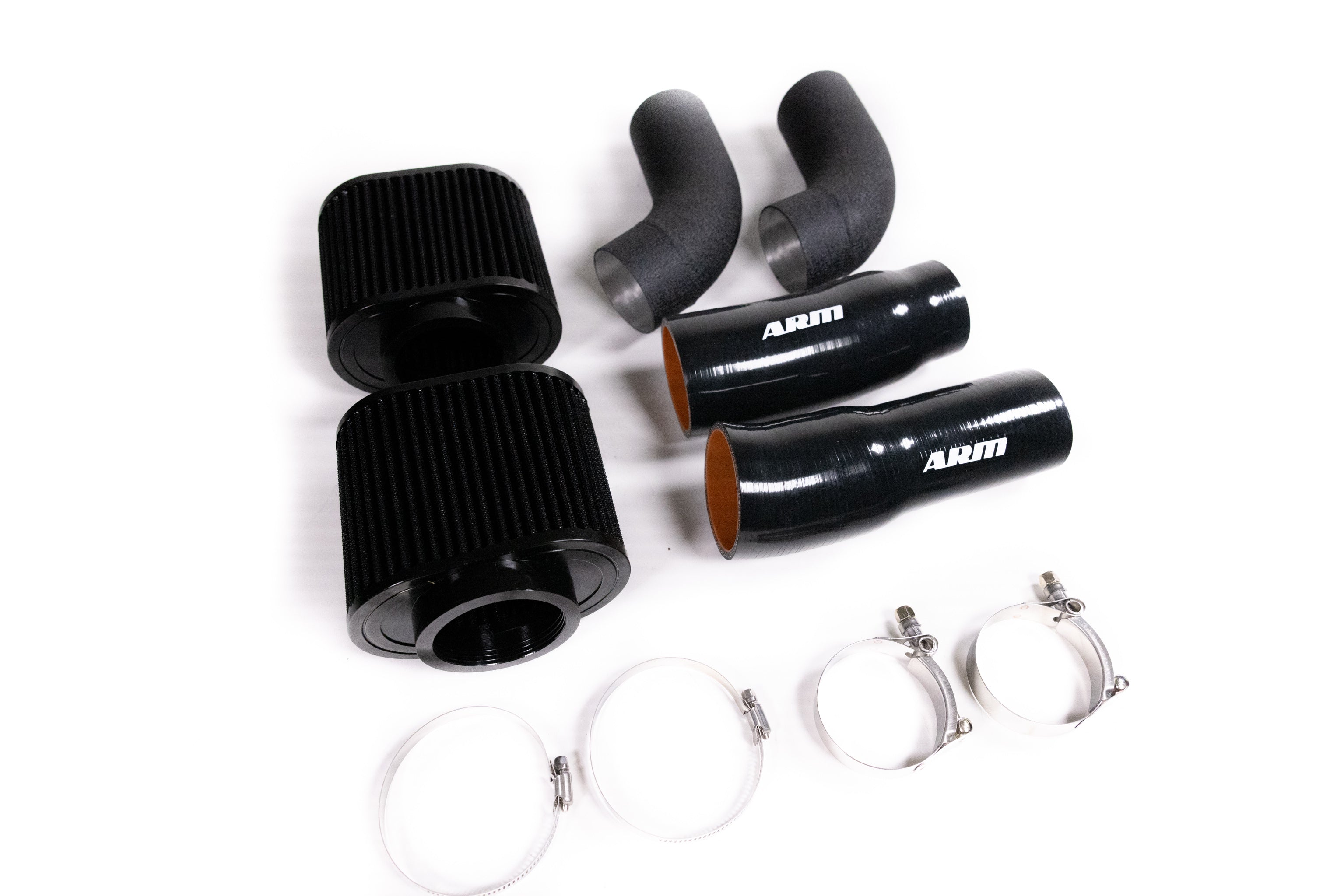

- Included: 2 dry filters, 2 intake pipes, 2 silicone couplers, 4 T-bolt clamps, 2 worm clamps; heat shield and inlets are optional
- Installation: No cutting or trimming; ARM quotes 30 minutes
- Warranty: Lifetime warranty (per ARM Motorsports)
- Part Number: 40TDCI
Vehicle Compatibility: 3 applications across 1 make. Select a make to view.
Audi (3)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| S6 | C7/C7.5 | 4.0T | OEM inlet couplers with OEM inlets; RS inlet couplers with RS inlets | |
| S7 | C7/C7.5 | 4.0T | OEM inlet couplers with OEM inlets; RS inlet couplers with RS inlets | |
| RS7 | C7/C7.5 | 4.0T | RS inlet couplers with the OEM RS7 inlets |
