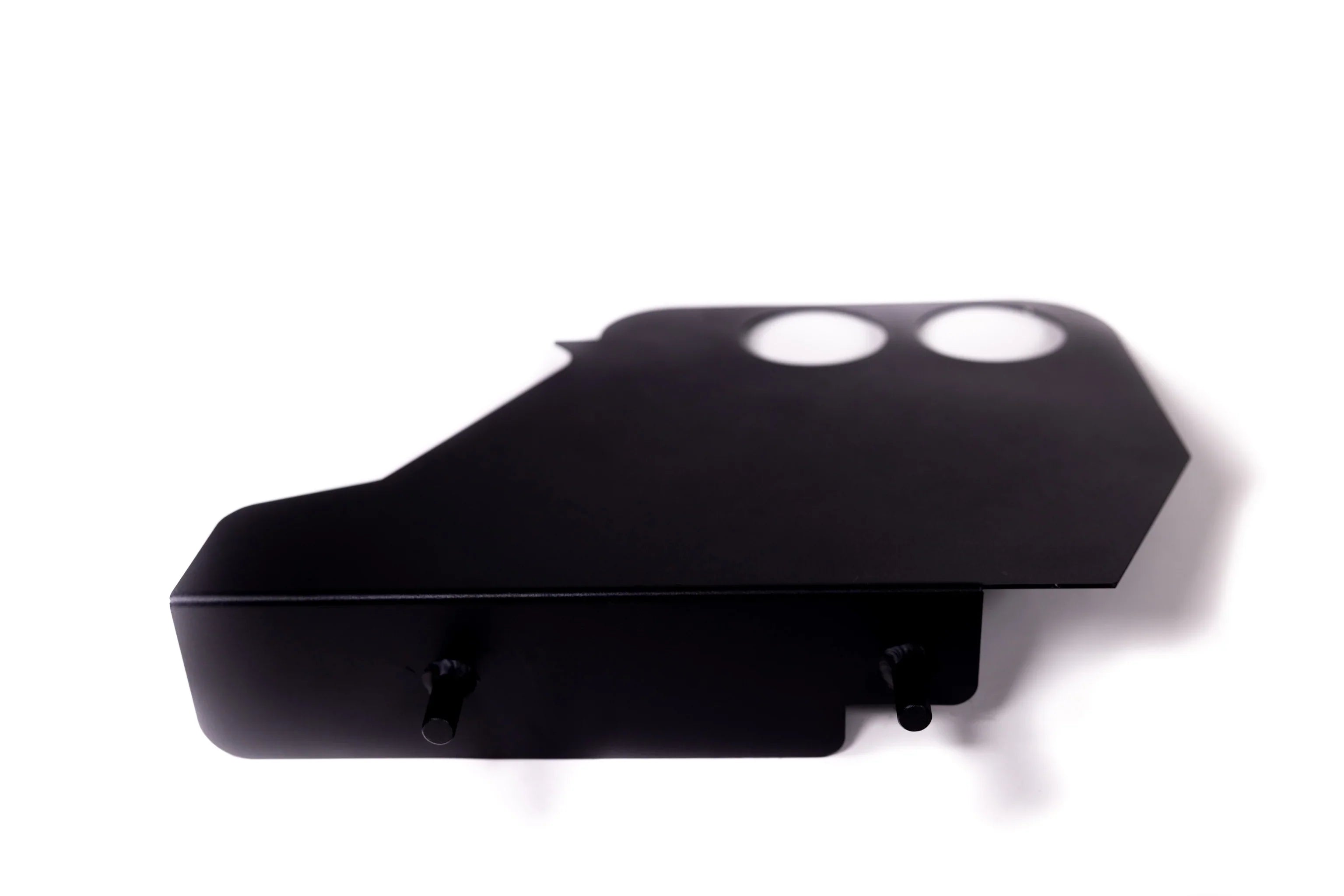

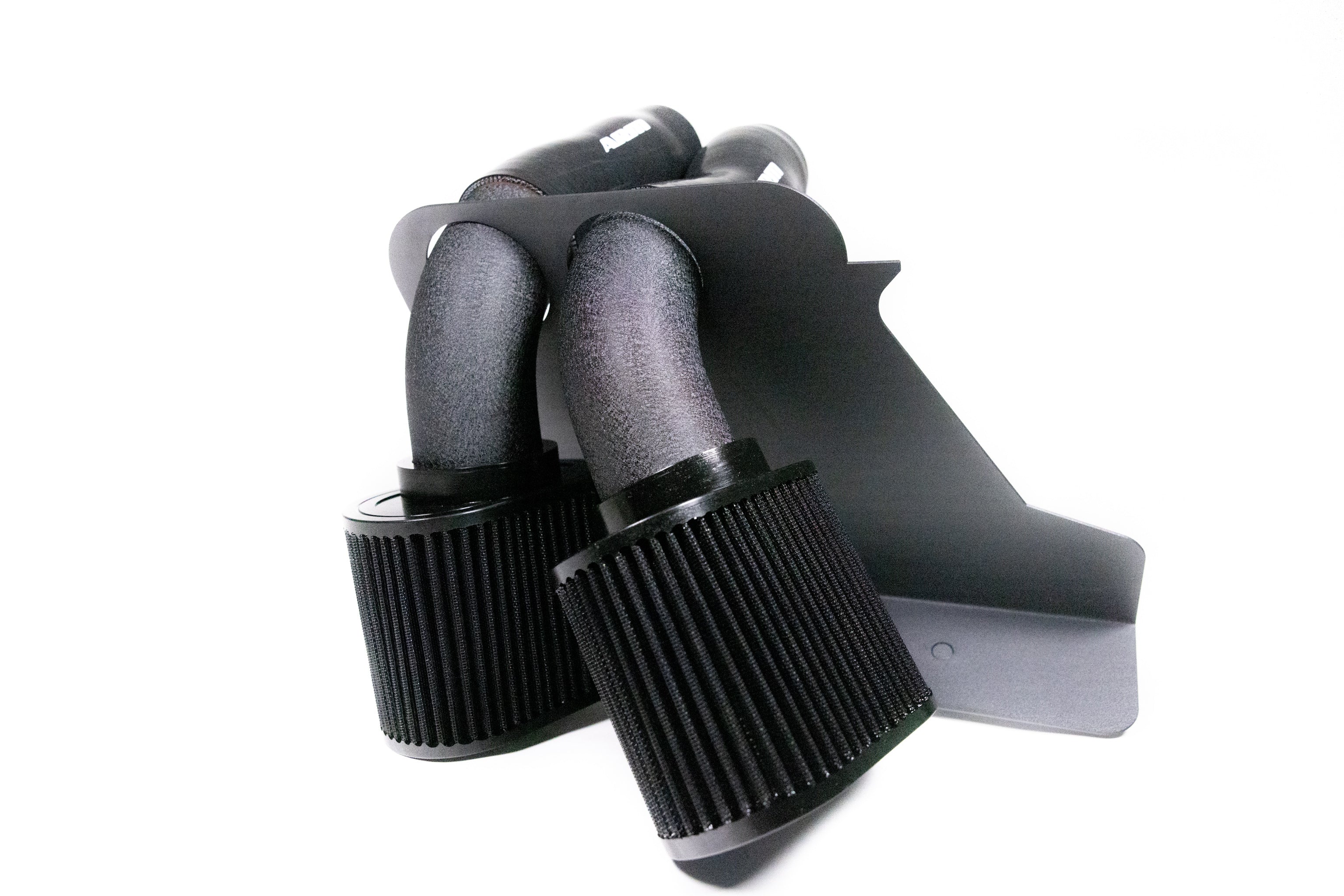

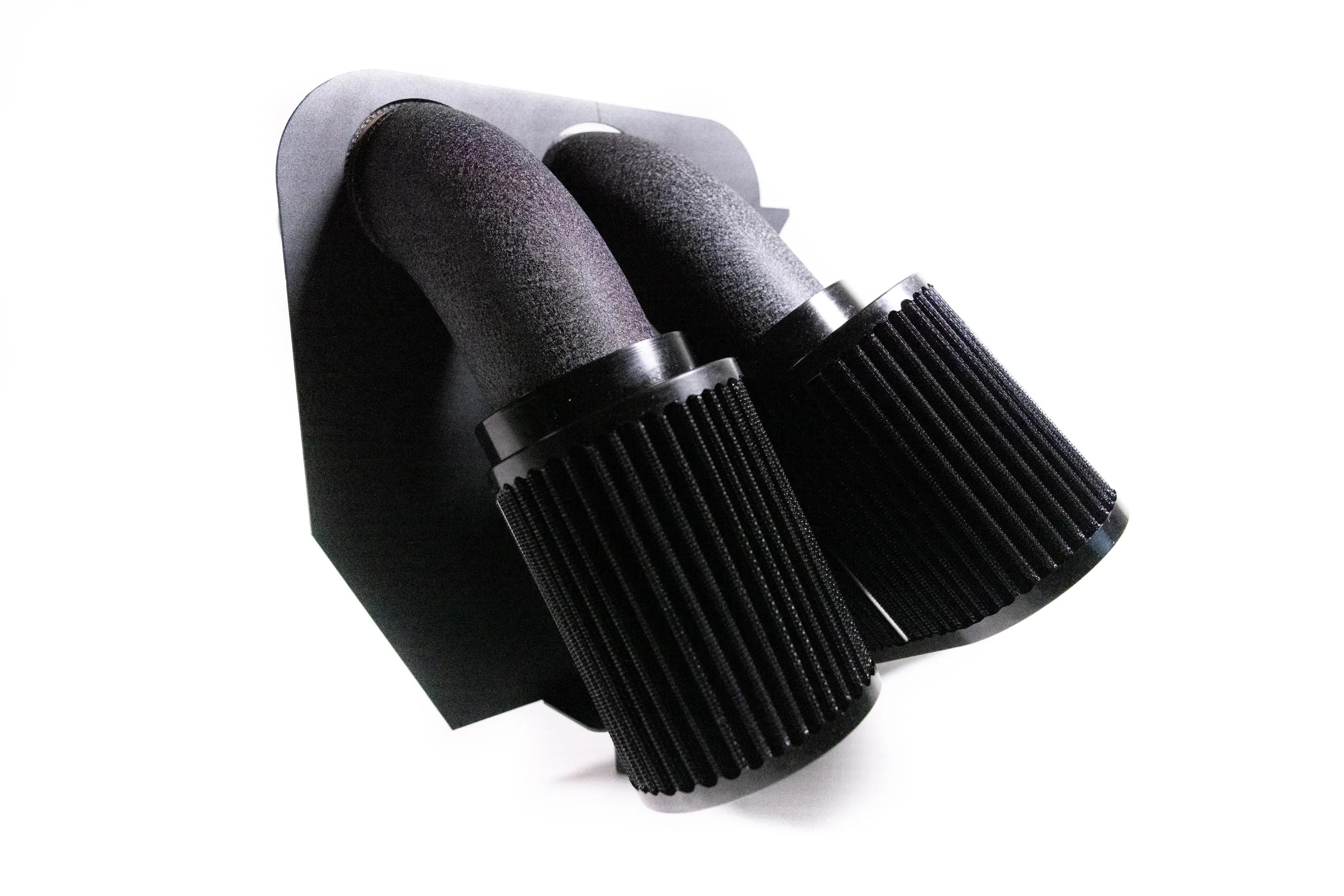

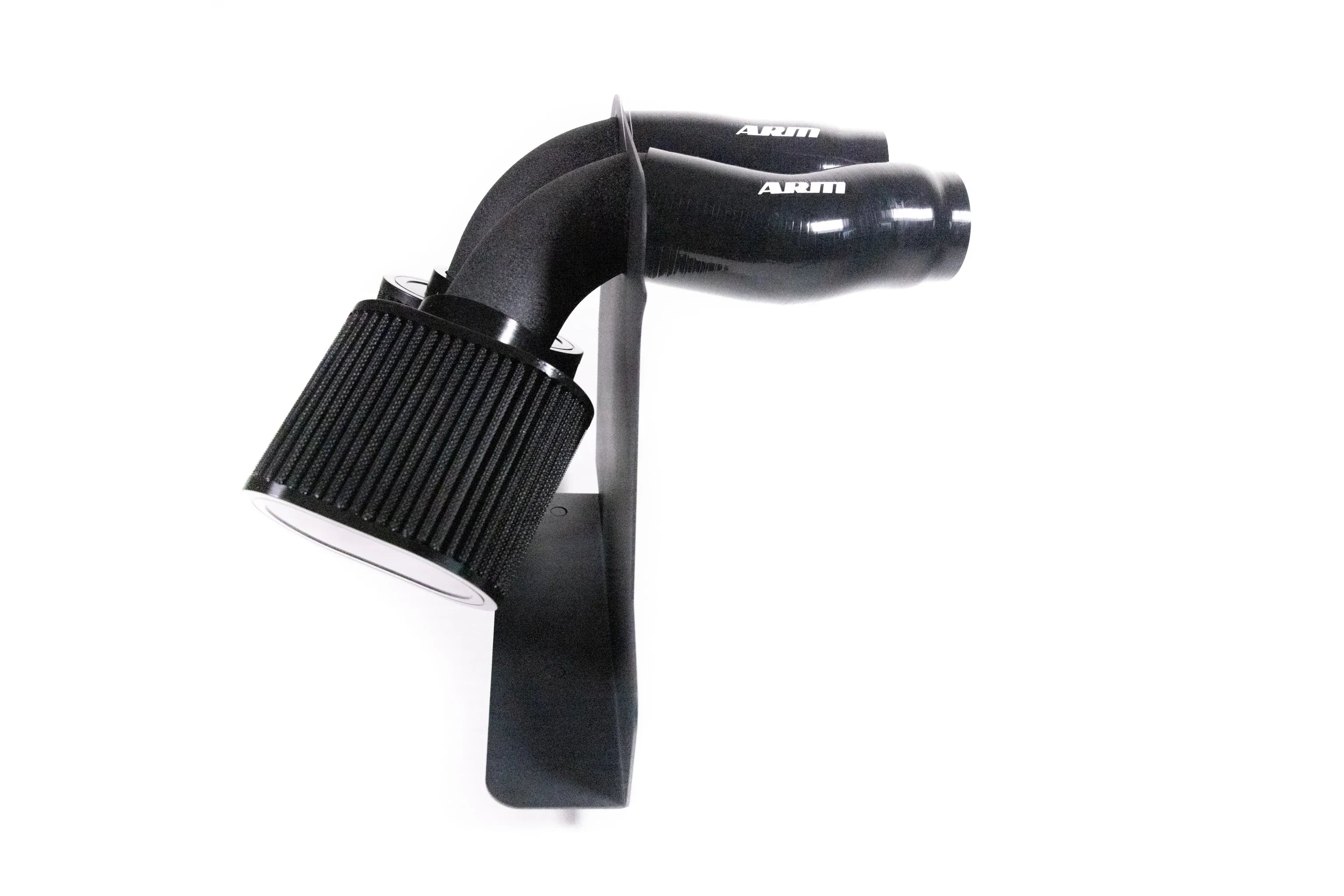

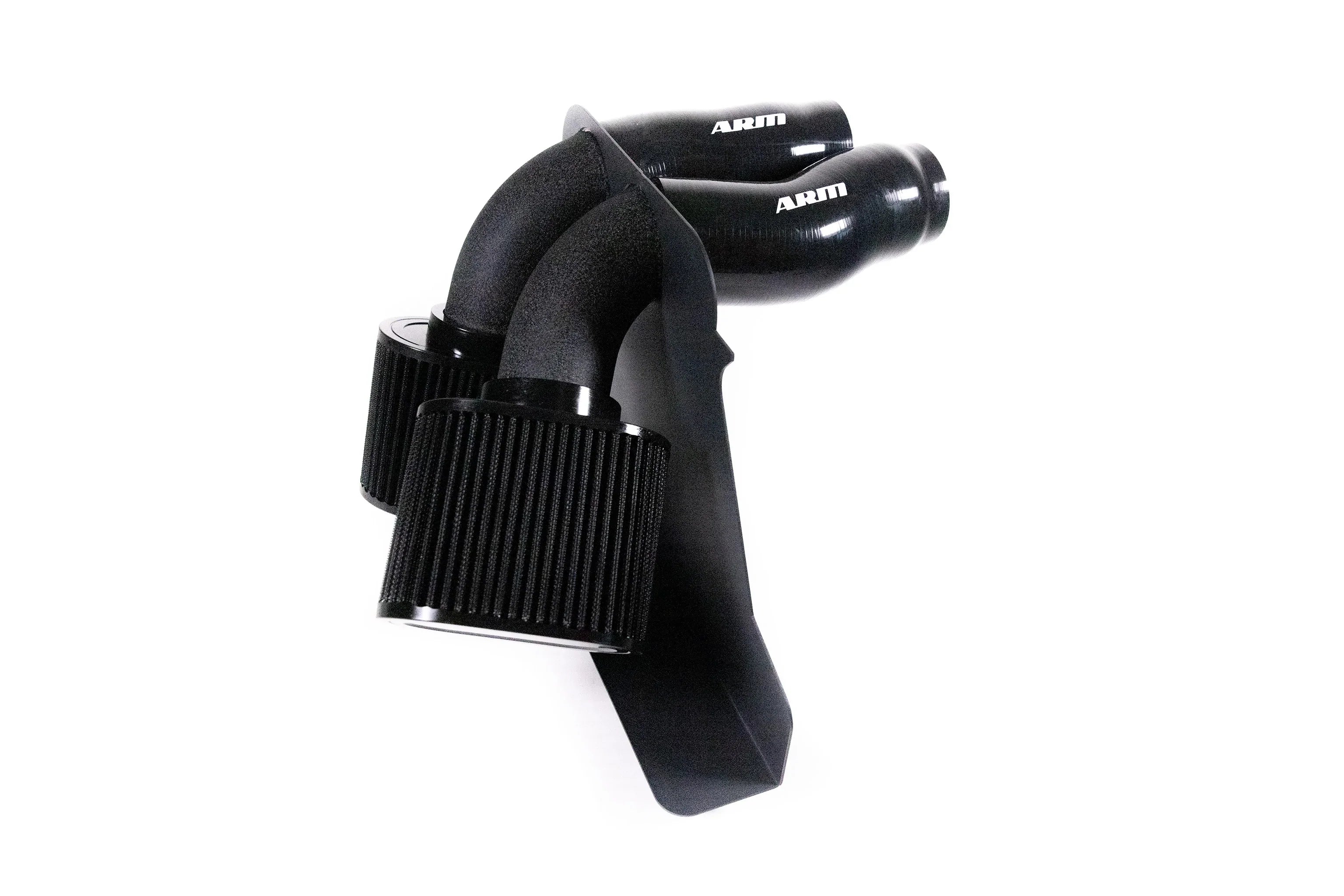

The ARM Motorsports Audi 4.0T Intake Heat Shield is an aluminium heat shield for the C7 and C7.5 Audi S6, S7 and RS7, designed to work with the ARM 4.0T Intake. It separates the intake air from the heat generated by the engine, which ARM says lets the 4.0T pull in more cool, fresh air from outside the engine bay. The shield has two openings for the ARM intake runners to pass through, so it can seal against the hood insulation and keep more cool air on the filter side of the intake. It has two integrated mounting points on the underside to secure it during aggressive driving, and ARM says no cutting or trimming is required.
Features
- Insulates intake air from engine heat
- Designed to work with the ARM 4.0T Intake

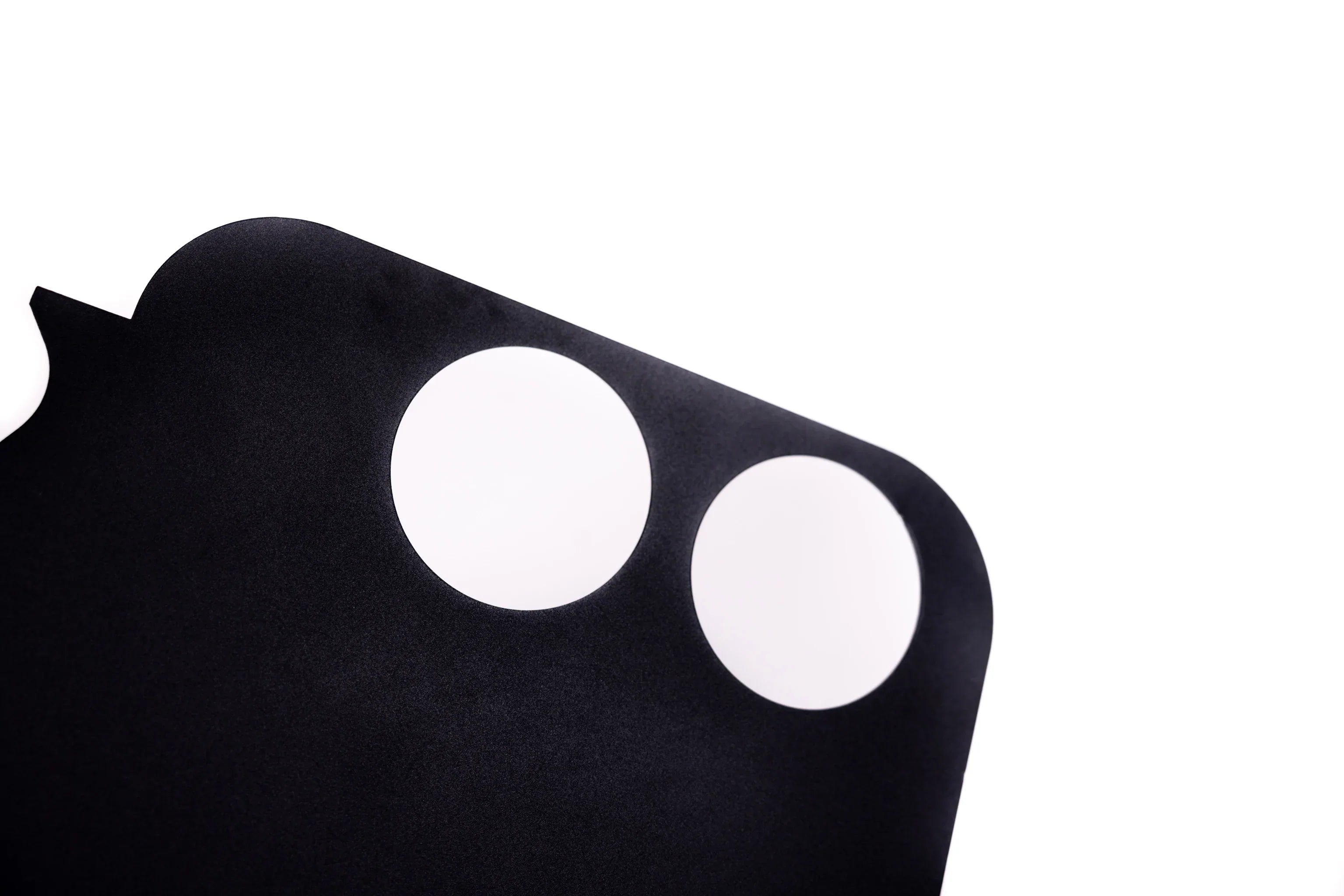

- Two openings for the intake runners
- Seals with the hood insulation

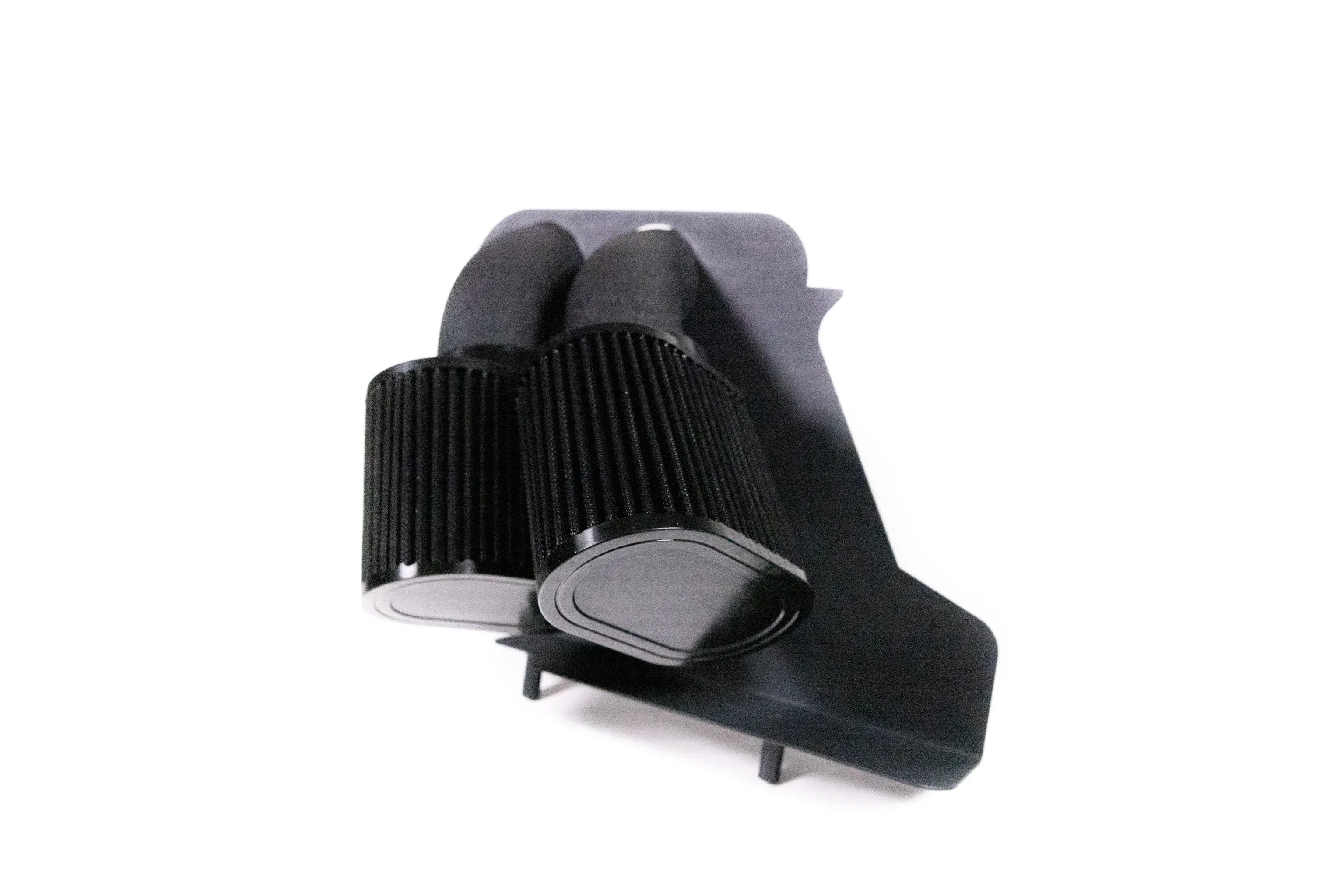

- Two integrated mounting points on the underside
- Wrinkle black finish
- No cutting or trimming, 15 minute installation per ARM
Specifications
- Brand: ARM Motorsports
- Product Type: Intake Heat Shield
- Material: Aluminium
- Finish: Wrinkle black
- Design: Two openings for the ARM intake runners; two integrated mounting points

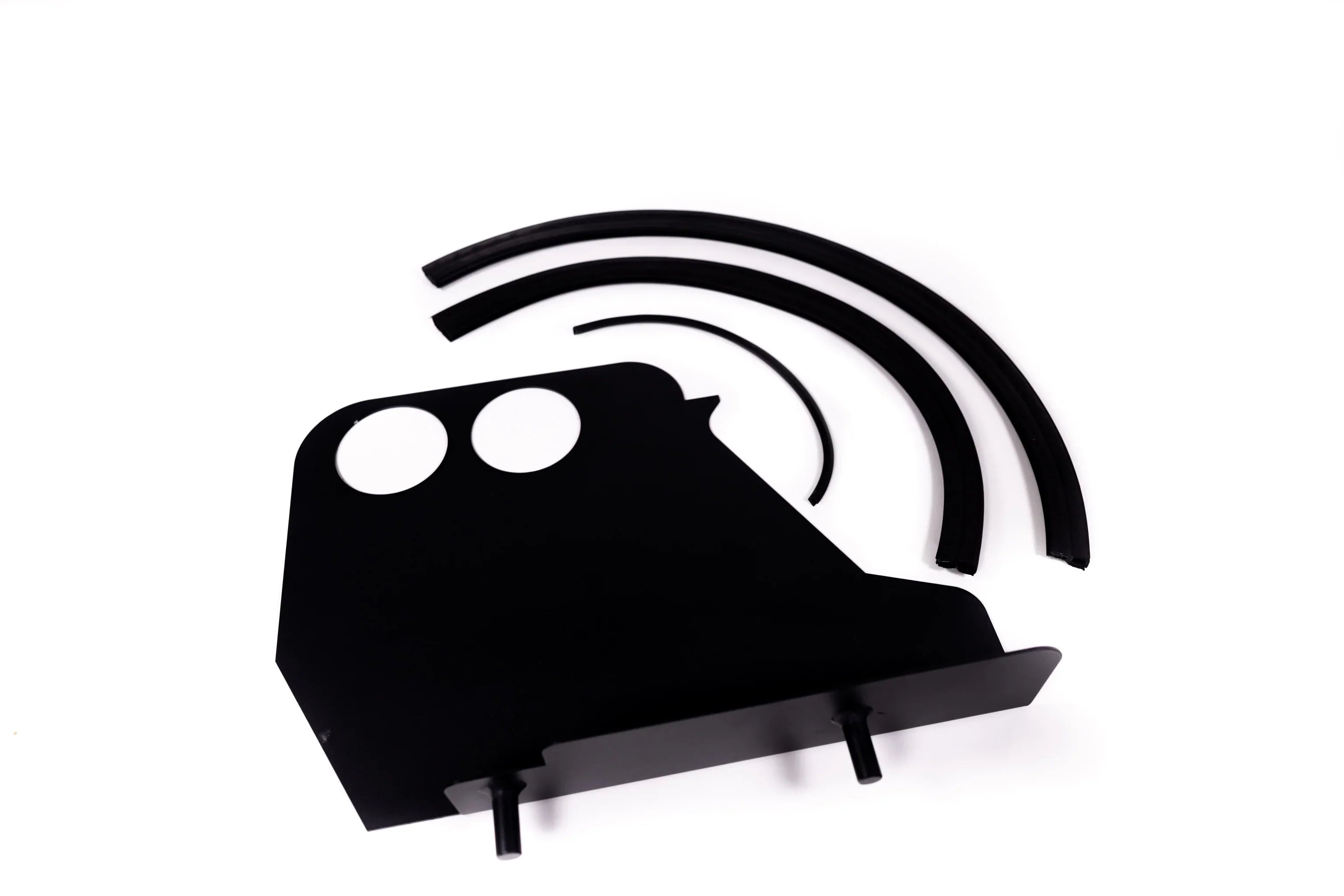

- Included: 1 aluminium heat shield, large weather stripping, small weather stripping
- Installation: No cutting or trimming; ARM quotes 15 minutes
- Warranty: Lifetime warranty (per ARM Motorsports)
- Part Number: 40TDCIHS
Vehicle Compatibility: 3 applications across 1 make. Select a make to view.
Audi (3)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| S6 | C7/C7.5 | 4.0T | For use with the ARM 4.0T Intake | |
| S7 | C7/C7.5 | 4.0T | For use with the ARM 4.0T Intake | |
| RS7 | C7/C7.5 | 4.0T | For use with the ARM 4.0T Intake |
Images shown are generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
