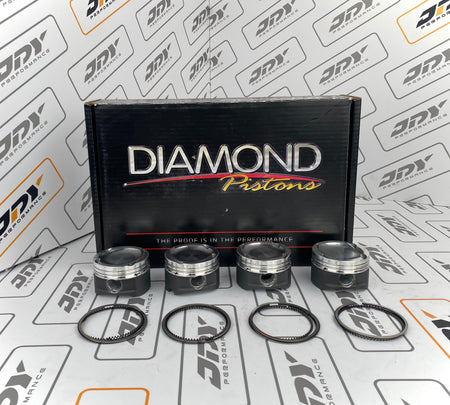

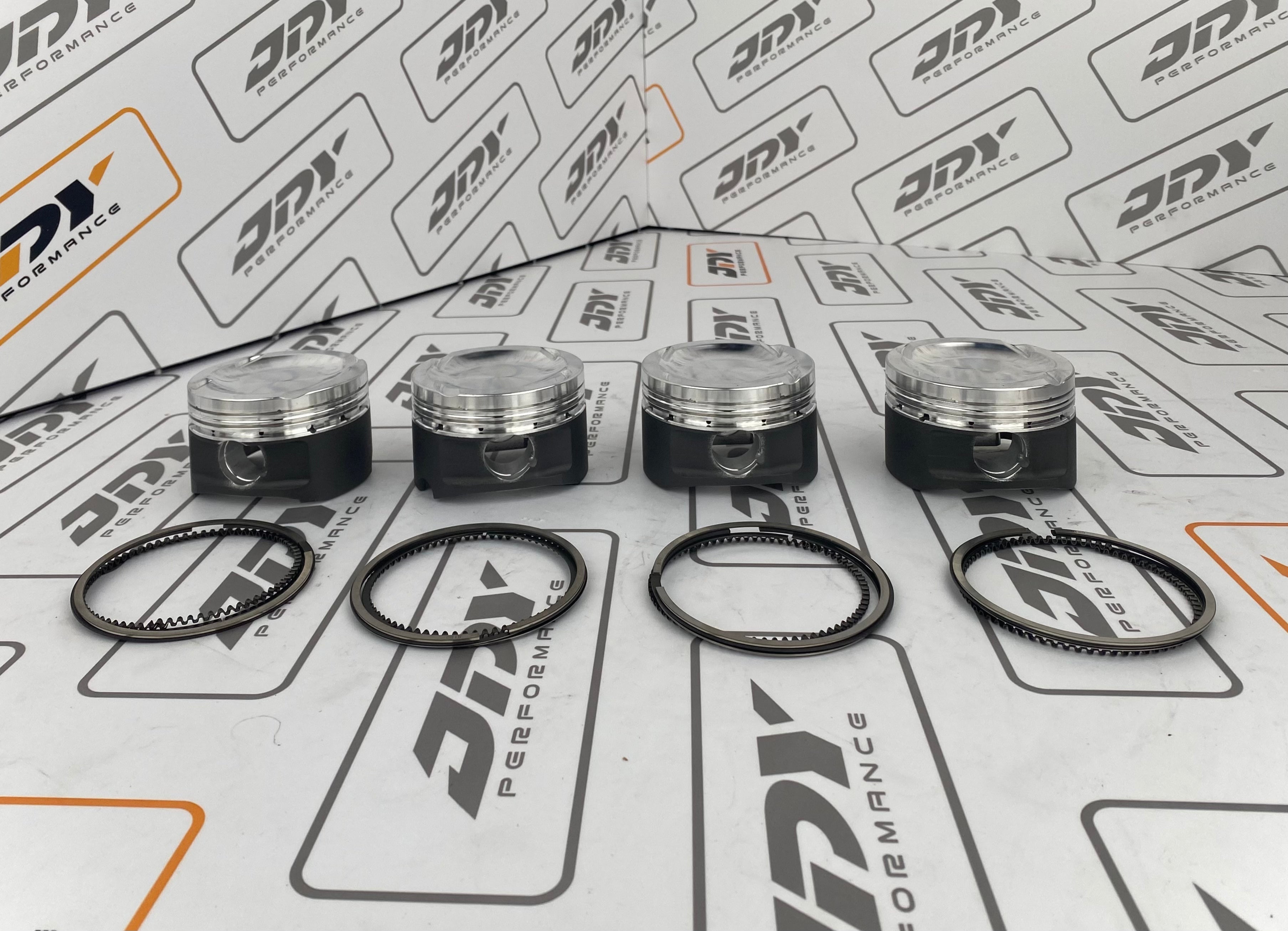

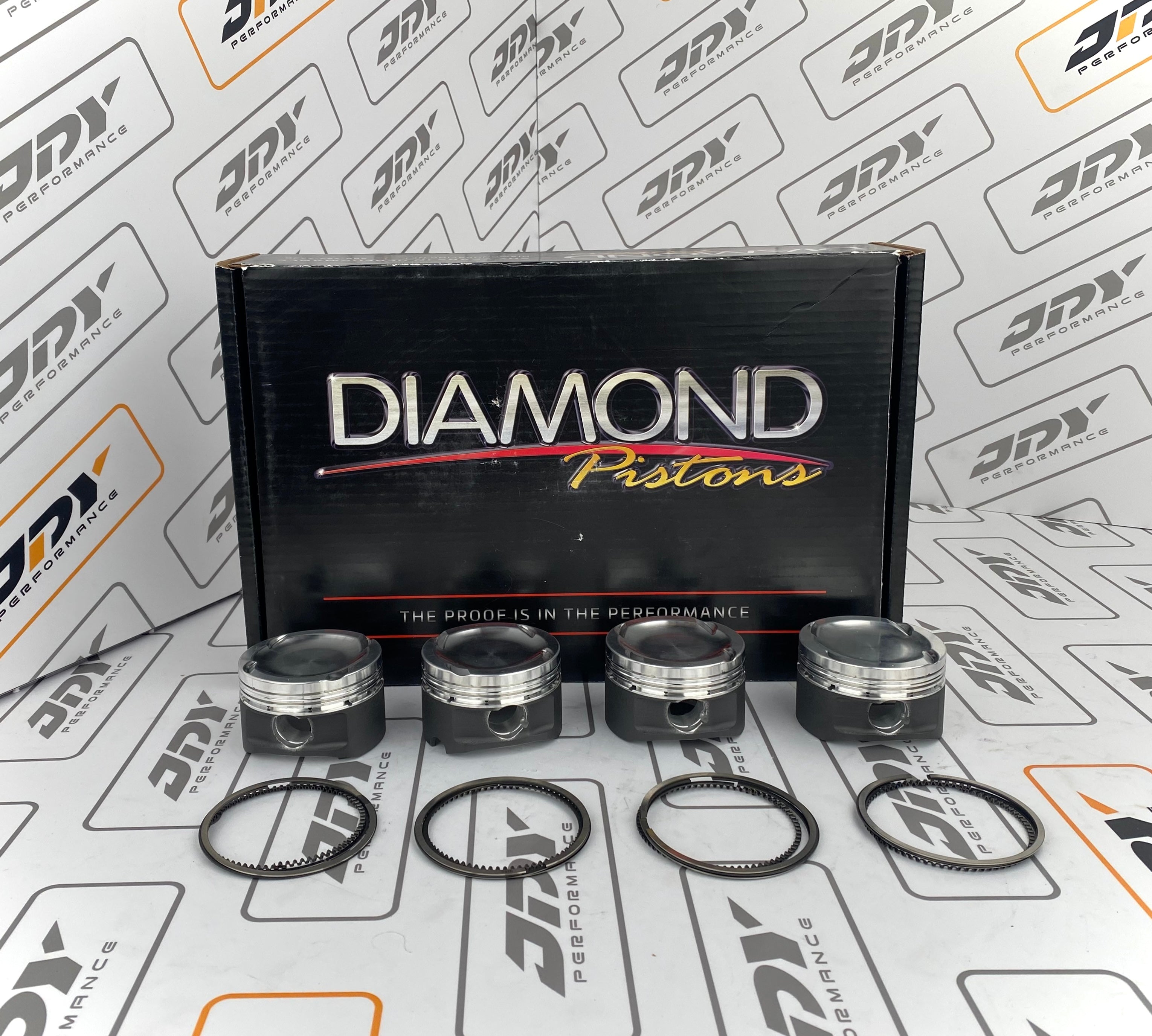

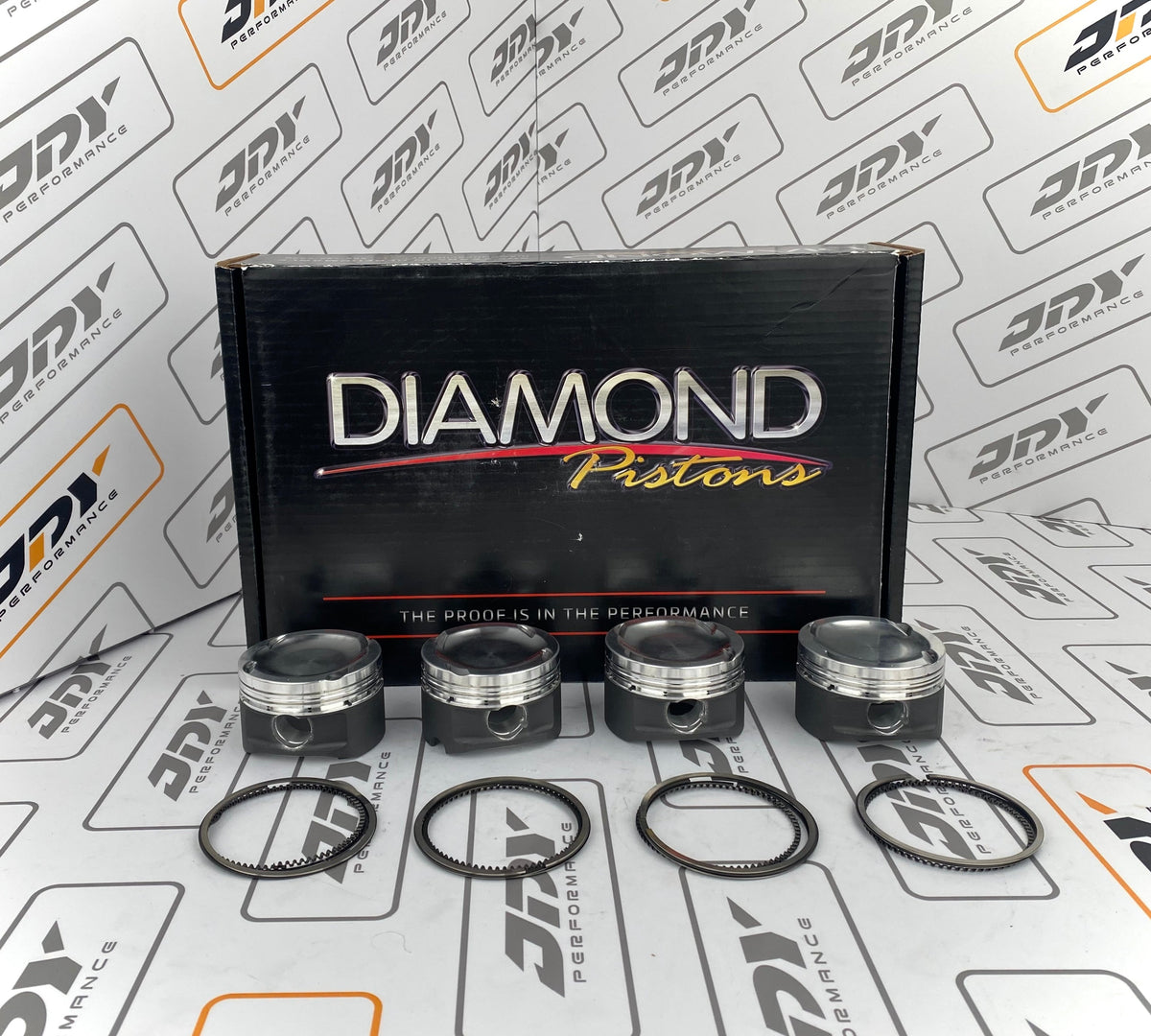

JDY Audi/VW 2.0T FSI & TSI Diamond Forged Pistons 9.0:1 82.50/83.0mm Bore
These forged pistons are made by Diamond Racing USA for Audi and Volkswagen 2.0T FSI and TSI engines and are supplied by JDY Performance in 82.5mm and 83mm bore sizes at 9.0:1 compression. They are designed for all engine configurations that use a 21.00mm pin. The 2618 low-silicon, high expansion alloy suits high horsepower and boost applications, and the design includes a round skirt with a reinforcing band at the bottom, 3D milling under the crown, window milling and lateral gas ports for better ring seal. Oversize valve pockets, offset pins and a Molly skirt coating complete the specification, along with 8620 series pins made from 1018 mild steel.
Features
- 2618 low-silicon, high expansion alloy
- Round skirt with bottom reinforcing band
- 3D under-crown and window milling to save weight
- Oversize valve pockets and clip cuts for larger valves
- Lateral gas ports for better ring seal
- Offset pins and Molly skirt coating
- 8620 series pins; H-13 tool steel pins optional

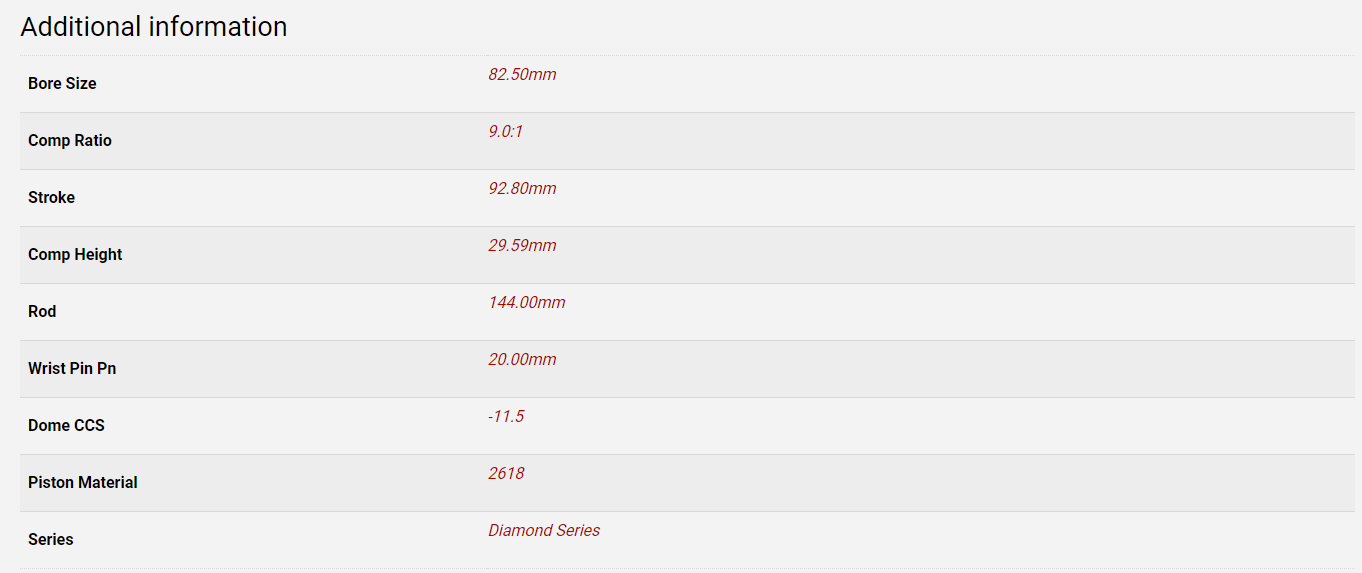

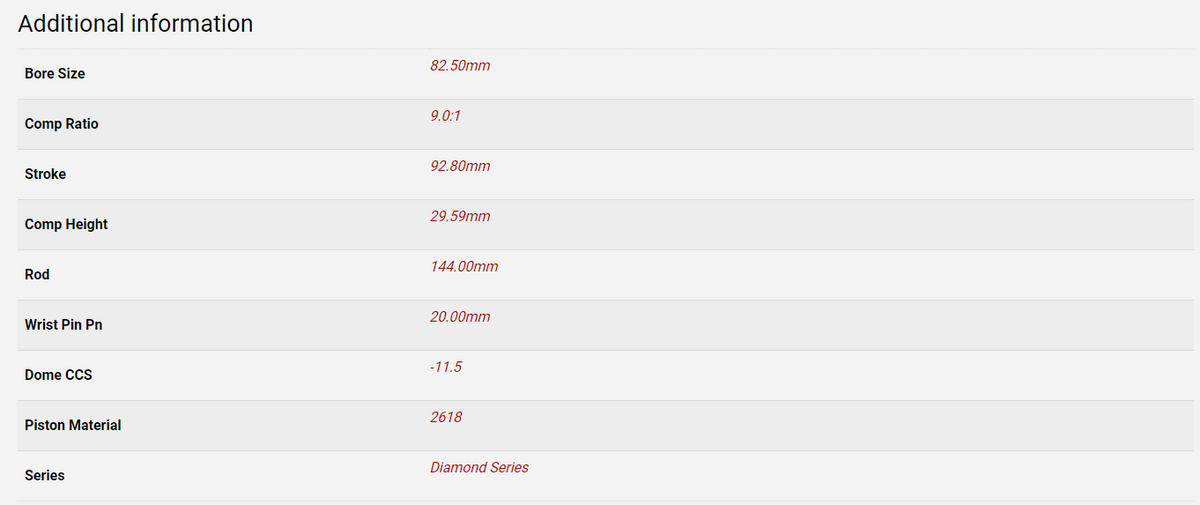

Specifications
- Brand: JDY Performance
- Product Type: Forged Pistons
- Manufacturer: Diamond Racing USA
- Compression Ratio: 9.0:1
- Bore: 82.5mm or 83mm
- Alloy: 2618 low-silicon, high expansion
- Pin: 21.00mm, 8620 series from 1018 mild steel
- Skirt: Round skirt with bottom reinforcing band, Molly coating
- Optional Upgrade: H-13 tool steel wrist pins, part number H8662250225C, 5.72mm wall
- Part Number: 38114, 38119
Vehicle Compatibility: Suits Audi and Volkswagen 2.0T FSI and TSI engines with a 21.00mm pin, in 82.5mm or 83mm bore sizes; check your engine code before ordering.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
