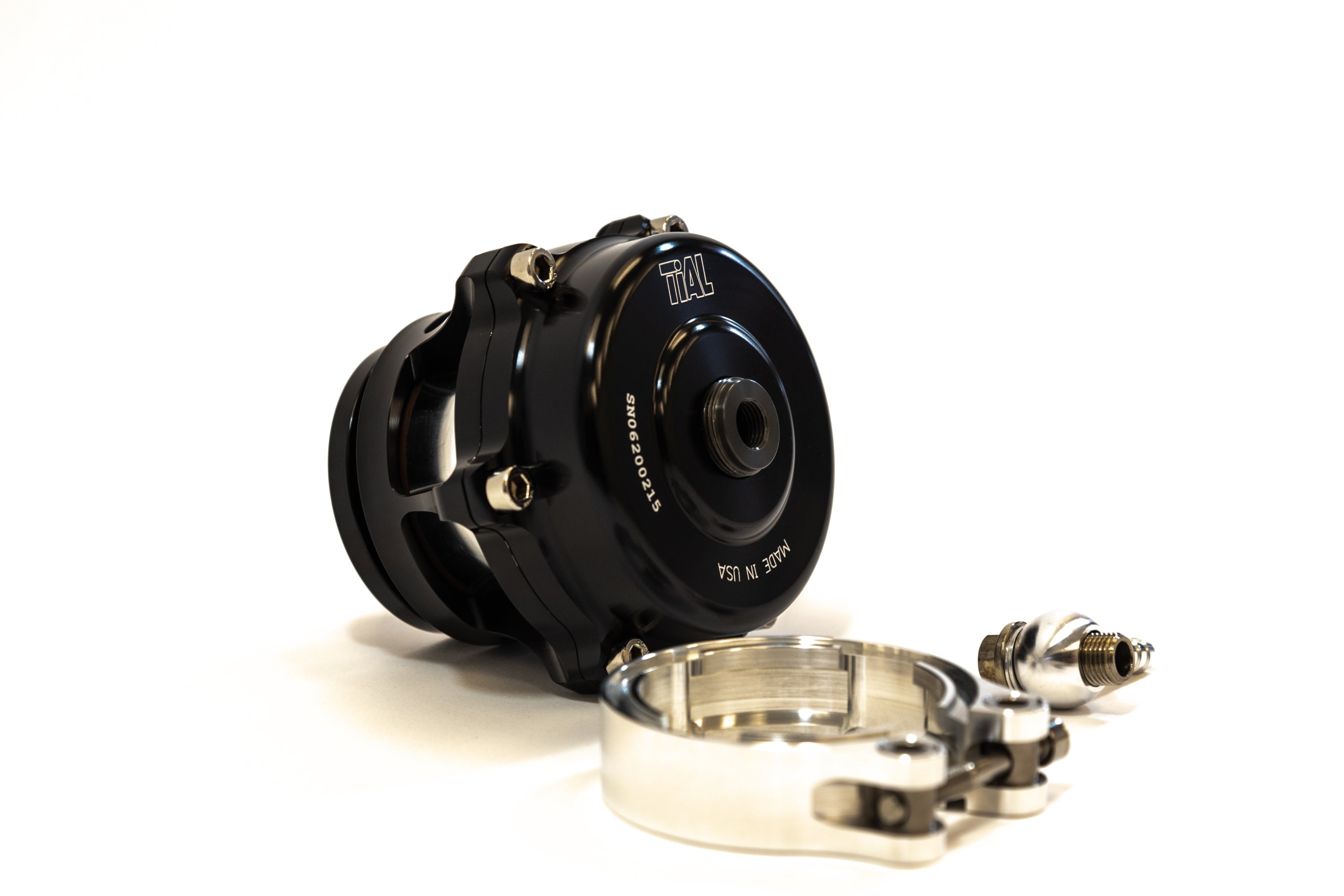

ARM Motorsports TiAL Q 50mm BOV

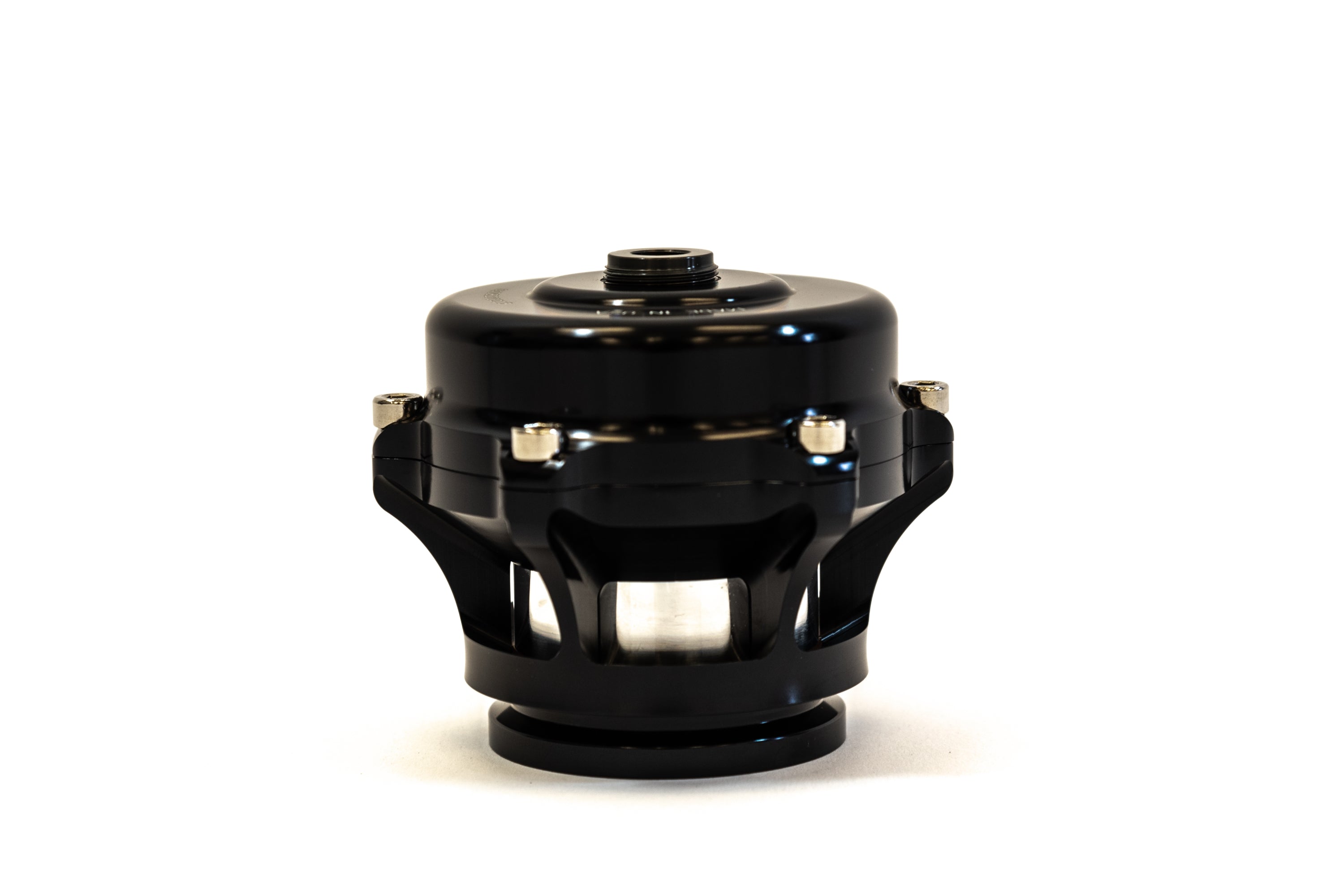

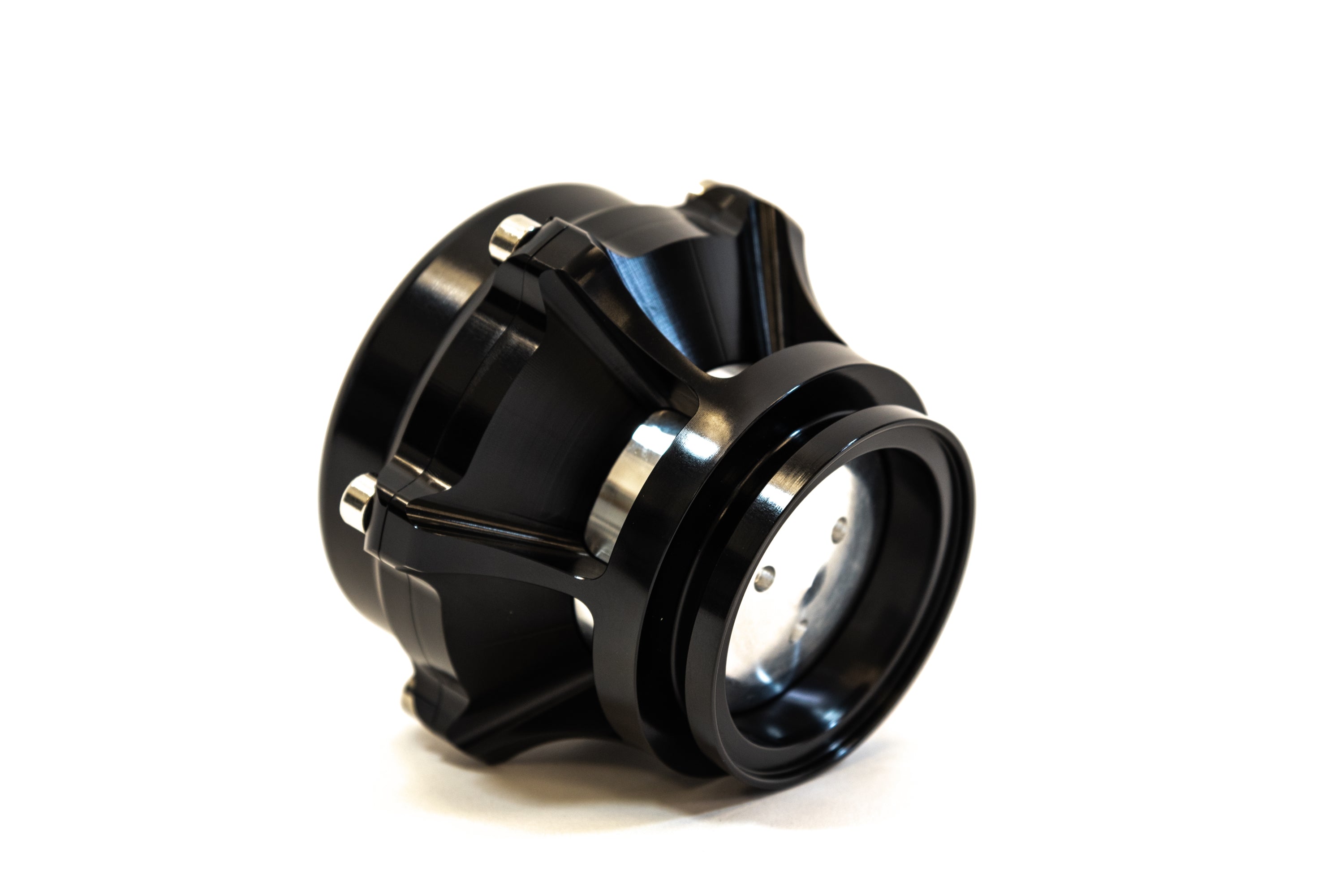

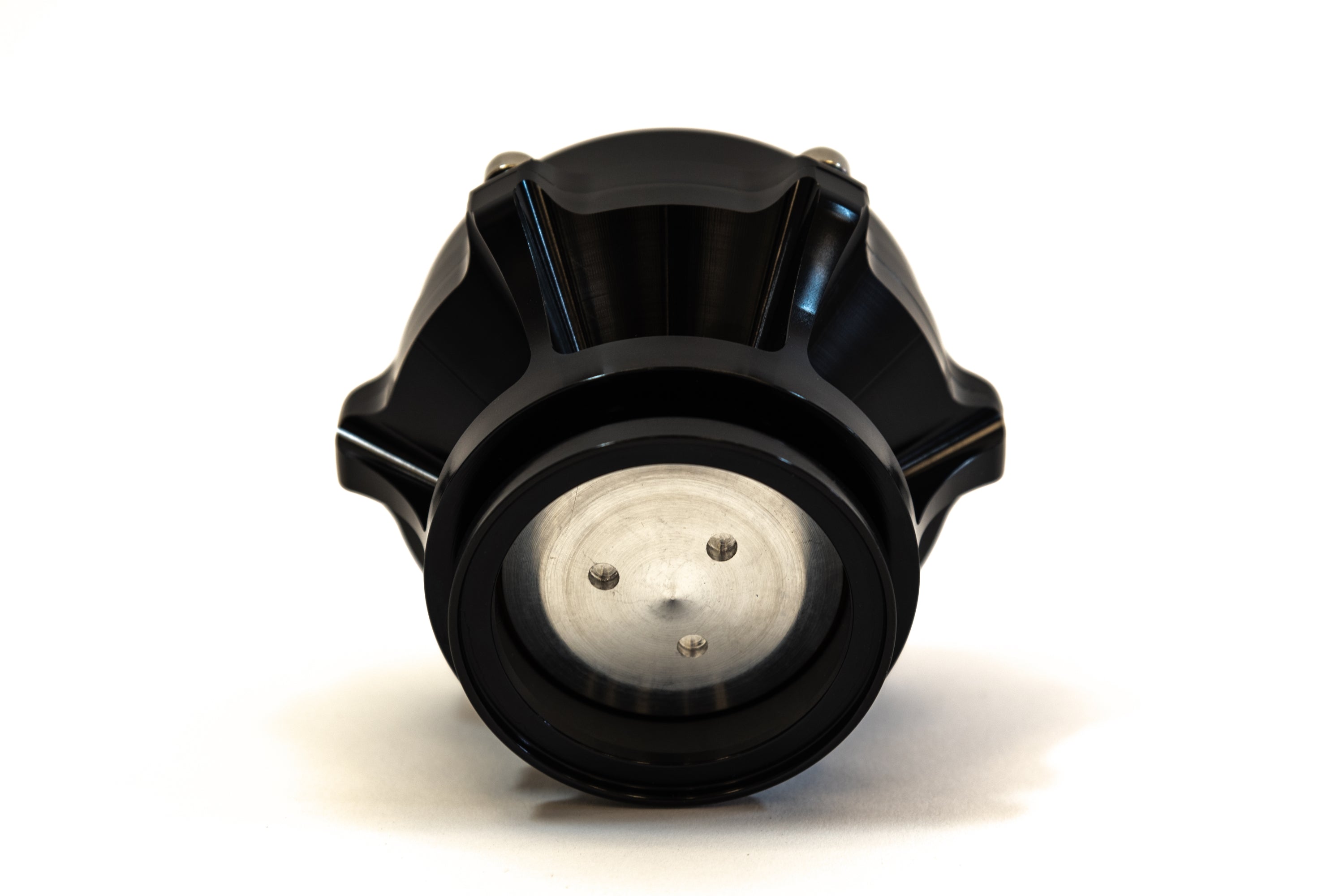

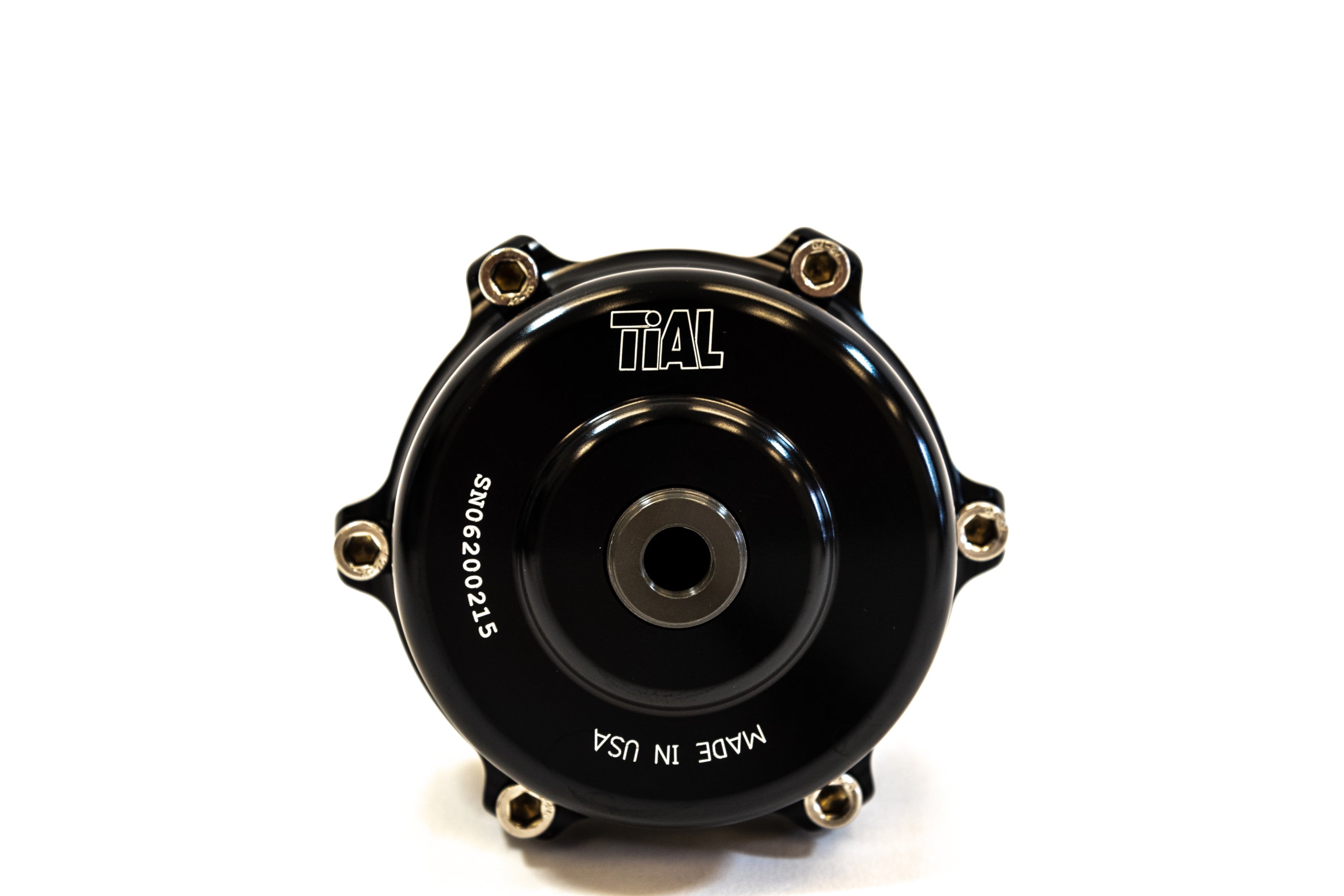

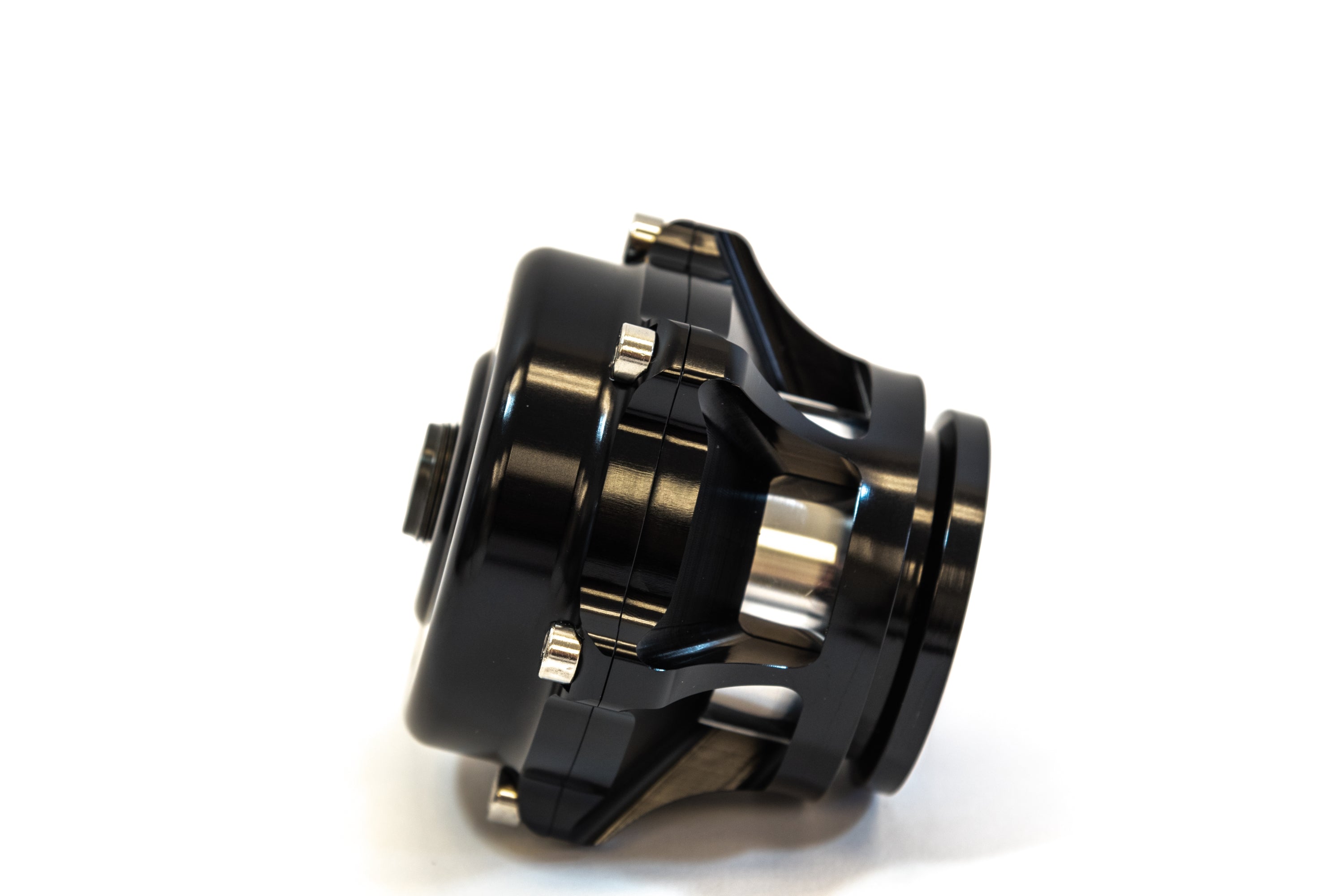

The ARM Motorsports TiAL Q 50mm BOV is a blow-off valve built around the TiAL Q, the first revision of the original TiAL BOV, with a large 1.98 in (50.5mm) valve. ARM says it bolts up to any standard TiAL flange without re-welding, and this version has a 10psi spring that the brand describes as suited to the N54 and paired with its TiAL Flange Charge Pipe. The body and all internals are CNC-machined from 6061 aluminium alloy, with a V-band aluminium mounting clamp, a Viton O-ring valve seal and a high temperature silicone Nomex-reinforced diaphragm. The brand claims the valve flows 60% more than the original design and that a single Q can support up to 1,800hp.

Features

• 1.98 in (50.5mm) valve
• Body and internals CNC-machined from 6061 aluminium
• V-band aluminium clamp with stainless steel hardware
• Viton O-ring seal and Teflon-lubricated, hard anodised stem and guide
• Banjo air fitting with oversized 10 mm hose barb
• 10psi spring suited to the N54, per ARM
• Flows 60% more than the original design, per ARM

Specifications

• Brand: ARM Motorsports
• Product Type: Blow-Off Valve
• Valve Size: 1.98 in (50.5mm)
• Material: 6061 aluminium alloy, CNC-machined body and internals
• Clamp: V-band aluminium mounting clamp with stainless steel hardware
• Seal and Diaphragm: Viton O-ring seal; high temp silicone Nomex-reinforced diaphragm
• Flange: Aluminium, cut for 2.5" intercooler pipe; black
• Spring and Thread: 10psi spring; M10 x 1.0 thread

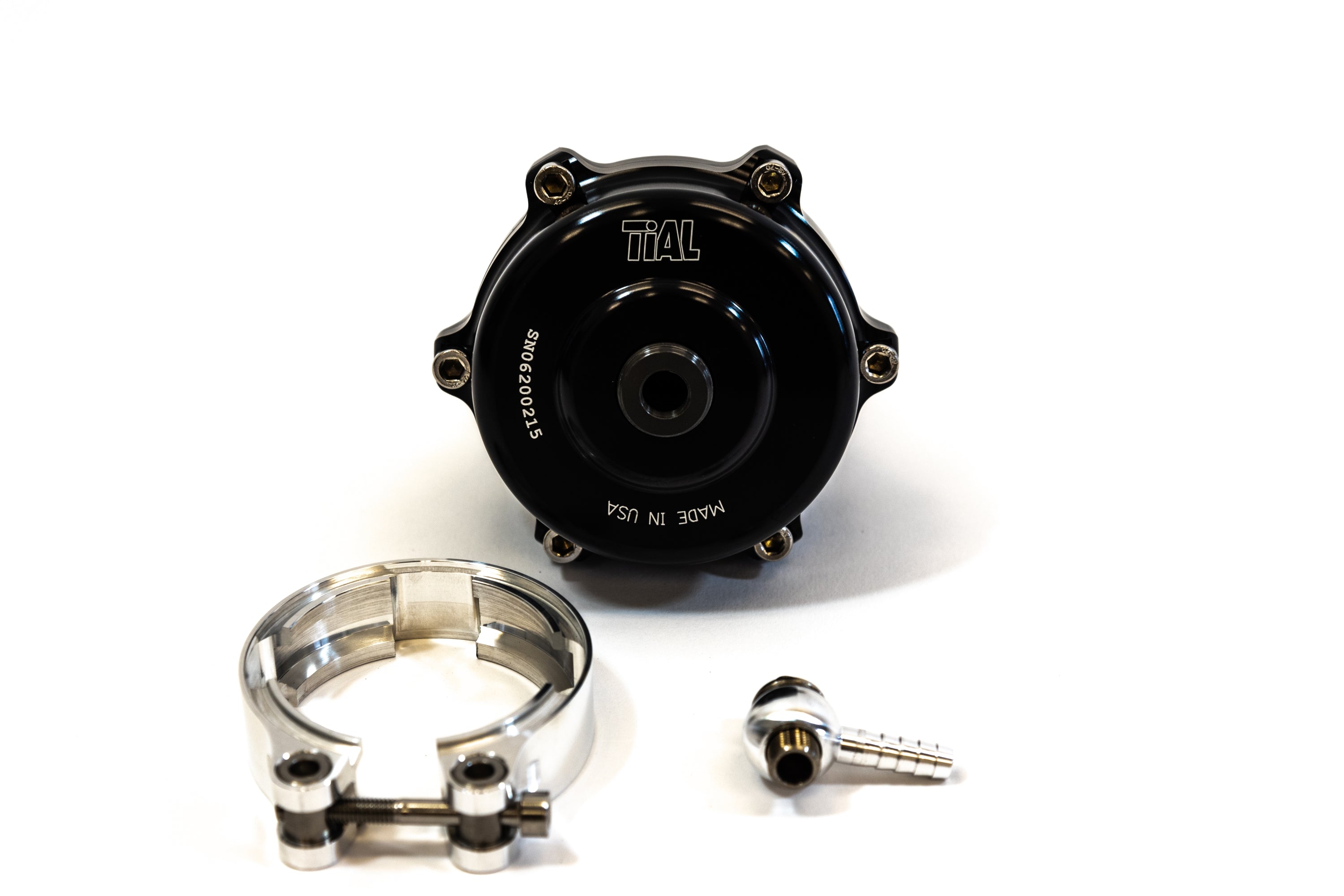

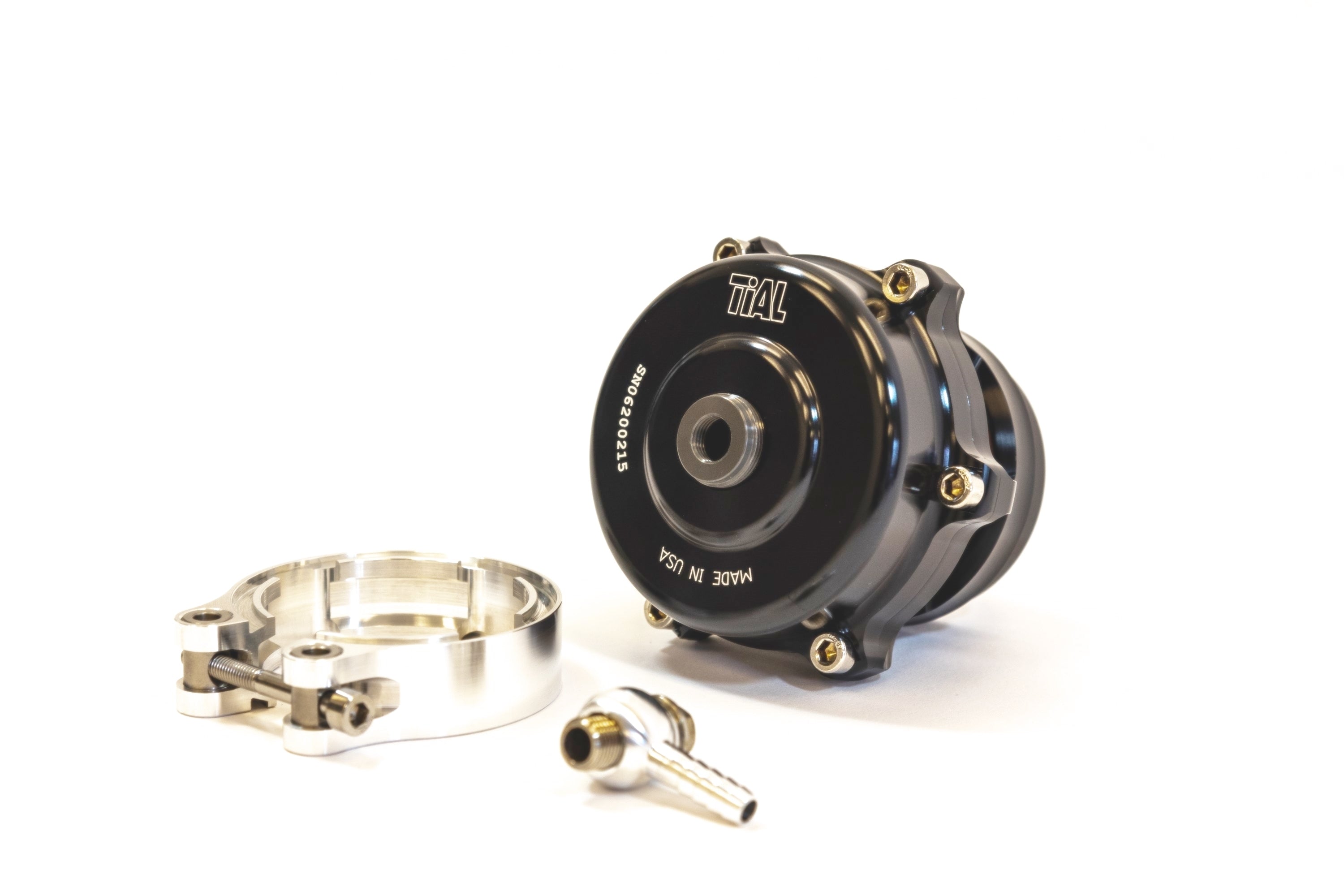

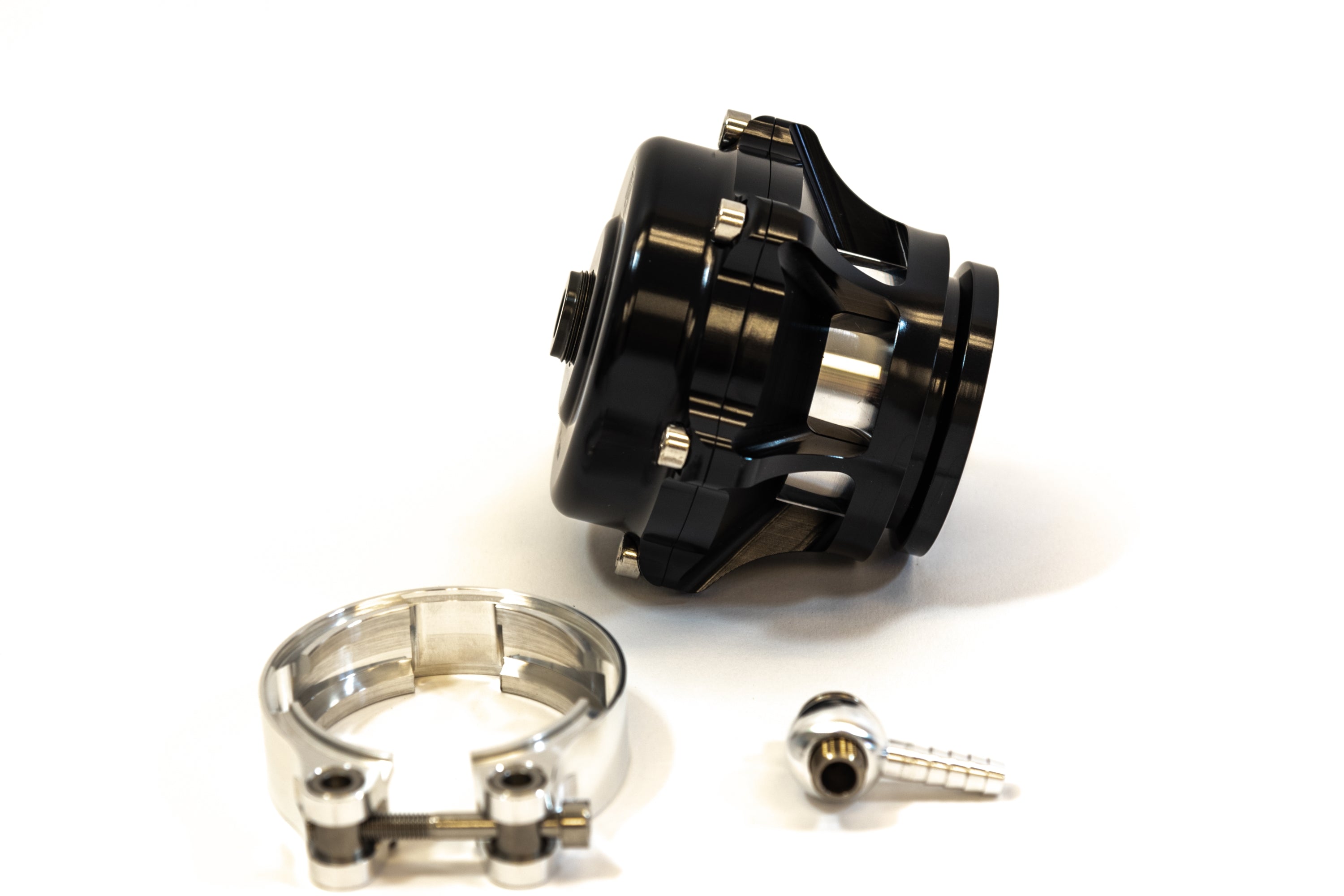

• Included: Q assembly, TiAL V-band clamp, TiAL air fitting, high pressure O-ring
• Part Number: TIALQBOV

Vehicle Compatibility: 5 applications across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
