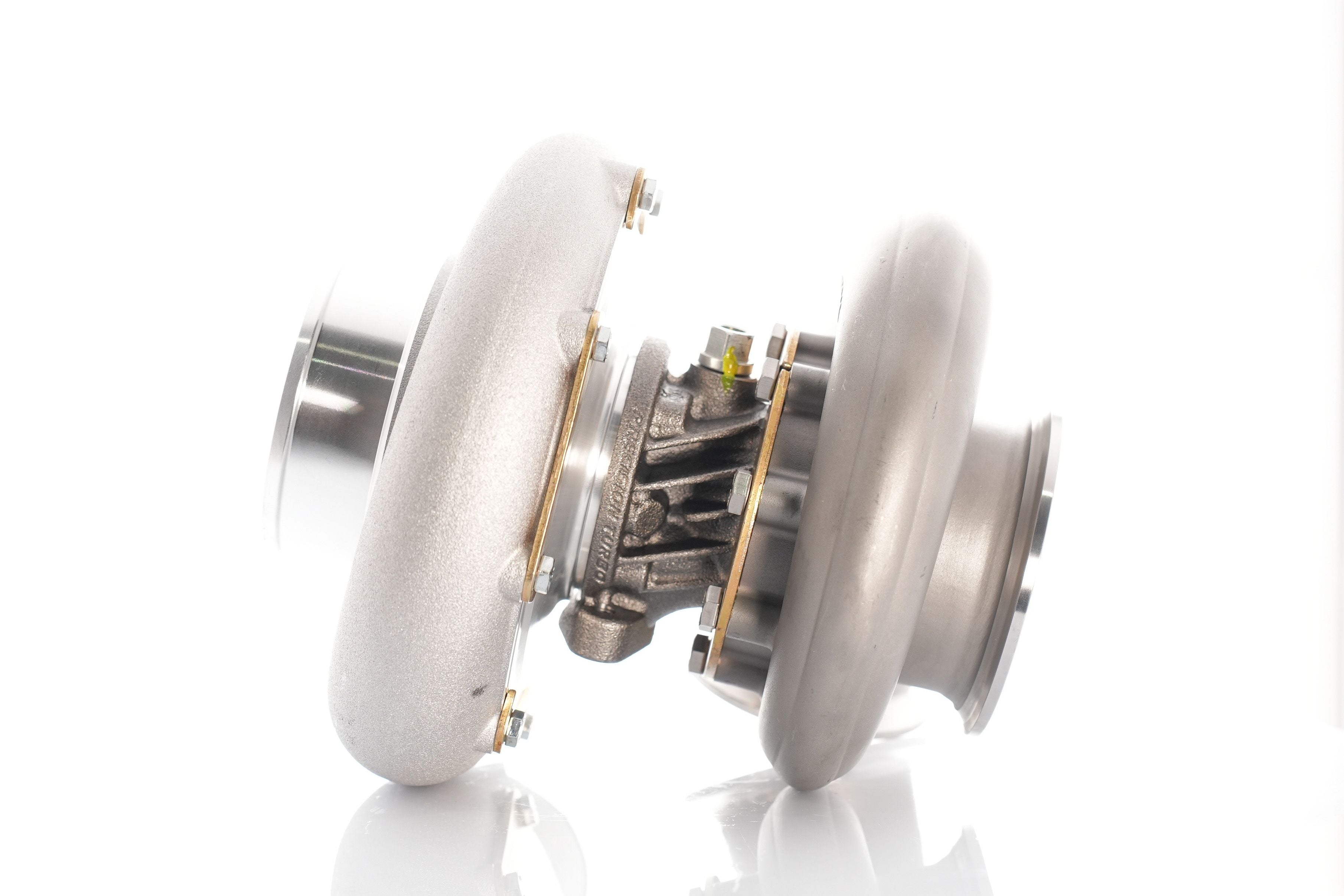

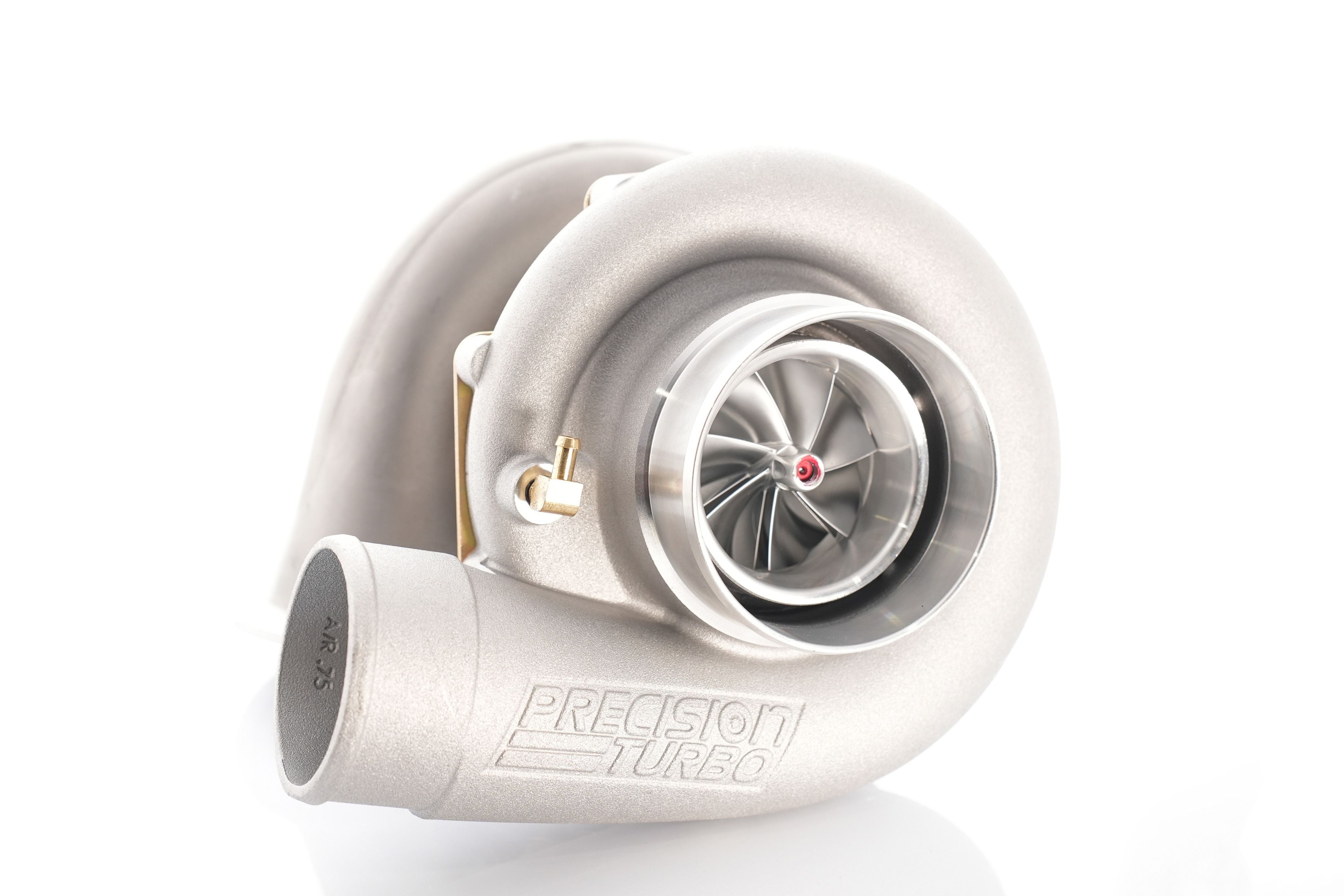

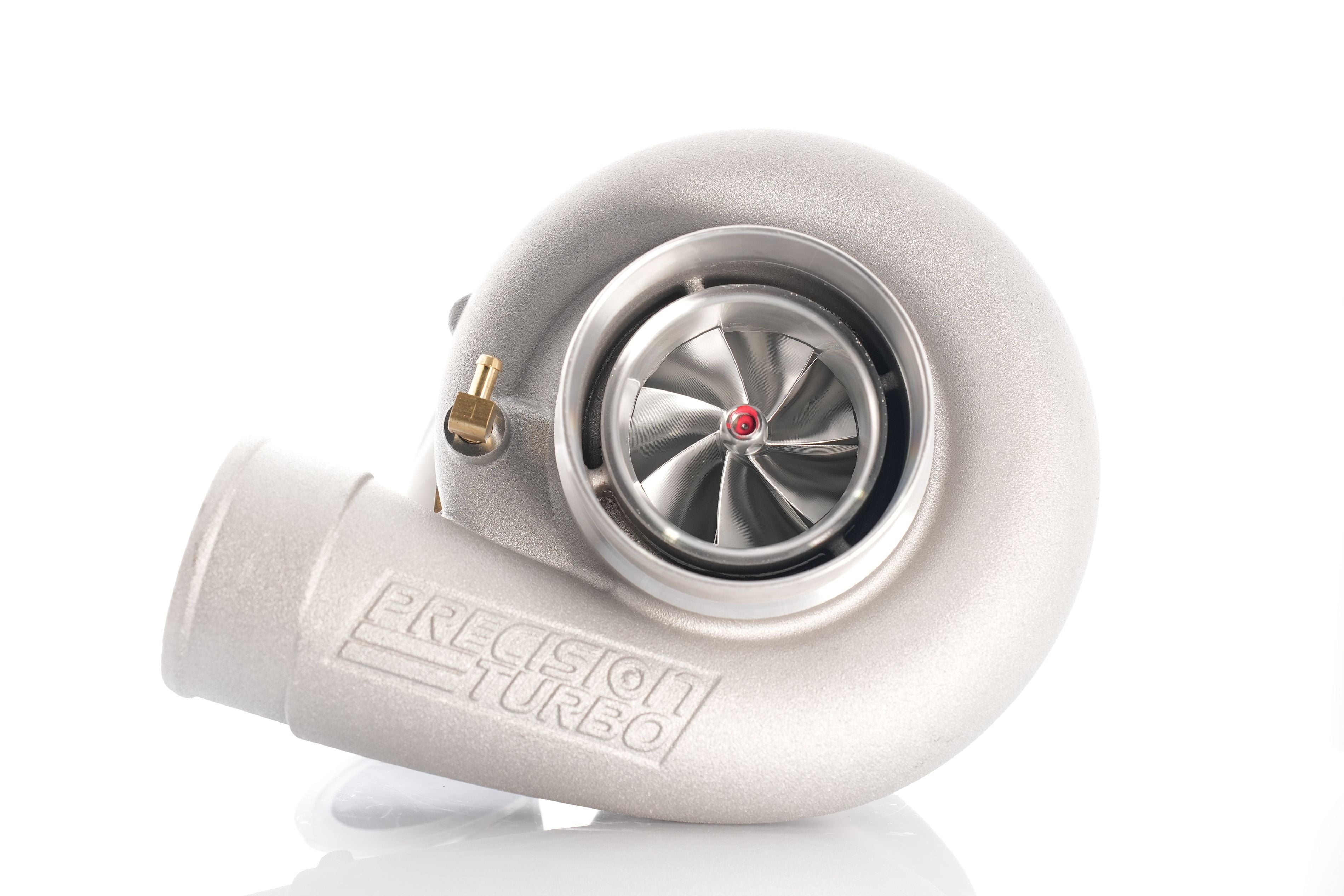

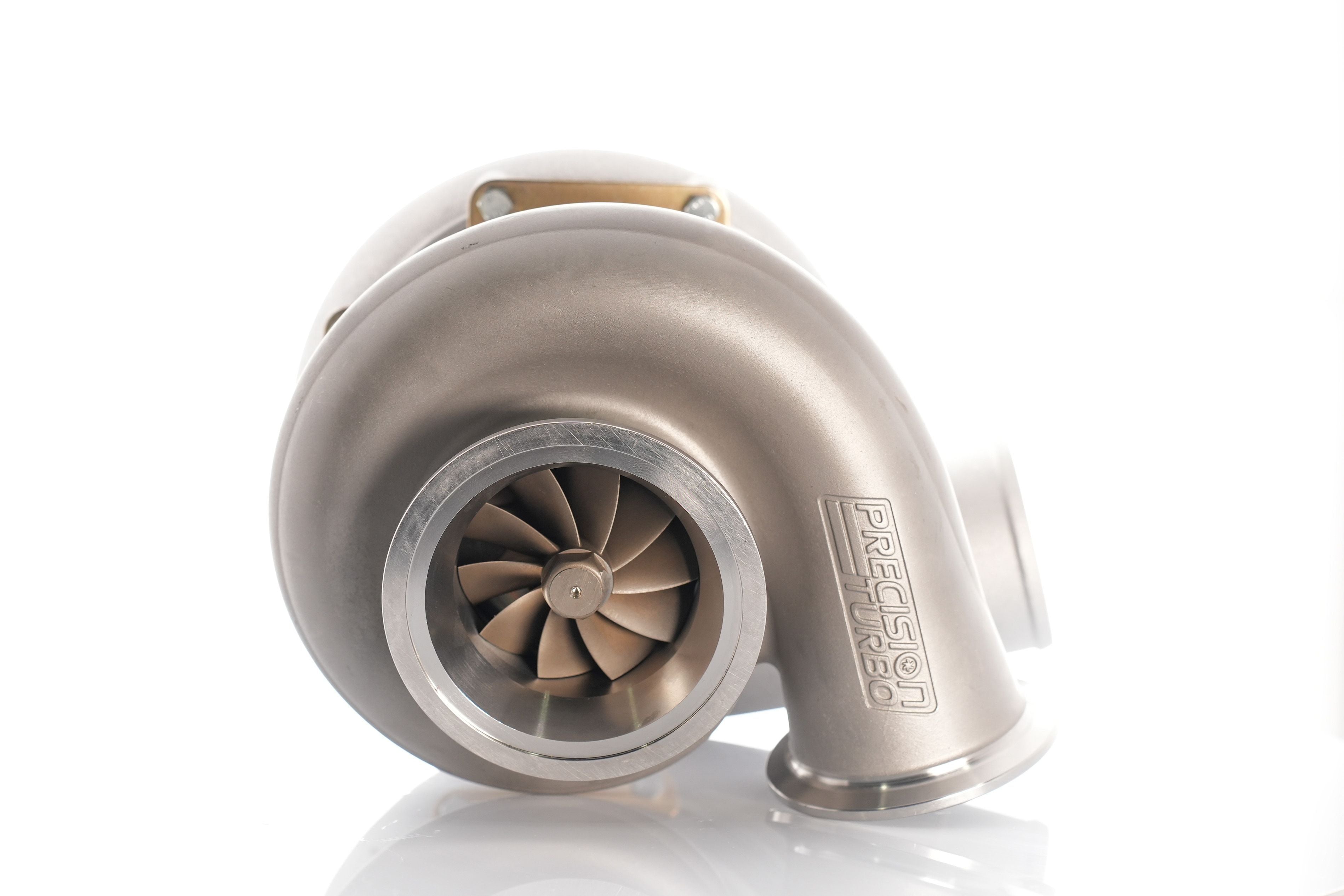

This is the all-new Precision Turbo Next Gen 6466 turbocharger.
Introducing the all-new Precision Turbo Next Gen 6466 turbocharger. The Next Gen 6466 is now rated at 1000HP and will be available in the all-new SCP (S Cast Ported) compressor cover, offering a 4” inlet and 2.5” outlet and for the first time in the HP compressor cover, which features a 4” inlet and 3” outlet .
This evolution in our lineup involves the development of a new aero package, which includes a redesigned compressor cover with numerous flow enhancements and a new compressor wheel profile that incorporates an extended tip on the exducer. All these improvements result in a 10% increase in flow compared to Gen 2 technology.
Key Features:
NEXT GENERATION RACE TECHNOLOGY
• HP Rating: 1000 HP
• Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers.
• CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow.
• Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability.
• Available in an All-New SP compressor cover w/ 4” inlet and 2-1/2”outlet and for the first time in HP compressor cover w/ 4” inlet and 3”outlet for maximum air flow.
• High flow / highly efficient 66mm turbine wheel
Specifications:
Compressor Wheel Inducer: 64mm
Compressor Wheel Exducer: 86mm/ 88.1mm ET
Turbine Wheel Inducer: 74mm
Turbine Wheel Exducer: 66mm
