JDY Performance

JDY T3 Sized Next Gen 6266/6466 TTRS 8S/RS3 8V2 2.5TFSI DAZA DNWA Turbo Kit

$10,500.00
Turbocharger
3 Ports MAC Valve
Turbine housing AR

Seen this item cheaper somewhere else? Send us the link and we'll do our best to match or beat the price. We'll reply by email.

Product details
  • Type Engine Parts
  • Vendor JDY Performance
  • SKU 855-6266TK/0.81AR-NO-NG
  • Barcode 855-6266TK/0.81AR-NO-NG
Description Reviews

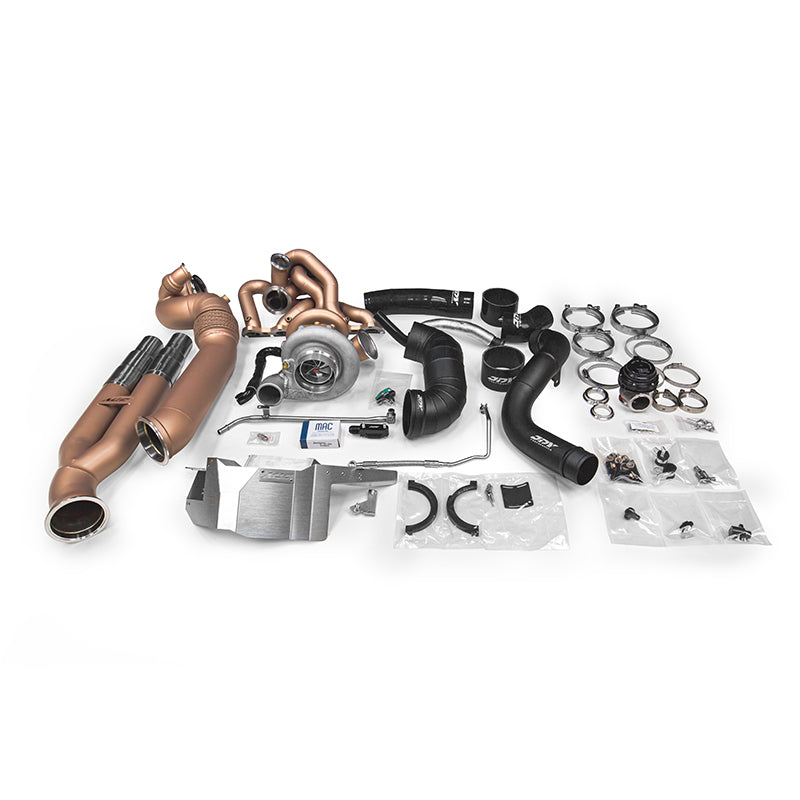

This turbo kit from JDY Performance is a full-frame upgrade for the 2.5 TFSI (DAZA/DNWA) Audi TT RS 8S and RS3 8V2, built around a T3 sized Next Gen CEA turbocharger in either the 6266 or 6466 size. JDY says the 6266 is rated for 850HP and the 6466 for 1000hp, and both use a CEA compressor wheel machined from a 2618 aluminium forging and an air-cooled, dual ceramic ball-bearing CHRA. The kit supplies a V-band heat shielded turbo manifold, a recirculated downpipe, a midpipe that mates to the OEM midpipes, a TiAL MVR 44mm external wastegate and the installation hardware. JDY states that no extra hardware or fabrication is needed and that the kit suits both left-hand and right-hand drive cars.

Features

  • T3 sized Next Gen CEA turbo, 6266 or 6466 option
  • 6266 rated for 850HP, 6466 rated for 1000hp

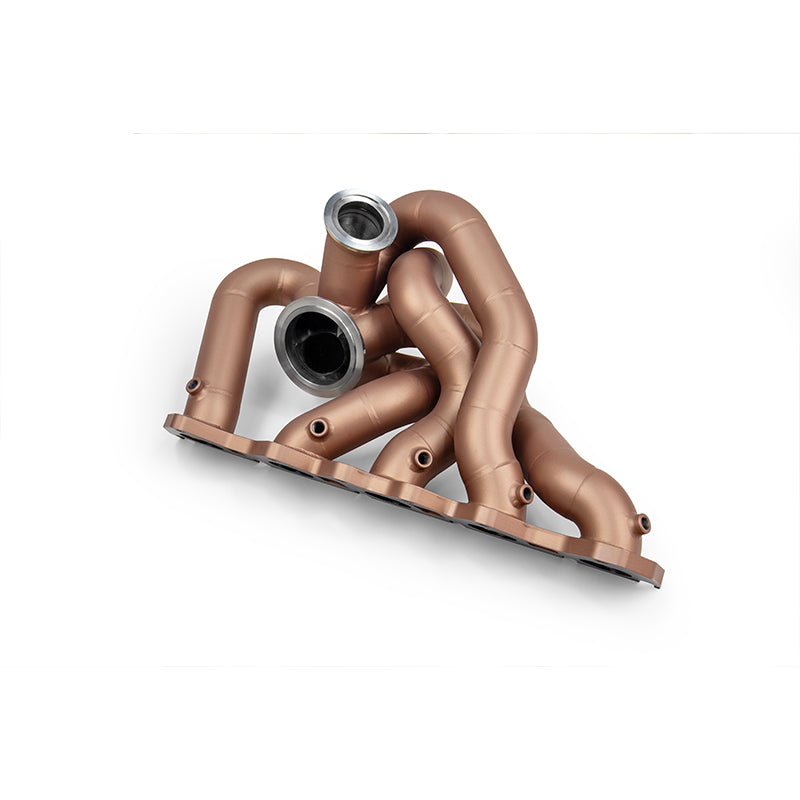

  • V-band heat shielded manifold with an EGT port per cylinder
  • 3.5" recirculated downpipe and midpipe with Inconel heat shielding
  • TiAL MVR 44mm external wastegate with all springs

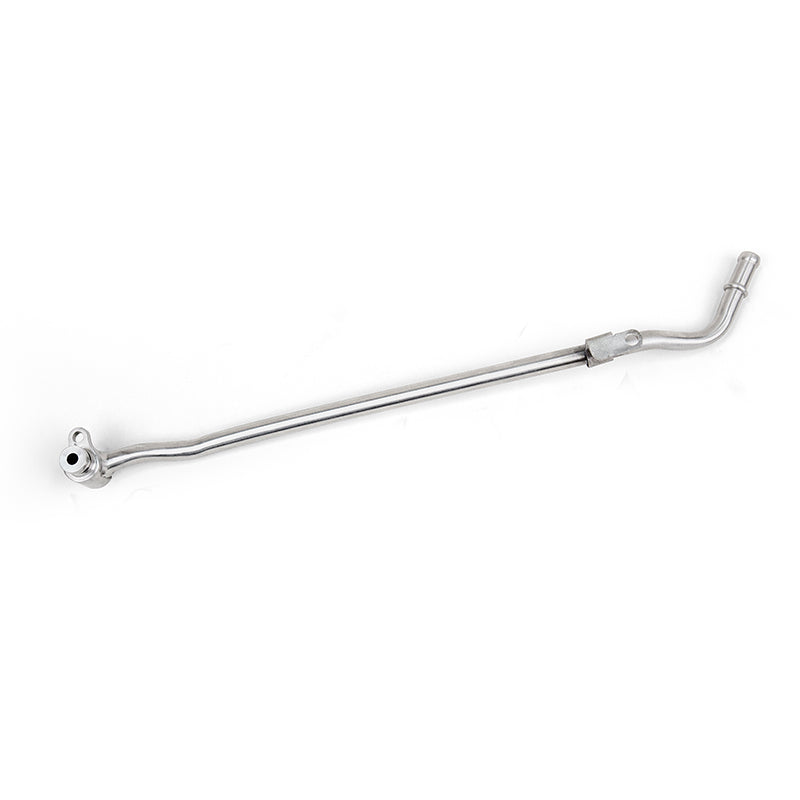

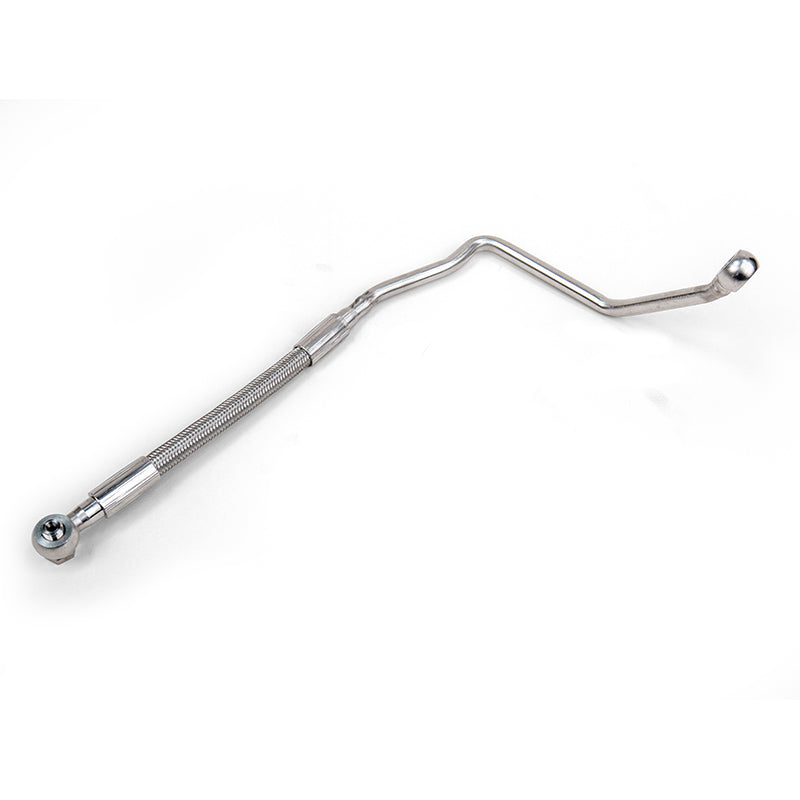

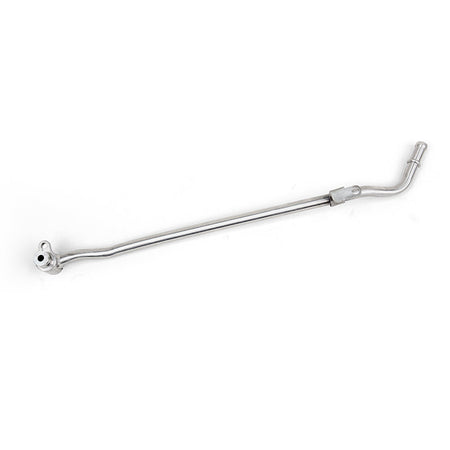

  • Installation hardware, oil lines and coolant crossover pipe included
  • Suits left-hand and right-hand drive vehicles

Specifications

  • Brand: JDY Performance
  • Product Type: Turbo Kit

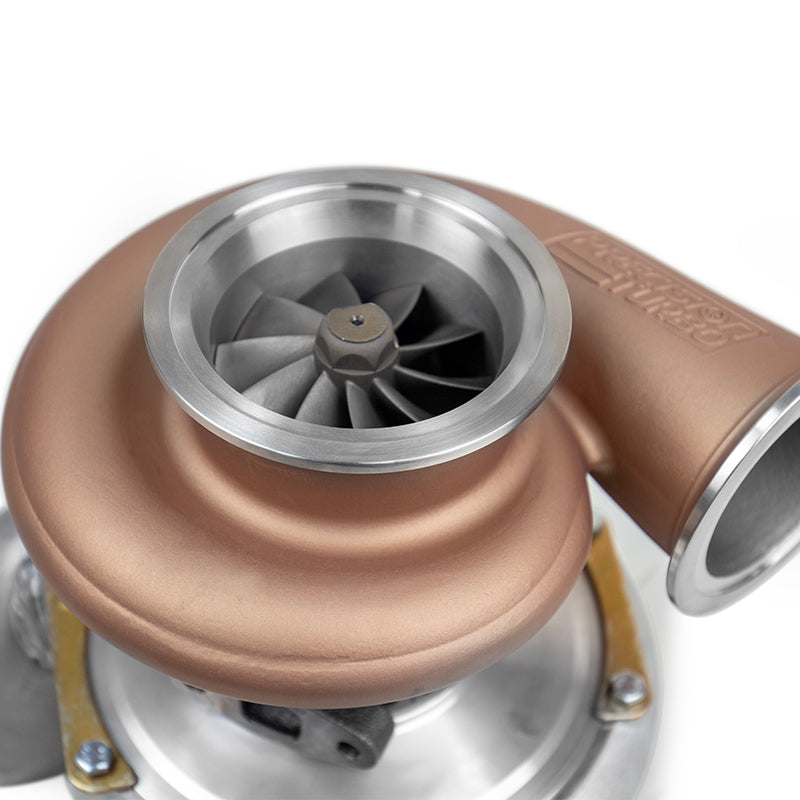

  • Turbocharger: Next Gen CEA 6266 (850HP) or 6466 (1000hp), T3 sized, stainless V-band
  • Compressor Cover: 6266: S cover, 4" inlet / 2.5" discharge; 6466: ported S cover, 4" inlet / 3.0" discharge
  • Turbine Housing: V-band 310 stainless steel, 0.81, 0.96 or 1.05 A/R
  • Wastegate: TiAL MVR 44mm external, all springs included

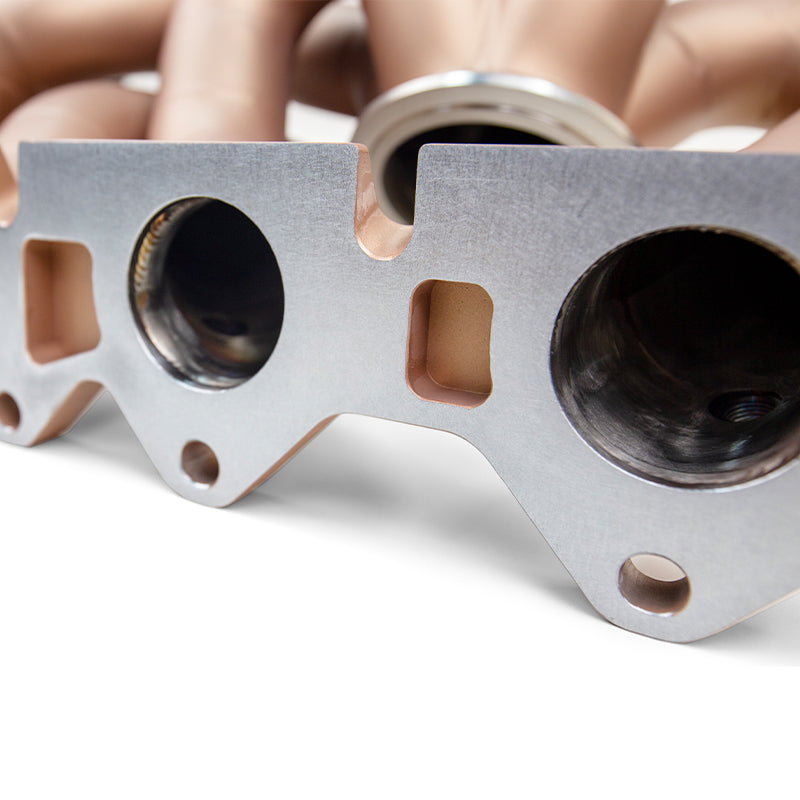

  • Manifold: V-band, Inconel heat shielded, EGT port per cylinder

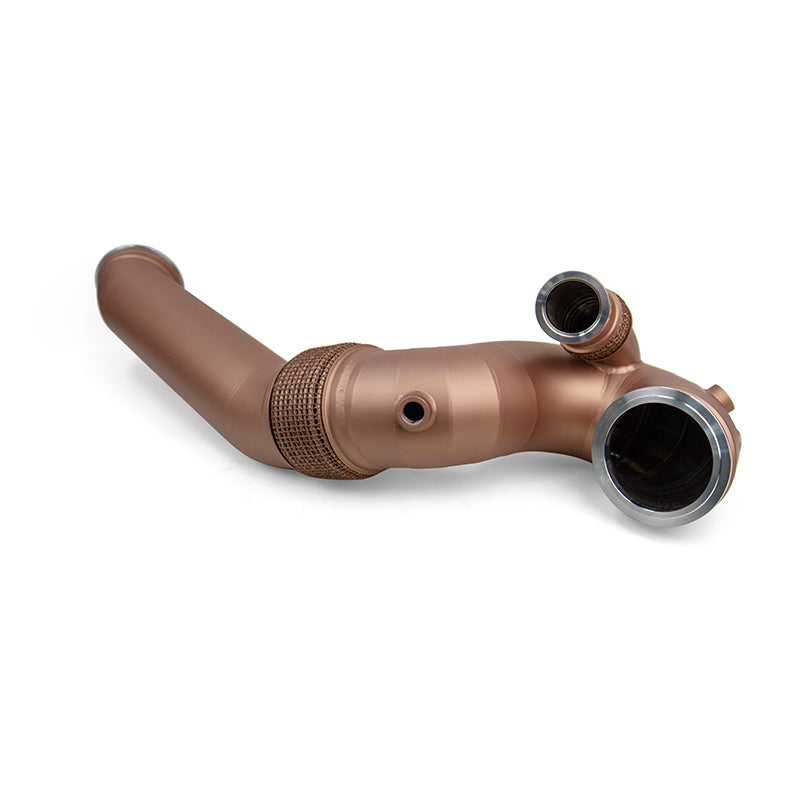

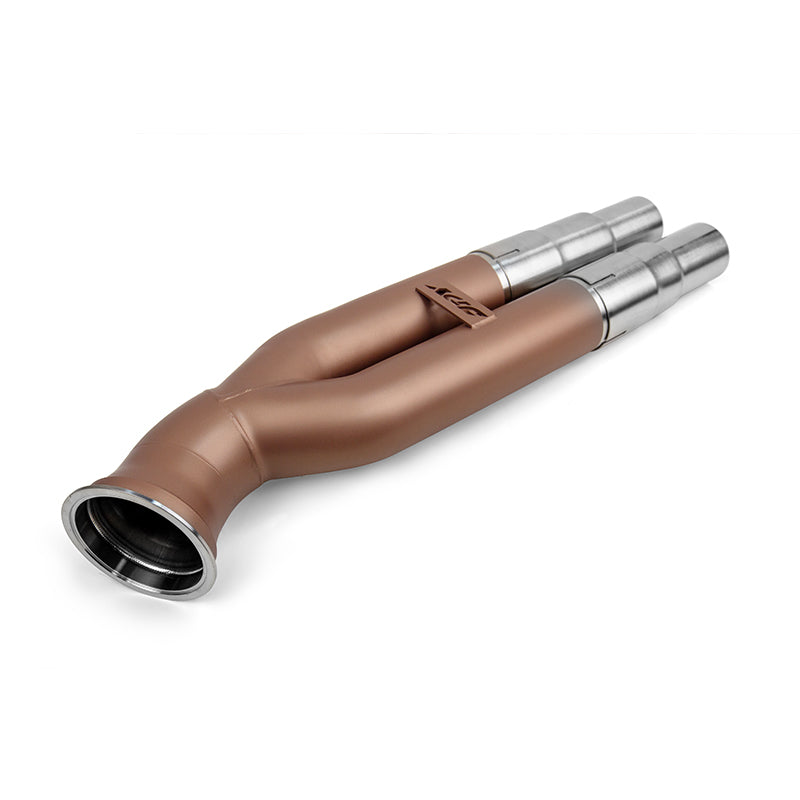

  • Downpipe and Midpipe: 3.5" diameter, Inconel heat shielding, recirculated downpipe with flex bellow
  • MAC Valve Option: 3 port MAC valve, with or without
  • Part Number: 855-6266TK and 855-6466TK series (varies by option)

Vehicle Compatibility: 2 applications across 1 make. Select a make to view.

Audi (2)
Model Variant Engine Years Notes
TT RS 8S 2.5 TFSI (DAZA/DNWA) LHD and RHD
RS3 8V2 facelift 2.5 TFSI (DAZA/DNWA) LHD and RHD

Images shown are generic and for illustration only. The part supplied may differ in appearance.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
