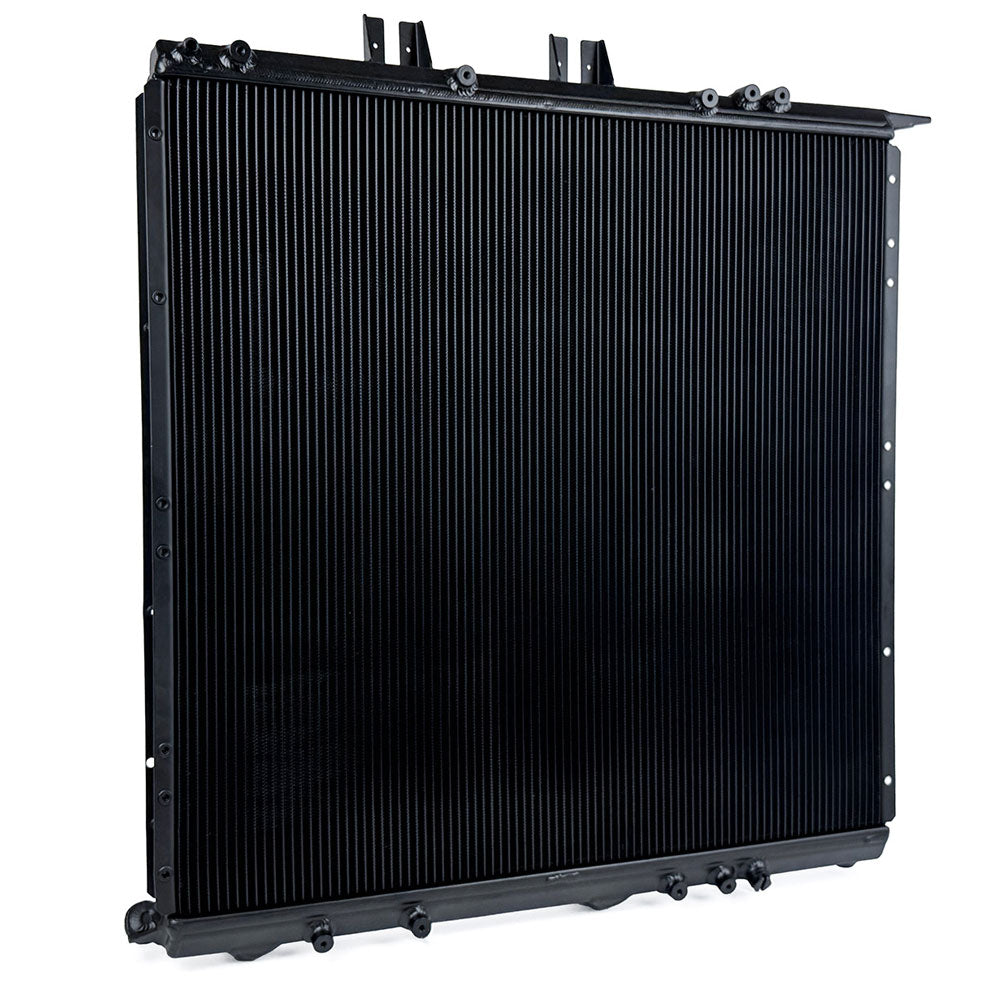

CSF 42mm High Performance Radiator - Ferrari 812 / F12 / FF / GTC4Lusso / Monza

The CSF 42mm High Performance Radiator is a direct replacement for the factory radiator in Ferrari's V12 grand tourers: the FF, GTC4Lusso (not the GTC4Lusso T), F12 Berlinetta, F12tdf, 812 Superfast, 812 GTS and Monza SP1 and SP2. A thicker 2-row 42mm core with B-Tube cooling tubes and 5mm multi-louvred fins gives up to 25% more heat transfer, with 28% more core volume than the FF and GTC4Lusso radiator and 14% more than the F12, 812 and Monza radiator. Where the OEM radiator has an aluminium core crimped to plastic tanks, this one is 100% TIG-welded aluminium including the tanks and CNC-machined fittings, so it resists the cracking and flaking that sets in as these cars age. It fits the original location with the factory ducting, shrouds, brackets, engine oil cooler and A/C condenser, with no permanent changes to the car.

Features

• 2-row 42mm core with 87 cooling tubes and 88 fin rows
• CSF B-Tube technology, about 15% better than conventional oval tubes
• 5mm multi-louvred fins for up to 25% higher heat transfer
• All-aluminium TIG-welded core and tanks with no crimp joints
• Resists the cracking and flaking of ageing plastic tanks that can lead to fouling and water pump issues
• OEM-style double-barbed inlet and outlet with a satin black finish
• Reuses the factory ducting, shrouds, brackets, engine oil cooler and A/C condenser
• Individually leak and pressure tested

Specifications

• Brand: CSF
• Product Type: Radiator
• Core: 2-row, 42mm thick
• Cooling Tubes: 87, CSF B-Tube
• Fins: 88 rows, 5mm multi-louvred
• Core and Tank Material: Aluminium
• Construction: 100% TIG-welded
• Connections: OEM-style double-barbed inlet and outlet
• Finish: Satin black
• Replaces OEM: Ferrari 263427 (FF / GTC4Lusso), 333926 (F12 / GTC4Lusso), 319867 (812 / Monza)
• Part Number: CSF7250

Vehicle Compatibility: 5 applications across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
