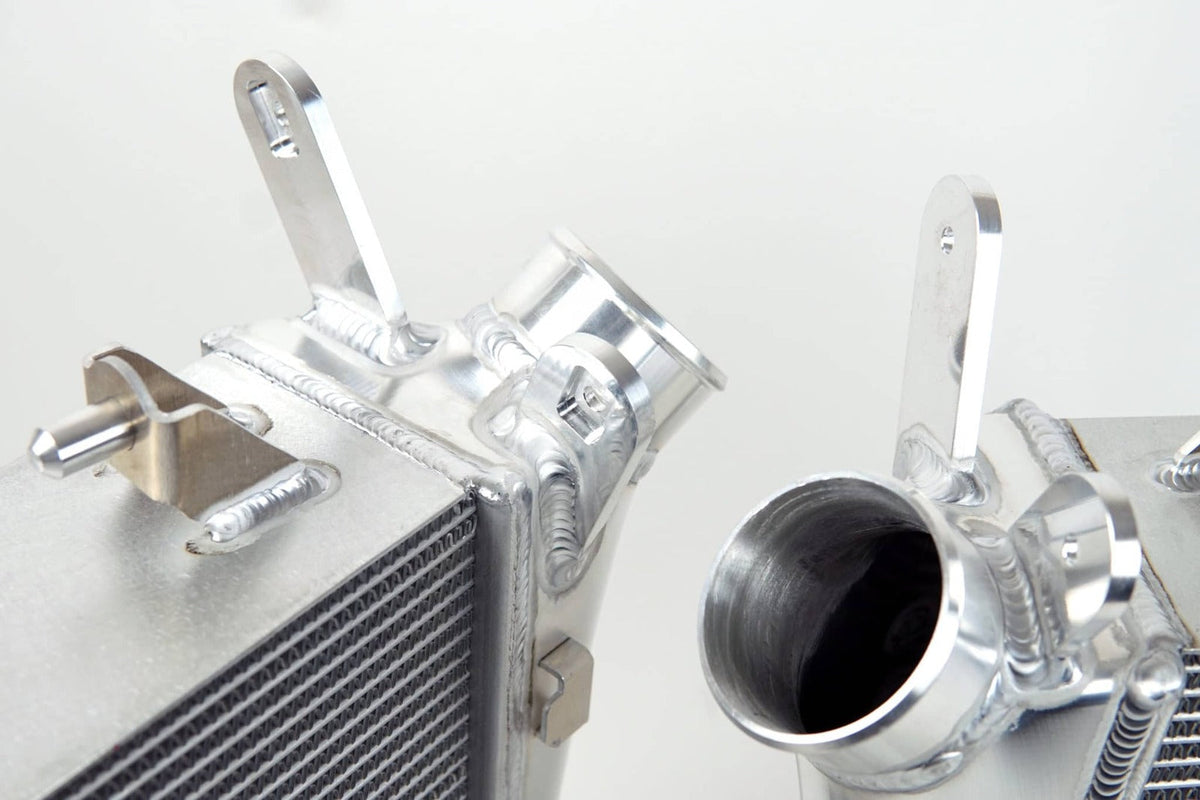

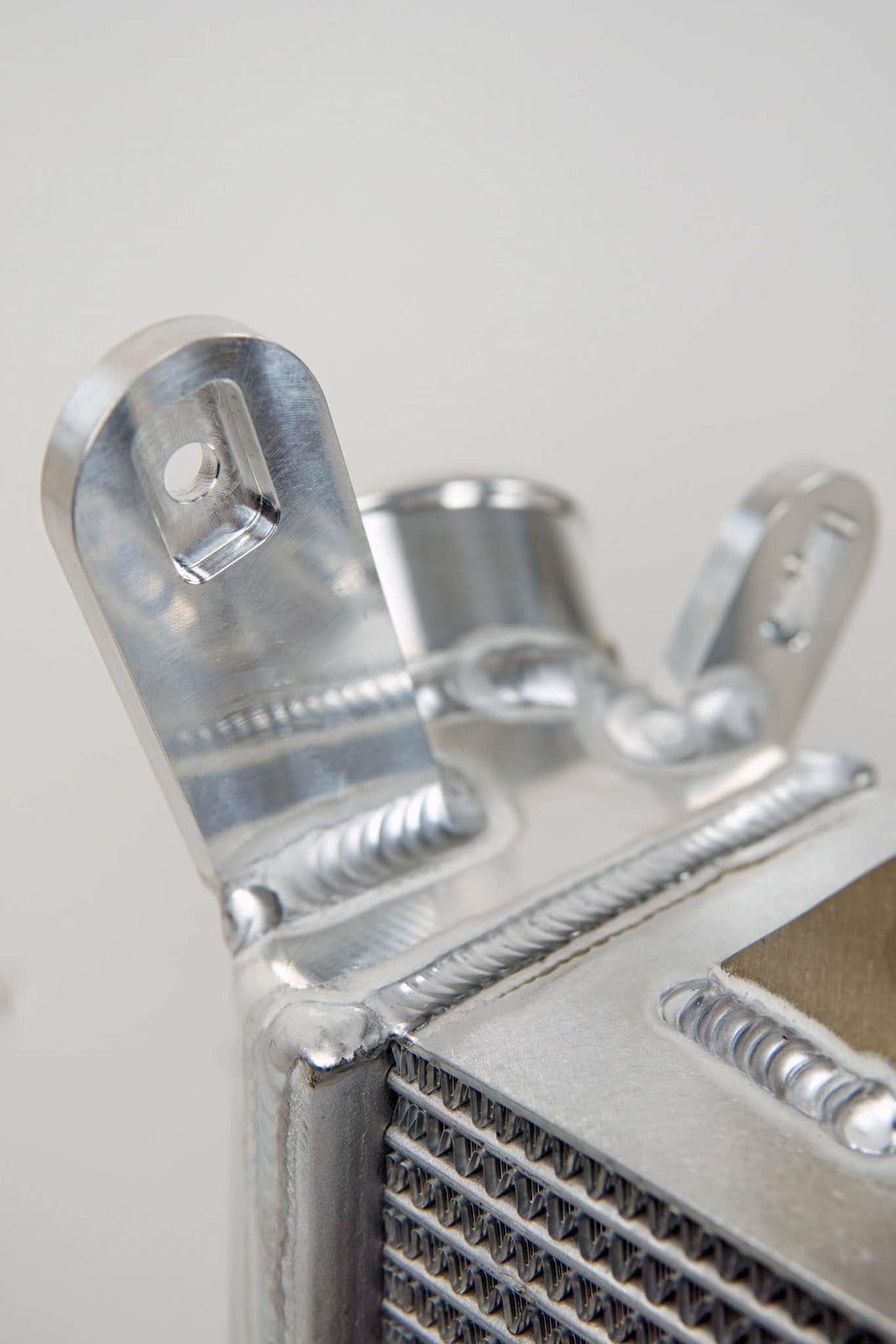

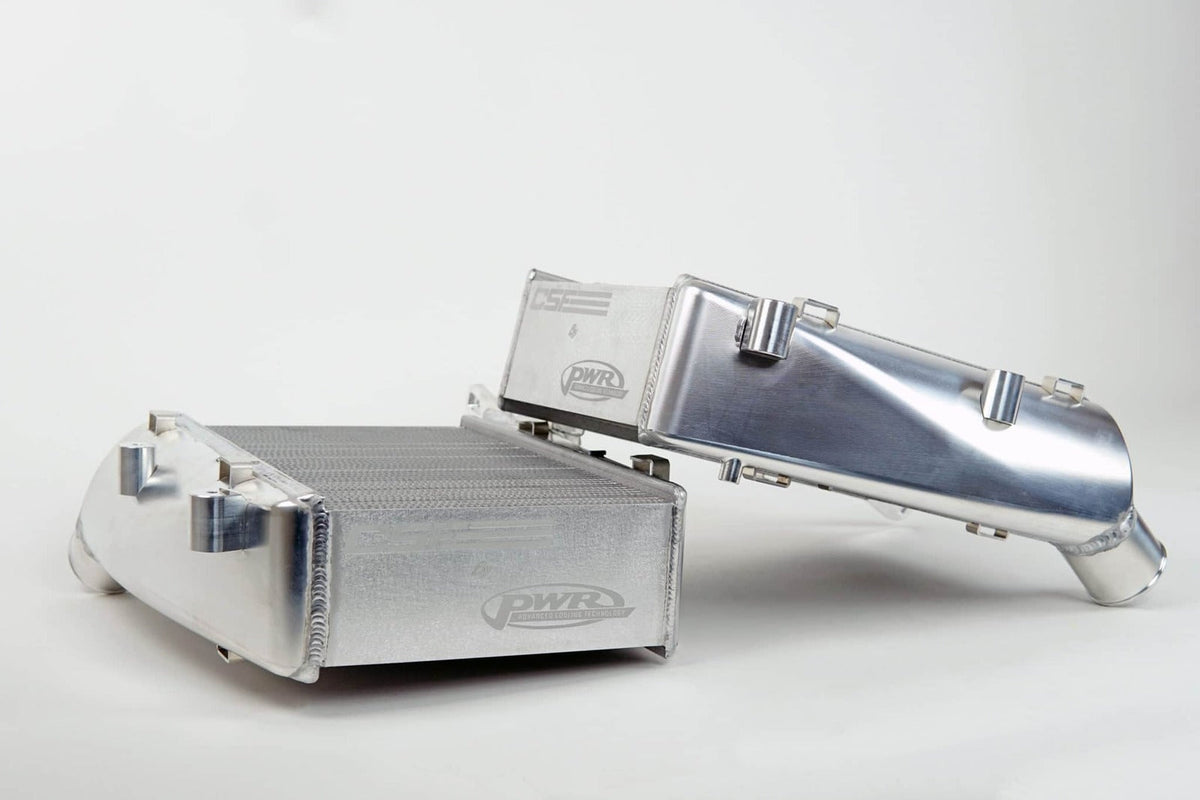

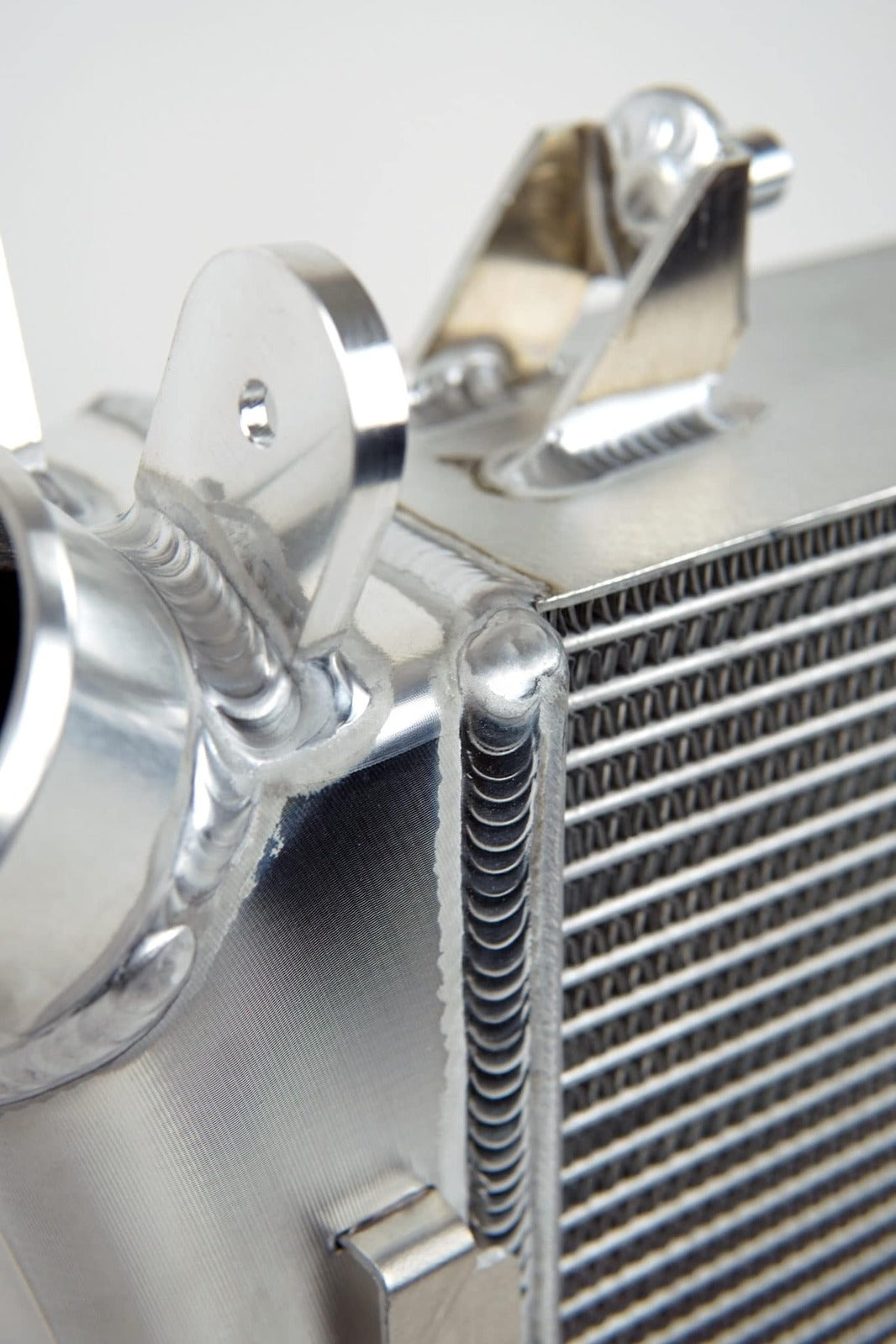

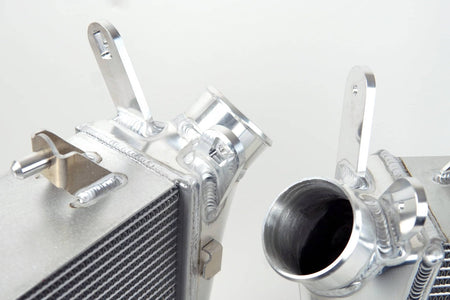

The CSF High-Performance Intercooler System is a pair of drop-in intercoolers for the Audi RS6 and RS7 (C8), developed with Pacific German and built by PWR in the USA. The factory intercoolers heat soak under load, letting intake air temperatures climb until the ECU pulls timing, while the Formula 1-grade PWR cores use two rows of rolled tubes with inner fins to hold intake temperatures down for longer. CNC-machined billet aluminium end tanks are fully TIG-welded in place of the factory crimped cast tanks, so they are stronger under the higher boost of tuned and upgraded-turbo cars. CSF quotes gains of about 15 kW and 24 Nm at the wheels on the factory tune, and about 7.5 kW and 27 Nm with a performance tune, and the coolers come in a raw billet aluminium finish.
Features
- Formula 1-grade PWR two-row cores with rolled tubes and inner fins
- CNC-machined billet aluminium end tanks, 100% TIG-welded
- Reduces heat soak and intake air temperatures under hard driving
- OEM-style inlet and outlet connections for a precise fit with factory parts
- Stage 1 (factory tune) gain: 20 whp and 18 lb-ft, about 15 kW and 24 Nm
- Stage 2 (performance tune) gain: 10 whp and 20 lb-ft, about 7.5 kW and 27 Nm
- Made in the USA by PWR North America
- Plug-and-play, no modifications needed
Specifications
- Brand: CSF
- Product Type: Intercooler Set
- Supplied As: Left and right intercoolers
- Core: PWR two-row, rolled tubes with inner fins
- End Tanks: CNC-machined billet aluminium, TIG-welded
- Finish: Raw billet aluminium
- Replaces OEM: 4K0 145 805 P (left), 4K0 145 806 B (right)
- Installation: Drop-in fit
- Part Number: CSF8194
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Audi (2)
| Model | Variant | Engine | Years |
|---|---|---|---|
| RS6 | C8 | ||
| RS7 | C8 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
