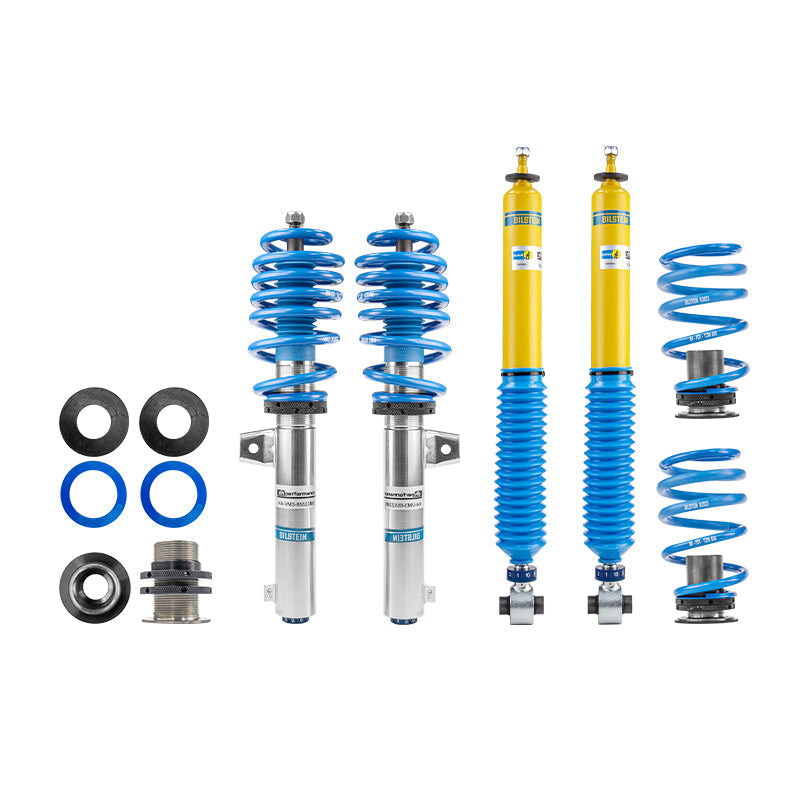

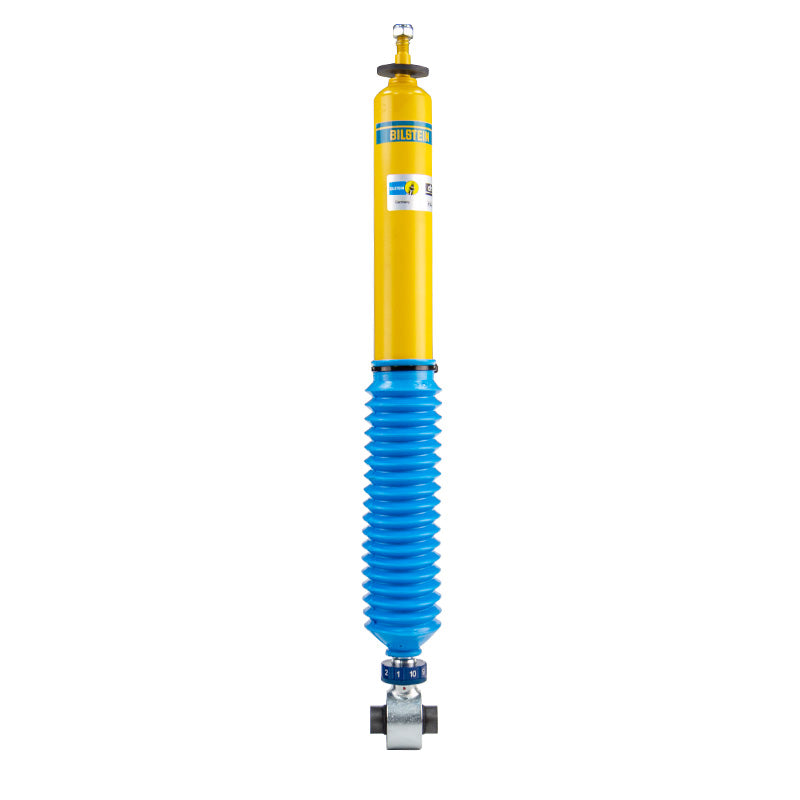

This drag racing suspension was developed jointly by JDY Performance, DH Automotive and Bilstein for MQB-platform Audi, Volkswagen and SEAT models. It builds on the Bilstein B16 monotube gas pressure damper, with custom valving tuned for rear traction and consistent weight transfer on launch, and drag-specific spring rates that JDY says give the right squat for grip and straight-line stability. Damping is adjustable in 10 stages for rebound and compression, and ride height can be lowered at the front and rear to fine-tune dragstrip geometry. Race-only springs are offered as an optional upgrade over the standard springs.
Features
- Custom-valved dampers tuned for rear traction on launch
- Drag-specific spring rates for optimal squat

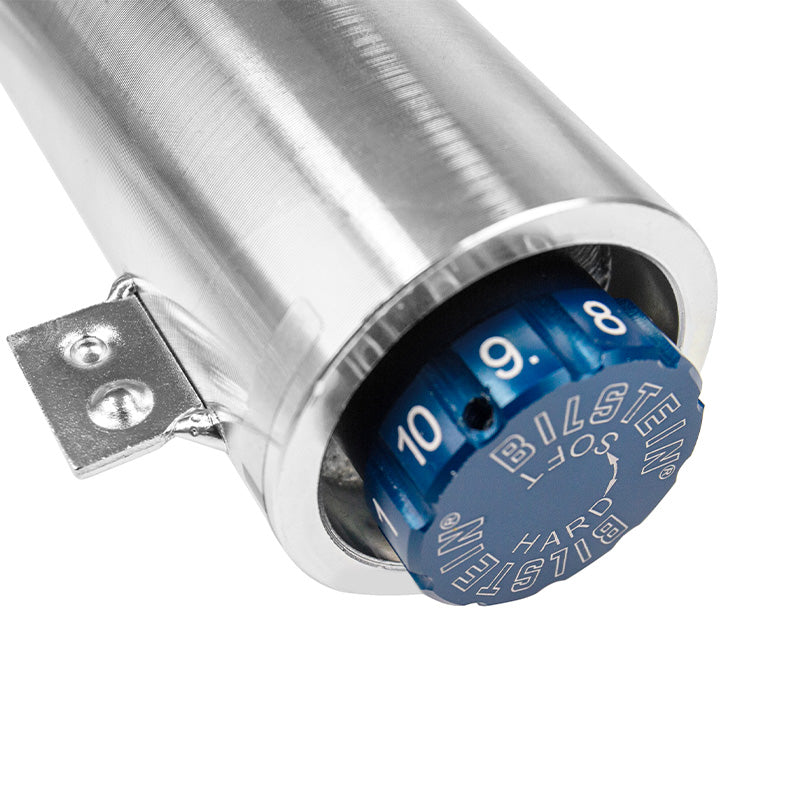

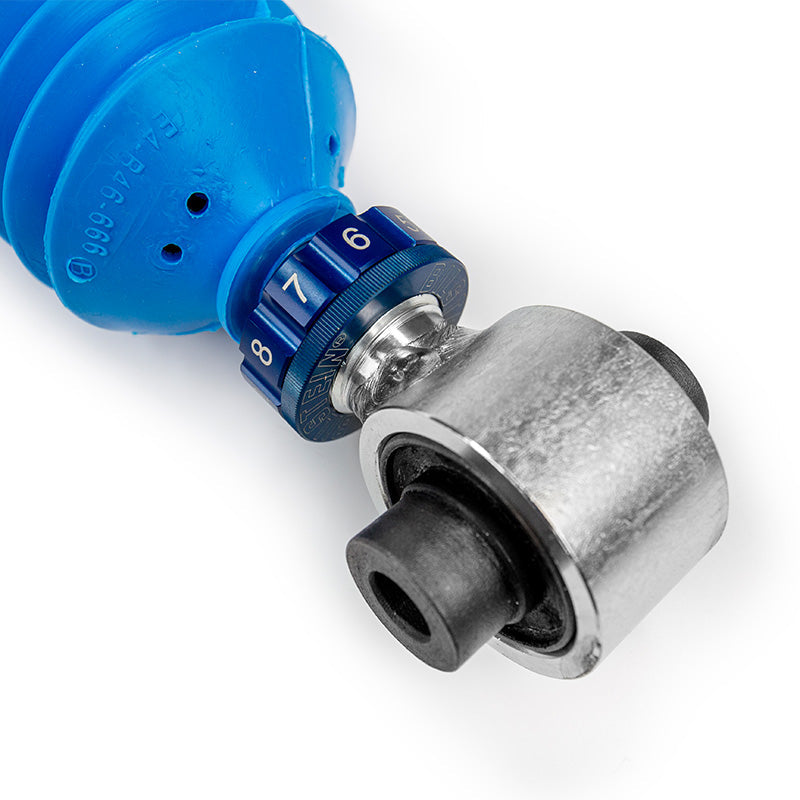

- Drag-tuned 10-stage damping for rebound and compression

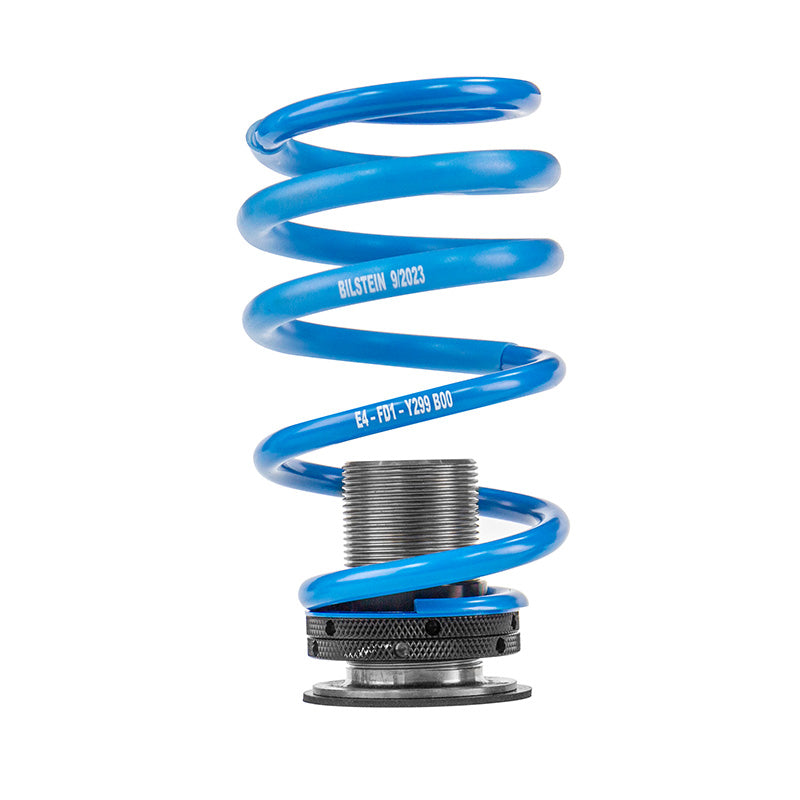

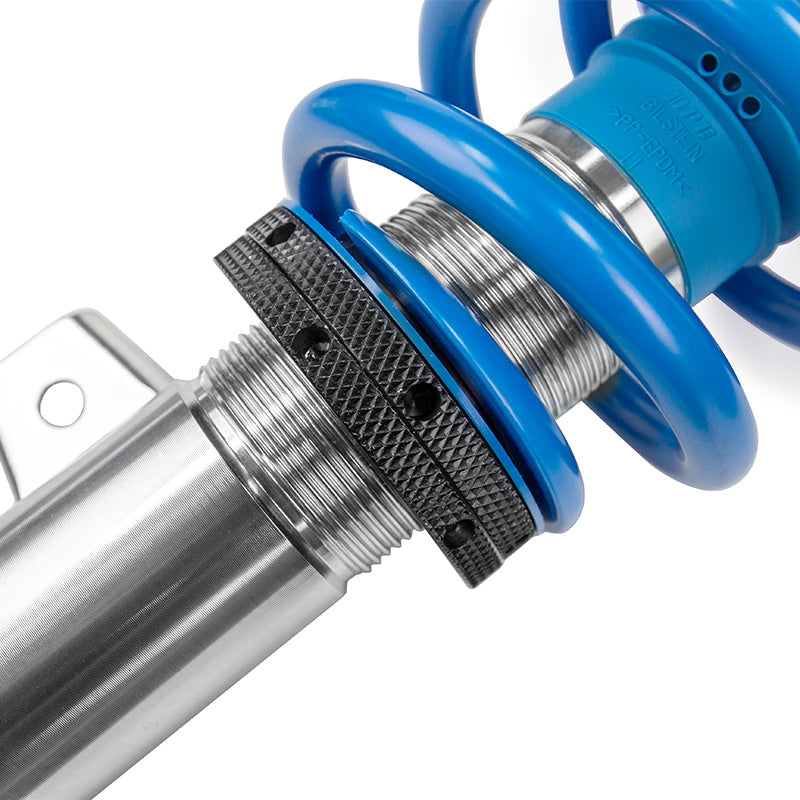

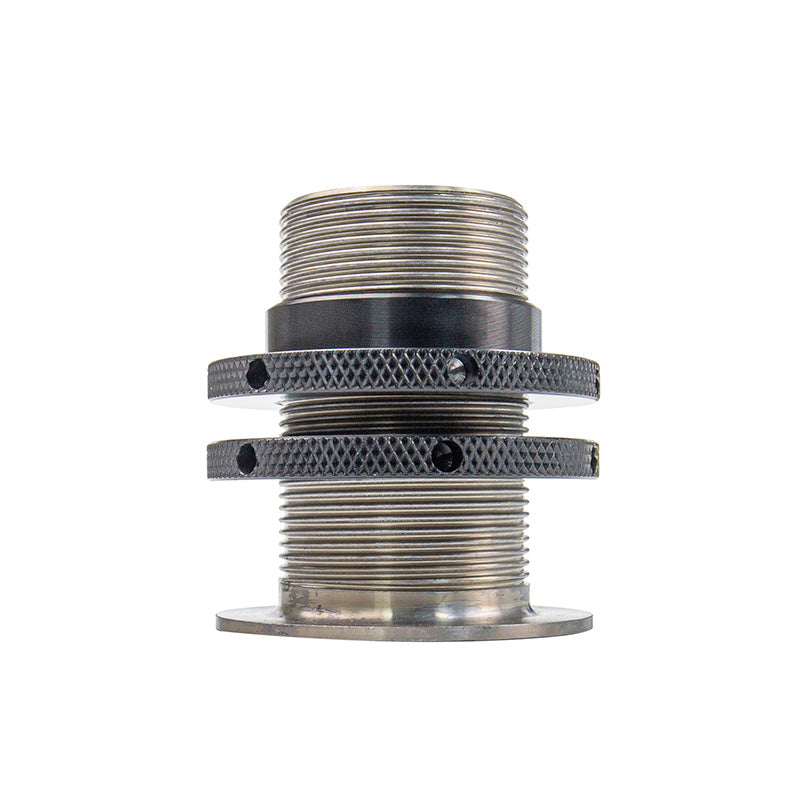

- Height adjustable at the front and rear

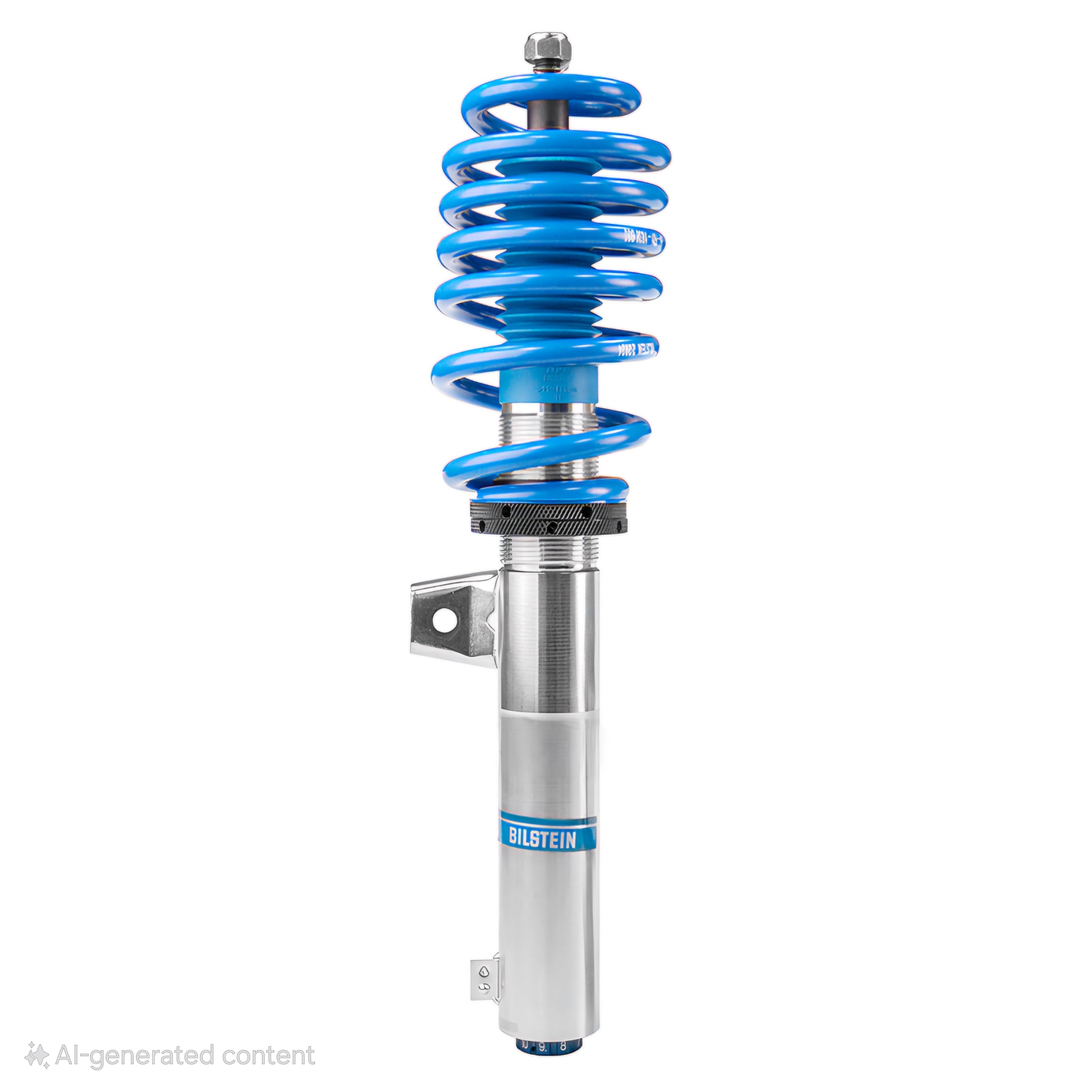

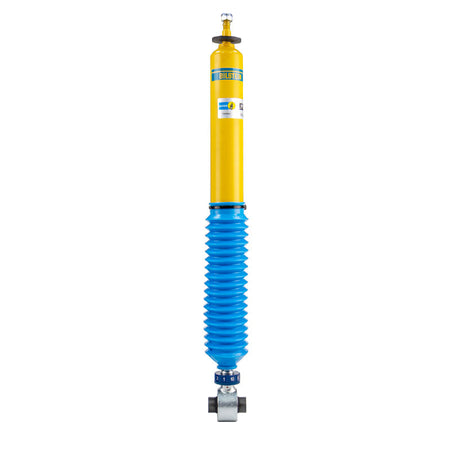

- Monotube gas pressure design based on the Bilstein B16
- Triple-C Technology coating for corrosion resistance

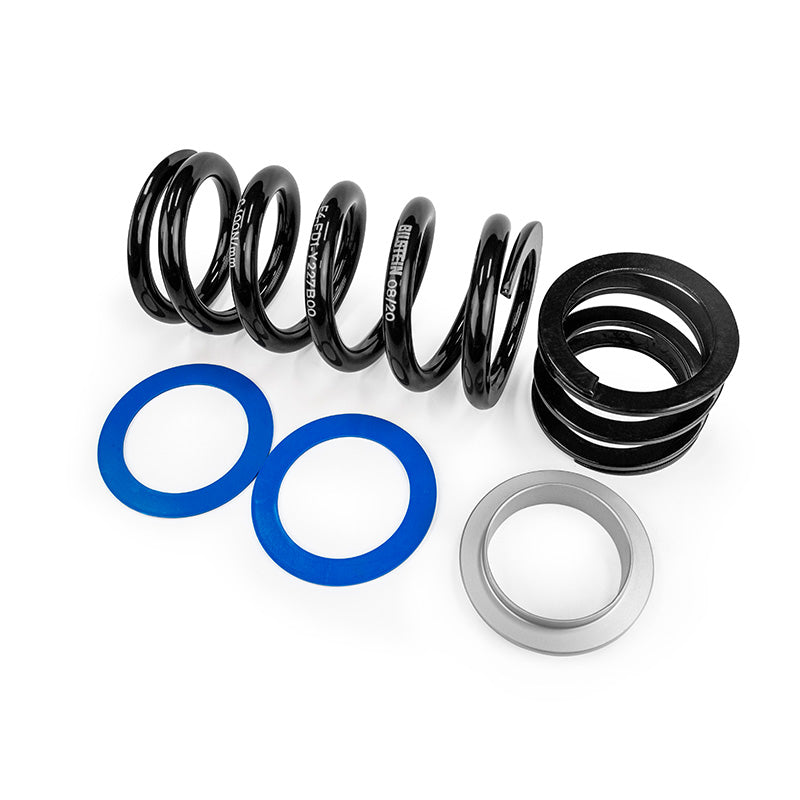

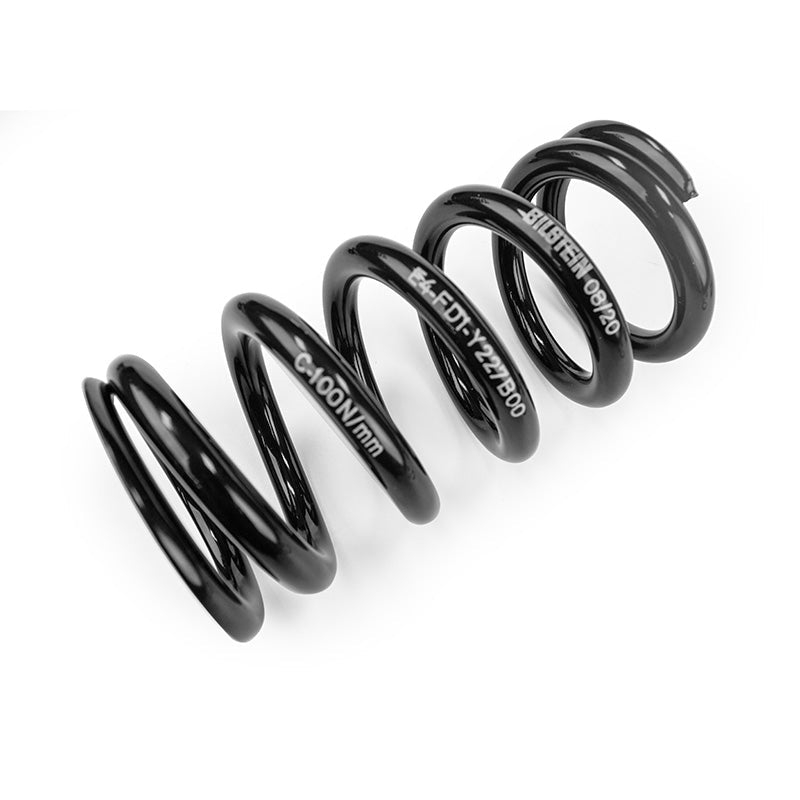

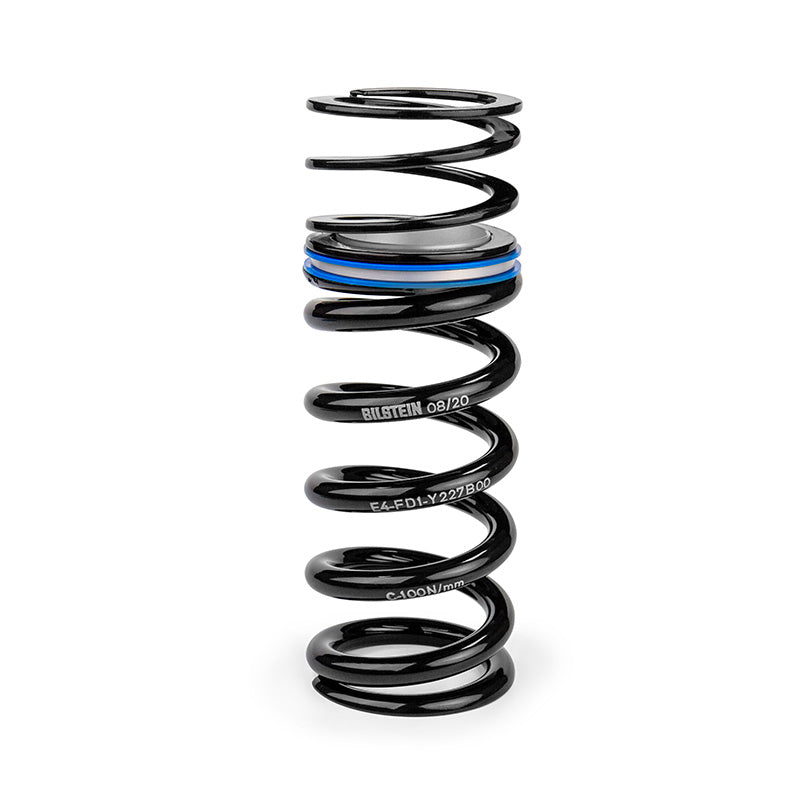

- Optional race-only springs
Specifications
- Brand: JDY Performance
- Product Type: Drag Racing Suspension
- Base Damper: Bilstein B16, monotube gas pressure
- Damping: Drag-tuned, 10-stage adjustable (rebound and compression)

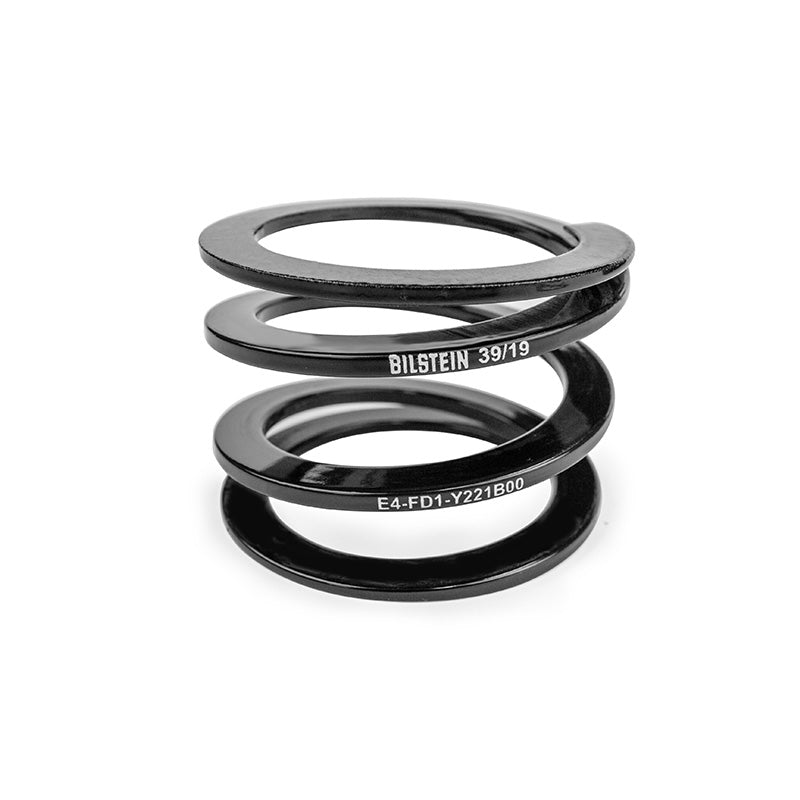

- Springs: Drag-specific rates; standard or racing springs option
- Ride Height: Adjustable, front and rear
- Coating: Triple-C Technology
- Developed By: JDY Performance, DH Automotive and Bilstein
- Part Number: S-BDH-001, S-BDH-002
Vehicle Compatibility: 7 applications across 3 makes. Select a make to view.
Audi (4)
| Model | Variant | Engine | Years |
|---|---|---|---|
| RS3 | 8V (MQB) | ||
| S3 | 8V (MQB) | ||
| TT | 8S (MQB) | ||
| TT RS | 8S (MQB) |
SEAT (1)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Leon | Cupra (MQB) |
Volkswagen (2)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Golf | Mk7 GTI (MQB) | ||
| Golf R | Mk7 (MQB) |
Images shown are generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
