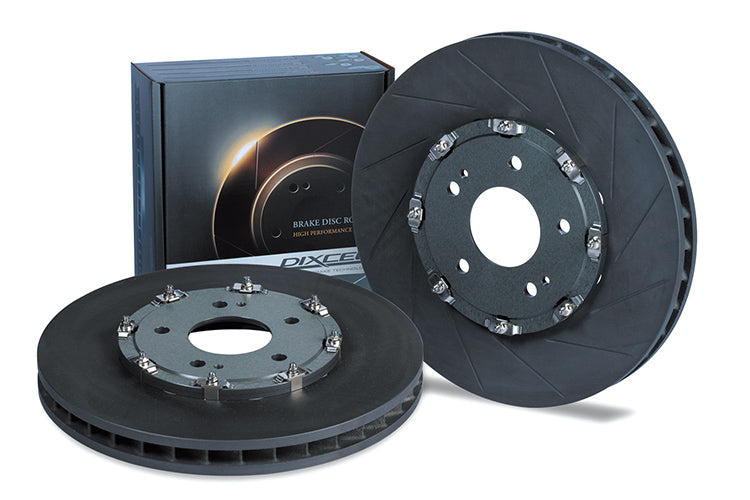

DIXCEL 2-Piece Front Brake Discs - Subaru WRX STI (GDB/GR/GV/VAB) / BRZ / Toyota GR86 (4-Pot Brembo) - 326x30mm
These DIXCEL 2-piece front discs suit the Subaru WRX STI, BRZ and Toyota GR86 with Brembo 4-piston calipers, and come as a complete assembly of disc ring, bell and hardware that bolts on without modification. This is the FS Type (Slotted), measuring 326 x 30mm, and DIXCEL developed its 2-piece discs in endurance racing. The ring floats on the bell and may rattle slightly, which DIXCEL says is normal, and the discs are handed, so each must go on its marked side.
Features
- Complete 2-piece assembly: disc ring, bell and hardware
- Bolts on without modification for the listed applications
- Floating ring that can expand with heat, separate from the bell

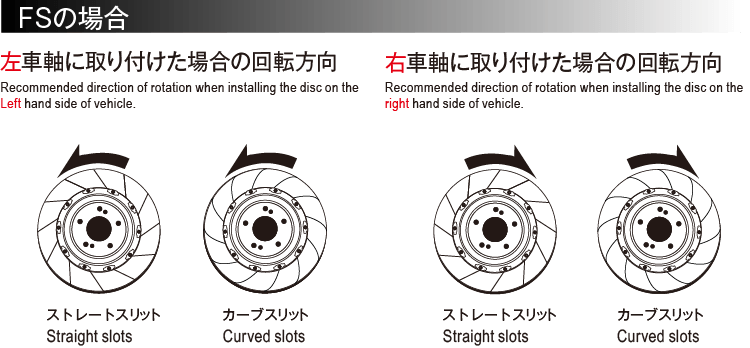

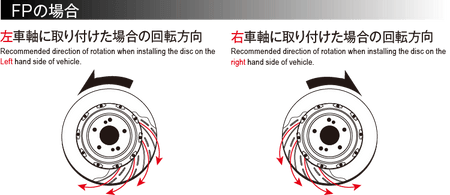

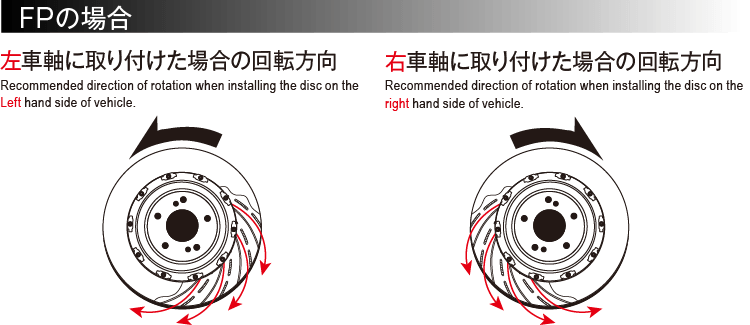

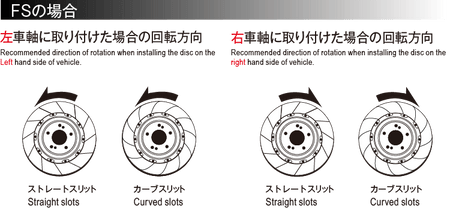

- Handed left and right discs (fit each to its marked side)
- Bobbins, springs and bolts available separately
- Bell bolts torque to 9.8-10.8Nm with thread locker (DIXCEL figure)
Specifications
- Brand: DIXCEL
- Product Type: Brake Rotors
- Construction: 2-piece floating disc (ring, bell and hardware)
- Disc Type: FS Type (Slotted)
- Size: 326 x 30mm
- Fitment Position: Front
- Sold As: Pair (left and right)
- Part Number: FSBS32630W72R/73L
Vehicle Compatibility: 5 applications across 2 makes. Select a make to view.
Subaru (4)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| WRX STI | GDB | Brembo 4-piston front calipers | ||
| WRX STI | GR / GV | Brembo 4-piston front calipers | ||
| WRX STI | VAB | Brembo 4-piston front calipers | ||
| BRZ | Brembo Package | Brembo 4-piston front calipers |
Toyota (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| GR86 | Brembo Package | Brembo 4-piston front calipers |
Images shown are generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
