DIXCEL Anti-Squeal Shims (Front) - Subaru STI / Mitsubishi Evo / Civic Type R / Megane RS (Brembo 4-Piston)

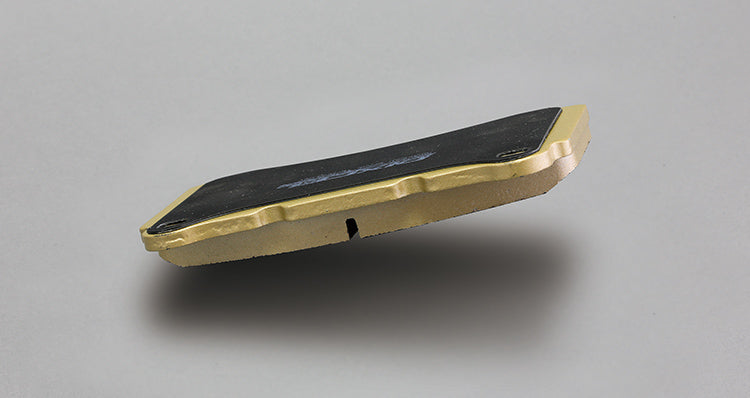

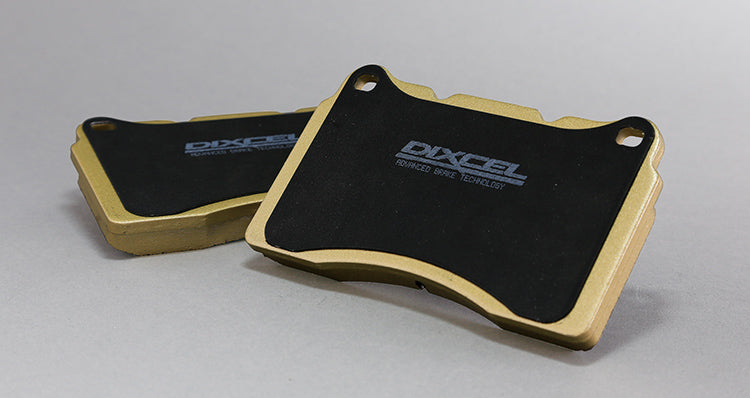

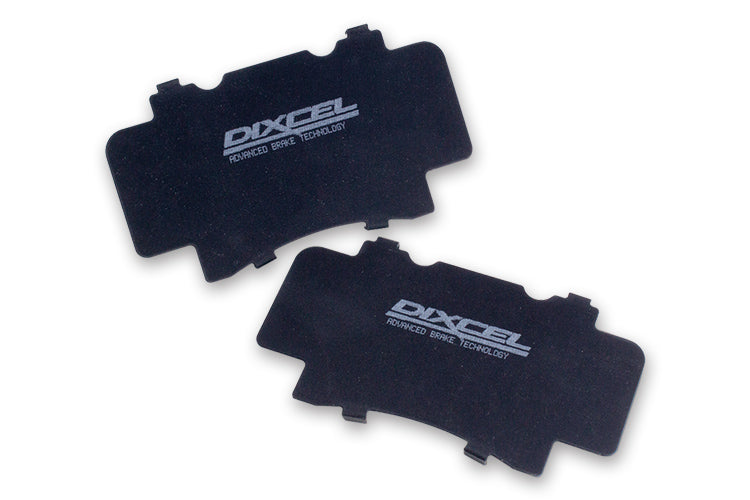

DIXCEL stop noise shims fit to the back of the front brake pads on the Subaru WRX STI, BRZ, Mitsubishi Lancer Evolution, Toyota 86, Renault Megane RS and Honda Civic Type R, where their multi-layer construction absorbs the vibration that causes brake squeal. Each set has four shims, one for each pad on the axle, with a stainless steel core between vibration-absorbing layers. Clean the pad backing plates, press the shims on firmly so they line up with the pad shape, then grease as needed and refit the pads. Don't fit them on top of the original stainless shims, which makes the pads too thick and can cause drag, and DIXCEL says they are not for race track use.
Features
- Multi-layer shim with a stainless steel core between vibration-absorbing layers
- Absorbs pad vibration to reduce brake squeal
- Four-piece set for one axle
- Shaped to match the pad backing plate
- Replaces, not adds to, the original shims
- For street use
Specifications
- Brand: DIXCEL
- Product Type: Anti-Squeal Shims
- Fitment Position: Front
- Sold As: Four-piece set (one axle)
- Pairs With: DIXCEL pads 341225 and 361077 (DIXCEL shim table)
- Part Number: S.SS077-NHNT4
Vehicle Compatibility: 8 applications across 5 makes. Select a make to view.
Honda (2)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Civic Type R | FK8 | 2017-2021 | |
| Civic Type R | FL5 | 2022-on |
Mitsubishi (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Lancer Evolution | V-IX | Brembo 4-piston front calipers | ||
| Lancer Evolution | X (CZ4A) | Brembo front calipers |
Renault (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Megane RS | X95 | Brembo 4-piston front calipers |
Subaru (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| WRX STI | VAB / GVB / GRB | Brembo 4-piston front calipers | ||
| BRZ | ZC6 / ZD8 | Brembo 4-piston front calipers |
Toyota (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| 86 | ZN6 / ZN8 | Brembo 4-piston front calipers |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
