DIXCEL Anti-Squeal Shims (Rear) - Subaru STI / Mitsubishi Evo / Nissan Skyline GT-R / 350Z (Brembo 2-Piston)

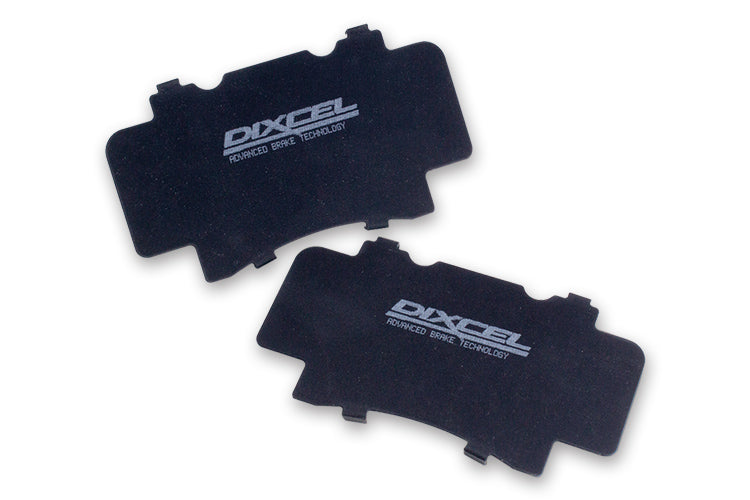

DIXCEL stop noise shims fit to the back of the rear brake pads on the Subaru WRX STI, BRZ, Mitsubishi Lancer Evolution, Toyota 86, Nissan Skyline GT-R and 350Z, where their multi-layer construction absorbs the vibration that causes brake squeal. Each set has four shims, one for each pad on the axle, with a stainless steel core between vibration-absorbing layers. Clean the pad backing plates, press the shims on firmly so they line up with the pad shape, then grease as needed and refit the pads. Don't fit them on top of the original stainless shims, which makes the pads too thick and can cause drag, and DIXCEL says they are not for race track use.
Features
- Multi-layer shim with a stainless steel core between vibration-absorbing layers
- Absorbs pad vibration to reduce brake squeal
- Four-piece set for one axle
- Shaped to match the pad backing plate
- Replaces, not adds to, the original shims
- For street use
Specifications
- Brand: DIXCEL
- Product Type: Anti-Squeal Shims
- Fitment Position: Rear
- Sold As: Four-piece set (one axle)
- Pairs With: DIXCEL pad 325499 (DIXCEL shim table)
- Part Number: S.SN499-SHPT4
Vehicle Compatibility: 6 applications across 4 makes. Select a make to view.
Mitsubishi (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Lancer Evolution | V-IX | Brembo 2-piston rear calipers |
Nissan (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Skyline GT-R | R32 / R33 / R34 | Brembo rear calipers | ||
| 350Z | Z33 | Brembo rear calipers |
Subaru (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| WRX STI | VAB / GVB / GRB | Brembo 2-piston rear calipers | ||
| BRZ | ZC6 / ZD8 | Brembo 2-piston rear calipers |
Toyota (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| 86 | ZN6 / ZN8 | Brembo 2-piston rear calipers |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
