These DIXCEL replacement rotor rings fit the 355x32mm 12-Slot two-piece disc (355 x 32mm). They are rings only, so the existing bell, bobbins and hardware are reused, and they are sold as a handed left and right pair. This is the FS Type (12-Slit), in cast iron with an anti-corrosion finish where the pads do not contact. Fit new bolts and nuts when changing rings, use thread locker and torque the bell bolts to 9.8-10.8Nm, DIXCEL's figure for its own and Brembo bells.
Features
- Replacement friction rings for an existing two-piece disc
- Reuses the existing bell, bobbins and hardware
- Handed left and right rings, sold as a pair
- FS Type: 12-slit face
- Bell bolt torque 9.8-10.8Nm with thread locker (DIXCEL figure)
- Fit new bolts and nuts when changing rings
Specifications
- Brand: DIXCEL
- Product Type: Replacement Rotor Rings
- Ring Type: FS Type (12-Slit)
- Size: 355 x 32mm
- Fits: 355x32mm 12-Slot
- Sold As: Pair (left and right rings)
- Not Included: Bell (hat), bobbins, bolts, nuts and springs
- Part Number: FS-35532A22R/23L
Vehicle Compatibility: 5 disc fitments across 3 brands. Select a brand to view.
Alcon (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| 355 x 32mm two-piece disc | DIV2146X717 / DIV2146X717C24L / DIV2146X717C24R | Ring only, pair FS-35532A22R / FS-35532A23L |
AP Racing (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| 355 x 32mm two-piece disc | CP4542-106 / CP4542-107 (pair CP4542-106/107) | Ring only, pair FS-35532A22R / FS-35532A23L | ||
| 355 x 32mm two-piece disc | CP4542-306 / CP4542-307 (pair CP4542-306/307) | Ring only, pair FS-35532A22R / FS-35532A23L |
DBA (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| 5000 Series two-piece disc | 52750.1 replacement ring | 355 x 32mm; ring only, pair FS-35532A22R / FS-35532A23L |
Other (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| 355 x 32mm two-piece disc | Other makers' two-piece BBK discs with 244mm ID, 215.9mm mounting PCD and 12 x 6.4mm bolt holes; ring only, pair FS-35532A22R / FS-35532A23L |

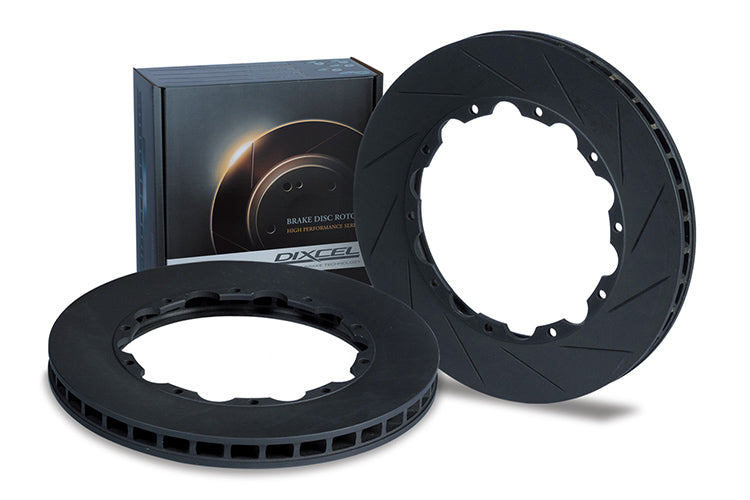

Image shown is generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
