DIXCEL Rear Brake Pads - Toyota Corolla (ZRE212/MZEA17) / Prius (ZVW51/ZVW55) / Yaris (NCP131) / Auris (ZRE152H)

Japanese brake specialist DIXCEL makes pads for everything from daily driving to endurance racing, and this rear pad set suits the Toyota Corolla, Corolla Touring, Prius, Prius PHV, Auris and other models (full application list below). It comes in five DIXCEL compounds, from the EC Type for street use to the Z Type for street and circuit, so the pad can be matched to how the car is driven. DIXCEL says its street pads come with stop noise shims and pad grease in the box, and they can be used with any DIXCEL disc.

Features

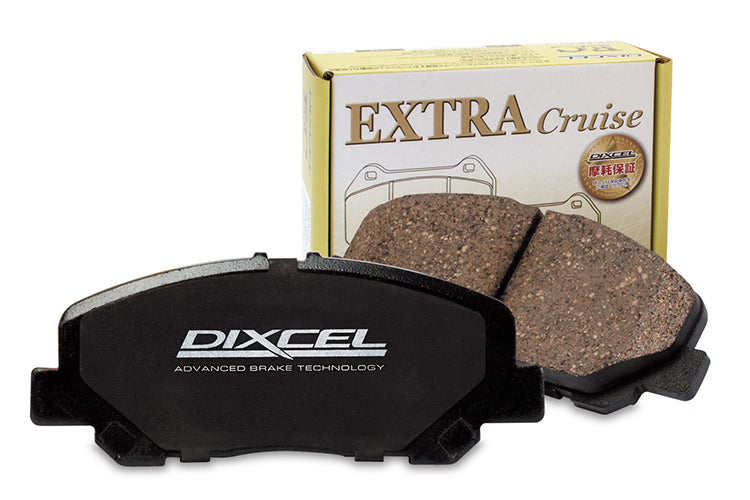

• EC Type (Extra Cruise): affordable low-dust street pad with better bite than standard and a pre-scorched surface for easy bedding-in

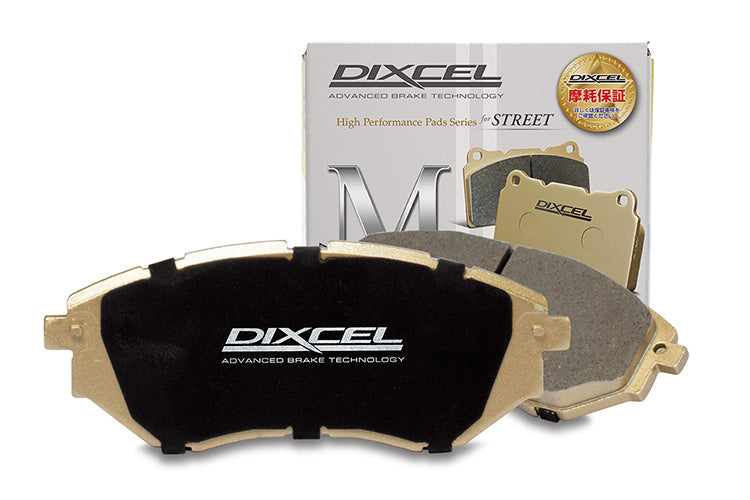

• M Type: ultra-low-dust street pad with a stable, progressive bite that is designed to keep disc wear to a minimum

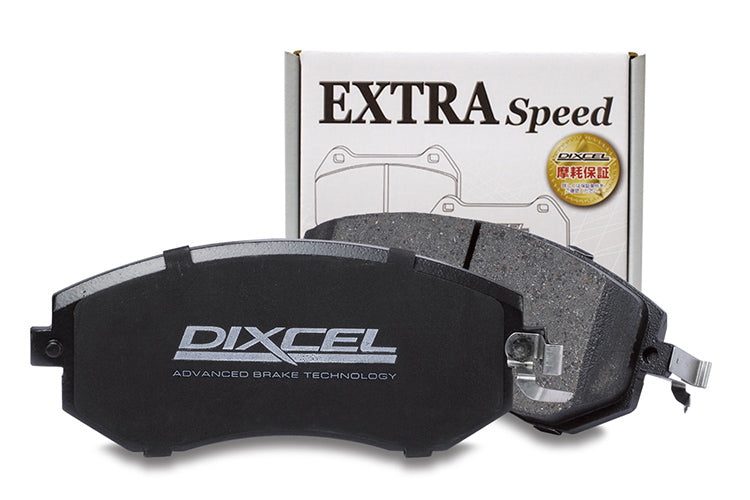

• ES Type (Extra Speed): step-up street pad with more braking power and fade resistance than standard, for spirited road driving

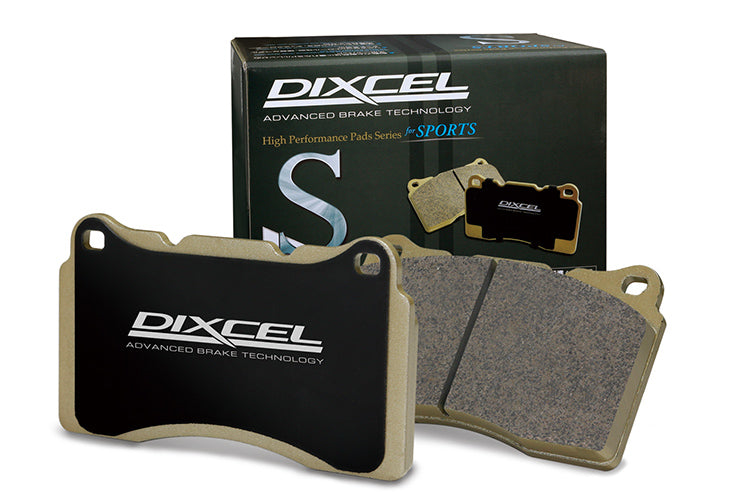

• S Type: mid-range sports pad with a linear pedal response, for the street and light track use in naturally aspirated cars up to 1,250kg

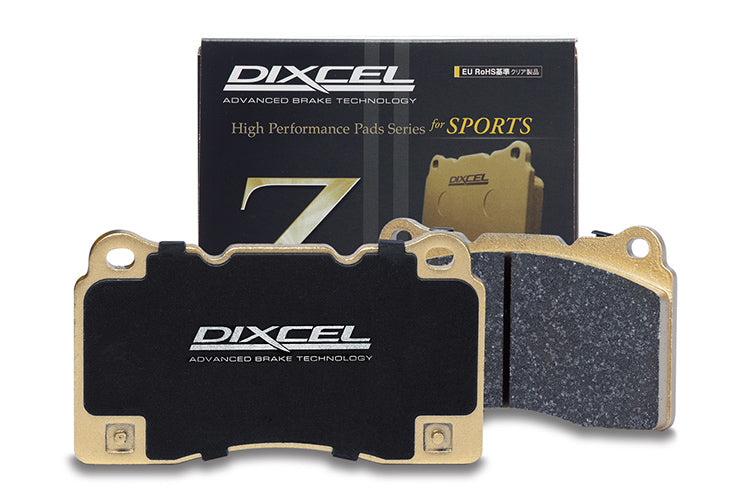

• Z Type: graphite metallic all-round sports pad with strong cold bite and high fade resistance, from the street to the circuit
• Stop noise shims and DIXCEL pad grease in the box with the street compounds (PG101 grease with EC Type, M Type and ES Type; graphite LP1652 grease with S Type and Z Type)
• EC Type and ES Type: mechanical wear indicators fitted where the car had them from the factory
• Developed in Japan by DIXCEL

Specifications

• Brand: DIXCEL
• Product Type: Brake Pads
• Compound Options: EC Type, M Type, ES Type, S Type and Z Type
• Intended Use: EC Type and M Type: street use; ES Type: street and spirited road driving; S Type: street and light track use (naturally aspirated cars up to 1,250kg); Z Type: street and circuit
• Friction Coefficient: EC Type: 0.35-0.50 (0.41 average); M Type: 0.39-0.52 (0.40 average); ES Type: 0.34-0.48 (0.35 average); S Type: 0.36-0.54 (0.38 average); Z Type: 0.50-0.67 (0.57 average)
• Operating Temperature: EC Type: 0-450°C; M Type: 0-500°C; ES Type: 0-600°C; S Type: 0-700°C; Z Type: 0-850°C
• Friction Material: EC Type: non-asbestos organic; M Type: non-asbestos organic, copper free; ES Type: non-asbestos organic; S Type: non-asbestos, low steel; Z Type: graphite metallic
• Fitment Position: Rear
• Sold As: Axle set
• Part Numbers: EC-315508 (EC Type), M-315508 (M Type), ES-315508 (ES Type), S-315508 (S Type), Z-315508 (Z Type)

Vehicle Compatibility: 14 applications across 2 makes. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
