EBC Front USR Series Slotted Brake Rotors - BMW 3 Series (E91) / BMW X1 (E84) (USR1663)
EBC USR (Ultimax Slotted Rotor) discs are the brand's quiet, fine-slotted rotors for fast road driving, and this front pair suits the BMW 3 Series (E91) and X1 (E84), with the full application list below. They start as premium G3000 grey iron blanks and are precision machined in the UK or USA with a narrow multi-slot pattern cut at a progressive angle to keep air noise down. The slots sweep gas, dirt, water and debris from the pad face and help the pads wear flat and even. EBC designs USR discs to run as a matched set with its GreenStuff, RedStuff or YellowStuff pads.
Features
- Narrow multi-slot pattern machined at a progressive angle
- Premium G3000 grey iron blanks
- Precision machined in the UK or USA
- Slots clear gas, dirt, water and debris from the pad face
- Encourages flat, even pad wear
- Finer slots for low air noise
Specifications
- Brand: EBC Brakes
- Product Type: Brake Rotors
- Range: USR (fine slotted)
- Fitment Position: Front
- Sold As: Pair
- Material: Premium G3000 grey iron
- Slot Design: Narrow multi-slot, progressive angle
- Recommended Pads: EBC GreenStuff, RedStuff or YellowStuff
- Model Years Covered: 2005-2021
- Part Number: USR1663
Vehicle Compatibility: 49 applications across 1 make. Select a make to view.
BMW (49)
| Model | Variant | Engine | Years |
|---|---|---|---|
| 1 Series (F20) | 125 | 2.0L | 2011-2019 |
| 1 Series (F21) | 120 | 2.0L | 2012-2019 |
| 1 Series (F21) | 125 | 2.0L | 2012-2019 |
| 1 Series (xDrive F20) | 120 | 2.0L | 2011-2019 |
| 1 Series (xDrive F21) | 120 | 2.0L | 2011-2019 |
| 2 Series (F22) | 220 | 2.0L | 2013-2021 |
| 2 Series (F22) | 225 | 2.0L | 2014-2020 |
| 2 Series (F23) | 220 | 2.0L | 2014-2021 |
| 2 Series (F23) | 225 | 2.0L | 2015-2020 |
| 2 Series (xDrive F22) | 220 | 2.0L | 2013-2021 |
| 3 Series (E90) | 320 | 2.0L | 2007-2012 |
| 3 Series (E90) | 325 | 2.5L | 2007-2012 |
| 3 Series (E90) | 325 | 3.0L | 2007-2012 |
| 3 Series (E90) | 325 Sport | 2.5L | 2010-2012 |
| 3 Series (E91) | 318 | 2.0L | 2007-2012 |
| 3 Series (E91) | 320 | 2.0L | 2007-2012 |
| 3 Series (E91) | 323 | 2.5L | 2006-2007 |
| 3 Series (E91) | 325 | 2.5L | 2007-2012 |
| 3 Series (E91) | 325 | 3.0L | 2007-2012 |
| 3 Series (E91) | 325 Sport | 2.5L | 2010-2012 |
| 3 Series (E92) | 320 | 2.0L | 2005-2013 |
| 3 Series (E92) | 325 | 2.5L | 2007-2013 |
| 3 Series (E92) | 325 | 3.0L | 2010-2013 |
| 3 Series (E93) | 320 | 2.0L | 2007-2013 |
| 3 Series (E93) | 325 | 2.5L | 2007-2013 |
| 3 Series (E93) | 325 | 3.0L | 2007-2013 |
| 3 Series (F30) | 320 | 1.6L | 2012-2019 |
| 3 Series (F30) | 320 | 2.0L | 2012-2019 |
| 3 Series (F30) | 330E | 2.0L | 2015-2019 |
| 3 Series (F31) | 320 | 2.0L | 2012-2019 |
| 3 Series (F34 GT) | 320 | 2.0L | 2013-2019 |
| 3 Series (x E90) | 325 | 2.5L | 2005-2008 |
| 3 Series (x E91) | 325 | 2.5L | 2005-2008 |
| 3 Series (x E91) | 325 | 3.0L | 2007-2008 |
| 3 Series (x E92) | 325 | 2.5L | 2006-2008 |
| 3 Series (xDrive E90) | 320 | 2.0L | 2008-2012 |
| 3 Series (xDrive E90) | 325 | 3.0L | 2008-2012 |
| 3 Series (xDrive E91) | 320 | 2.0L | 2008-2012 |
| 3 Series (xDrive E91) | 325 | 3.0L | 2008-2012 |
| 3 Series (xDrive E92) | 320 | 2.0L | 2008-2013 |
| 3 Series (xDrive F30) | 320 | 2.0L | 2013-2019 |
| 3 Series (xDrive F31) | 320 | 2.0L | 2013-2019 |
| 3 Series (xDrive GT F34) | 320 | 2.0L | 2013-2019 |
| 4 Series (F32) | 420 | 2.0L | 2013-2020 |
| 4 Series (F33) | 420 | 2.0L | 2013-2020 |
| 4 Series (F36) | 420 | 2.0L | 2013-2020 |
| 4 Series (xDrive F32) | 420 | 2.0L | 2013-2020 |
| 4 Series (xDrive F36) | 420 | 2.0L | 2014-2020 |
| X1 (E84) | 2.0L | 2009-2015 |

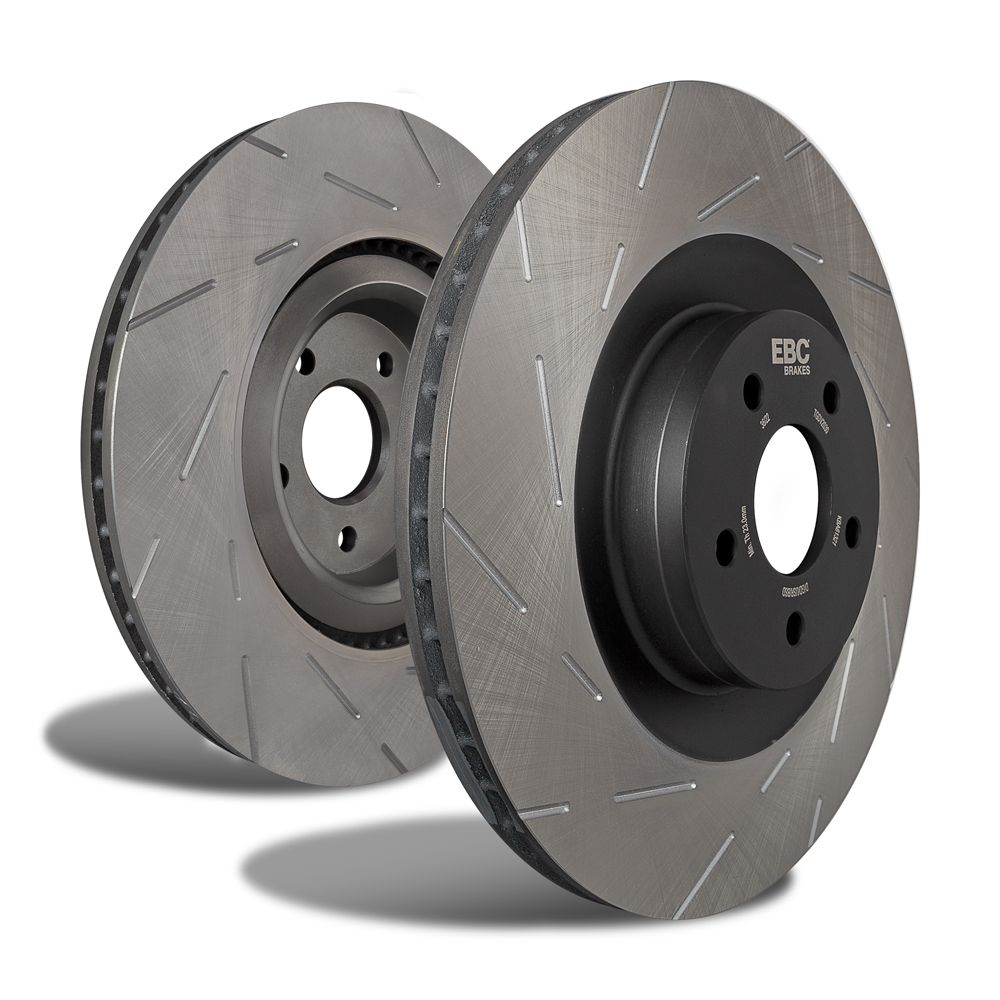

Image shown is generic and for illustration only. The part supplied may differ in appearance.
EBC lists fitment for UK and European-market vehicles. Some Australian-delivered models use different brake calipers to the overseas versions, so please confirm your exact make, model and caliper on the EBC part finder before ordering. Contact us if you need help selecting the right part.
