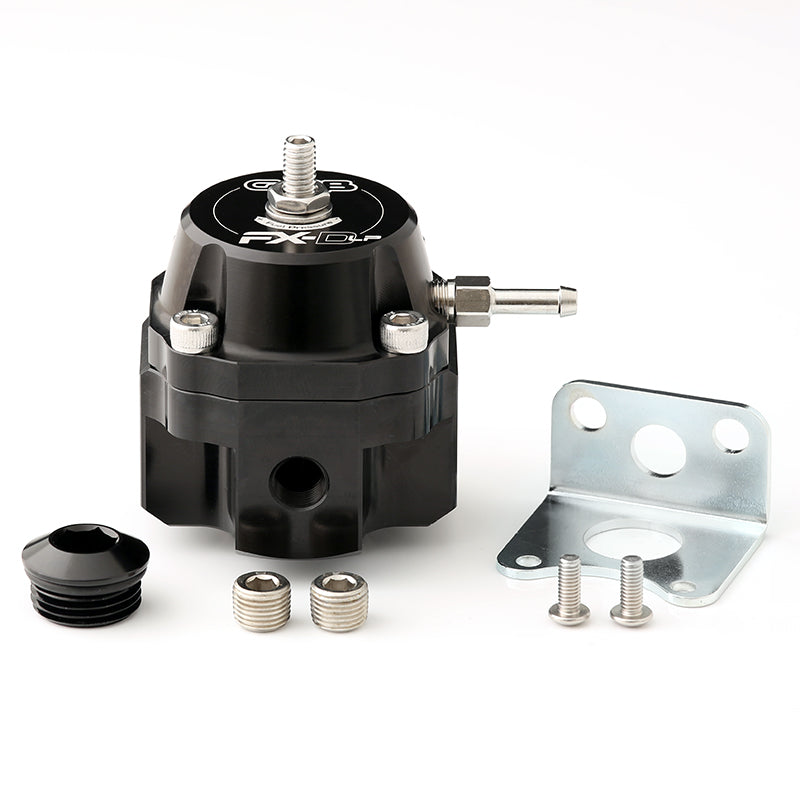

The GFB FX-D Low Pressure Fuel Regulator is a bypass regulator built for carburettor engines fed by an EFI type fuel pump. It brings the pump's high pressure down to a level the carburettor can use without giving up flow or response. It covers a 2 to 10psi adjustment range and still moves 1900 LPH at a 7psi setting. A pressure reference port suits blow-through boosted setups, but the regulator is not intended to feed EFI injectors directly.
Features
- Two -8AN inlet ports and one -8AN return port
- Two 1/8" NPT ports for a gauge or sensor
- Adjustable from 14 to 69kPa (2-10psi)
- Flows 1900 LPH at 48kPa (7psi)
- Double layer reinforced diaphragm rated above 3450kPa (500psi) burst
- Teflon co-polymer seat and spherical stainless valve hold pressure after shut down
- Pressure reference port for blow-through boosted applications
- Fully serviceable
Specifications
- Brand: GFB
- Product Type: Fuel Pressure Regulator
- Series: FX-D Low Pressure
- Regulator Type: Bypass, for carburettors
- Inlet Ports: 2x -8AN
- Return Port: 1x -8AN
- Gauge/Sensor Ports: 2x 1/8" NPT
- Pressure Range: 14-69kPa (2-10psi)
- Flow Rate: 1900 LPH at 48kPa (7psi)
- Diaphragm: Double layer reinforced, over 3450kPa (500psi) burst
- Not Suitable For: Direct EFI injector feed
- Part Number: 8070-LP
Vehicle Compatibility: Universal fitment, not vehicle specific.
