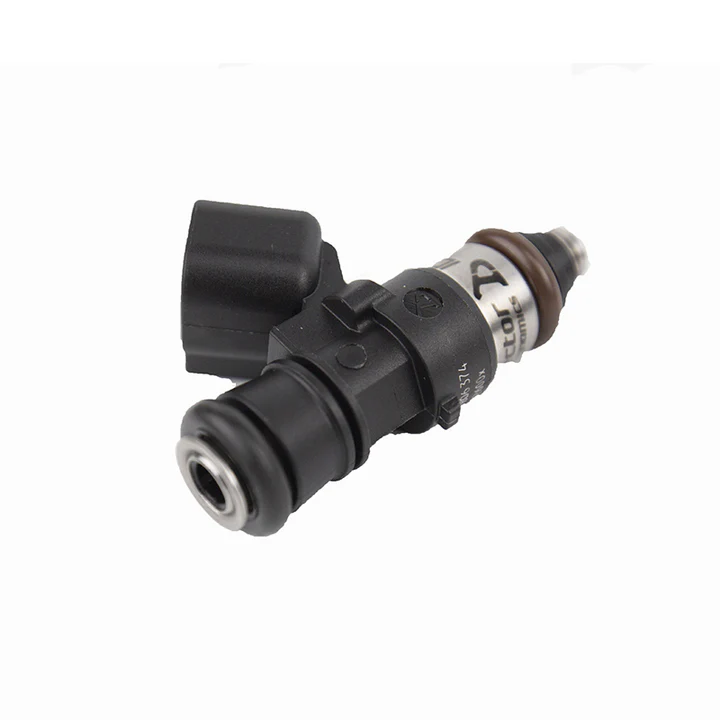

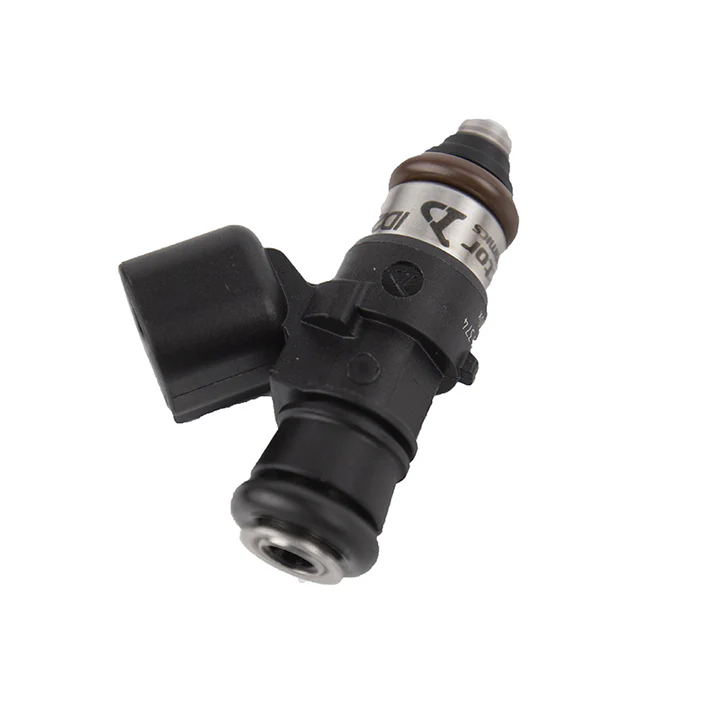

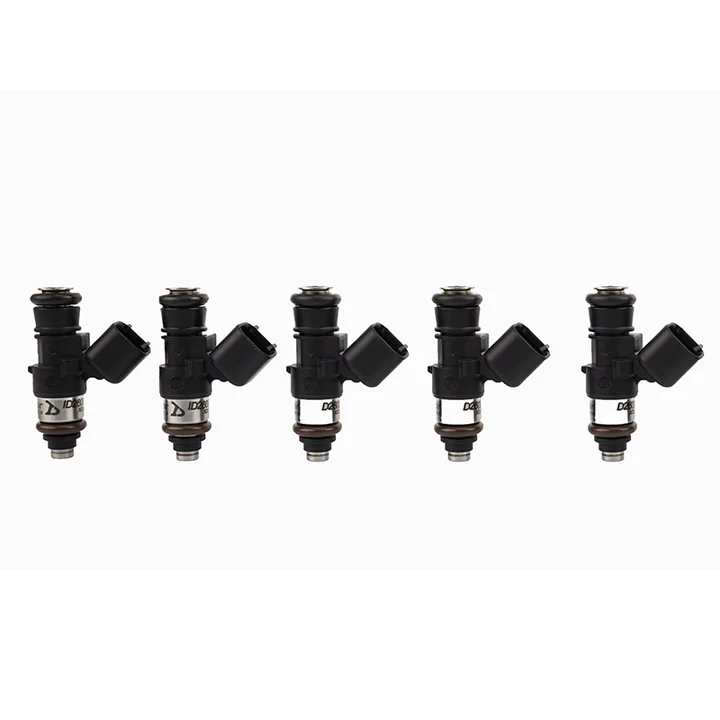

The ID2600-XDS is a fuel injector from Injector Dynamics, developed in collaboration with Bosch Motorsport and supplied here in application-specific versions. It has a nominal flow rate of 2600cc/min at 3.0 bar (43.5 psi), which Injector Dynamics says is the highest of all Bosch injectors. A corrosion-resistant internal structure allows long-term use with ethanol and methanol, and Dual Slope Matching of flow rates, both linear and non-linear, is used to improve consistency between cylinders at low pulse widths. The maximum differential pressure is 9.0 bar (130.5 psi), and the injector is not compatible with ethers or nitro-methane.
Features
- Nominal flow rate of 2600cc/min at 3.0 bar (43.5 psi)
- Maximum differential pressure of 9.0 bar (130.5 psi)
- Corrosion-resistant internals for ethanol and methanol
- Dual Slope Matching for consistent low pulse width flow
- Compatible with methanol, ethanol and all known hydrocarbon fuels
- Minimum operating voltage of 11V
- Developed with Bosch Motorsport
Specifications
- Brand: JDY Performance
- Product Type: Fuel Injectors
- Manufacturer: Injector Dynamics, with Bosch Motorsport
- Model: ID2600-XDS
- Nominal Flow Rate: 2600cc/min @ 3.0 bar (43.5 psi)
- Maximum Differential Pressure: 9.0 bar (130.5 psi)
- Minimum Operating Voltage: 11V
- Fuel Compatibility: Methanol, ethanol and all known hydrocarbon fuels; not compatible with ethers (MTBE, ETBE, TAME) or nitro-methane

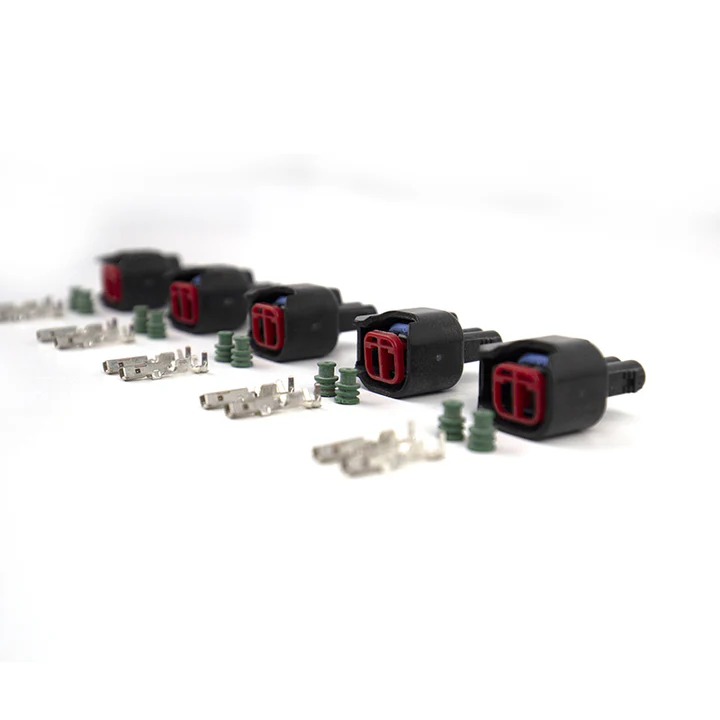

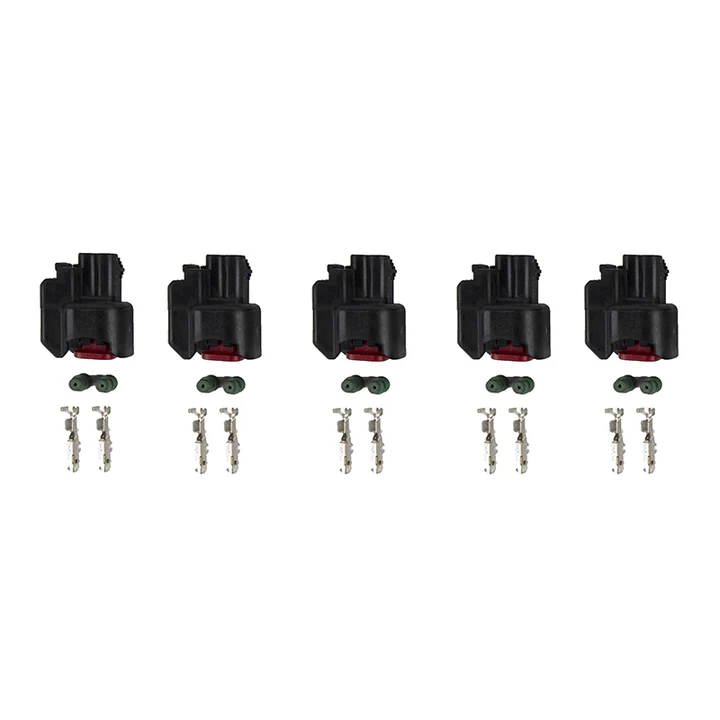

- Electrical Connector: Not compatible with USCAR
- Application Options: Audi 1.8L Turbo (2600.60.14.14B.4), EA888 Gen 3 (2600.34.14.14.4), R8 2015+ (2600.34.14.14.10), RS3/TTRS (2600.34.14.14.5) and VR6 12 valve (2600.60.14.14B.6); Nissan GTR R32/R33/R34 11mm (2600.60.11.D.6), GTR R32/R33/R34 14mm (2600.60.14.D.6), GTR R35 (2600.48.14.R35.6) and GTR R35 for V1 T1 rails (2600.60.14.14.6)
- Part Number: 2600 series (varies by option)
Vehicle Compatibility: Offered in application-specific versions for Audi 1.8L turbo, Audi EA888 Gen 3, Audi R8 (2015+), Audi RS3/TT RS, Audi VR6 (12 valve), Nissan GT-R R32/R33/R34 (11mm or 14mm) and Nissan GT-R R35 (including a version for V1 T1 rails). Select the version that matches your engine.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
