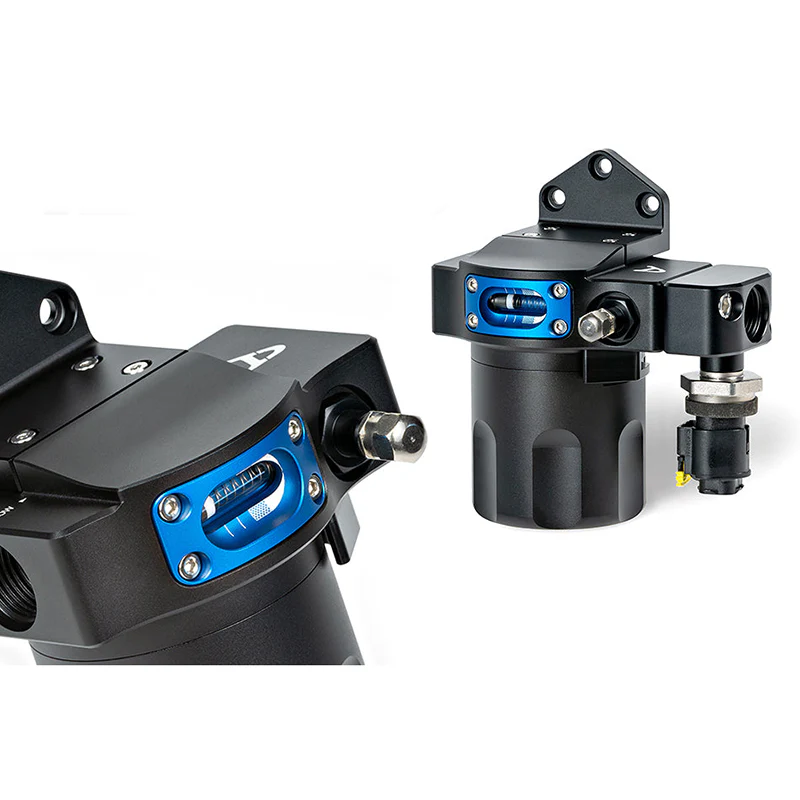

The ID F750 is a serviceable spin-on fuel filter from Injector Dynamics, which describes it as the first performance filter built to meet Bosch's OE specification for electronic fuel injectors. Its element captures at least 87% of particles 5 microns and larger and all particles 35 microns and larger, while keeping flow restriction low. The housing has a Delta P indicator, a safety latch, a Schrader valve for pressure monitoring and draining, and a modular bracket that can be mounted in several orientations. Nominal flow is 750 l/h at a 7.5 kPa (1.1 psi) pressure drop, with a maximum fuel pressure of 10.0 bar (145.0 psi).
Features
- Nominal flow of 750 l/h at 7.5 kPa (1.1 psi) pressure drop
- Bosch capture efficiency spec: 87% at 5 microns, 100% at 35
- Holds about five grams of contaminant at 750 l/h
- Delta P indicator shows filter element condition
- Spin-on housing with safety latch
- Schrader valve for pressure monitoring, draining and relief
- Modular mounting bracket, optional pressure and temperature sensor block
Specifications
- Brand: JDY Performance
- Product Type: Fuel Filter
- Manufacturer: Injector Dynamics
- Nominal Flow Rate: 750 l/h @ 7.5 kPa (1.1 psi) pressure drop; 1000 l/h @ 13 kPa (1.9 psi) pressure drop
- Maximum Fuel Pressure: 10.0 bar (145.0 psi)
- Fuel Compatibility: All known fuels
- Fluid Connection: SAE -8 O-ring barb
- Filter Efficiency: 87% at 5 microns, 100% at 35 microns (Bosch specification)
- Weight: 700g
- Part Number: ID-F750
Vehicle Compatibility: Universal fitment, not vehicle specific.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
