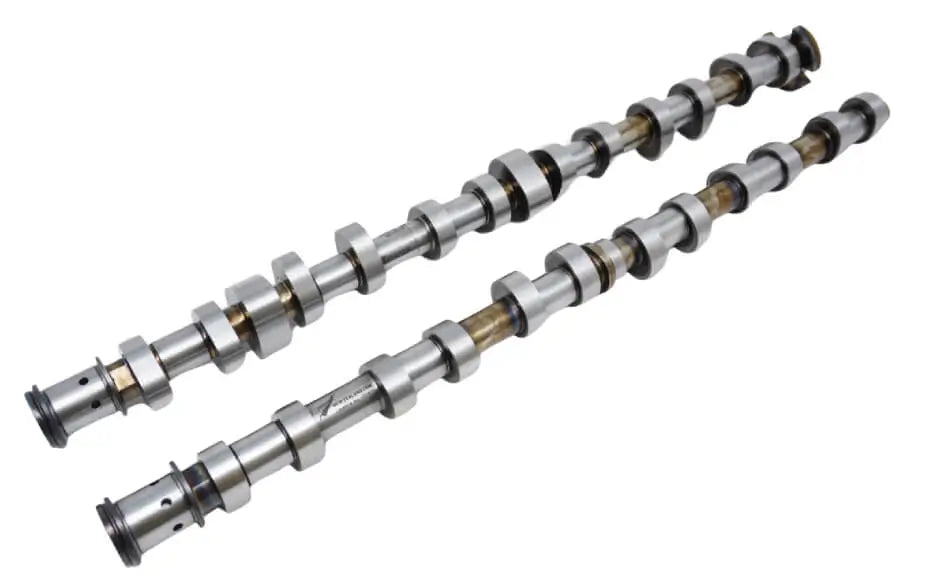

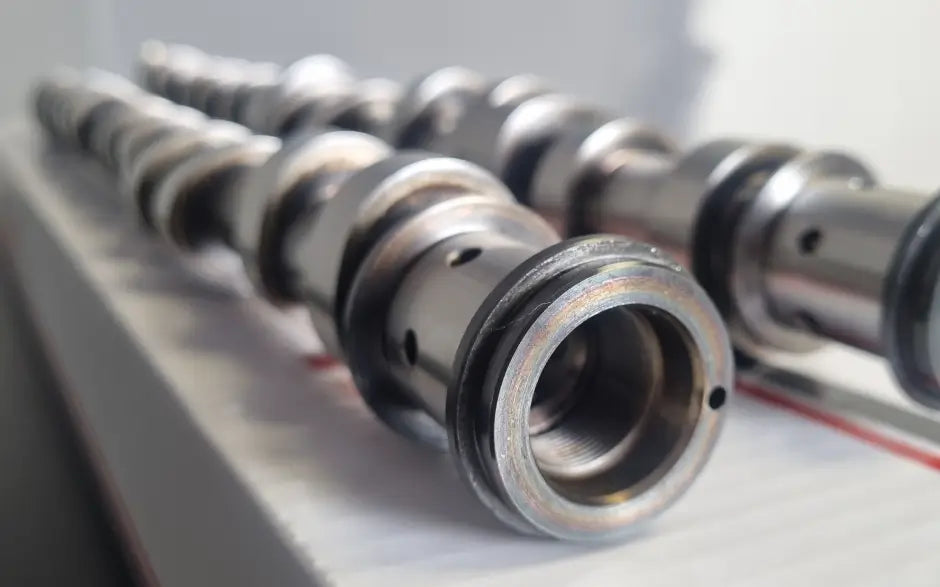

This Stage 2 camshaft set from Kelford Cams is a racing profile for professionally built BMW S58 engines. It has a 292/280 degree profile with 10.40mm/10.60mm valve lift, and Kelford says it is intended for builds of 800hp to 1400hp that use 66-75mm turbos and aftermarket intake plenums. Kelford states the cams allow full use of Valvetronic and Dual VANOS, or locking Valvetronic when an aftermarket throttle body is fitted, and asks that valve-to-piston clearances be checked across the full travel of VANOS and Valvetronic. Kelford recommends upgrading the valve springs with its KVS58-BT and checking the clearance between the new lobes and the intake intermediate rockers, trimming or deburring the OEM pressed steel rockers if needed.
Features
- Stage 2 racing profile of 292/280 degrees
- Valve lift of 10.40mm/10.60mm
- For professionally built S58 engines of 800hp to 1400hp
- Suited to 66-75mm turbos and aftermarket intake plenums
- Allows full use of Valvetronic and Dual VANOS
- Valve spring upgrade suggested, Kelford KVS58-BT
- Check intake intermediate rocker clearance, trim or deburr as needed

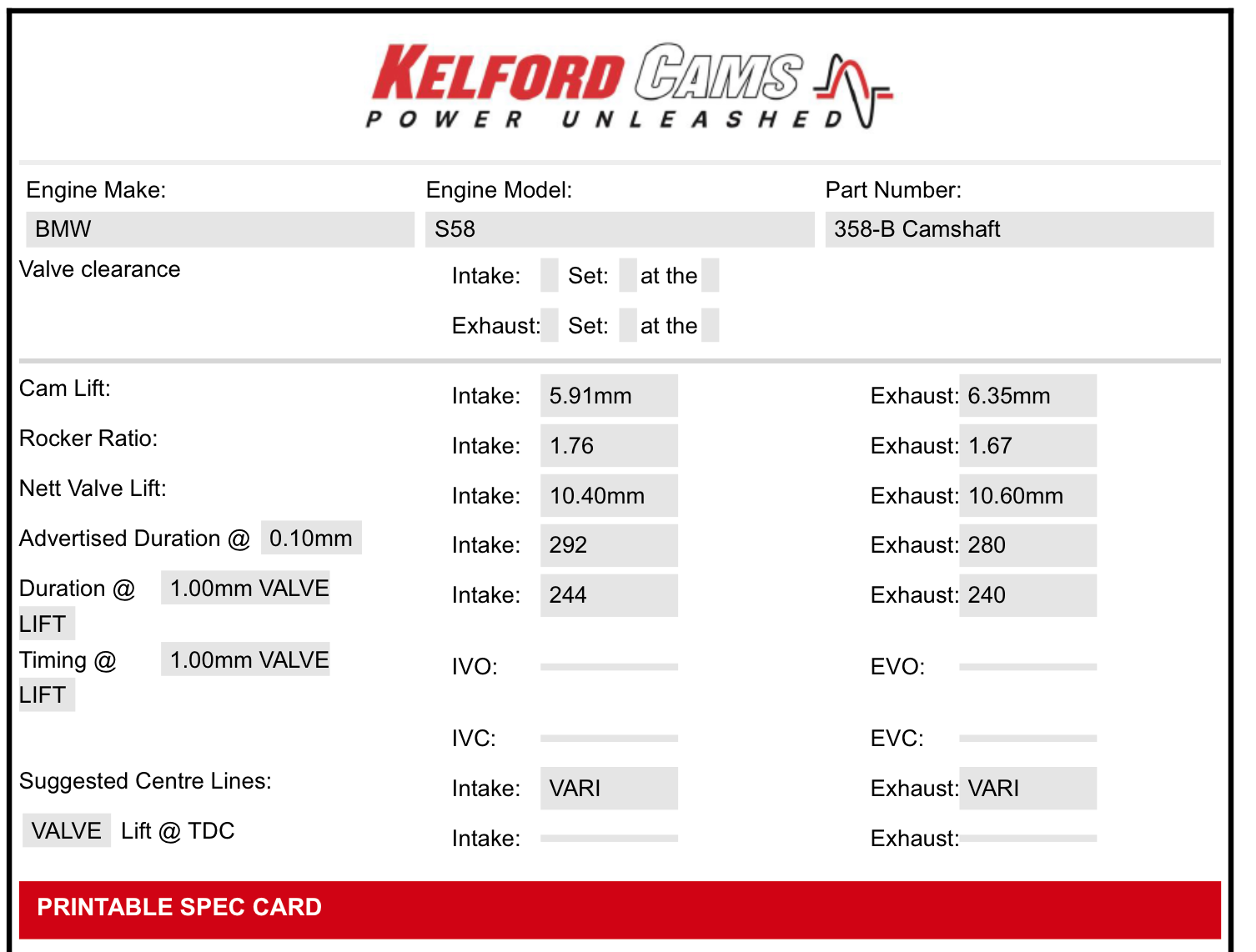

Specifications
- Brand: JDY Performance
- Product Type: Performance Camshafts
- Manufacturer: Kelford Cams
- Stage: Stage 2, racing
- Profile: 292/280 degrees
- Valve Lift: 10.40mm/10.60mm
- Power Range: 800hp to 1400hp, per Kelford
- Turbo Size: 66-75mm, per Kelford
- Valve Springs: Upgrade suggested, Kelford KVS58-BT
- Part Number: 358 B
Vehicle Compatibility: Suits professionally built BMW M Series S58 engines; check your engine code before ordering.
