Koyorad Performance Radiator: Mazda MX-5 Miata NC MT 2006-2013

Regular price $794.99

Seen this item cheaper somewhere else? Send us the link and we'll do our best to match or beat the price. We'll reply by email.

Product details
  • Type Engine Components
  • Vendor Koyorad
  • SKU VH061885

This radiator is a direct replacement for the factory unit on the 2006-2013 Mazda MX-5 (Miata or Roadster) NC with the 1.8L or 2.0L naturally aspirated petrol engine and a manual gearbox. Koyorad says its higher-capacity aluminium core cools better under hard driving. The tubes, fins, headers and brackets are brazed together in a Nocolok furnace, each unit is hand Heliarc welded, and a billet filler neck is fitted. Mounting points are matched to the application, including the fan shrouds, hoses and top and bottom pins.

Features

  • Higher-capacity aluminium core for better cooling
  • Precise tube and fin alignment for coolant flow
  • Nocolok furnace brazing of tubes, fins, headers and brackets
  • Precision-machined billet filler neck on every unit
  • Mounting points for fan shrouds, hoses and top and bottom pins
  • Each radiator individually Heliarc welded by hand

Specifications

  • Brand: Koyorad
  • Product Type: Performance Radiator
  • Core Material: Aluminium
  • Brazing: Nocolok furnace
  • Welding: Hand Heliarc welded
  • Filler Neck: Billet
  • Transmission: Manual
  • Intended Use: Performance
  • Part Number: VH061885

Vehicle Compatibility: 1 application across 1 make. Select a make to view.

Mazda (1)
Model Variant Engine Years Notes
MX-5 NC (2D Roadster) 1.8L / 2.0L (naturally aspirated) 2006-2013 Manual only; RWD; also listed as Miata and Roadster

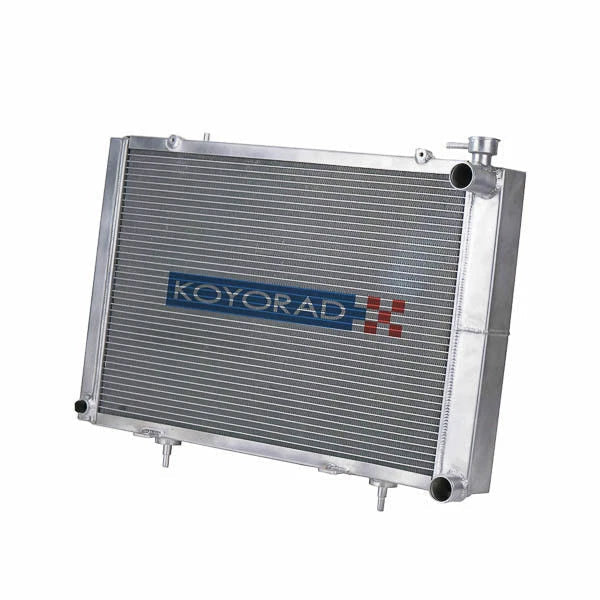

Images shown are generic and for illustration only. The part supplied may differ in appearance.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
