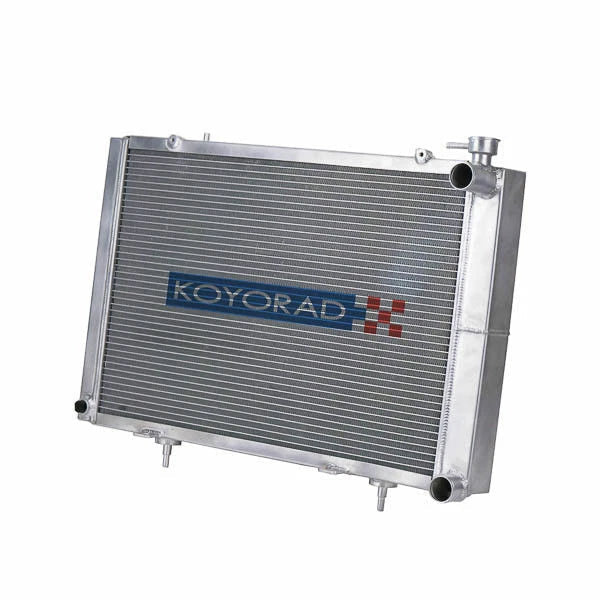

Koyorad Performance Radiator: Mitsubishi Lancer Evolution IV / V / VI 4G63 MT
This item needs to be ordered in
Heads up, this product isn't in stock for immediate dispatch. It will need to be ordered in (estimated 1–4 weeks) before it ships. Would you like to continue?
- Type Engine Components
- Vendor Koyorad
- SKU HH030939
This radiator is a direct replacement for the factory unit on the Mitsubishi Lancer Evolution IV, V and VI with the 4G63 engine and a manual gearbox. Koyorad says its higher-capacity aluminium core cools better under hard driving. The Evolution 7/8/9 fan must be used with it, and the radiator can also be installed in an Evolution 7/8/9 for better turbo and manifold clearance, using an Evo 6 upper hose with the stock fan. The tubes, fins, headers and brackets are brazed together in a Nocolok furnace, each unit is hand Heliarc welded, and a billet filler neck is fitted.
Features
- Higher-capacity aluminium core for better cooling
- Nocolok furnace brazing of tubes, fins, headers and brackets
- Precision-machined billet filler neck on every unit
- Mounting points for fan shrouds, hoses and top and bottom pins
- Each radiator individually Heliarc welded by hand
- Evolution 7/8/9 fan must be used
- Also installs in Evo 7/8/9 for turbo and manifold clearance
Specifications
- Brand: Koyorad
- Product Type: Performance Radiator
- Core Material: Aluminium
- Brazing: Nocolok furnace
- Welding: Hand Heliarc welded
- Filler Neck: Billet
- Fan Requirement: Evolution 7/8/9 fan
- Transmission: Manual
- Intended Use: Performance
- Part Number: HH030939
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Mitsubishi (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Lancer Evolution | IV / V / VI (CF-CP9A / E-CN9A / GF-CP9A) | 4G63 | Manual only; Evolution 7/8/9 fan must be used | |
| Lancer Evolution | VII / VIII / IX | Optional install for turbo and manifold clearance; Evo 6 upper hose required, stock fan will mount |
Image shown is generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
