MCA Pro Drag Coilovers - Mitsubishi Evolution Evo 02
This item needs to be ordered in
Heads up, this product isn't in stock for immediate dispatch. It will need to be ordered in (estimated 1–4 weeks) before it ships. Would you like to continue?
- Type Coilovers
- Vendor MCA Suspension
- SKU EVO02-PDRAG-CS
MCA Pro Drag brings MCA's experience with top-level drag racing teams to a drag-specific kit for the Mitsubishi Evolution Evo 02. It is designed around drag radials on prepped surfaces, with tuning that also works on unprepped surfaces and at roll racing events, giving strong traction on launch and stability at speed. The 12-click adjuster lets you run softer settings for roll racing and firmer settings for the strip, and the kit remains usable on the street with a firm but not harsh ride. It is assembled to order in Australia, dyno tuned and covered by MCA's three-year transferable warranty, including motorsport use.
Features
- Monotube dampers with MCA's Rugged Spec internal sealing
- Fusion V3.0 valving
- 12-click damper adjuster (bump and rebound adjusted together)
- Ride height set by spring seat position
- Camber top mounts and camber washer bottom mounts where the vehicle allows
- Helper springs keep the main springs captive
- Dyno tested during assembly
- Can be rebuilt, revalved and re-sprung later
Specifications
- Brand: MCA Suspension
- Product Type: Coilovers
- Range: MCA Pro Drag
- Damper Type: Monotube
- Damping Adjustment: 12 clicks (bump and rebound together)
- Valving: Fusion V3.0
- Spring Rates: Front 8kg, Rear 10kg
- Front Layout: Non-inverted strut design, Camber tops, Camber washer bottom mounts, MCA Shock Shield Compatible
- Rear Layout: Coilover design, 20cm Damper Adjuster Extenders, MCA Shock Shield Compatible
- Kit Options: Complete Set, Front Dampers Only, Rear Dampers Only
- Height Adjustment: Spring seat
- Intended Use: Race
- Assembled In: Australia
- Warranty: 3 years, transferable
- Part Number: EVO02-PDRAG
Vehicle Compatibility: 1 application across 1 make. Select a make to view.
Mitsubishi (1)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Evolution Evo 02 |

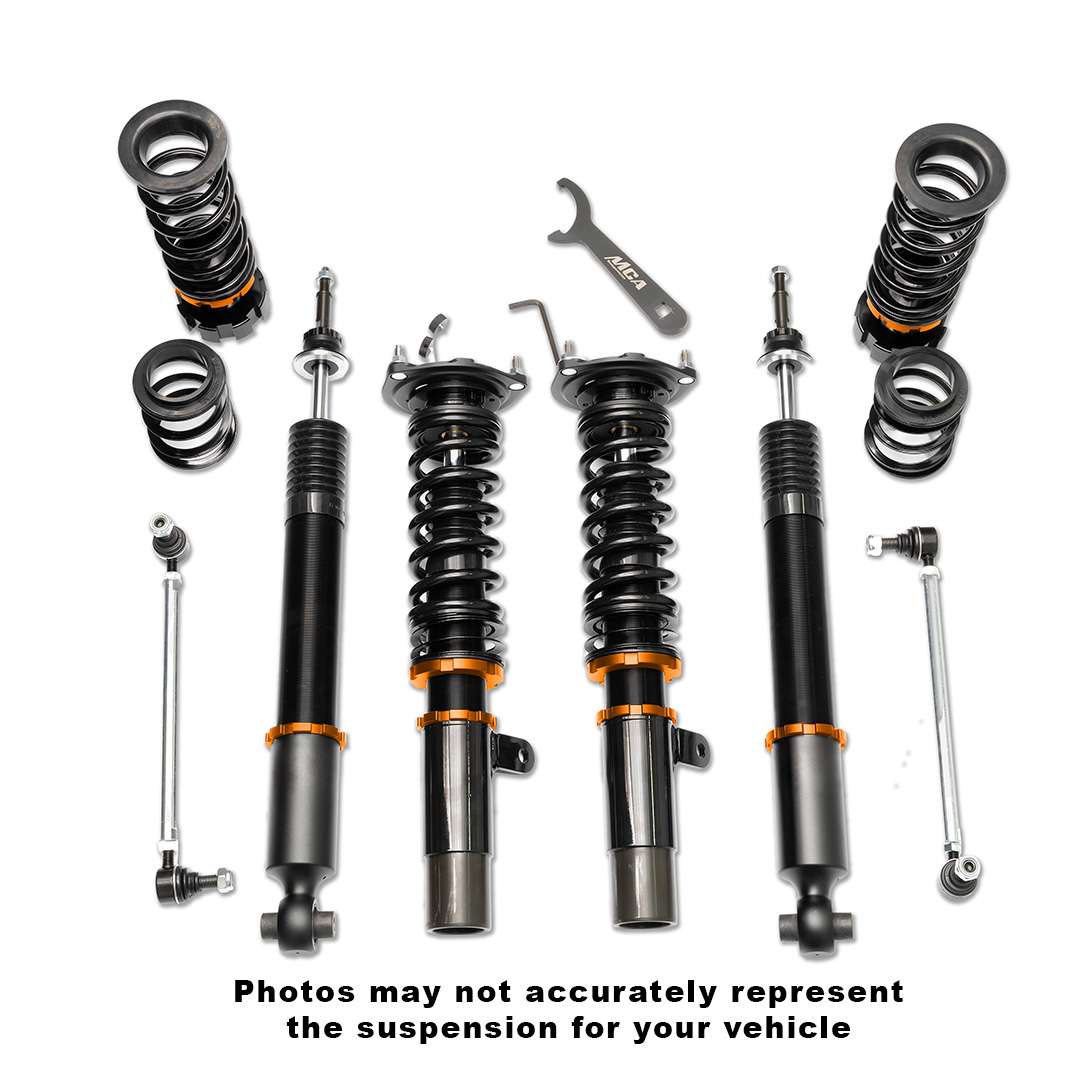

Image shown is generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
