The ARM Motorsports MK7 GTI / Golf R FMIC Kit is a true front mount intercooler that places the core in front of the radiator stack, in the coolest ambient air, on the Mk7 GTI and Golf R. It uses a bar and plate core measuring 22 x 9 x 3.25 inches (644 cubic inches) with a fin density of 20 fins per inch, which ARM rates for up to 700hp and describes as only 28% larger than the 493 cubic inch OEM unit. ARM quotes gains of up to 24whp and 26wtq and says its project GTI's intake air temperature stayed 16 degrees above ambient in a 2nd to 5th gear pull, against a 61 degree rise with the OEM intercooler on a slightly warmer day. The kit is bolt-on with Mk7-specific mounting brackets that need no cutting or drilling of the crash bar, and ARM says installation takes about 2-3 hours.
Features
- Up to 24whp and 26wtq, per ARM
- 74% increase in cooling efficiency, per ARM
- True front mount design ahead of the radiator stack

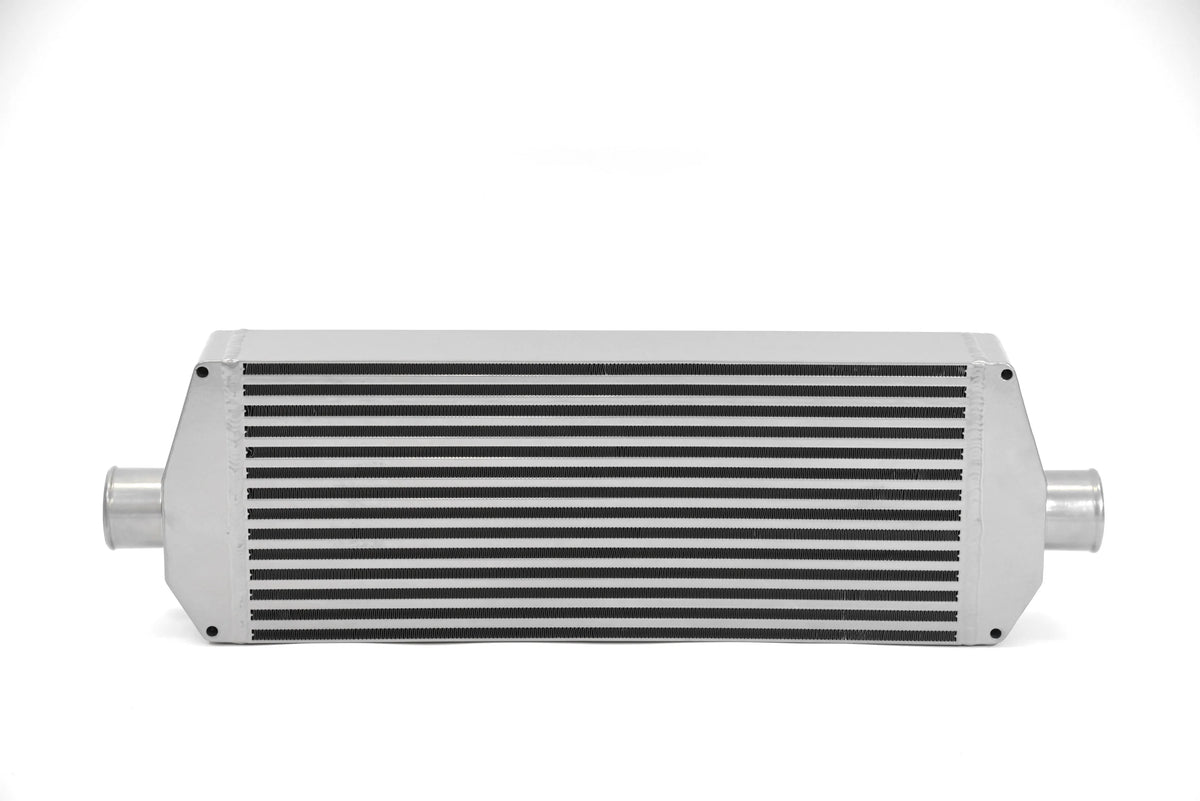

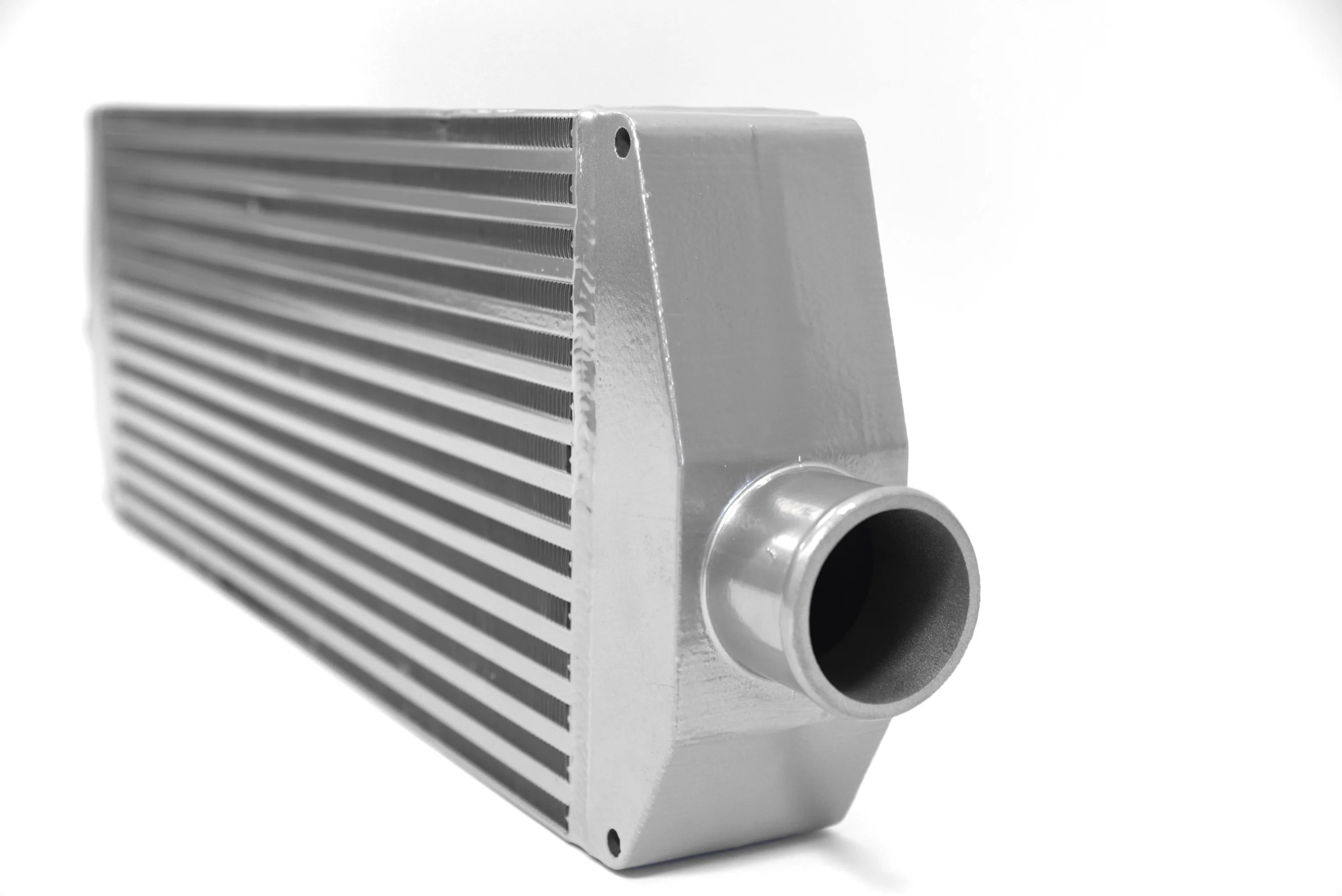

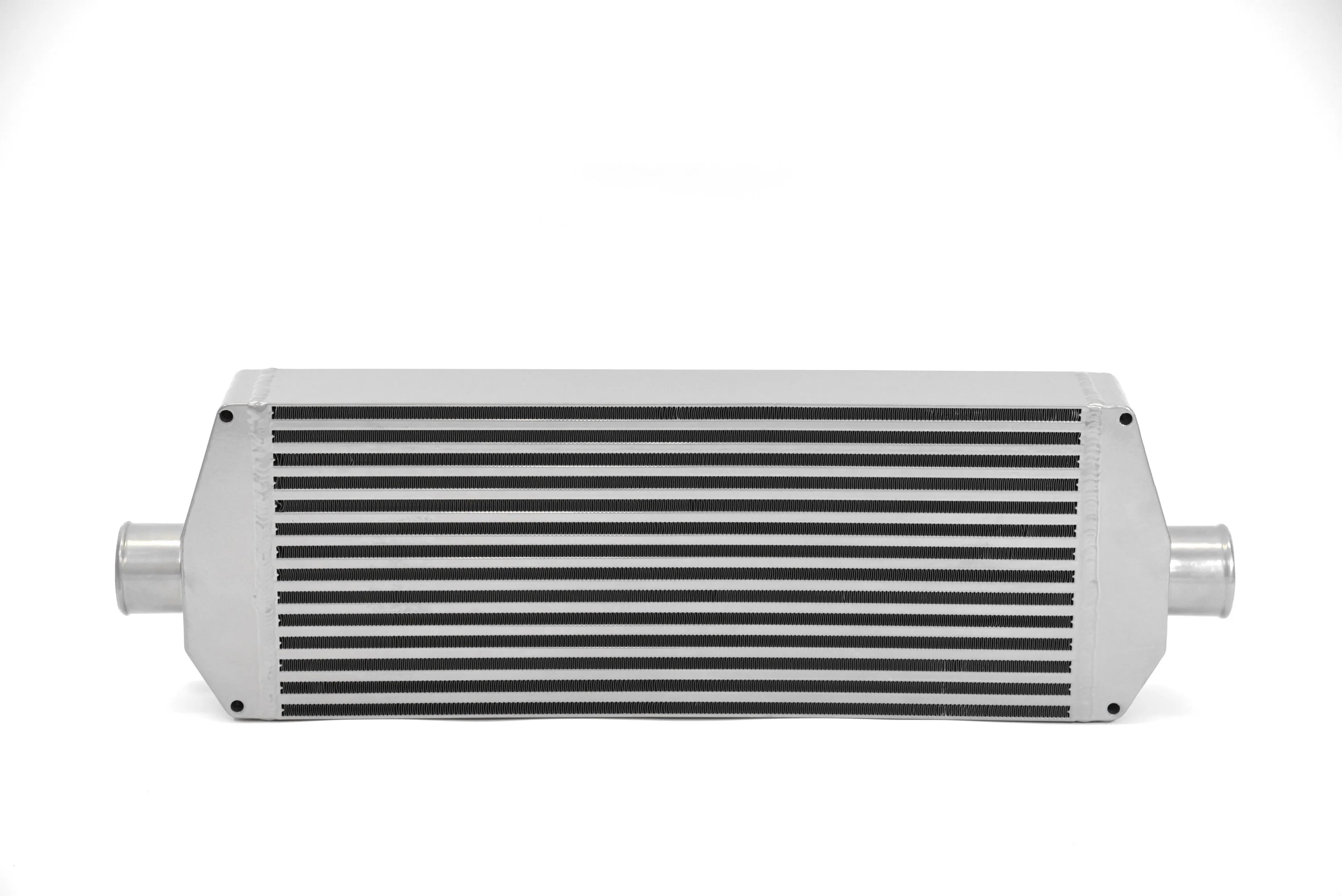

- Bar and plate core, 22 x 9 x 3.25 inches (644 cubic inches)
- 20 fins per inch, rated by ARM for up to 700hp
- Bolt-on with Mk7-specific brackets, no cutting or drilling
- About 2-3 hours to install, per ARM
Specifications
- Brand: ARM Motorsports
- Product Type: Front Mount Intercooler Kit
- Core: Bar and plate, 22 x 9 x 3.25 inches, 644 cubic inches (OEM 493 cubic inches)
- Fin Density: 20 fins per inch
- Power Rating: Up to 700hp (per ARM)

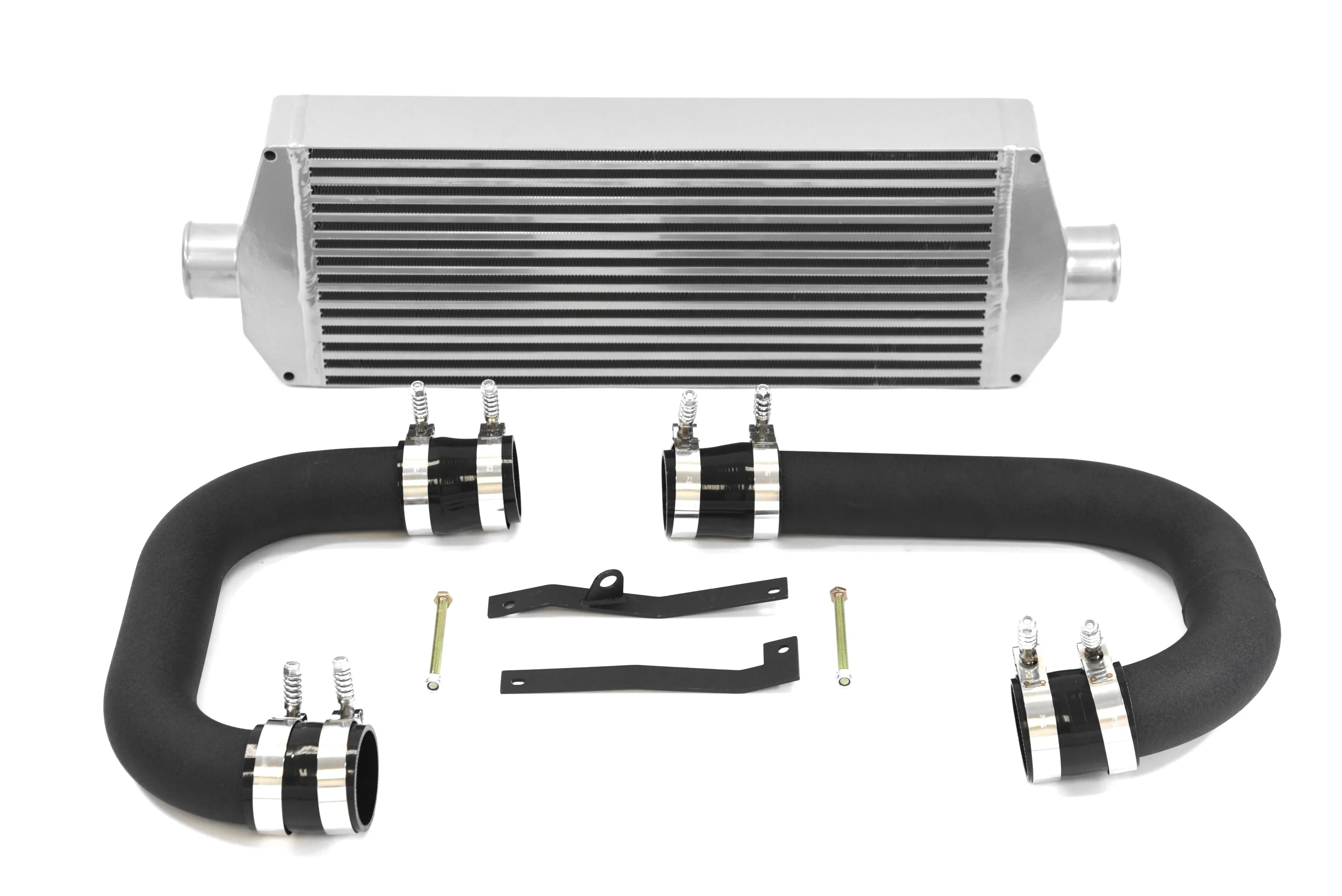

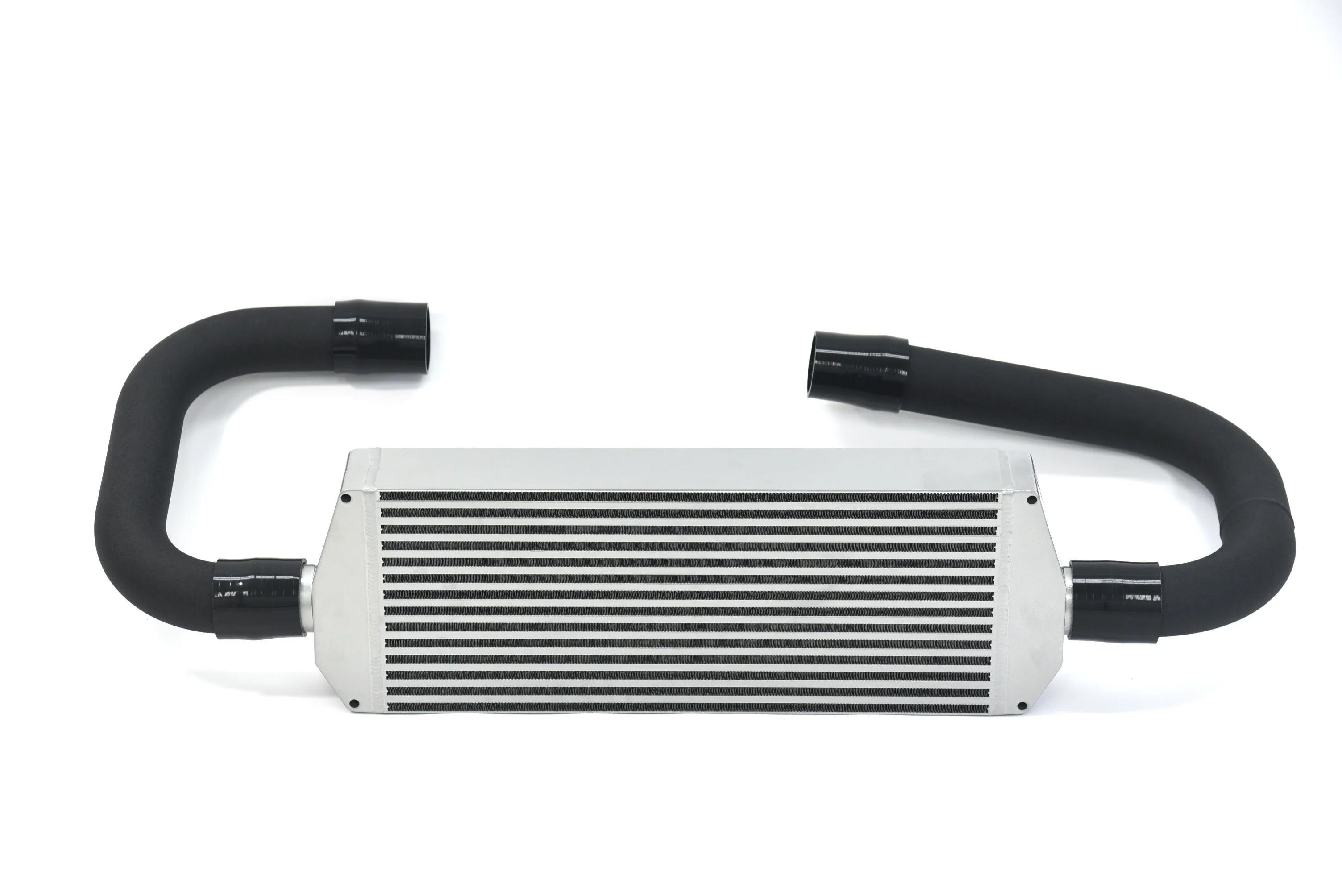

- Included: FMIC core, FMIC piping, Mk7 mounting brackets, silicone couplers and clamps, OEM intercooler block-off caps

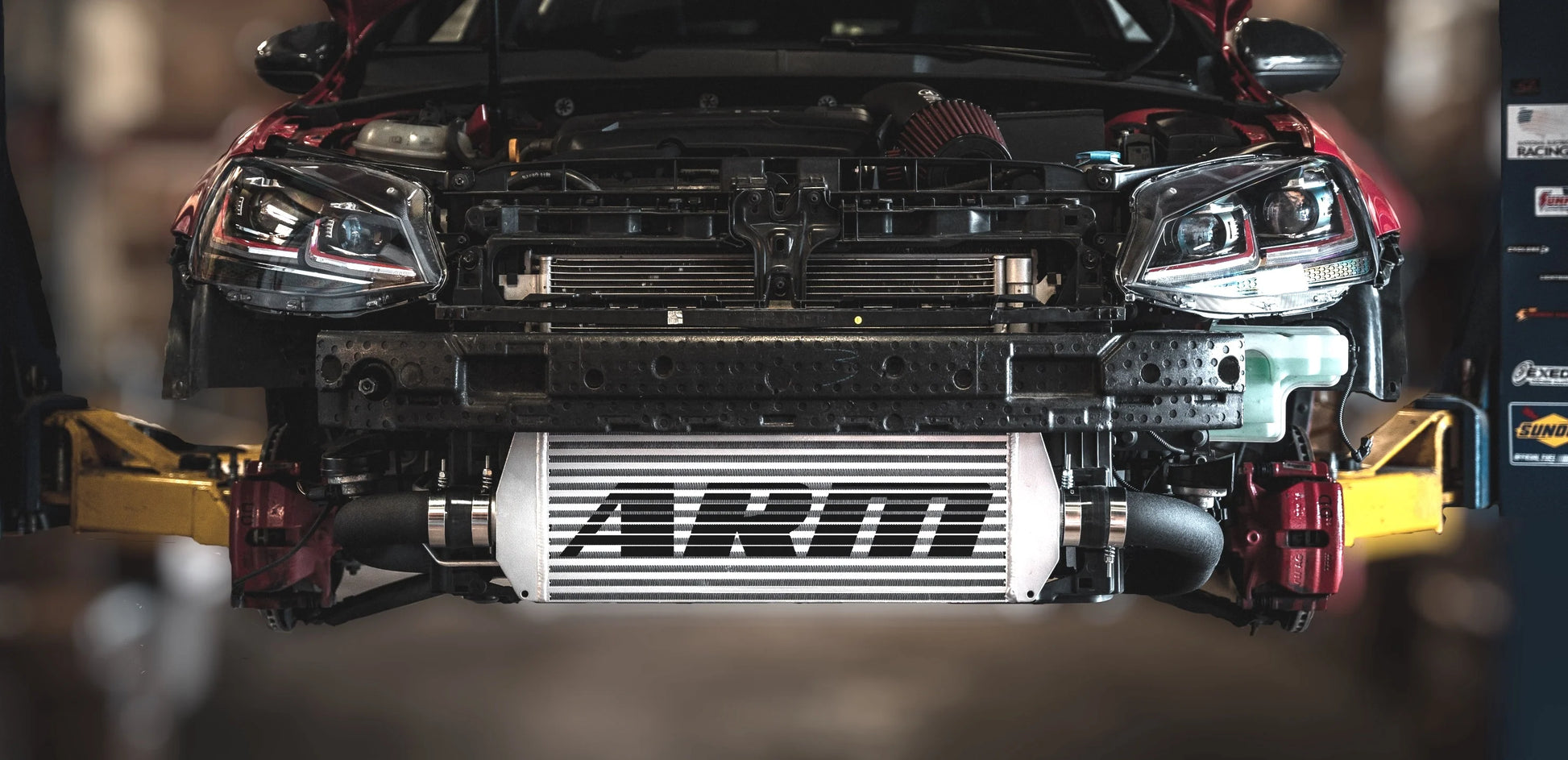

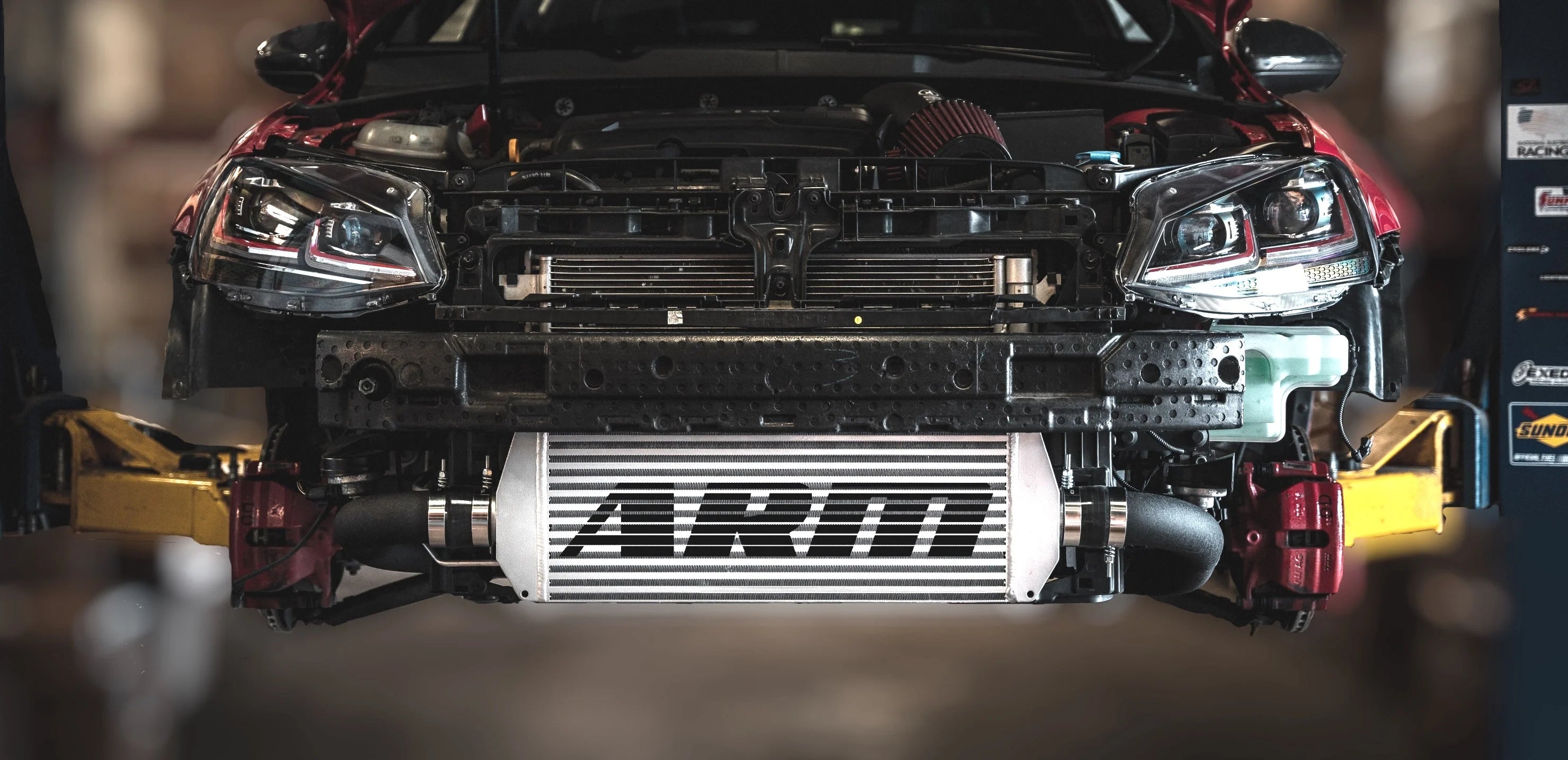

- Installation: Front bumper removal required; no crash bar, radiator stack or coolant work; about 2-3 hours per ARM
- Optional: ARM Bi-Cooler Hose Upgrade, to use a stock-location intercooler alongside the FMIC (suited to upgraded turbos)
Vehicle Compatibility: 5 applications across 1 make. Select a make to view.
Volkswagen (5)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Golf | Mk7 GTI Hatchback | 2.0T Gen3 | Not for cars with adaptive cruise control mounted in the lower bumper | |
| Golf | Mk7 GTI Sportwagen | 1.8T Gen3 | Not for cars with adaptive cruise control mounted in the lower bumper | |
| Golf R | Mk7 Hatchback | 2.0T Gen3 | Not for cars with adaptive cruise control mounted in the lower bumper | |
| Golf | Mk7 TSI Hatchback | 1.4L | Not for cars with adaptive cruise control mounted in the lower bumper | |
| Golf | Mk7 Facelift Hatchback | 2.0T Gen3 | Not for cars with adaptive cruise control mounted in the lower bumper |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
