The MOTON 100 Series are 100mm flat wire helper springs, offered in 51mm, 61mm and 64mm inside diameters. MOTON says they are engineered to compress to a minimal solid block height, so the spring stays seated at full droop and more of the damper's stroke stays usable. The brand's table gives rates of 15 and 20 N/mm, block lengths of 25 to 30mm and usable strokes of 70 to 75mm. MOTON advises checking the inside diameter carefully because the series mixes diameters.
Features
- 100mm open length flat wire helper springs
- Compresses to a minimal solid block height
- Maintains spring seating at full droop
- Maximises available damper stroke, per MOTON
- Options in 51mm, 61mm and 64mm inside diameters
- Check the inside diameter before ordering
Specifications
- Brand: MOTON Suspension
- Product Type: Flat Wire Helper Spring
- Open Length: 100mm
- Options (length / rate / ID): 100/15/51, 100/20/61, 100/20/64
- Spring Rates: 15 N/mm or 20 N/mm
- Inside Diameters: 51mm, 61mm or 64mm
- Block Length: 25 to 30mm
- Usable Stroke: 70 to 75mm
- Part Number: AST-100-15-51, AST-100-20-61, AST-100-20-64
Vehicle Compatibility: Not vehicle specific. This series mixes inside diameters (51mm, 61mm and 64mm), so check the inside diameter before ordering.

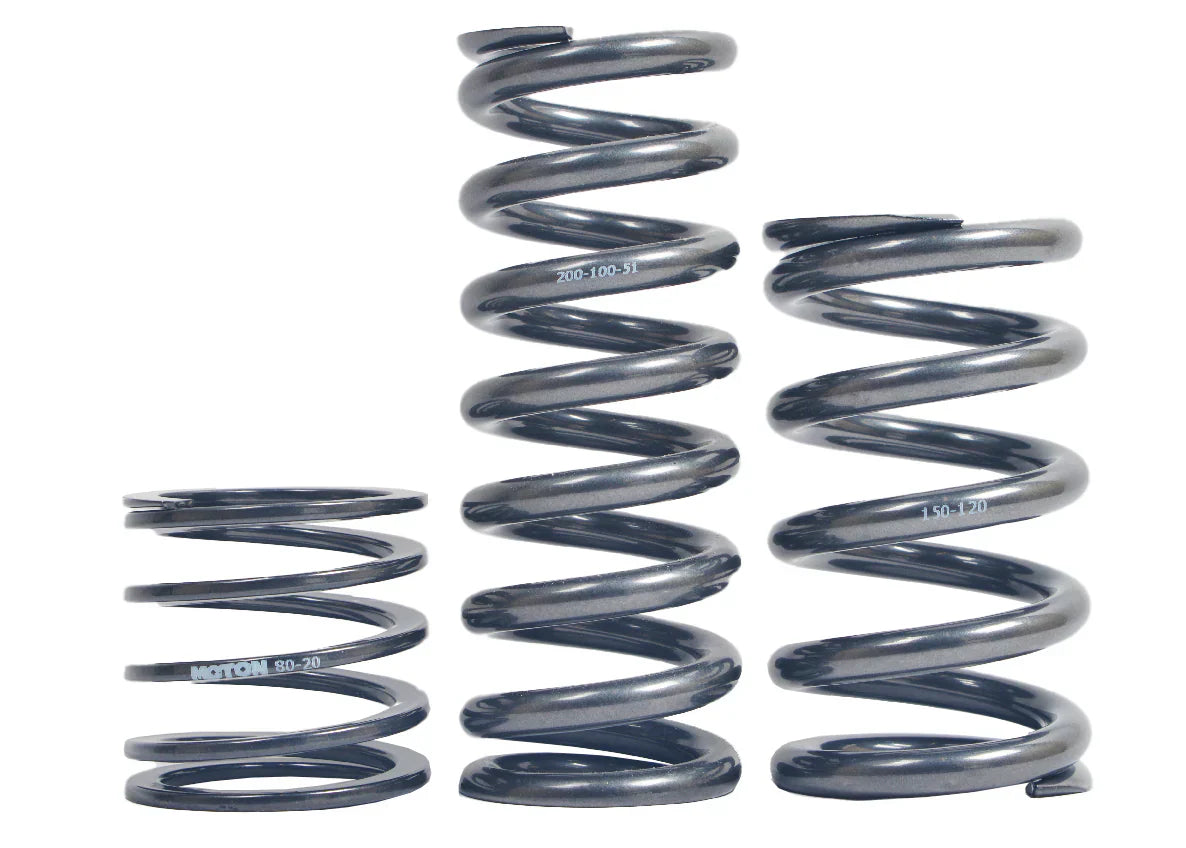

Image shown is generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
