The MOTON 110 Series are 110mm flat wire springs with a minimal 20mm block height and ultra-low rates, from 0.5 to 1.0 N/mm. Their main role is as spacers or very light helper springs, and they come in 55mm, 61mm and 75mm inside diameters. MOTON says their purpose is to keep the main spring seated at full droop without changing its spring rate during compression. The brand's table gives a usable stroke of 90mm for each option.
Features
- 110mm open length flat wire springs
- Ultra-low rates of 0.5 to 1.0 N/mm
- Minimal 20mm block height
- Designed as spacers or very light helper springs
- Keeps the main spring seated at full droop
- Does not influence the spring rate during compression
- Inside diameters of 55mm, 61mm and 75mm
Specifications
- Brand: MOTON Suspension
- Product Type: Flat Wire Spacer / Helper Spring
- Open Length: 110mm
- Options (length / rate / ID): 110/01/55, 110/01/61, 110/0.5/75
- Spring Rates: 0.5 N/mm or 1.0 N/mm
- Inside Diameters: 55mm, 61mm or 75mm
- Block Length: 20mm
- Usable Stroke: 90mm
- Part Number: AST-110-01-55, AST-110-01-61, AST-110-0.5-75
Vehicle Compatibility: Not vehicle specific. This series covers inside diameters of 55mm, 61mm and 75mm, so check the inside diameter before ordering.

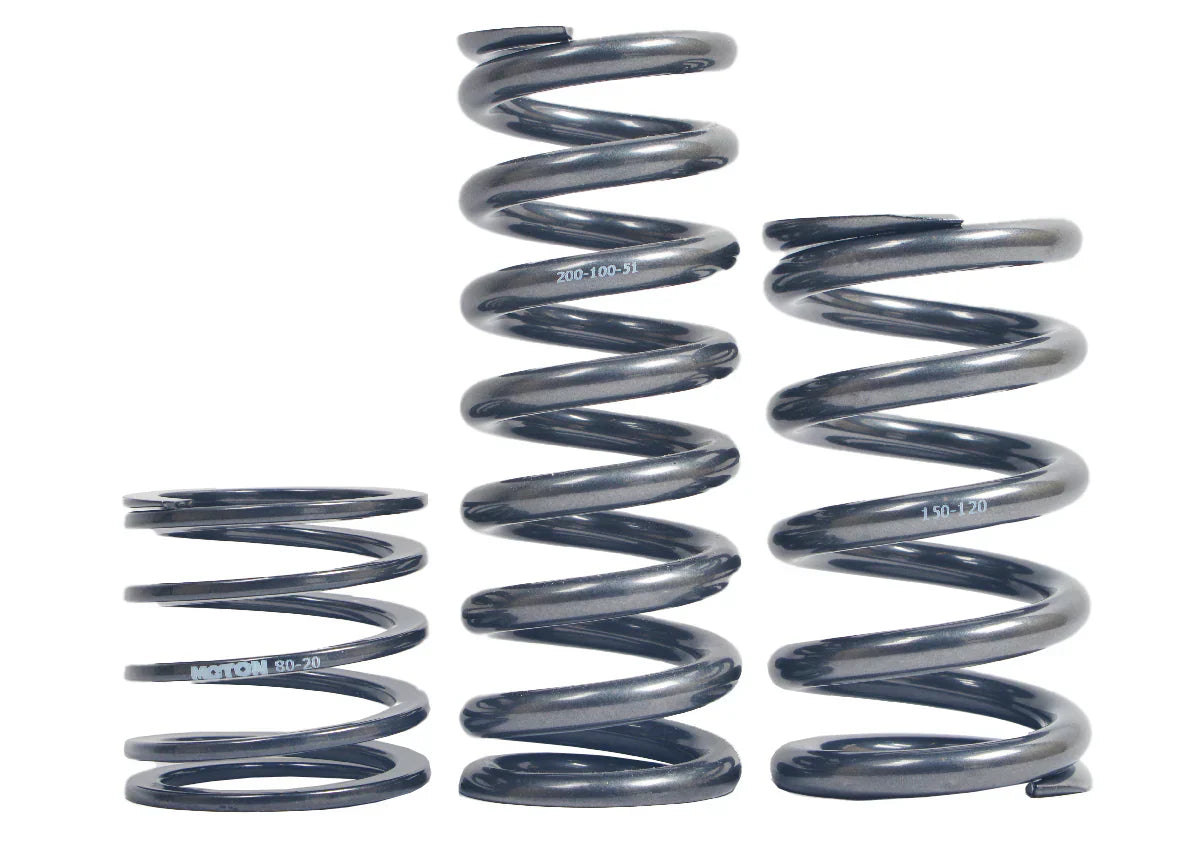

Image shown is generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
