These Moton 200-Series racing springs are linear-rate replacement springs that are 200mm long with a 51mm inside diameter. Moton says they are engineered for professional motorsport, where consistent rates matter for high-level chassis tuning. The brand describes them as made from high-tensile chrome silicone steel, which it says gives maximum travel with minimal weight. The spring rate is chosen by option, and each part number shows the length, rate and inside diameter.
Features
- 200mm open length with 51mm inside diameter
- Linear-rate springs
- High-tensile chrome silicone steel
- Designed for maximum travel with minimal weight
- Aimed at professional motorsport chassis tuning
- Spring rate selected by option
Specifications
- Brand: MOTON Suspension
- Product Type: Linear Racing Spring
- Open Length (Lo): 200 mm
- Inside Diameter (Di): 51 mm
- Spring Rate (R): Linear, selected by option (N/mm)
- Material: High-tensile chrome silicone steel
- Block Length (Sn): 77 to 123 mm where listed (varies by rate)
- Force at Block (Fn): 6150 to 14400 N where listed (varies by rate)
- Usable Stroke (St): 77 to 123 mm where listed (varies by rate)
- Spring Spec- Length | Rate | ID Options: 200/30/51, 200/40/51, 200/50/51, 200/60/51, 200/70/51, 200/80/51, 200/90/51, 200/100/51, 200/110/51, 200/120/51, 200/130/51, 200/140/51, 200/150/51, 200/160/51, 200/170/51 or 200/180/51
- Part Number: AST-200-[rate]-51 series (varies by option)
Vehicle Compatibility: Not vehicle specific. Suits dampers that take a 200mm long spring with a 51mm inside diameter.

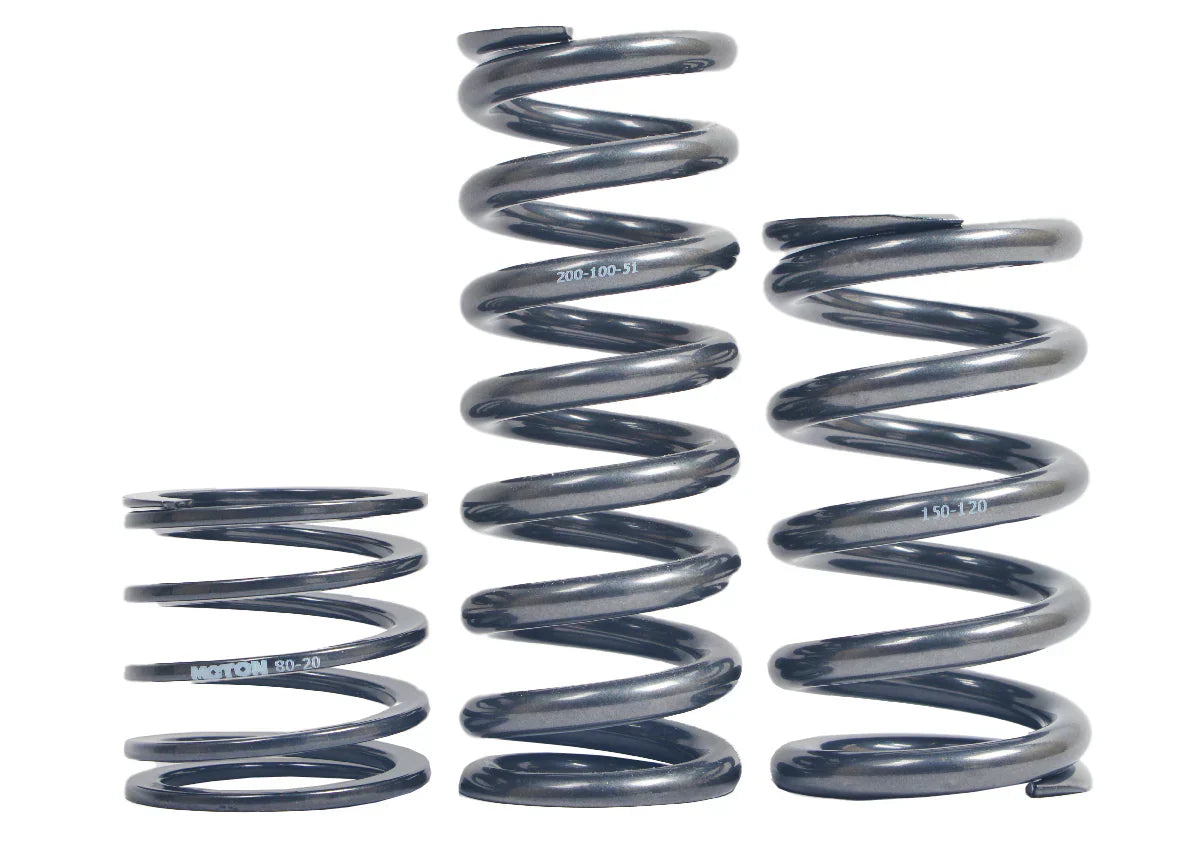

Image shown is generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
