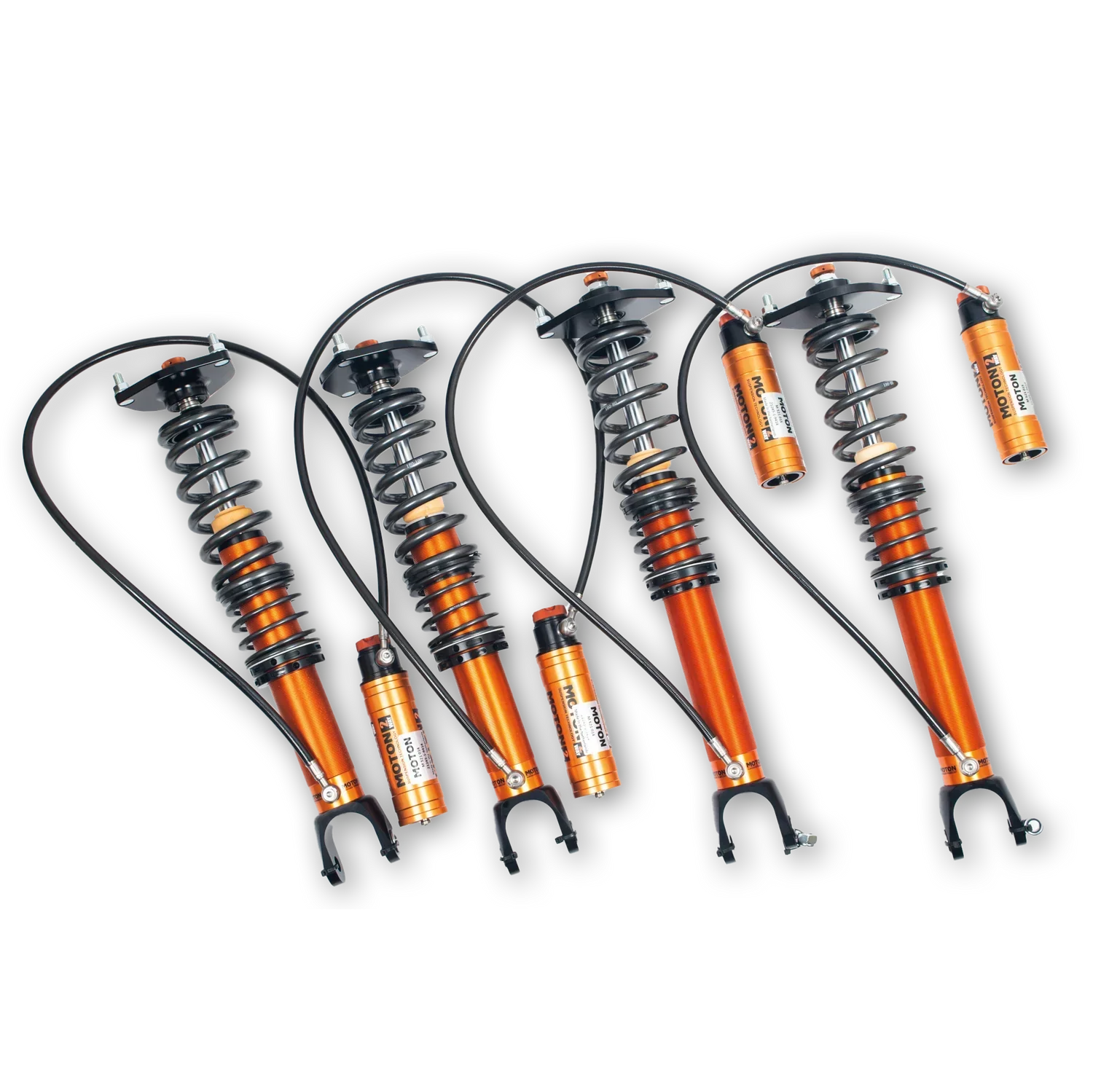

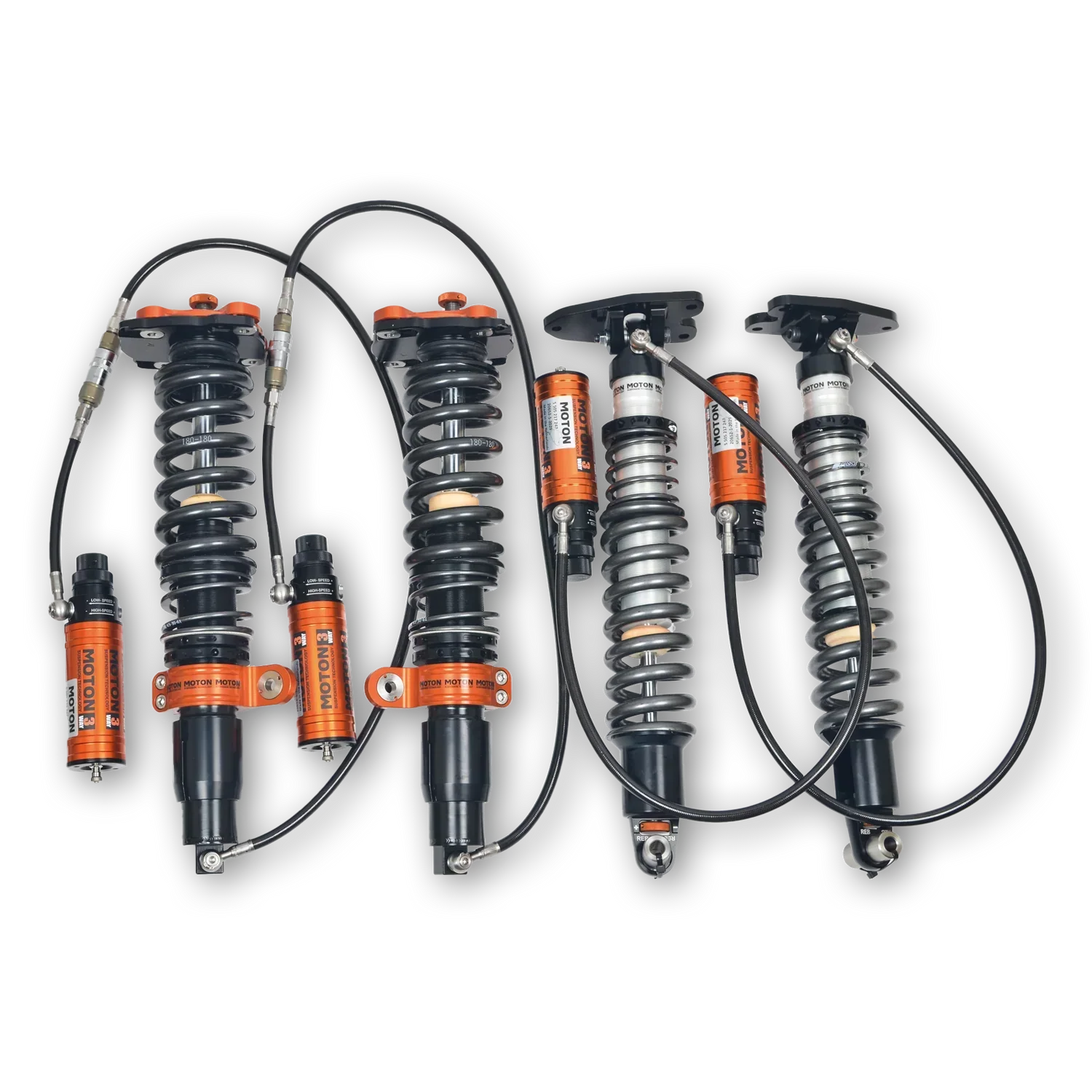

These Moton Suspension coilovers are made for the BMW 1 Series (F20/F21) LCI and 3 Series (F30) LCI, 2015-2019. Each system is built around a non-inverted monotube damper with matched springs, and every series offers rebound adjustment. Moton says its 2-Way series adds compression adjustment on a remote reservoir, while the 3-Way series splits compression into separate high-speed and low-speed control. The brand also states that the dampers are engineered, machined and hand-assembled in the Netherlands, fully rebuildable and serviceable in Australia, and covered by a warranty backed in Australia.
Features
- Heavy-duty non-inverted monotube damper design
- Matched springs included
- Rebound adjustable on every series
- Fully rebuildable and serviceable within Australia
- Engineered, machined and hand-assembled in the Netherlands
- Warranty backed in Australia
- Built to resist fade in endurance racing, per Moton
Specifications
- Brand: MOTON Suspension
- Product Type: Coilover Suspension System
- Damper Design: Non-inverted monotube
- Springs: Matched springs included
- Damping Adjustment: Rebound adjustable on all series; compression adjustable on 2-Way (remote reservoir) and 3-Way (separate high and low-speed, remote reservoir)
- Top Mounts: Camber-adjustable front top mounts and solid rear top mounts, where applicable to the chassis
- Serviceability: Fully rebuildable and serviceable within Australia
- Made In: Netherlands
- Warranty: Backed in Australia

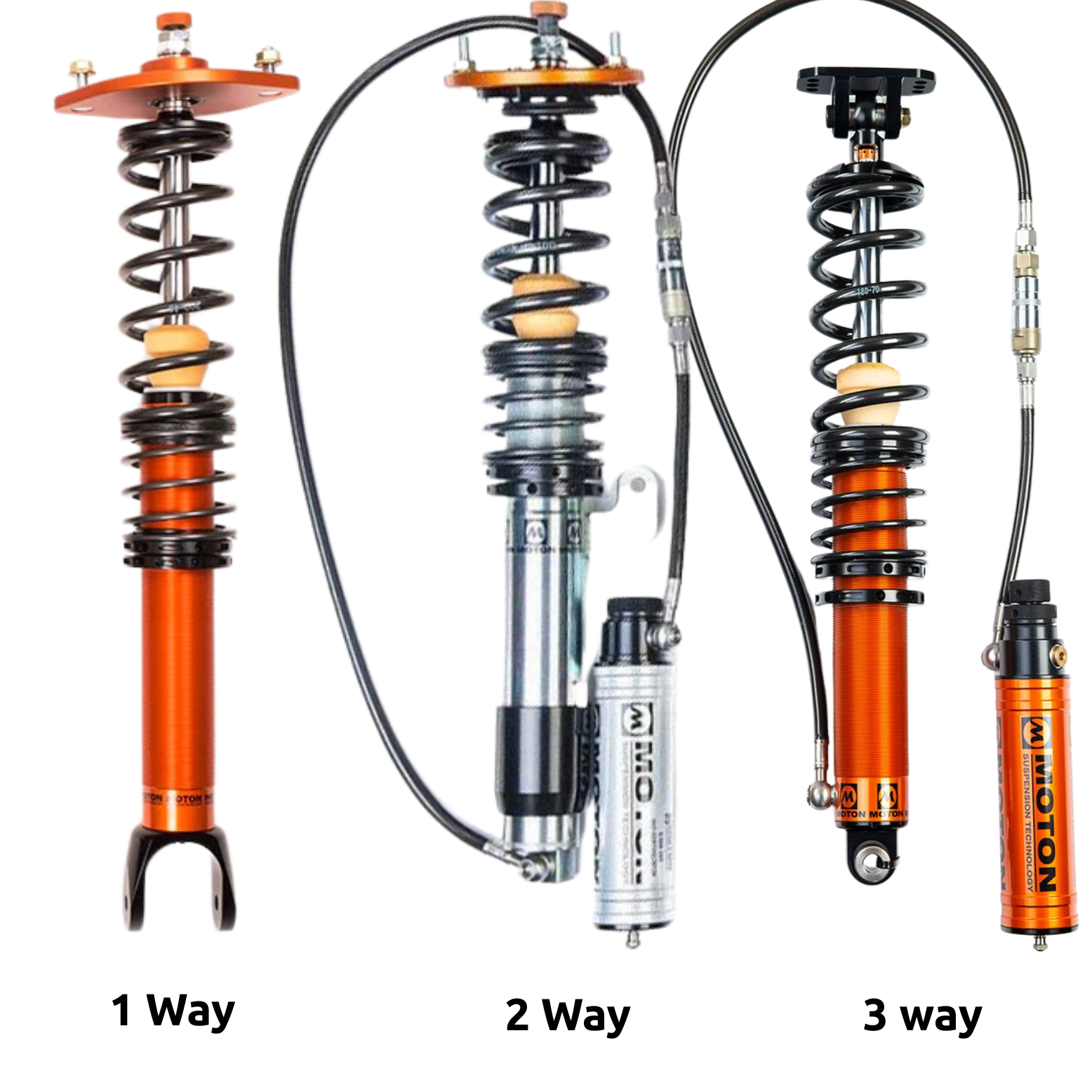

- Series Options: 2 Way NCO, 2 Way TCO, 3 Way NCO or 3 Way TCO
- Part Number: M-505-147SD, M-505-149SD, M-505-151SD, M-505-153SD
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
BMW (2)
| Model | Variant | Engine | Years |
|---|---|---|---|
| 1 Series | F20/F21 LCI | 2015-2019 | |
| 3 Series | F30 LCI | 2015-2019 |
Images shown are generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
