Moton Suspension offers this coilover system for the BMW M3 xDrive (G80/G81) and M4 xDrive (G82/G83) from 2021. The dampers use a non-inverted monotube layout with matched springs, and rebound adjustment is standard on every series. According to Moton, the 2-Way series adds compression adjustment through a remote reservoir, and the 3-Way series adds separate high-speed and low-speed compression adjustment. Moton states that the units are engineered, machined and hand-assembled in the Netherlands, can be rebuilt and serviced within Australia, and are backed by a warranty in Australia.
Features
- Heavy-duty non-inverted monotube damper design
- Matched springs included
- Rebound adjustable on every series
- Fully rebuildable and serviceable within Australia
- Engineered, machined and hand-assembled in the Netherlands
- Warranty backed in Australia
- Built to resist fade in endurance racing, per Moton
Specifications
- Brand: MOTON Suspension
- Product Type: Coilover Suspension System
- Damper Design: Non-inverted monotube
- Springs: Matched springs included
- Damping Adjustment: Rebound adjustable on all series; compression adjustable on 2-Way (remote reservoir) and 3-Way (separate high and low-speed, remote reservoir)
- Top Mounts: Camber-adjustable front top mounts and solid rear top mounts, where applicable to the chassis
- Serviceability: Fully rebuildable and serviceable within Australia
- Made In: Netherlands
- Warranty: Backed in Australia

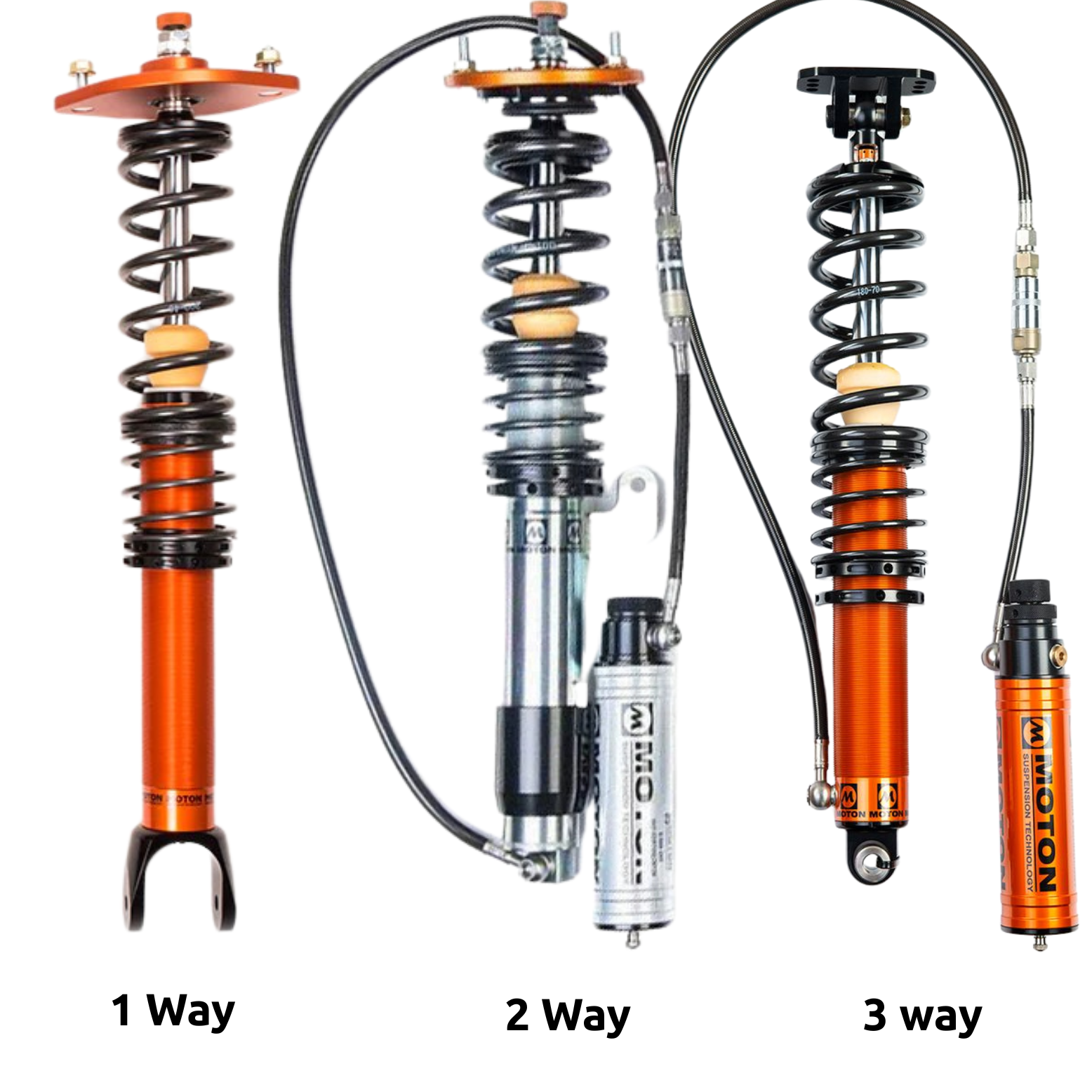

- Series Options: 1 Way, 2 Way TCO or 3 Way TCO
- Part Number: M-505-187SD, M-505-188SD, M-505-189SD
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
BMW (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| M3 | G80/G81 | 2021-on | xDrive | |
| M4 | G82/G83 | 2021-on | xDrive |
Images shown are generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
