Ohlins Adventure Shock Absorber TTX Set - Mercedes G-Class W463

Regular price $9,994.99

Seen this item cheaper somewhere else? Send us the link and we'll do our best to match or beat the price. We'll reply by email.

Product details
  • Type Suspension
  • Vendor Ohlins Automotive Suspension
  • SKU MEV-MY46

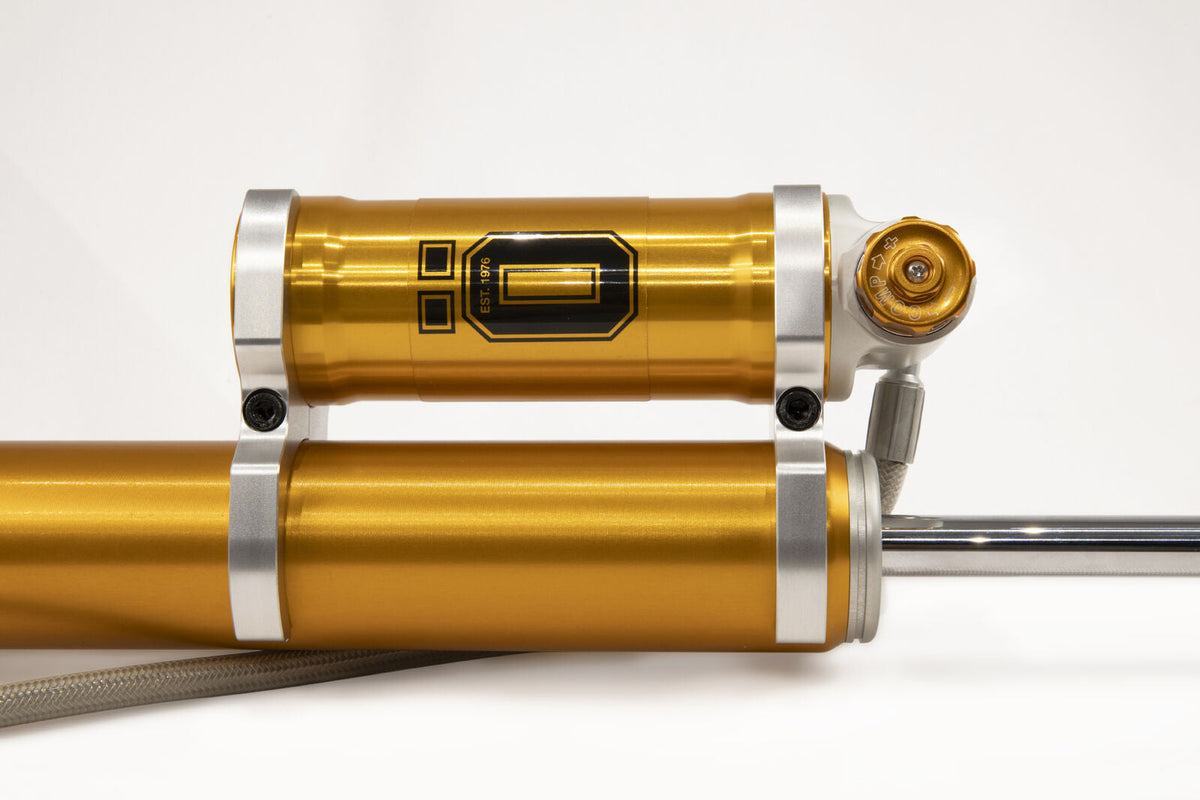

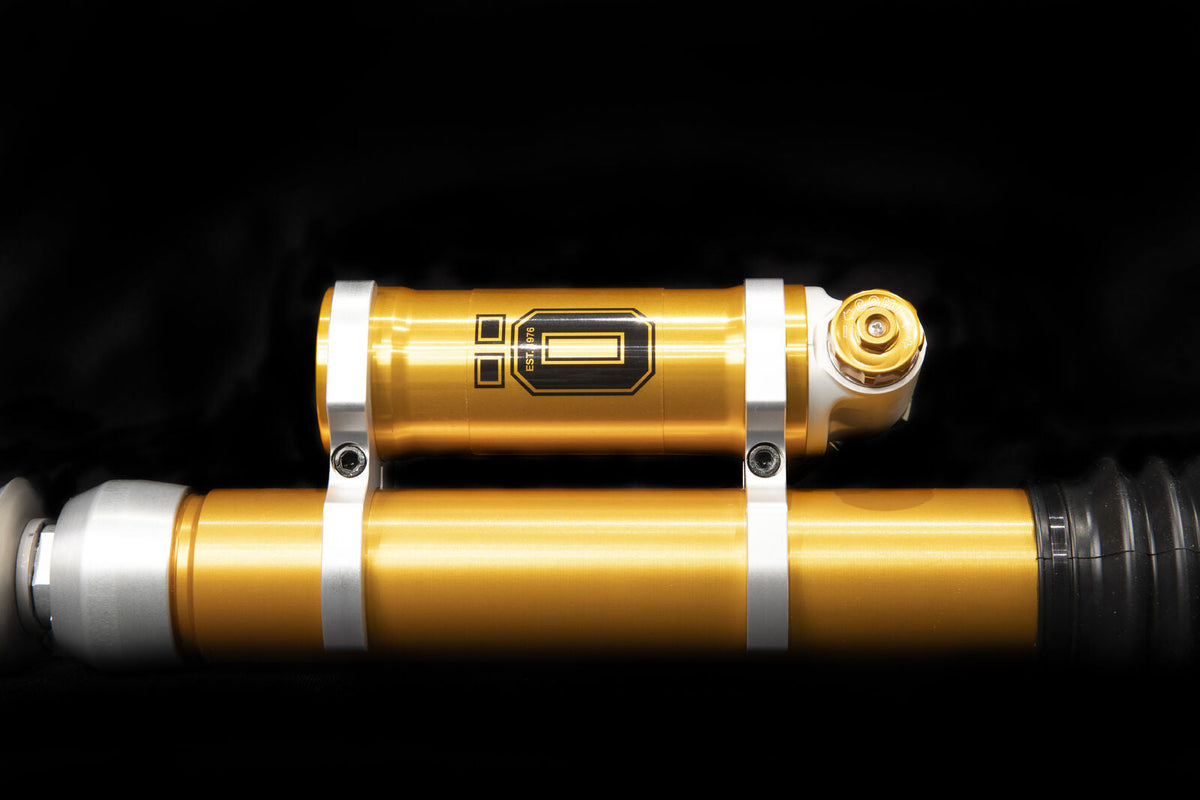

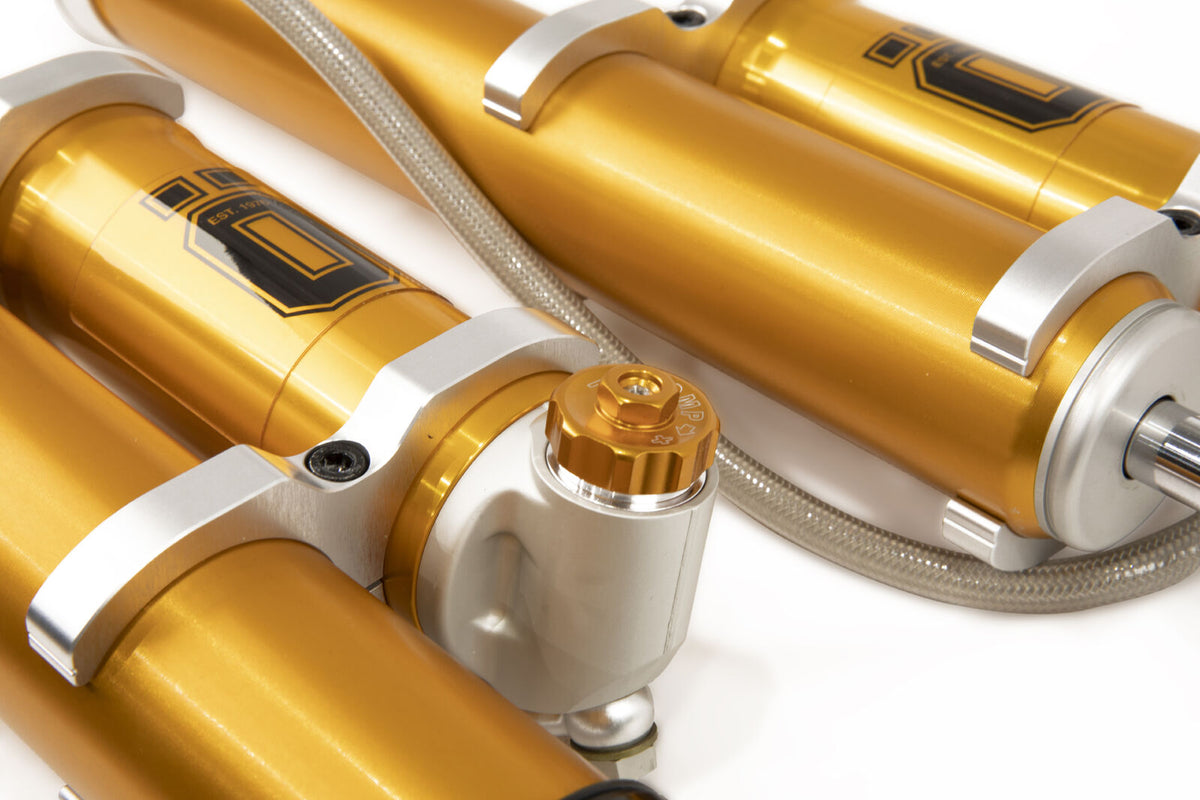

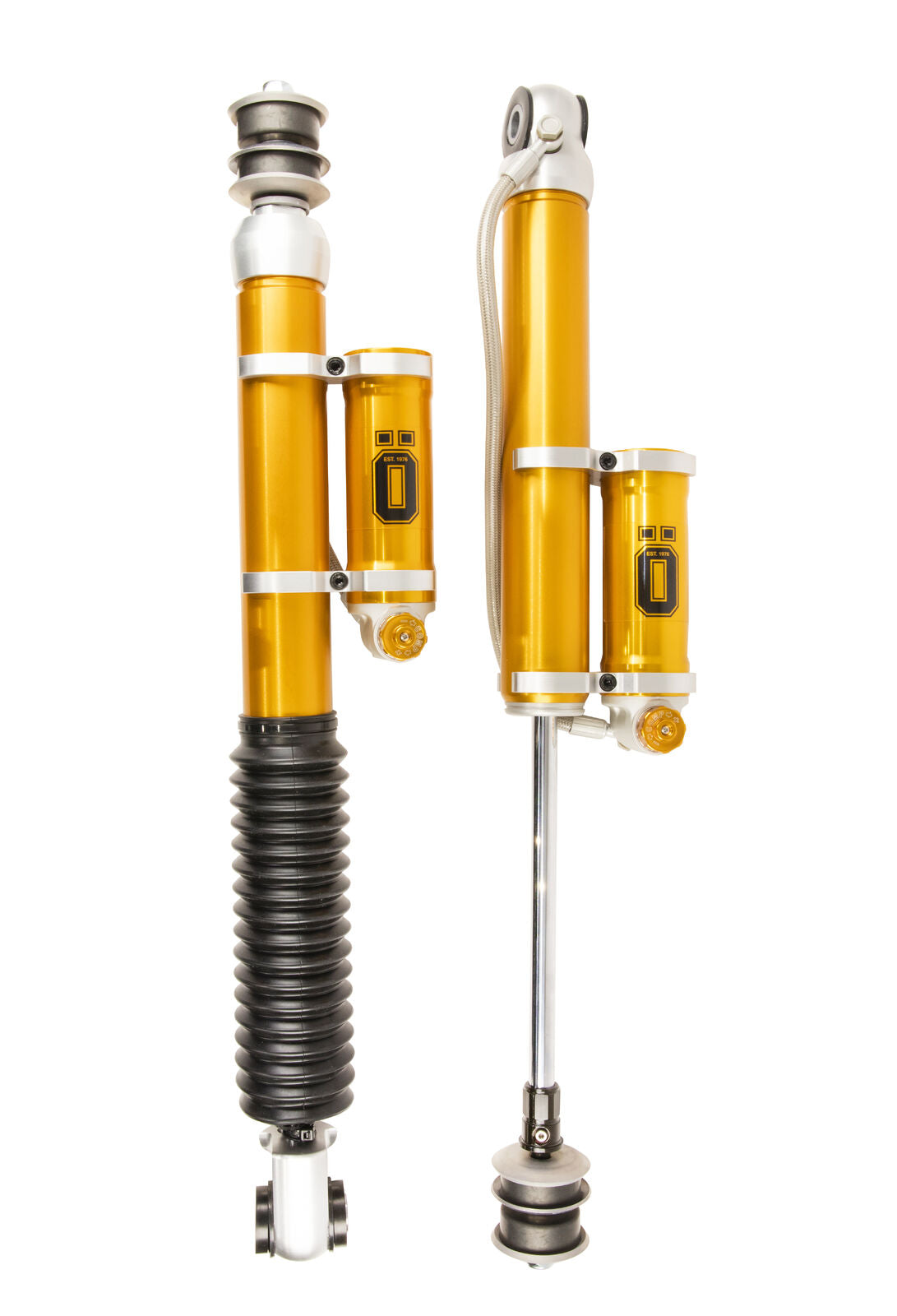

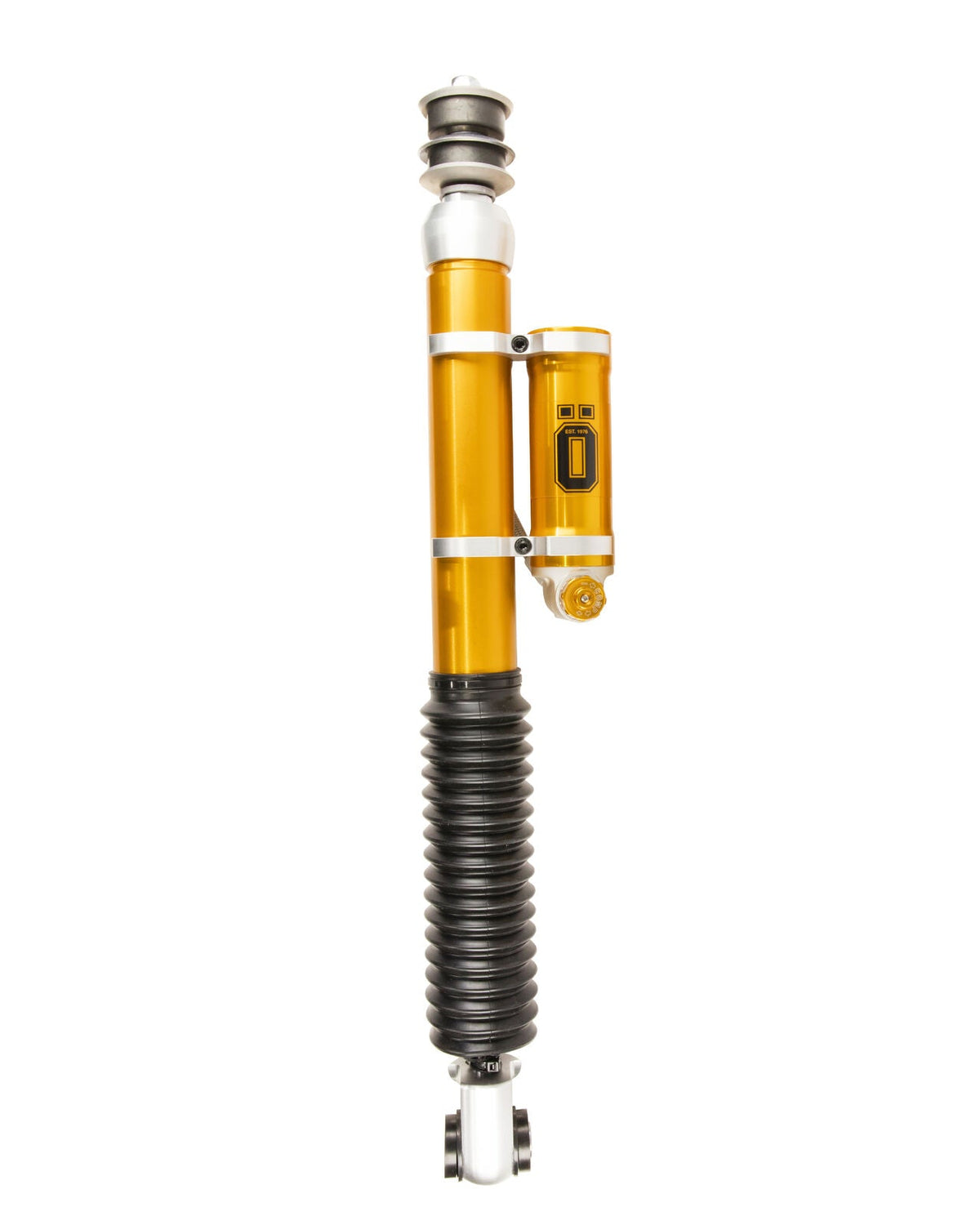

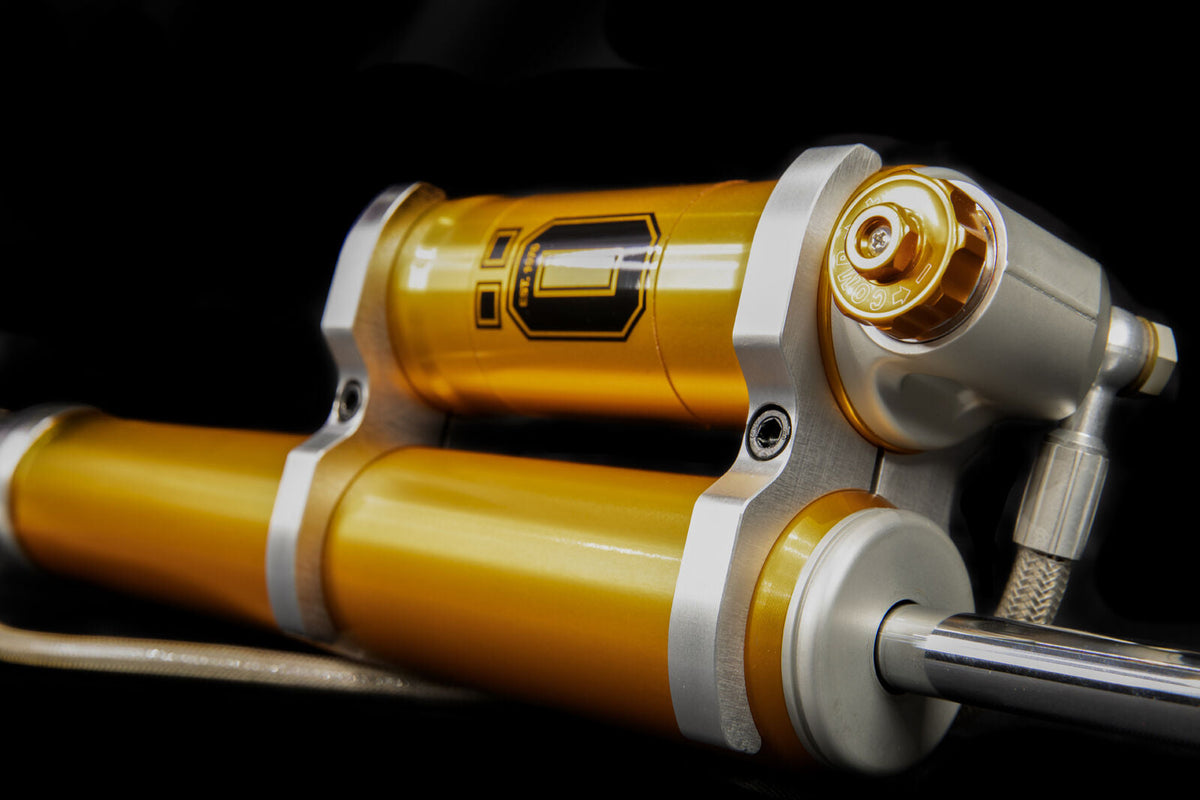

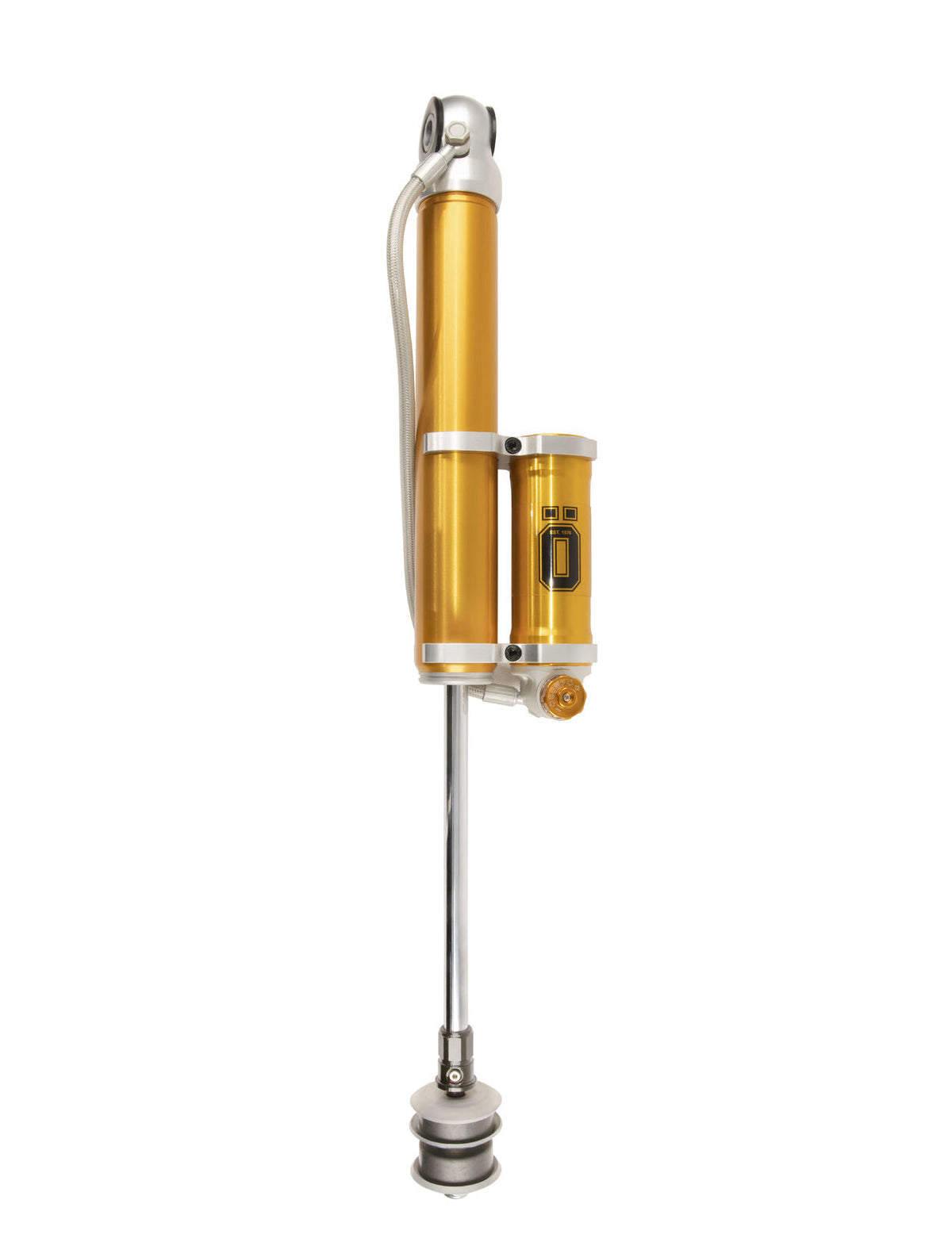

This Ohlins Adventure shock absorber set is made for the Mercedes-Benz G-Class W463 and uses Ohlins 16/46 shocks, which pair a 16mm piston shaft with a 46mm piston. Ohlins says the kit copes with a lift of up to 3 inches and works with both aftermarket and original springs. The conventional shocks have 2-way adjustment for compression and rebound, with a remote reservoir on a stainless steel braided hose and golden outer tubes. Ohlins states that wheel spacers or a different wheel offset (ET) are needed for the shocks to work properly.

Features

  • Ohlins 16/46 Adventure shocks: 16mm shaft, 46mm piston
  • Designed for a lift of up to 3 inches
  • 2-way adjustable: independent compression and rebound
  • Remote reservoir on a stainless steel braided hose
  • Works with aftermarket or original springs
  • Golden outer tubes, rebuildable
  • Wheel spacers or a different offset (ET) required

Specifications

  • Brand: Ohlins Automotive Suspension
  • Product Type: Adventure Shock Absorber Set
  • Range: Adventure (16/46)
  • Piston: 16mm shaft, 46mm piston
  • Damping Adjustment: 2-way, independent compression and rebound
  • Reservoir: Remote, with high pressure stainless steel braided hose
  • Lift: Up to 3 inches (76mm)
  • Springs: Suits aftermarket or original (OE) springs
  • Wheel Fitment: Wheel spacers or a different offset (ET) required for the shocks to work properly
  • Warranty: 2-year worldwide limited warranty
  • Part Number: MEV-MY46

Vehicle Compatibility: 1 application across 1 make. Select a make to view.

Mercedes-Benz (1)
Model Variant Engine Years Notes
G-Class W463 Wheel spacers or a different wheel offset (ET) needed

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
