Ohlins Road & Track Coilovers - BMW M3 E90/E92 (2007-2012)

Regular price $5,694.99

Seen this item cheaper somewhere else? Send us the link and we'll do our best to match or beat the price. We'll reply by email.

Product details
  • Type Coilovers
  • Vendor Ohlins Automotive Suspension
  • SKU BMS MI40S1

This Ohlins Road & Track coilover kit is made for the BMW M3 E90 and E92, 2007 to 2012. It uses Ohlins' Dual Flow Valve (DFV) damper design, which the brand says keeps the car settled over bumps while holding body control near the limit. The front runs McPherson struts and the rear conventional shock absorbers, with front and rear springs included and ride height set at a threaded lower flange that keeps the spring seat position. Ohlins says each damper is fully serviceable, which allows the kit to be rebuilt and revalved later.

Features

  • Ohlins Dual Flow Valve (DFV) damping
  • Height adjustable via threaded lower flange
  • Front and rear springs included
  • Single bleed adjuster at each damper
  • Lightweight aluminium, rebuildable construction
  • Salt spray tested to ISO 9227
  • 2-year worldwide limited warranty

Specifications

  • Brand: Ohlins Automotive Suspension
  • Product Type: Road & Track Coilovers

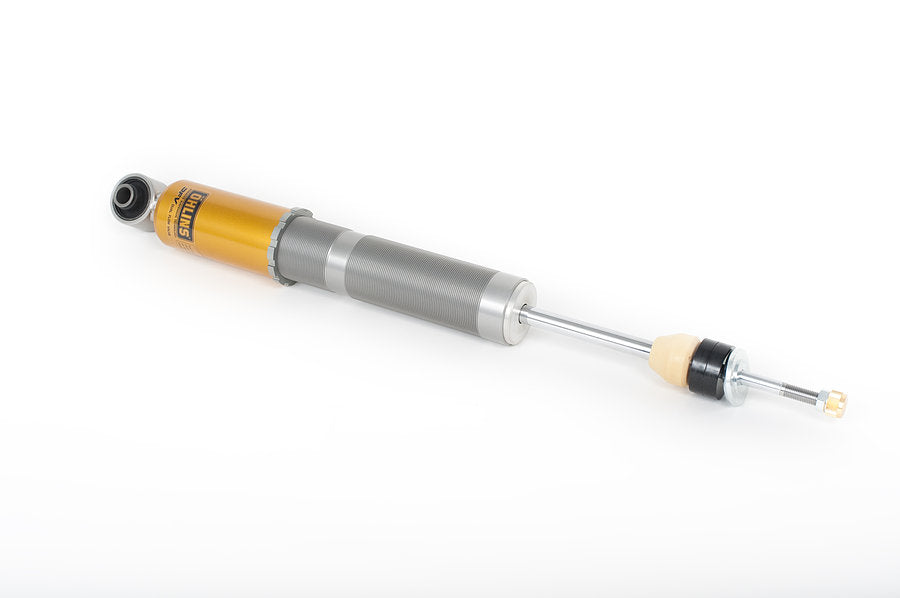

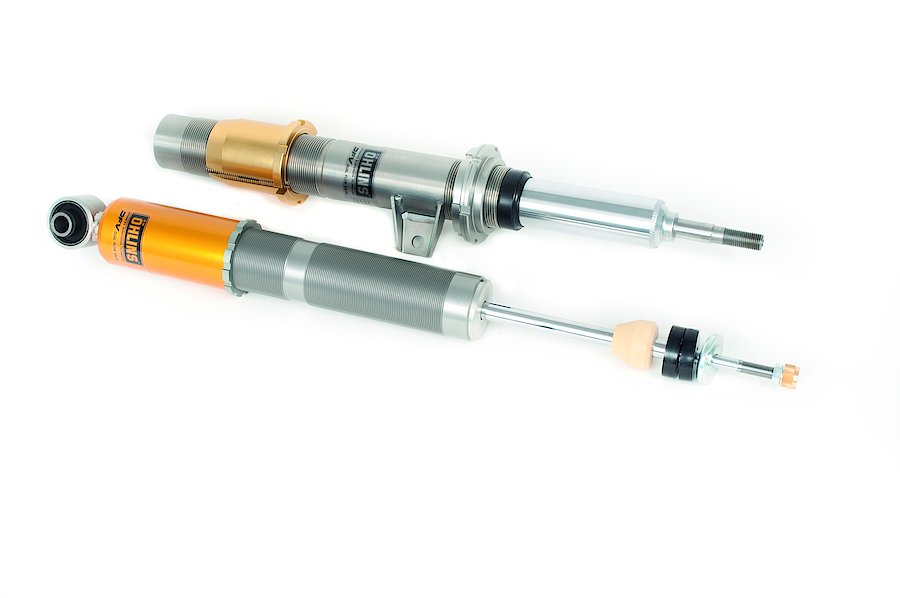

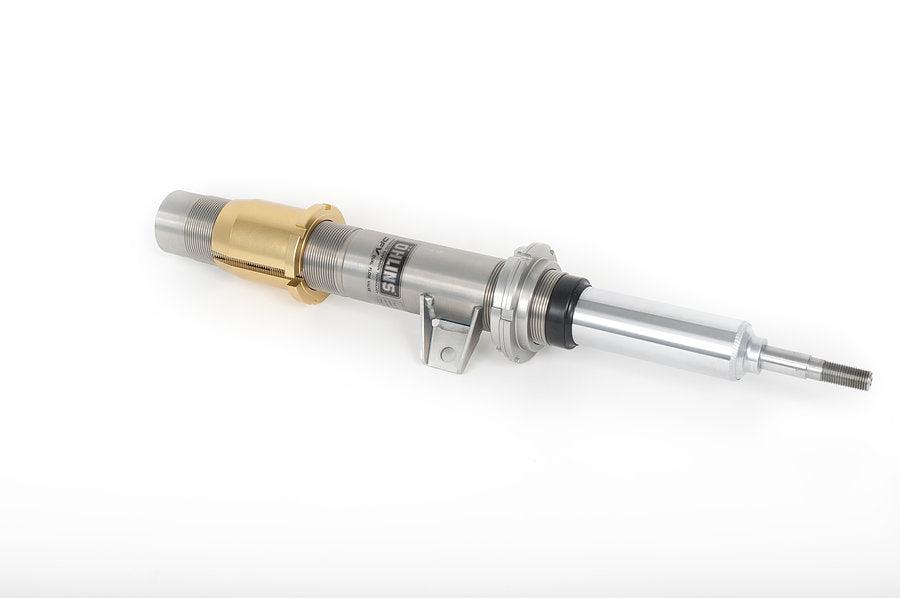

  • Dampers: Front McPherson strut, rear conventional shock absorber
  • Damping Adjustment: Single bleed adjuster, front and rear

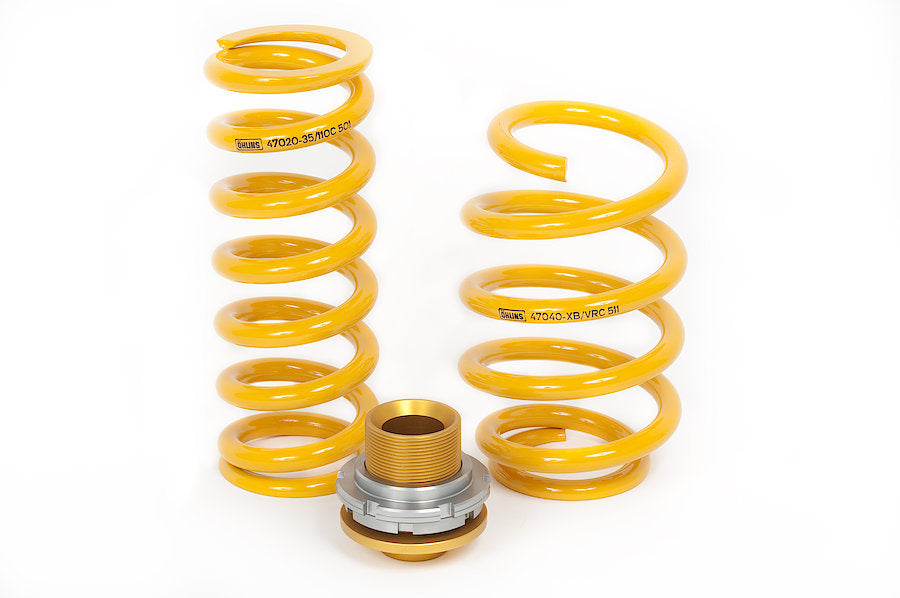

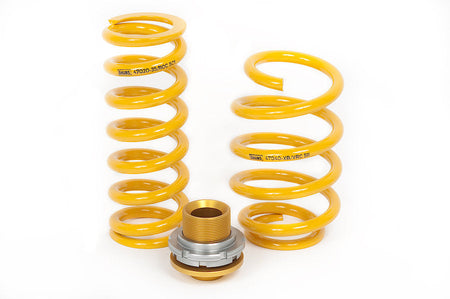

  • Springs: Included, 60 N/mm front and 120 N/mm rear
  • Lowering: Approx. 15mm front, approx. 10mm rear
  • Top Mounts: Use with original top mounts
  • Corrosion Testing: ISO 9227 salt spray tested
  • Warranty: 2-year worldwide limited warranty
  • Kit Contents: Springs, dustcovers, mounting hardware, C-spanner, owner's manual, mounting instructions, Ohlins sticker set
  • Part Number: BMS MI40S1

Vehicle Compatibility: 2 applications across 1 make. Select a make to view.

BMW (2)
Model Variant Engine Years
M3 E90 2007-2012
M3 E92 2007-2012

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
