Ohlins Road & Track Coilovers - BMW 1 Series E81/E82/E87/E88 & 3 Series E90/E91/E92/E93
This item needs to be ordered in
Heads up, this product isn't in stock for immediate dispatch. It will need to be ordered in (estimated 1–4 weeks) before it ships. Would you like to continue?
- Type Coilovers
- Vendor Ohlins Automotive Suspension
- SKU BMS MI01S1

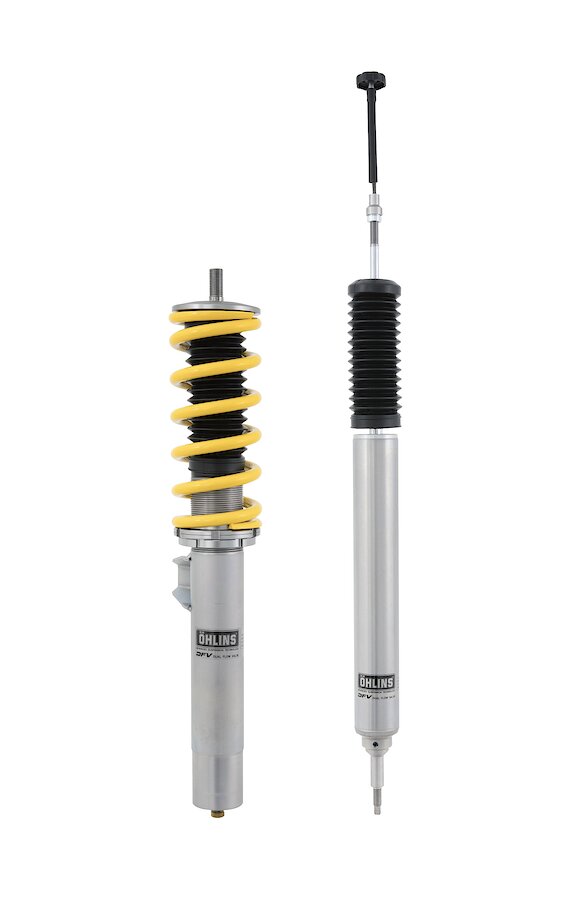

This Ohlins Road & Track coilover kit is made for the BMW 1 Series (E81, E82, E87 and E88) and 3 Series (E90, E91, E92 and E93). It uses Ohlins' Dual Flow Valve (DFV) damping with a McPherson front strut, a conventional rear shock and a single bleed adjuster for compression and rebound. Ride height is set through a threaded lower flange that keeps the spring seat position, with approx. 10mm of lowering at the front and approx. 15mm at the rear. Front and rear springs are included, the kit uses the original top mounts, and the dampers are rebuildable with a 2-year worldwide limited warranty.
Features
- Dual Flow Valve (DFV) damping technology
- Single bleed adjuster for compression and rebound
- Ride height set by threaded lower flange, spring seat position kept
- Springs included: 70 N/mm front, 120 N/mm rear
- Lowering approx. 10mm front, approx. 15mm rear
- C-spanner for spring preload included
- Rebuildable, ISO 9227 tested, 2-year worldwide limited warranty
Specifications
- Brand: Ohlins Automotive Suspension
- Product Type: Road & Track Coilovers

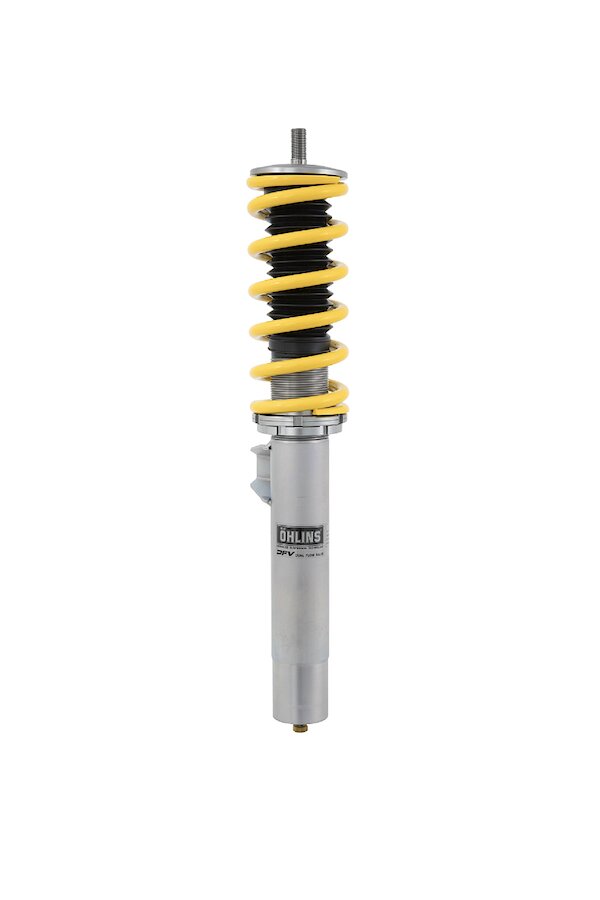

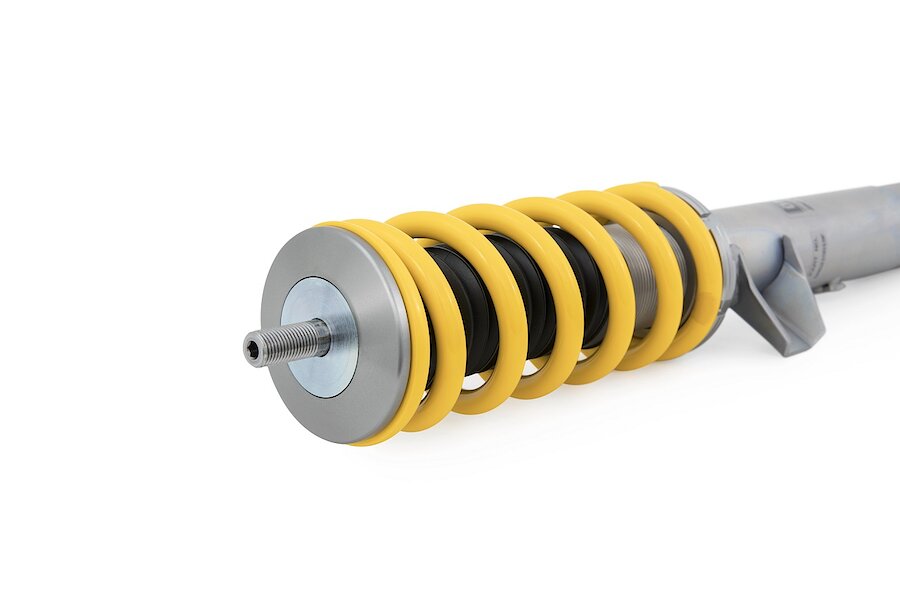

- Dampers: McPherson strut front, conventional shock absorber rear, single bleed adjuster for compression and rebound

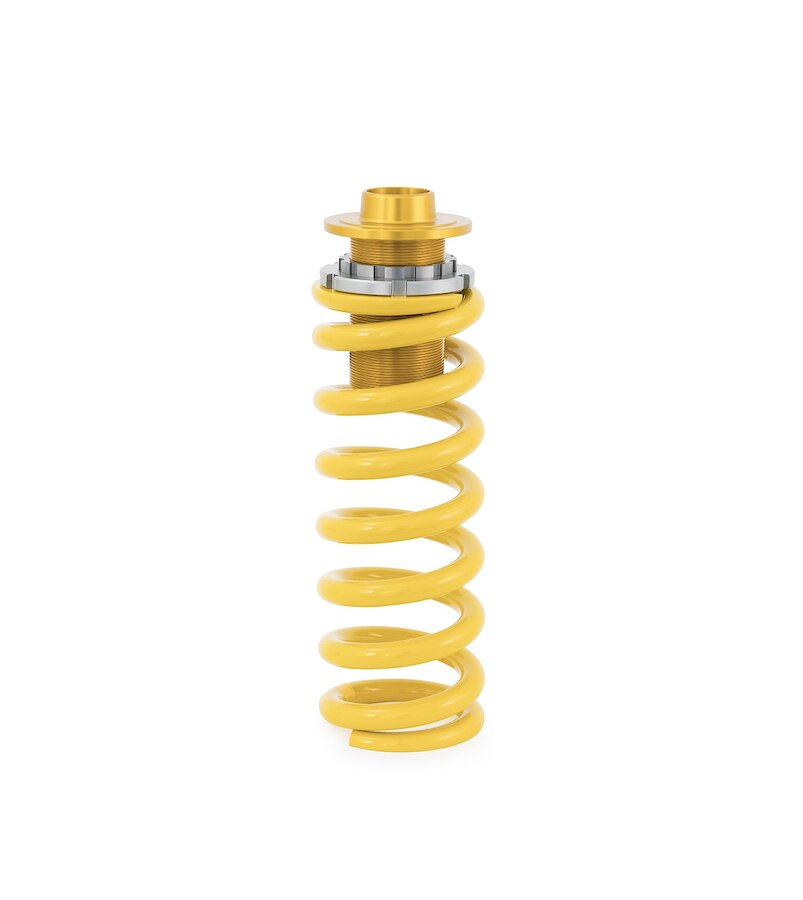

- Springs: Included: 70 N/mm front (48000-19), 120 N/mm rear (48010-39)
- Ride Height: Approx. 10mm below standard at the front, approx. 15mm at the rear, set by a threaded lower flange
- Top Mounts: Use with original top mounts, front and rear
- Kit Contents: Springs and mounting hardware, C-spanner for spring preload, owner's manual and mounting instructions, Ohlins sticker set
- Warranty: 2-year worldwide limited warranty
- Part Number: BMS MI01S1
Vehicle Compatibility: 8 applications across 1 make. Select a make to view.
BMW (8)
| Model | Variant | Engine | Years |
|---|---|---|---|
| 1 Series | E81 | ||
| 1 Series | E82 | ||
| 1 Series | E87 | ||
| 1 Series | E88 | ||
| 3 Series | E90 | ||
| 3 Series | E91 | ||
| 3 Series | E92 | ||
| 3 Series | E93 |
Images shown are generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
