Ohlins Road & Track Coilovers - Mini Cooper / Cooper S R56
This item needs to be ordered in
Heads up, this product isn't in stock for immediate dispatch. It will need to be ordered in (estimated 1–4 weeks) before it ships. Would you like to continue?
- Type Coilovers
- Vendor Ohlins Automotive Suspension
- SKU BMS MI20S1

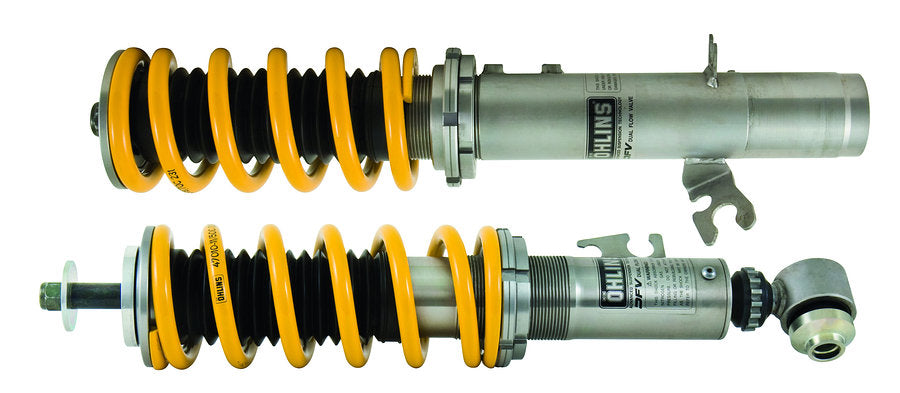

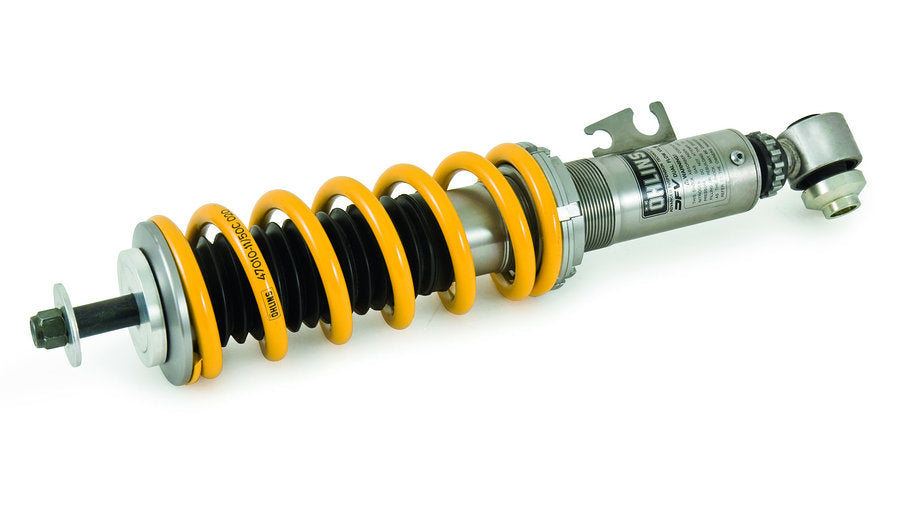

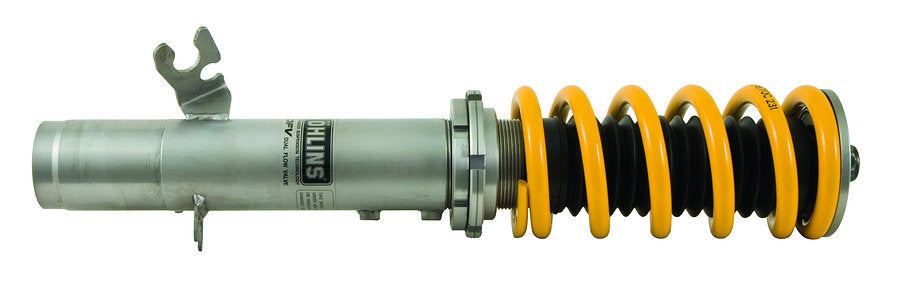

This Ohlins Road & Track coilover kit is made for the MINI Cooper and Cooper S R56. It combines Ohlins' Dual Flow Valve (DFV) damping with McPherson front struts and conventional rear shock absorbers, with front and rear springs included. Ride height is set through a threaded lower flange that keeps the spring seat position, and spring preload is adjusted with the included C-spanner. The kit is offered with or without Ohlins camber-adjustable top mounts, and the version without them uses the original top mounts.

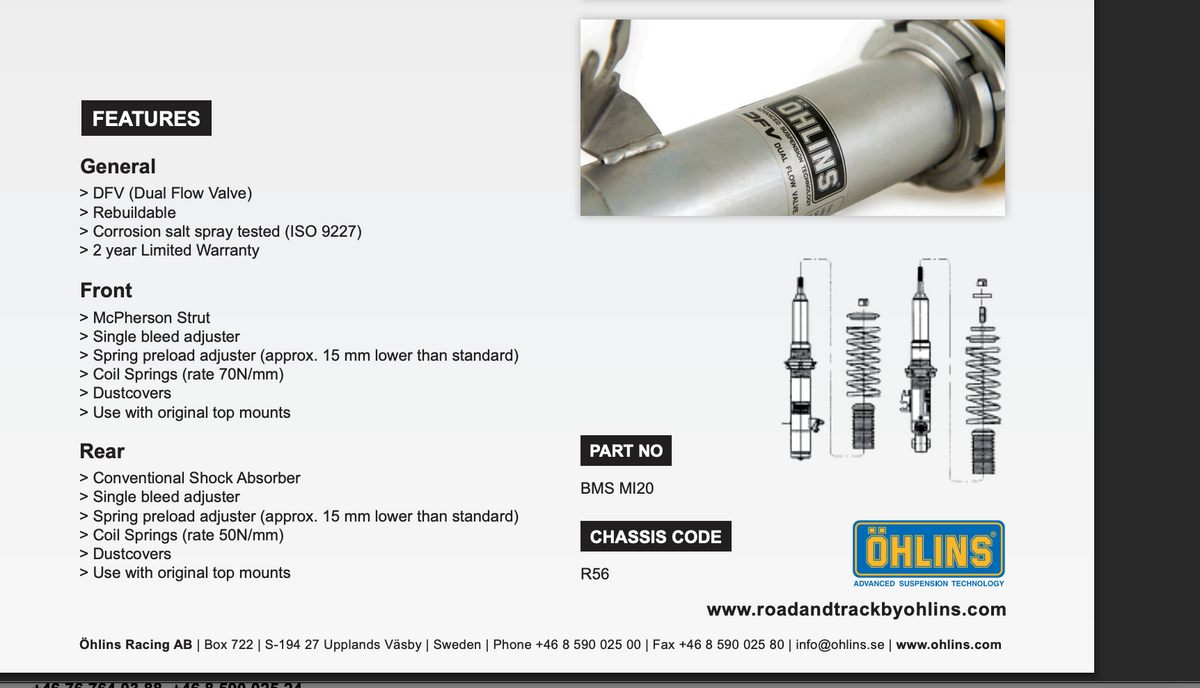

Features
- Ohlins Dual Flow Valve (DFV) damping
- Ride height set via threaded lower flange
- Front 70 N/mm and rear 50 N/mm springs included
- Single bleed adjuster at each damper

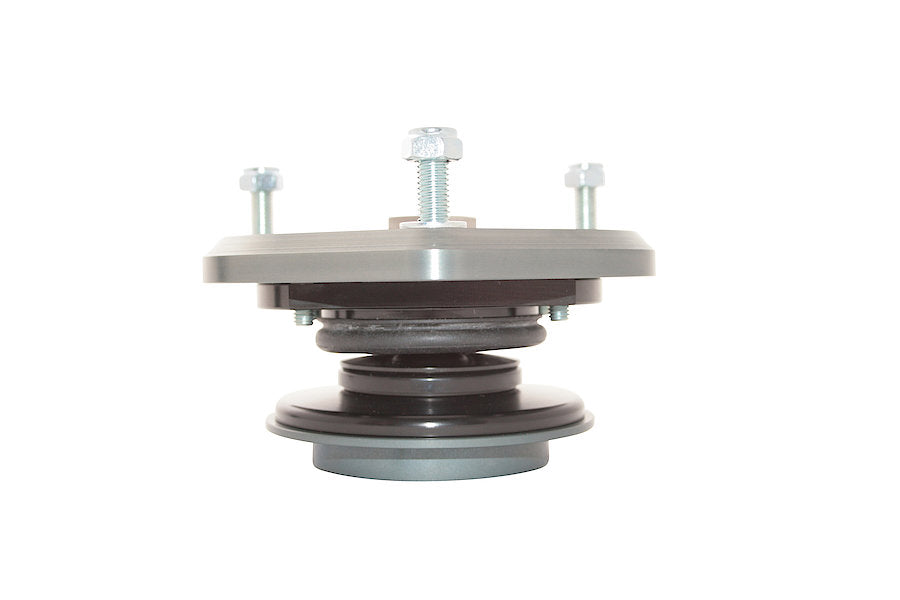

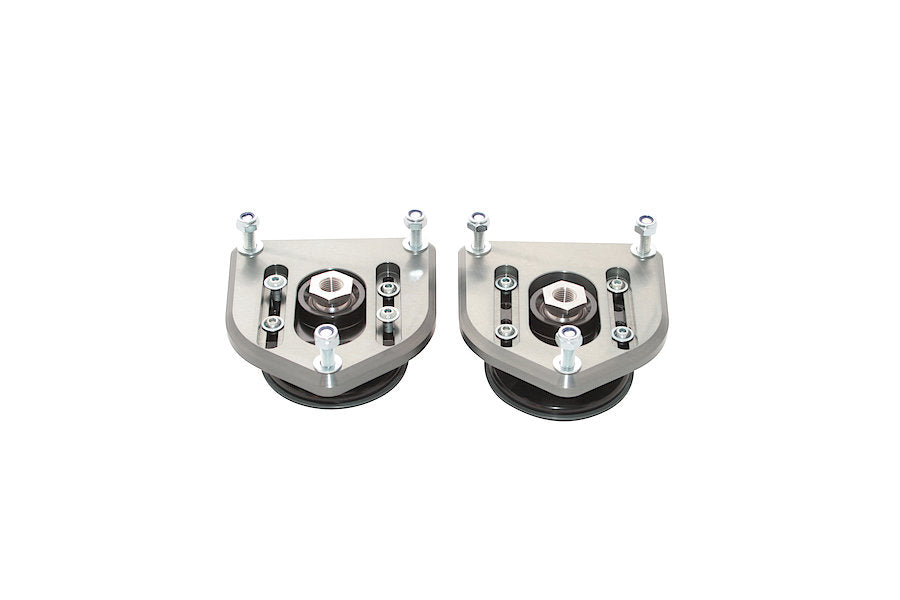

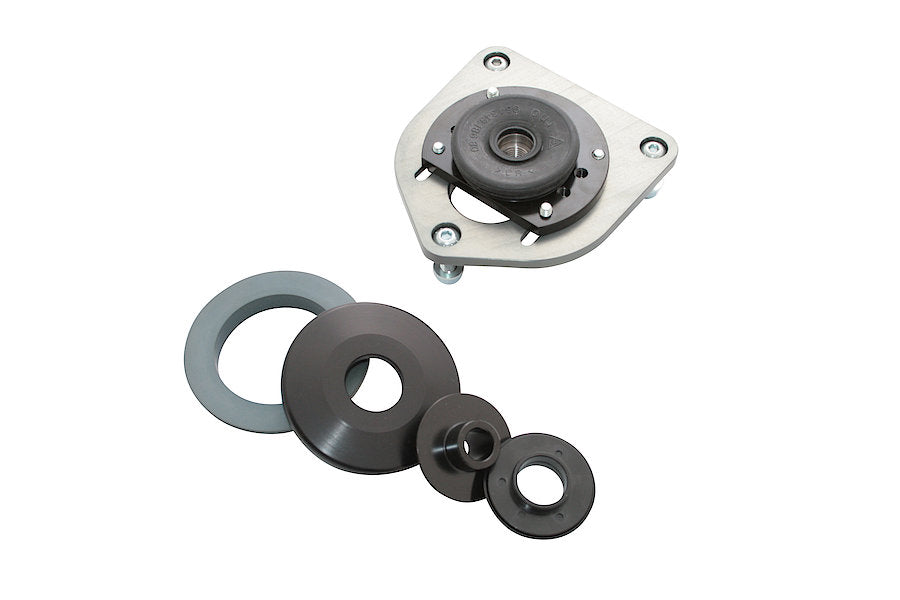

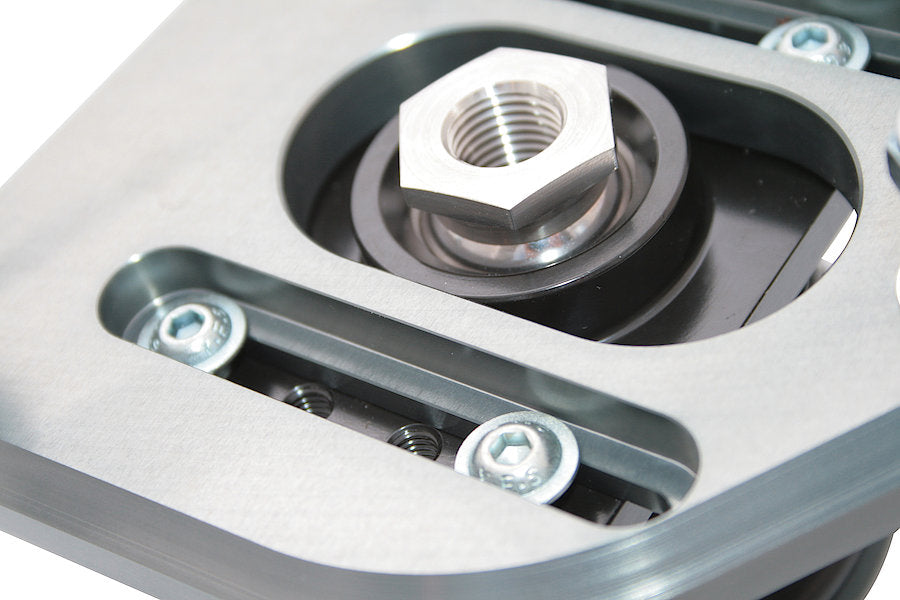

- Option with Ohlins camber-adjustable top mounts
- Rebuildable, ISO 9227 salt spray tested
- 2-year worldwide limited warranty
Specifications
- Brand: Ohlins Automotive Suspension
- Product Type: Road & Track Coilovers
- Dampers: Front McPherson strut, rear conventional shock absorber
- Damping Adjustment: Single bleed adjuster, front and rear
- Springs: Included, 70 N/mm front and 50 N/mm rear
- Lowering: Approx. 15mm below standard, front and rear
- Top Mounts: Original top mounts, or Ohlins camber-adjustable top mounts with the second option
- Options: Without camber top mounts (BMS MI20S1) or with Ohlins camber top mounts (BMS MI20S1+G61058-01)
- Corrosion Testing: ISO 9227 salt spray tested
- Warranty: 2-year worldwide limited warranty
- Part Number: BMS MI20S1, BMS MI20S1+G61058-01
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
MINI (2)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Cooper | R56 | ||
| Cooper S | R56 |
Images shown are generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
