Ohlins Road & Track Coilovers - Mitsubishi Lancer Evolution IV - VI (EVO 4-6)
This item needs to be ordered in
Heads up, this product isn't in stock for immediate dispatch. It will need to be ordered in (estimated 1–4 weeks) before it ships. Would you like to continue?
- Type Coilovers
- Vendor Ohlins Automotive Suspension
- SKU MIZ MI00S1

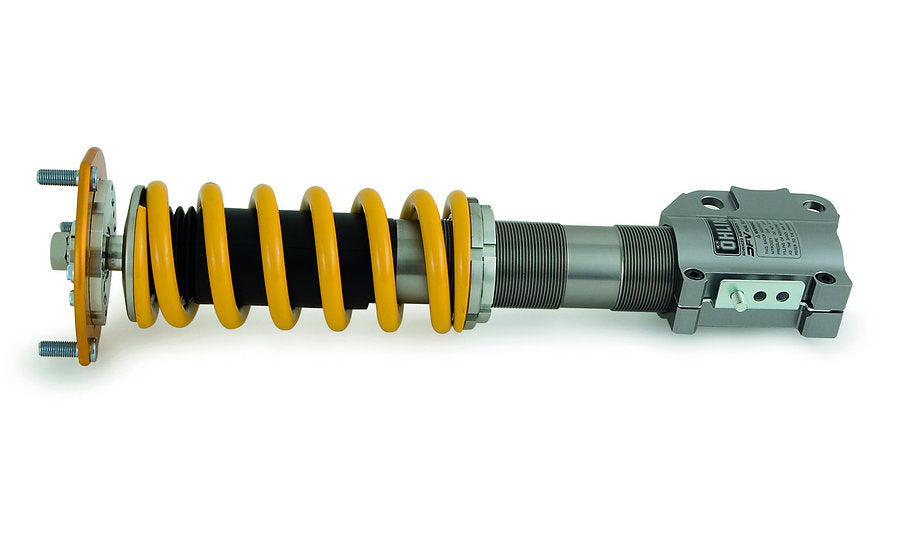

This Ohlins Road & Track coilover kit is made for the Mitsubishi Lancer Evolution IV, V and VI. It pairs McPherson struts at the front, with camber-adjustable top mounts, with conventional shock absorbers at the rear, and includes springs rated at 100 N/mm front and 80 N/mm rear. Ohlins says its Dual Flow Valve (DFV) damping improves ride comfort and helps the tyre return to the road quickly after a bump, and the ride height drop is approximately 15mm. Ohlins also states that companion kit MIS MI01 is required, and that the two kits must be ordered together.
Features

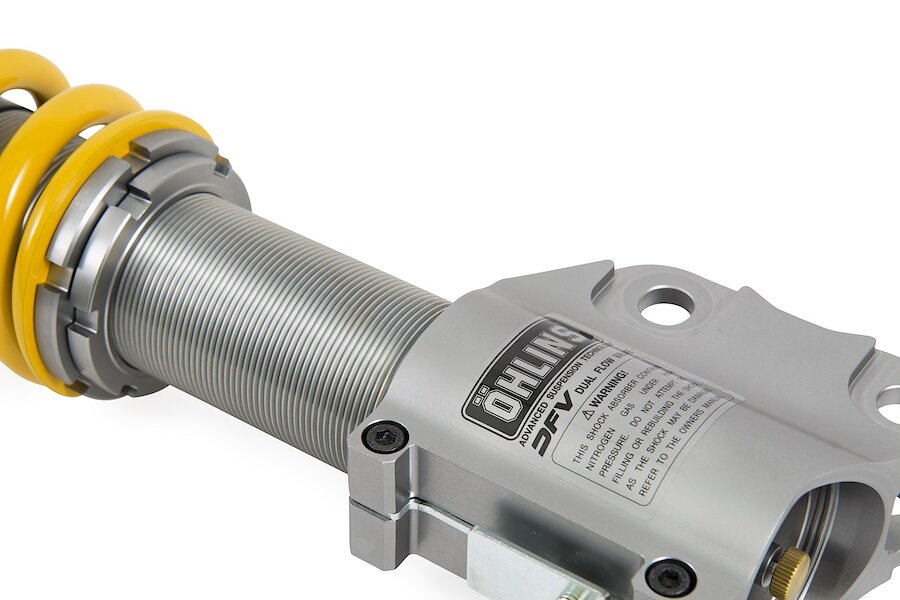

- Ohlins Dual Flow Valve (DFV) damping technology

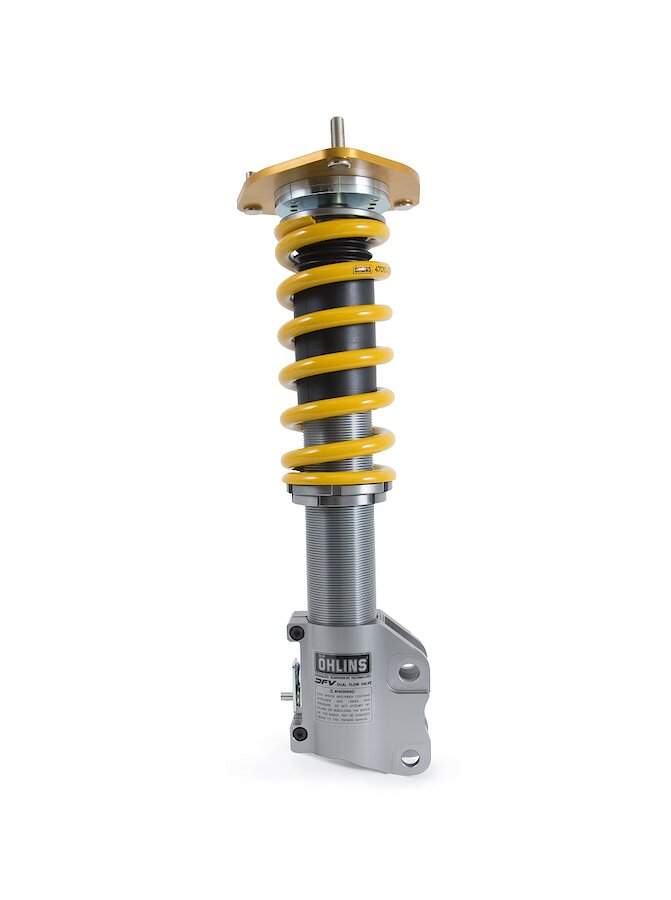

- McPherson strut front, conventional shock absorber rear

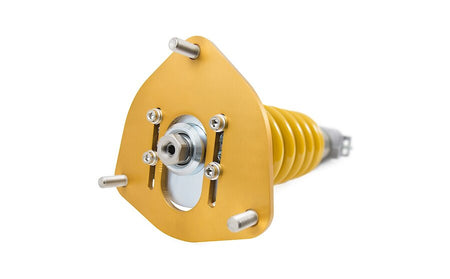

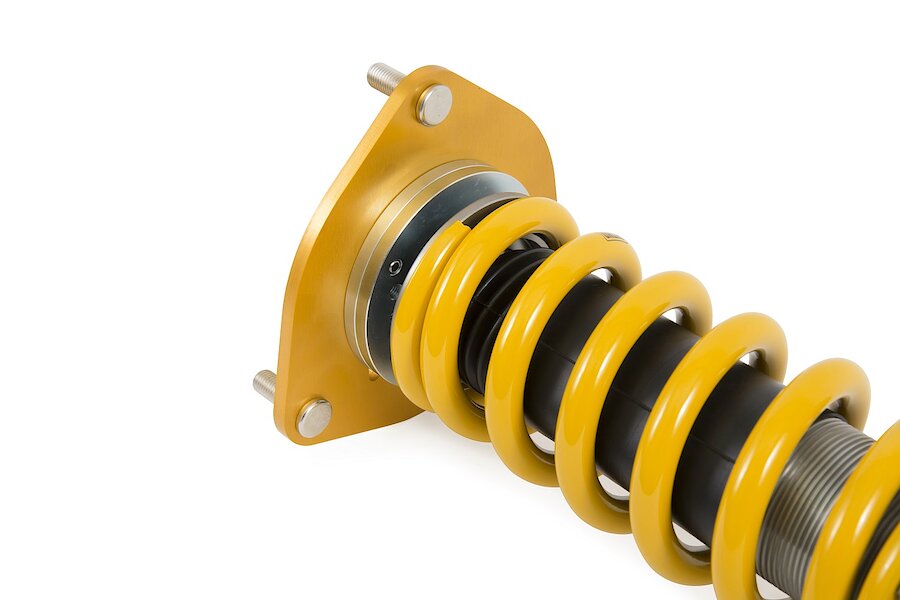

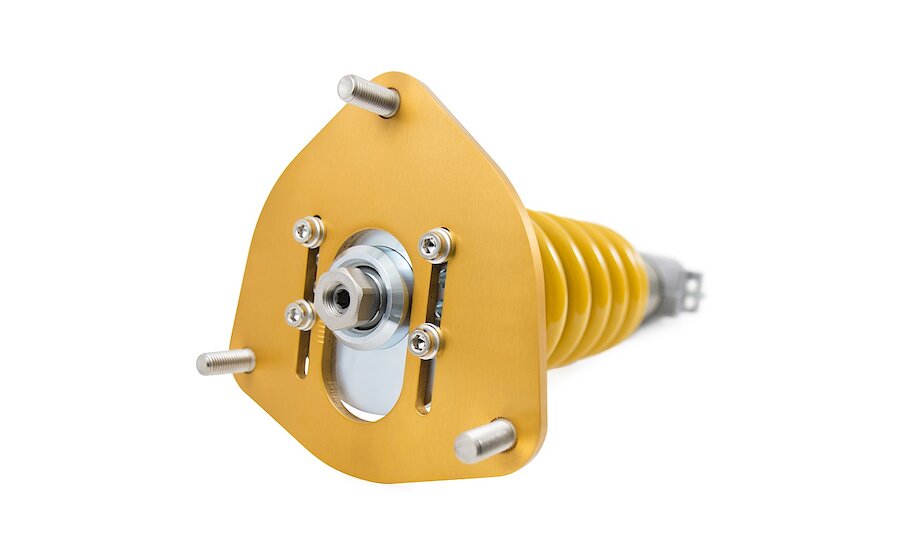

- Front top mounts with camber adjustment
- Single bleed adjuster for compression and rebound
- Approx. 15mm below standard ride height
- Springs included: 100 N/mm front, 80 N/mm rear
- Rebuildable, ISO 9227 salt spray tested, 2-year worldwide warranty
Specifications
- Brand: Ohlins Automotive Suspension
- Product Type: Coilover Kit
- Range: Road & Track
- Dampers: McPherson strut at the front, conventional shock absorber at the rear
- Damping Adjustment: Single bleed adjuster for compression and rebound, front and rear
- Springs: Included: front 100 N/mm (48010-31), rear 80 N/mm (48010-23)
- Ride Height: Approx. 15mm below standard, front and rear
- Front Top Mounts: Top mounts with camber adjustment
- Companion Kit: MIS MI01, must be ordered together with this kit
- Kit Contents: Springs and mounting hardware, C-spanner for spring preload, owner's manual and mounting instructions, Ohlins sticker set
- Warranty: 2-year worldwide limited warranty
- Part Number: MIZ MI00S1
Vehicle Compatibility: 3 applications across 1 make. Select a make to view.
Mitsubishi (3)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Lancer Evolution | Evo IV (CN9A) | 1996-1998 | Must be ordered with kit MIS MI01 | |
| Lancer Evolution | Evo V (CP9A) | 1998-1999 | Must be ordered with kit MIS MI01 | |
| Lancer Evolution | Evo VI (CP9A) | 1999-2001 | Must be ordered with kit MIS MI01 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
