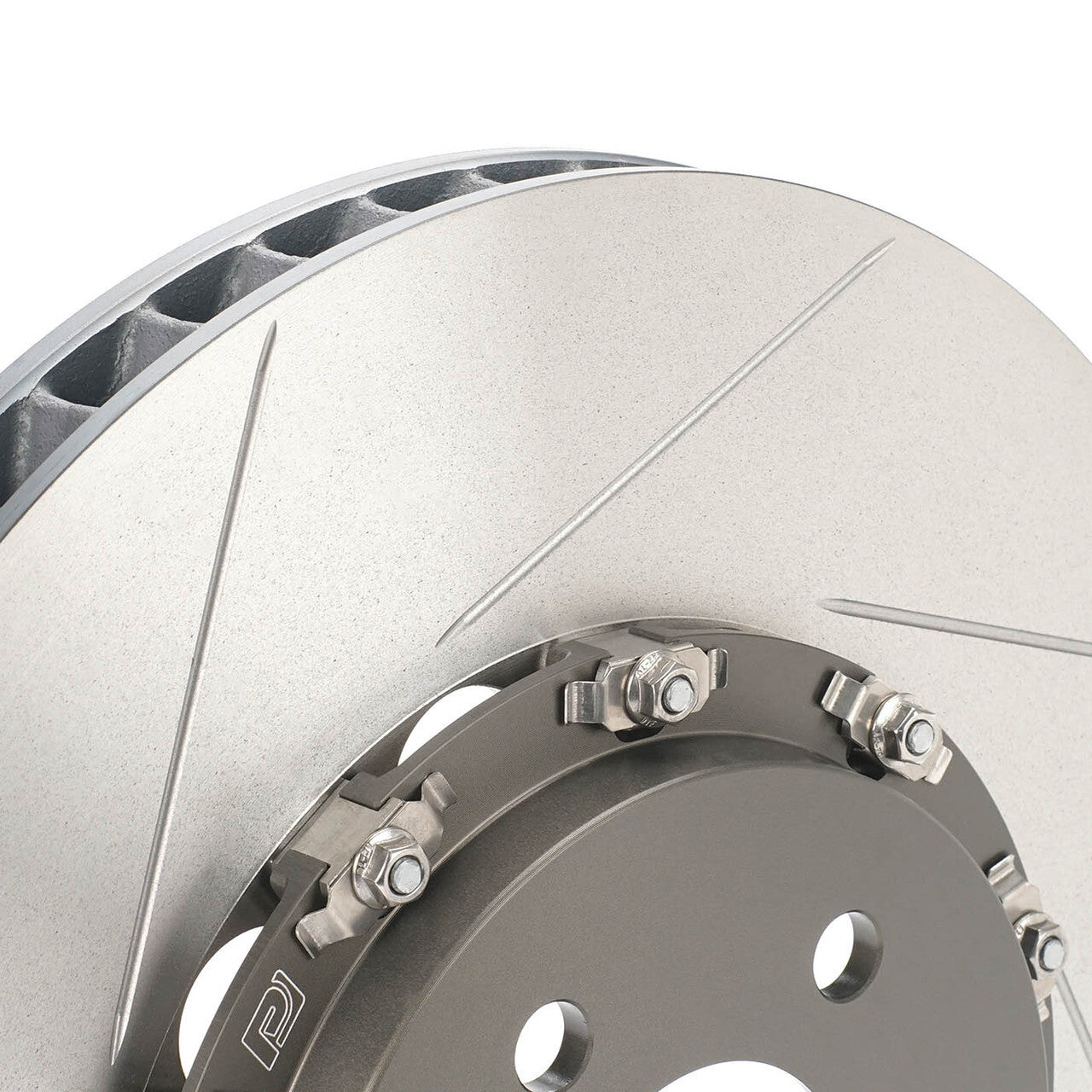

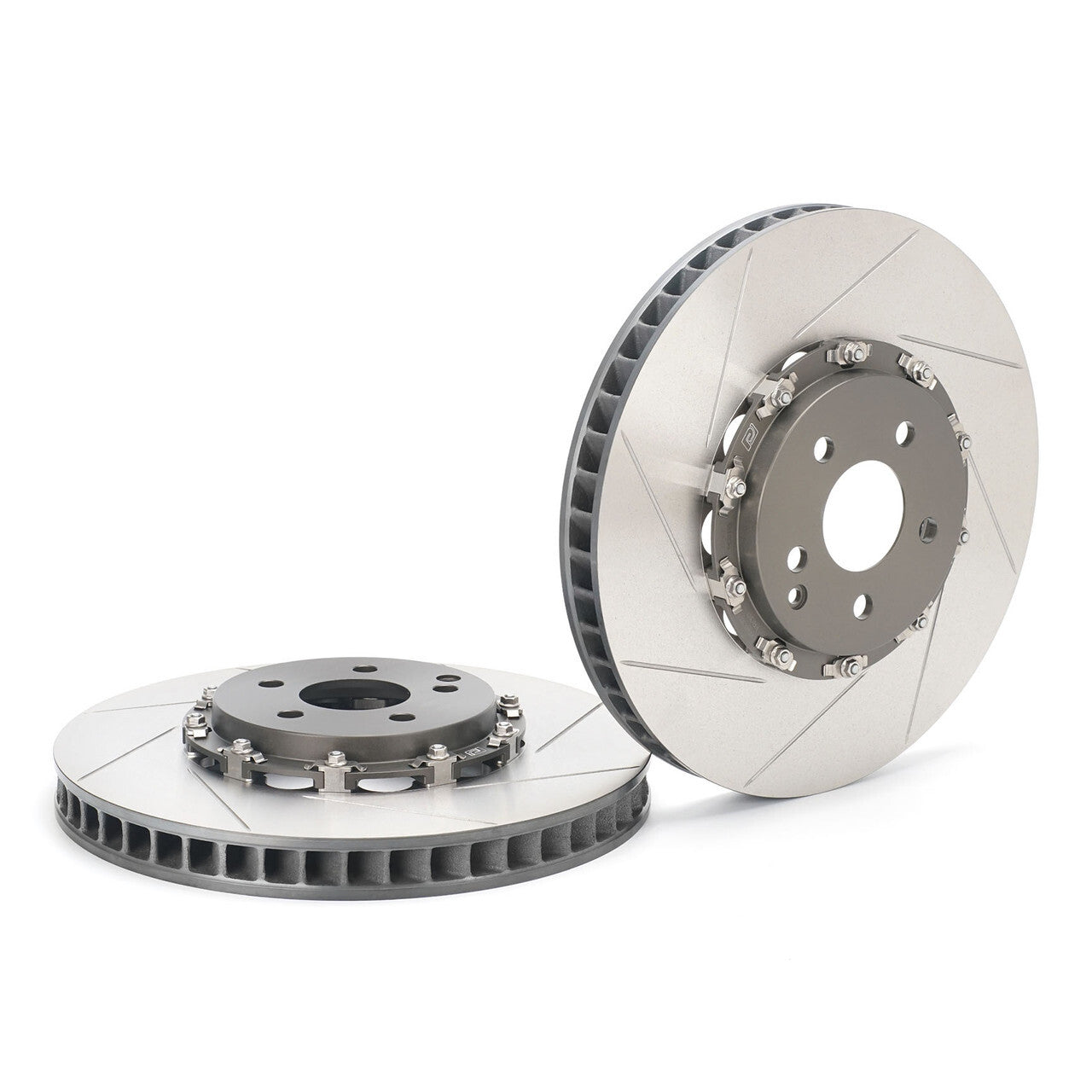

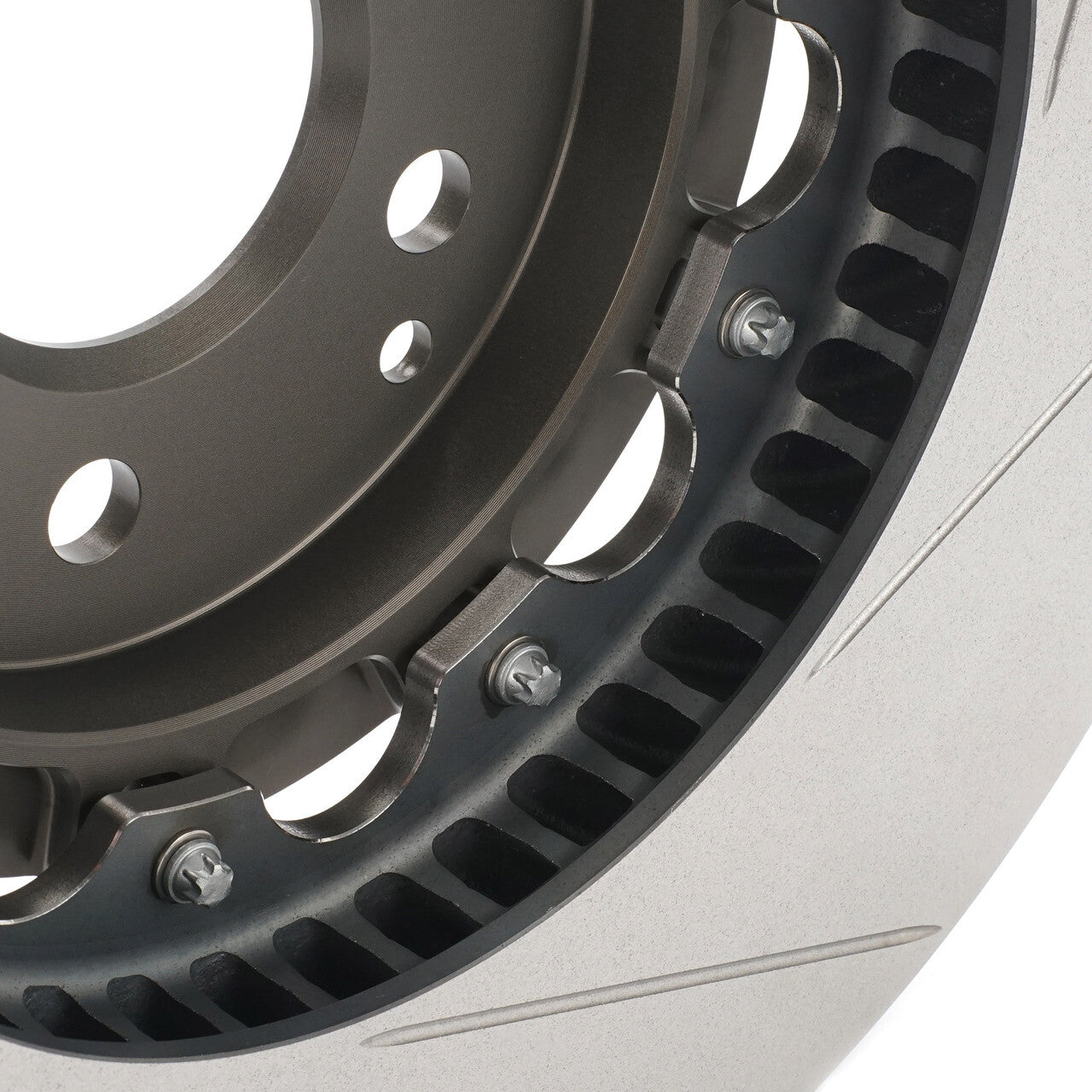

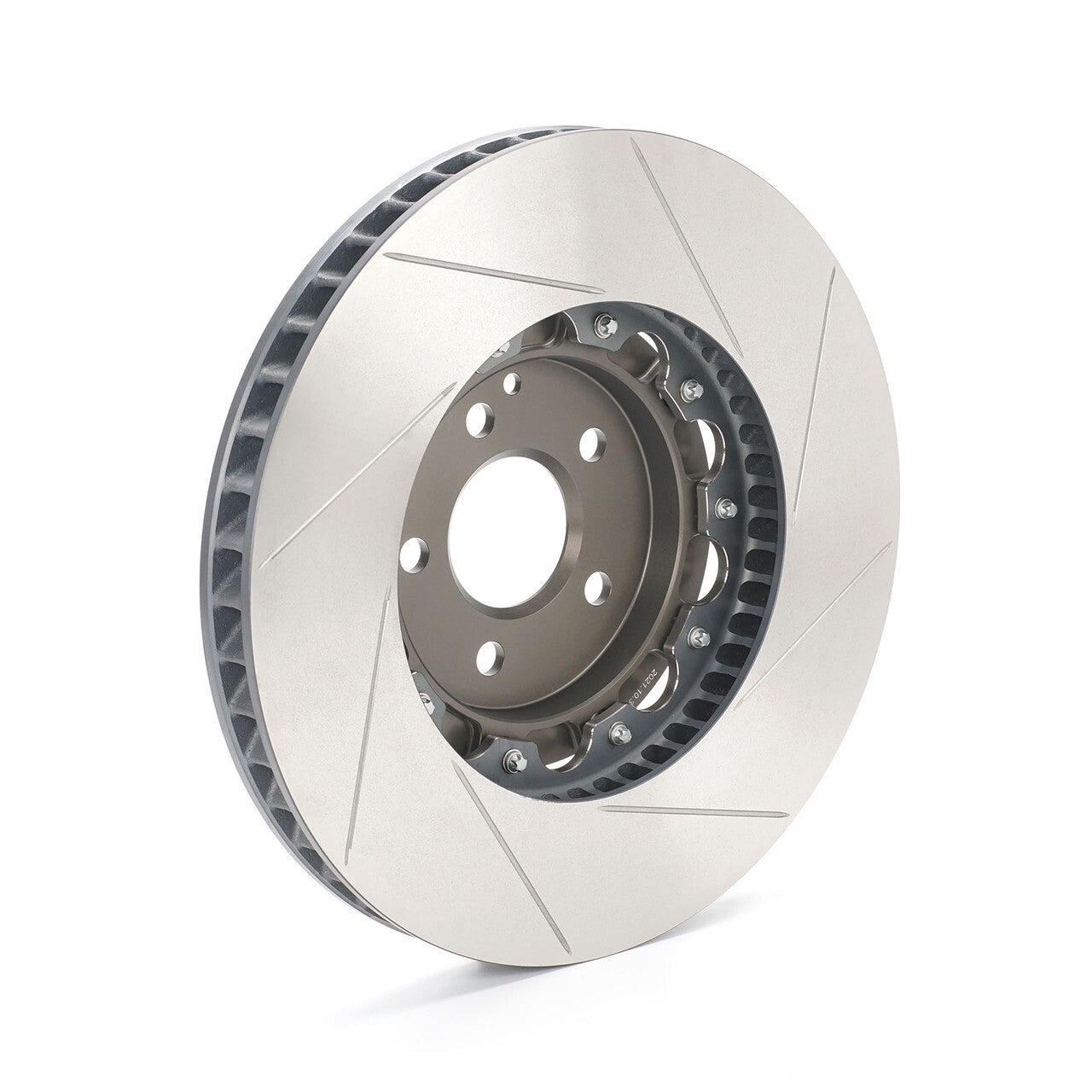

These Paragon Performance 2-piece front rotors, sized 348mm x 36mm, are made for the Toyota GR Supra Mk5 A90 3.0 and 3.0 Premium and the A91 Edition. Paragon pairs a slotted, directionally vented cast iron ring with a floating aluminium hat on D-Bobbin (Long) mounting, and designs the rotors to work with the factory Brembo calipers, ABS and brake system. The brand quotes a weight of 24.9 lbs (11.3 kg), saving 3.9 lbs of unsprung weight per rotor against the factory part. They bolt on without modification, keep the factory brake bias and are supplied assembled with an installation manual.
Features
- Floating 2-piece design with slotted friction face
- Directional vanes, up to 30% cooler than OE per Paragon
- CNC machined 6061-T6 aluminium hat, black hard anodised
- D-Bobbin (Long) mounting, 10 bolt
- Weighs 24.9 lbs (11.3 kg), 3.9 lbs under OEM per rotor
- Designed to work with factory Brembo calipers and ABS
- Direct bolt-on, keeps factory brake bias
Specifications
- Brand: Paragon Performance
- Product Type: 2-Piece Floating Brake Rotors
- Position: Front (sold as a pair)
- Rotor Size: 348mm x 36mm
- Ring: CM-250 high carbon alloy cast iron, slotted, directional vanes, heat treated, CBN machined
- Hat: CNC machined 6061-T6 aluminium, black hard coat / hard anodised (Mil-spec Type III)
- Mounting System: D-Bobbin (Long), 10 bolt
- Weight: 24.9 lbs (11.3 kg), saving 3.9 lbs of unsprung weight per rotor versus OEM
- OE Reference: Toyota 43516WAA01 / 43512WAA02
- Includes: Rotor pair with stainless steel bobbins and anti-rattle clips, assembled and ready to install, plus installation manual
- Part Number: P2R.088.348.360.17400.08.03.01.F
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Toyota (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| GR Supra | A90 (Mk5) | 3.0 | Front. 3.0 and 3.0 Premium | |
| GR Supra | A91 Edition (Mk5) | 3.0 | Front |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
