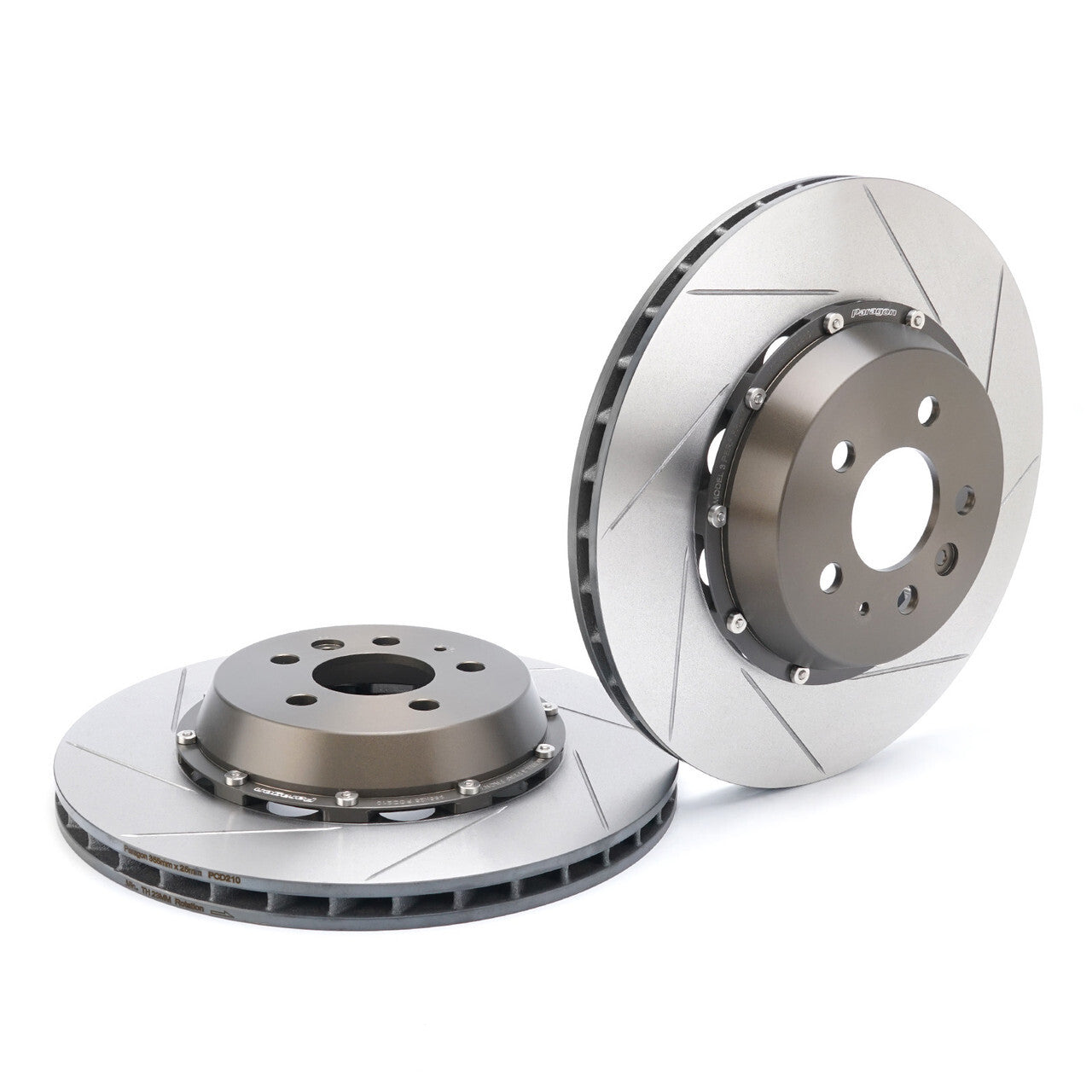

Paragon 2-piece Rotors Front Pair 355mm x 28mm Tesla Model 3 AWD Performance / Model Y

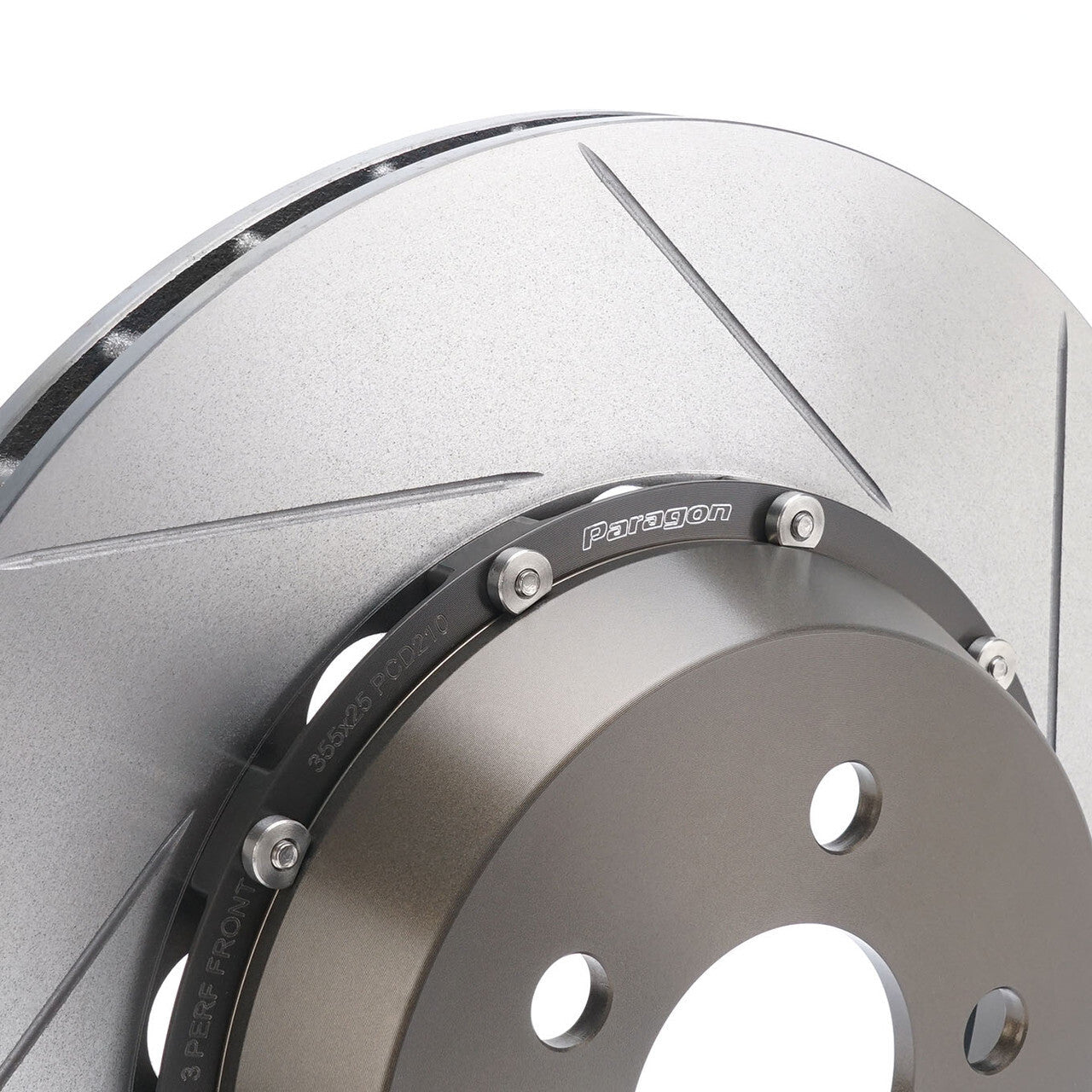

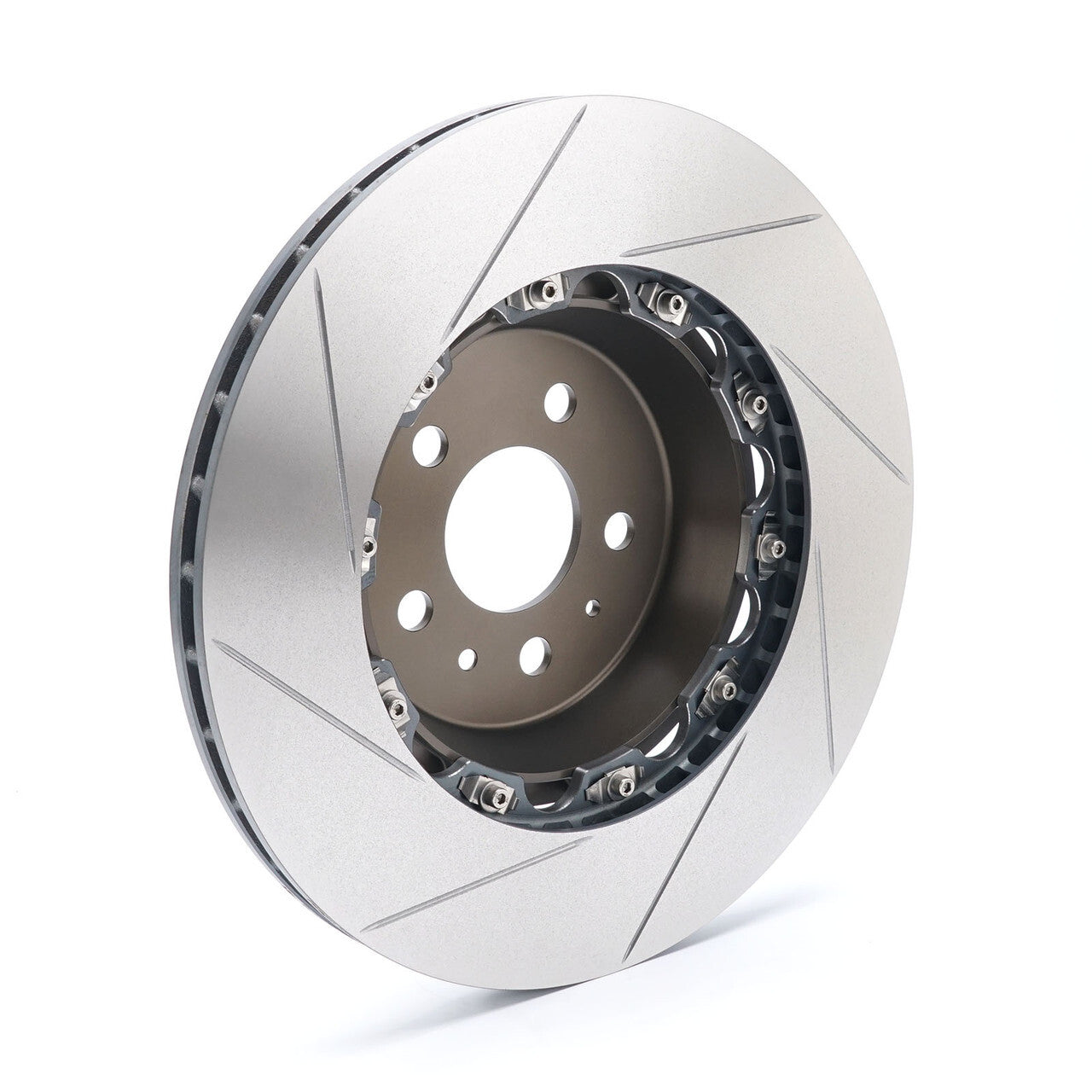

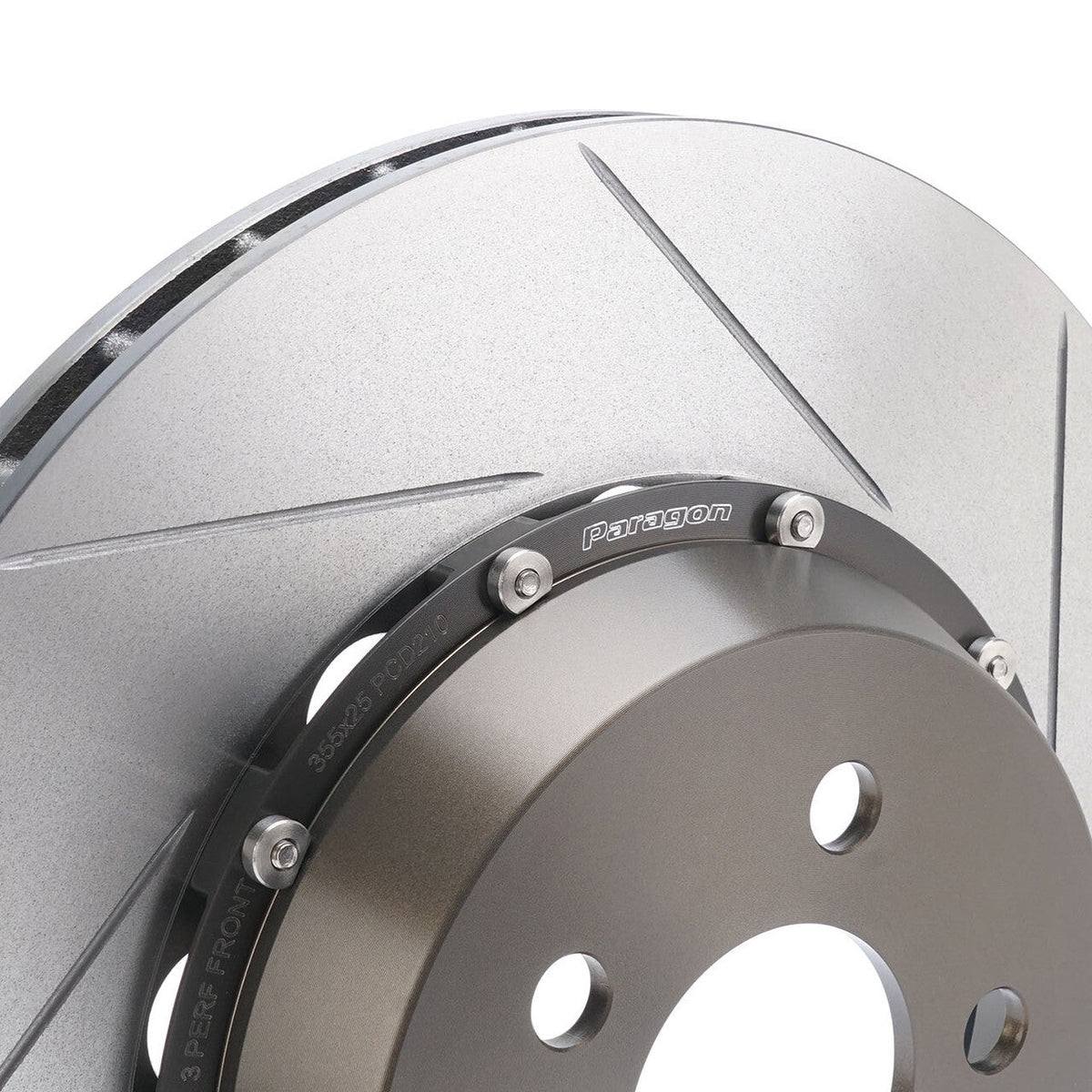

This is a pair of 2-piece front rotors, 355mm x 28mm, for the Tesla Model 3 AWD Performance and Model Y (Long Range and Performance). Each assembly pairs a floating CM-250 high carbon alloy cast iron ring with a CNC machined 6061-T6 aluminium hat on a D-Bobbin (long) 10-bolt system, and arrives assembled with stainless steel bobbins and anti-rattle clips. Paragon says the 28mm ring is thicker than the stock 25mm rotor for added thermal capacity, and that its hats are 3.5mm thicker than factory so the wheels sit out 3.5mm, solving the factory wheel hub clearance issue without a step hub centric ring. Each rotor assembly is listed at 18.7 lbs, which Paragon says saves 0.8 lb of unsprung weight per rotor against the factory part despite the extra thickness.

Features

• Floating 2-piece design with D-Bobbin (long) 10-bolt mounting
• 355mm x 28mm, thicker than the stock 25mm rotor
• 3.5mm thicker hats solve the factory wheel hub clearance issue
• No step hub centric ring or step centre bore wheels needed
• CM-250 high carbon alloy cast iron rings, 48 directional vanes
• CNC machined 6061-T6 aluminium hats
• Replaces OEM Tesla 1044616-00-D 355x25mm front rotors

Specifications

• Brand: Paragon Performance
• Product Type: 2-Piece Brake Rotors
• Position: Front pair
• Size: 355mm x 28mm new (26mm minimum)
• Design: 2-piece floating, slotted, 48 directional ventilation vanes
• Rotor Material: CM-250 high carbon alloy cast iron
• Hat: CNC machined 6061-T6 aluminium, black hard coat / hard anodised (Mil-spec Type III)
• Mounting System: D-Bobbin (long), 10 bolt, stainless steel bobbins
• Weight: 18.7 lbs (8.5 kg) per rotor assembly
• Cross Reference: OEM Tesla 1044616-00-D, Girodisc A1-208
• Part Number: P2R.048.355.280.21000.08.01.01.F

Vehicle Compatibility: 3 applications across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
