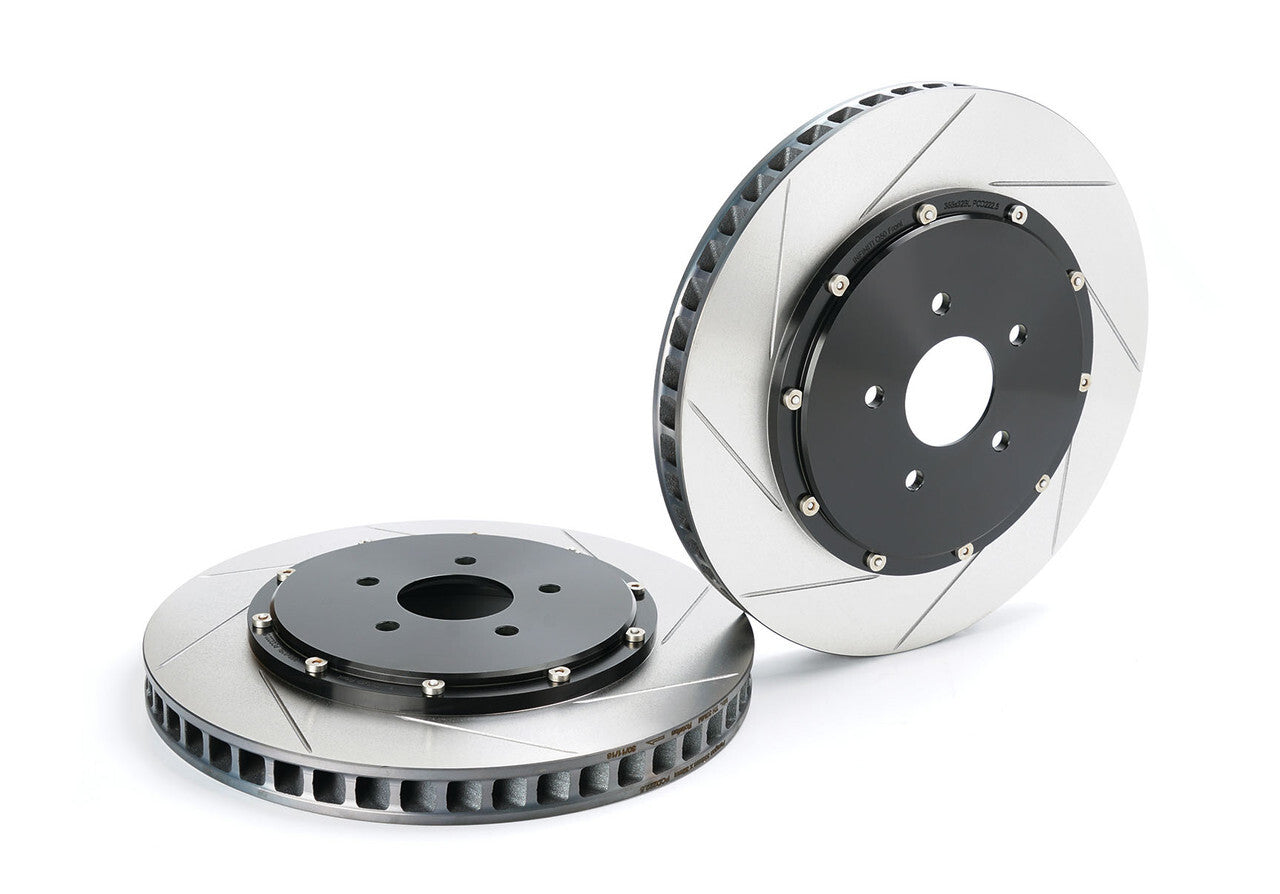

These Paragon 2-piece front rotors measure 355mm x 32mm and are sold as a pair for the Nissan 370Z (Z34) and 370Z Nismo fitted with the OEM Akebono Sport brakes. Paragon designed them for track and race use, with directional ventilation vanes that draw cool air through the rotor and a floating 2-piece construction that lets the ring expand with heat. The rings are slotted CM-250 high carbon alloy cast iron, and the hats are CNC machined from 6061-T6 aluminium with a black hard anodised finish. Paragon quotes a weight of 19.73 lbs (8.95 kg) per rotor and says this saves 7 lbs of unsprung weight per rotor compared with the OEM part.
Features
- Floating 2-piece design with D-Bobbin (Long) 10-bolt mounting
- Slotted CM-250 high carbon alloy cast iron rings
- CNC machined 6061-T6 aluminium hats, black hard anodised
- Directional vanes that Paragon says run up to 30% cooler than OE
- 19.73 lbs (8.95 kg), saving 7 lbs per rotor vs OEM
- Direct bolt-on, works with OEM ABS and factory brake bias
- Suits OEM pads or aftermarket pads of the same pad depth
Specifications
- Brand: Paragon Performance
- Product Type: 2-Piece Floating Brake Rotors (Front Pair)
- Size: 355mm x 32mm
- Mounting: D-Bobbin (Long), 10 bolt
- Rings: CM-250 high carbon alloy cast iron, slotted, heat treated, CBN machined
- Hats: CNC machined 6061-T6 aluminium, black hard coat / hard anodised (Mil-spec Type III)
- Weight: 19.73 lbs (8.95 kg)
- Tolerances: Lateral run-out within 0.03mm, balanced within 2 grams
- OE Reference: Nissan 40206-JL00A
- Part Number: P2R.023.355.320.18100.08.01.01.F
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Nissan (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| 370Z | Z34 | With OEM Akebono Sport brakes | ||
| 370Z Nismo | Z34 | With OEM Akebono Sport brakes |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
