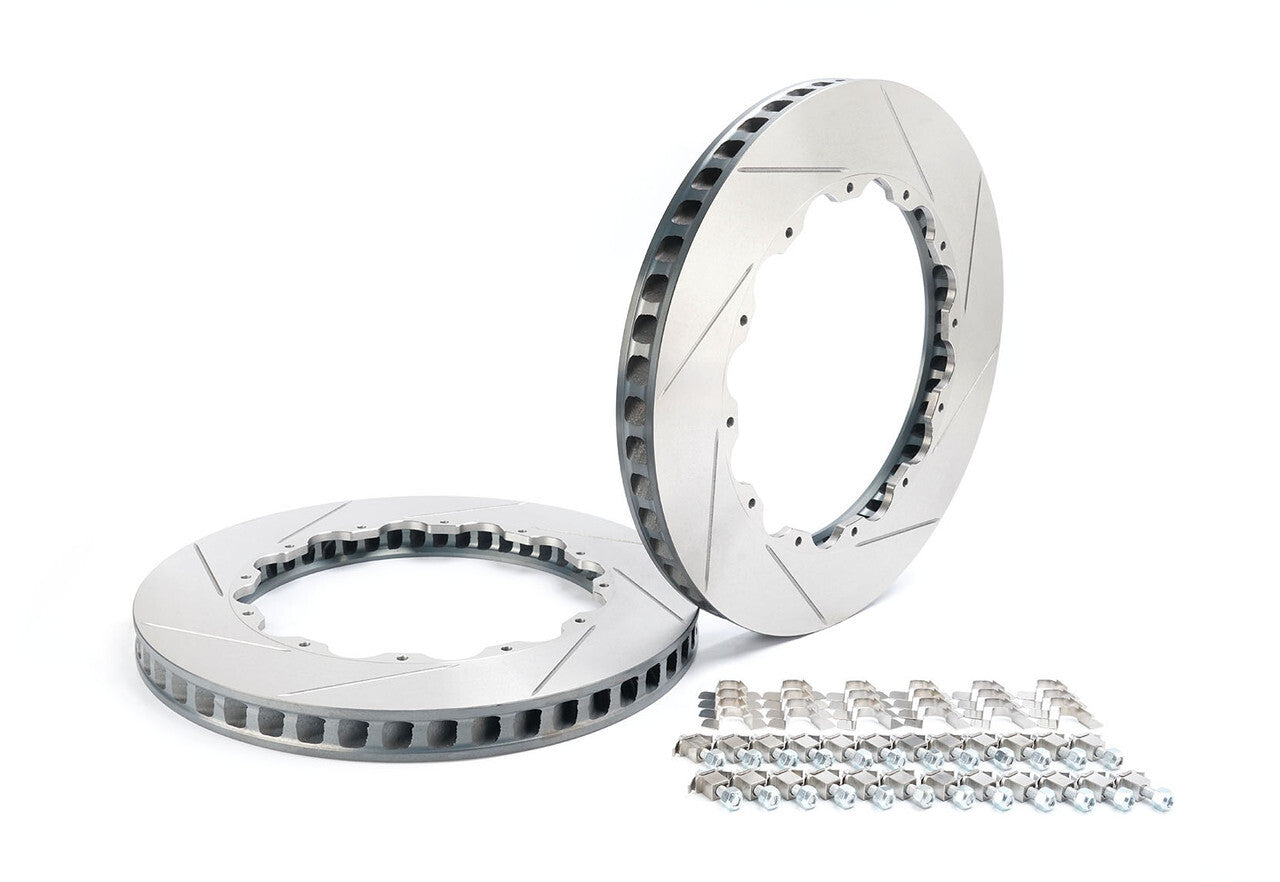

This is a 378mm x 32mm replacement rotor ring for the front of the Ginetta G55 in Standard, Super Cup and GT4 forms. It is a fully floating 2-piece design made from CM-250 high carbon alloy cast iron with directional ventilation vanes and a slotted face, and it uses a T-Bobbin (long) 12-bolt mounting system with a 54mm radial depth. Paragon says the ring balances mass against thermal capacity to save unsprung weight, and is aimed at extreme race conditions. The brand lists a weight of 19.3 lbs (8.75 kg) and also lists replacement aluminium hats for this rotor.
Features
- 378mm x 32mm replacement rotor ring, front
- Fully floating 2-piece design
- CM-250 high carbon alloy cast iron
- Directional ventilation vanes and slotted friction face
- T-Bobbin (long) 12-bolt mounting
- Radial depth (D) 54mm

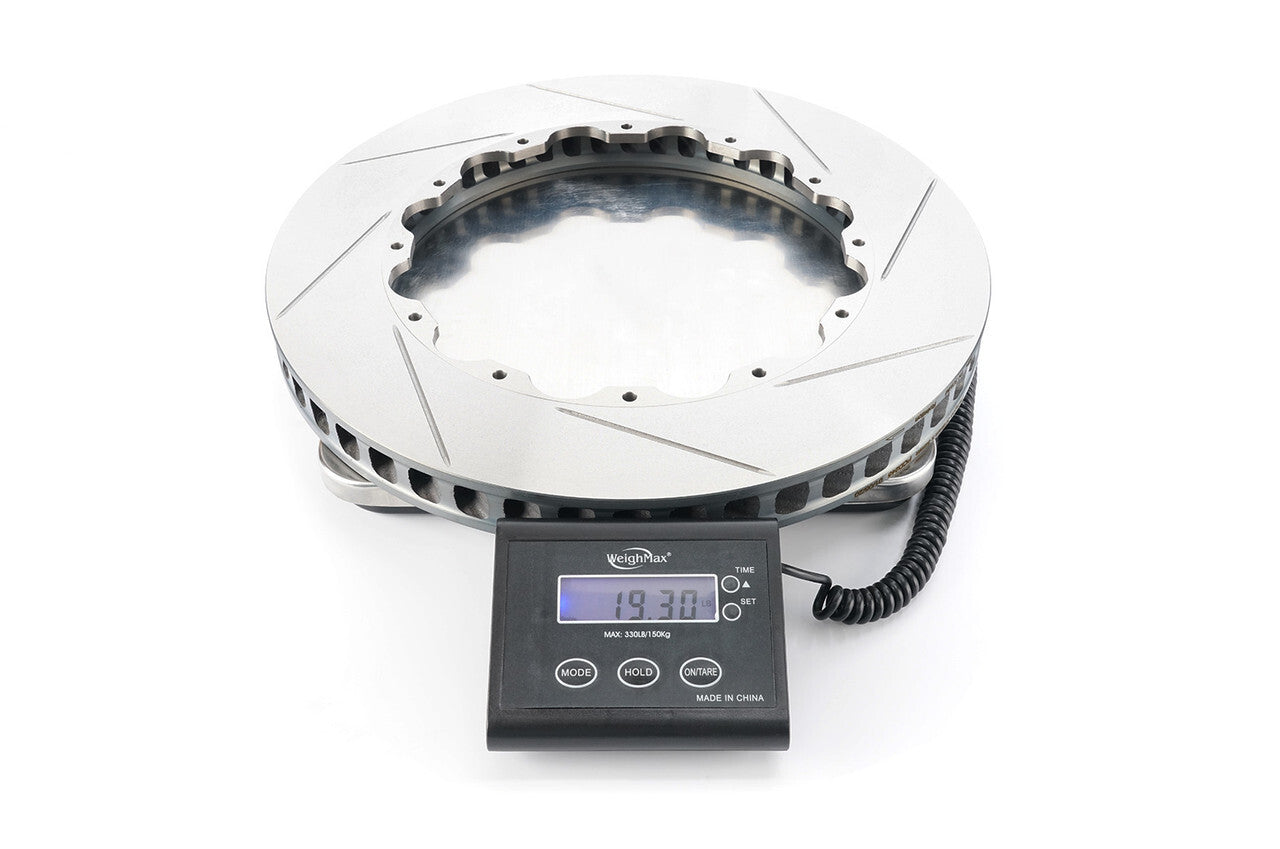

- Weighs 19.3 lbs (8.75 kg)
Specifications
- Brand: Paragon Performance
- Product Type: Replacement Rotor Ring (2-Piece)
- Position: Front
- Size: 378mm x 32mm
- Radial Depth (D): 54mm
- Material: CM-250 high carbon alloy cast iron
- Design: Fully floating 2-piece, slotted, directional ventilation vanes
- Mounting System: T-Bobbin (long), 12 bolt
- Weight: 19.3 lbs (8.75 kg)
- Part Number: PRK.049.378.320.24500.03.01.F
Vehicle Compatibility: 3 applications across 1 make. Select a make to view.
Ginetta (3)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| G55 | Standard | Front | ||
| G55 | Super Cup | Front | ||
| G55 | GT4 | Front |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
