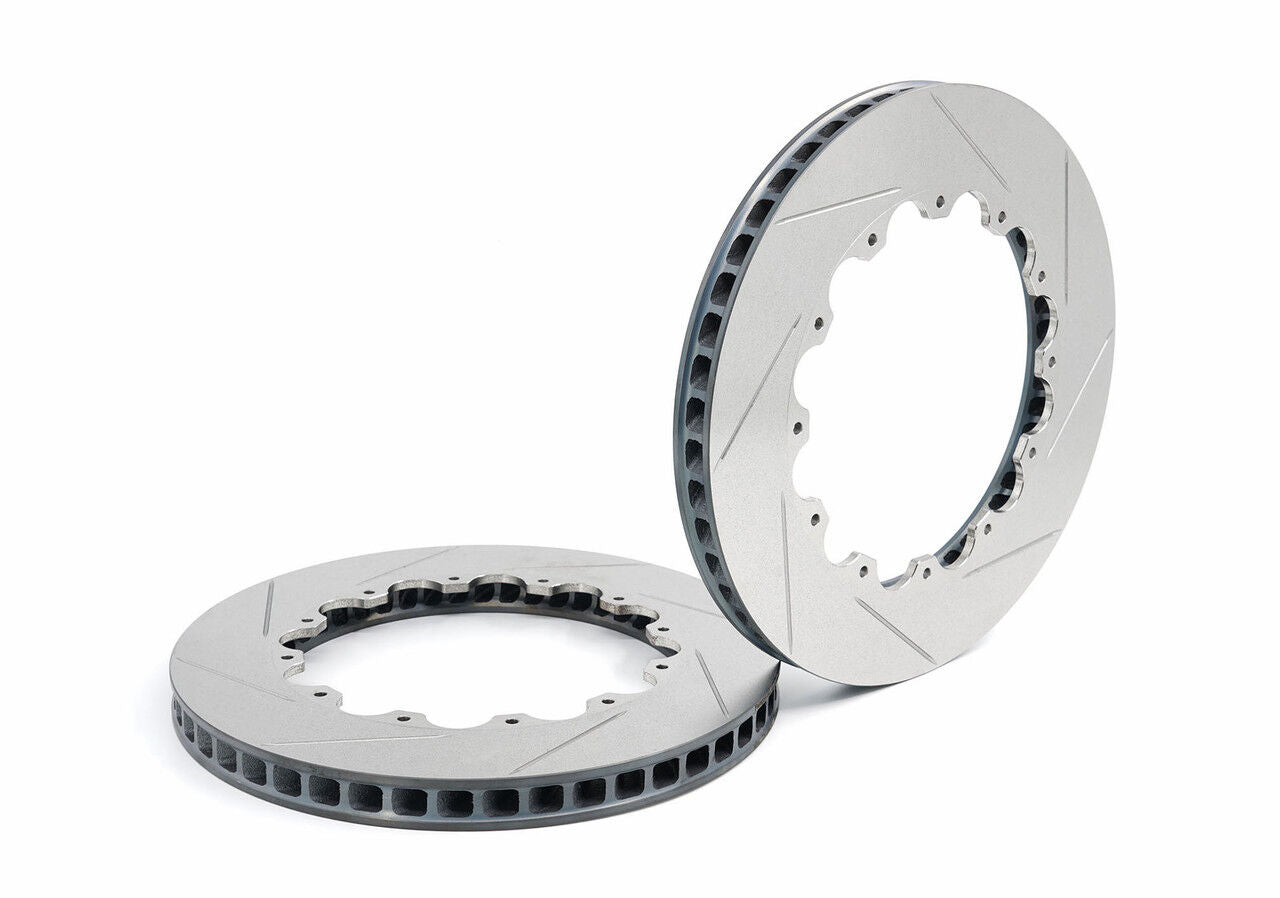

These Paragon Performance rotor rings measure 343mm x 32mm with a 221mm P.C.D. and a D50 specification, and they are supplied as a left and right pair with an installation manual. Paragon lists them as a replacement for Alcon rotor ring DIV2202X807. Paragon says the rings are made from CM-250 high carbon alloy cast iron, heat treated to relieve stress and CBN machined, with lateral run-out held within 0.03mm and balance within 2 grams. They are slotted with directional ventilation vanes, which Paragon says run up to 30% cooler than OE rotors, and the floating 2-piece design allows for thermal expansion.
Features
- 343mm x 32mm rotor rings, P.C.D. 221mm, D50
- Left and right pair with installation manual
- CM-250 high carbon alloy cast iron
- Slotted with directional ventilation vanes
- Heat treated and CBN machined
- Run-out within 0.03mm, balanced within 2 grams
- Replacement for Alcon DIV2202X807
Specifications
- Brand: Paragon Performance
- Product Type: Rotor Rings (pair)
- Size: 343mm x 32mm (13.5" x 1.26")
- P.C.D.: 221mm
- Specification: D50
- Material: CM-250 high carbon alloy cast iron, slotted, heat treated, CBN machined
- Tolerances: Lateral run-out within 0.03mm, balanced within 2 grams
- Includes: One pair of rings (LH and RH) and detailed installation manual
- Replaces: Alcon DIV2202X807
- Part Number: PRR.8009.343.2410.320.22100.03.03.L/R
Vehicle Compatibility: Suits 2-piece rotor assemblies that use a 343mm x 32mm ring with a 221mm P.C.D. and D50 specification (replaces Alcon DIV2202X807); not vehicle specific. Check your rotor assembly before ordering.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
