Paragon Performance Rotor Rings 355mm x 32mm (13.98" x 1.26") - P.C.D. 215.9mm - I.D. 244mm - 12x6.4mm Mounting - D55
Order In
Paragon Performance

Paragon Performance Rotor Rings 355mm x 32mm (13.98" x 1.26") - P.C.D. 215.9mm - I.D. 244mm - 12x6.4mm Mounting - D55

$1,134.99

Seen this item cheaper somewhere else? Send us the link and we'll do our best to match or beat the price. We'll reply by email.

Product details
  • Type Braking
  • Vendor Paragon Performance
  • SKU PRR.8010.355.2440.320.21590.05.01.L/R
Description Reviews

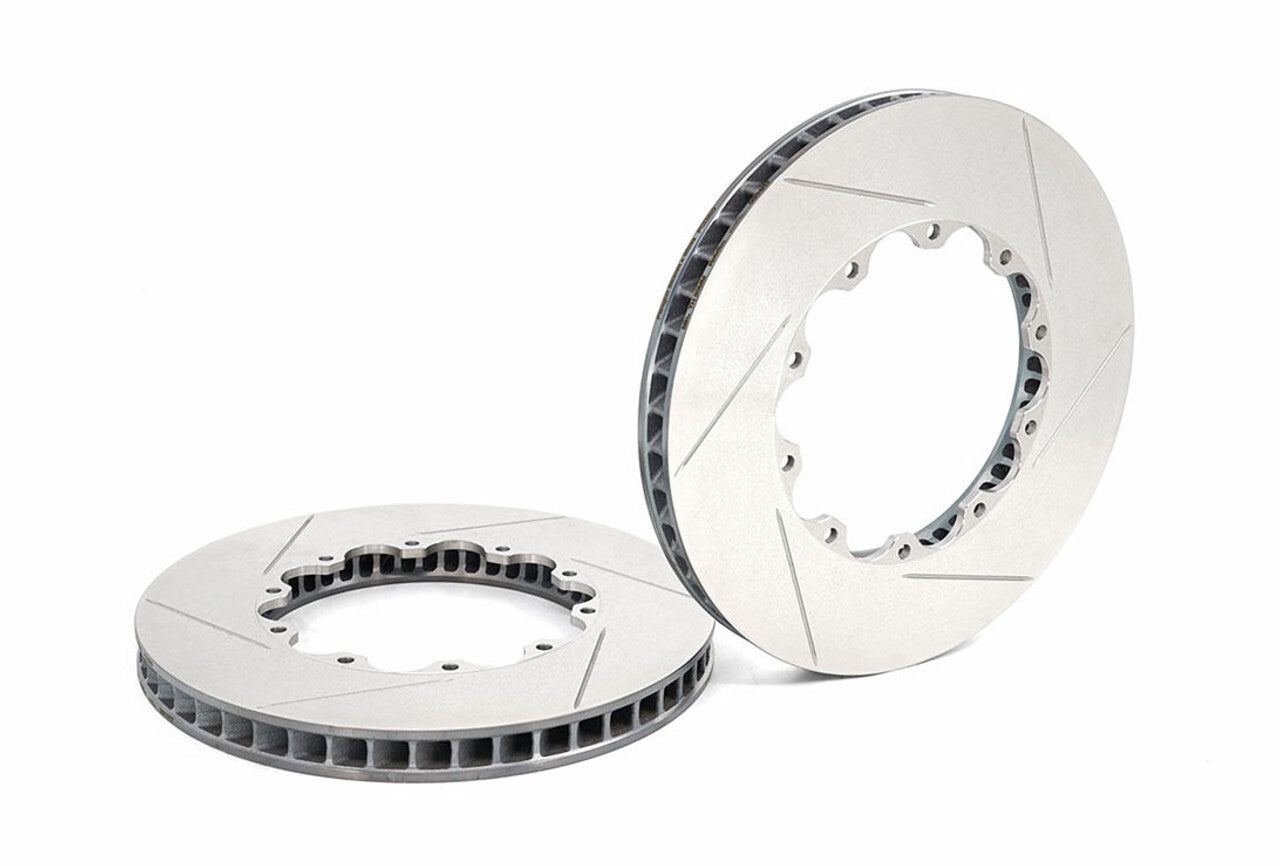

These Paragon Performance rotor rings measure 355mm x 32mm with a 215.9mm P.C.D., a 244mm inside diameter, twelve 6.4mm mounting holes and a D55 specification, and they are supplied as a left and right pair. Paragon lists them as a replacement for AP Racing CP4542-106/7 and CP4542-306/7 and for Alcon DIV2146X717C24L/R, and gives a weight of 7.67 kg (16.91 lbs). Paragon says the rings are made from CM-250 high carbon alloy cast iron, heat treated to relieve stress and CBN machined, with lateral run-out held within 0.03mm and balance within 2 grams. They are slotted with 48 directional ventilation vanes and a 17.5mm air vane gap, and Paragon says they run up to 30% cooler than OE rotors.

Features

  • 355mm x 32mm rotor rings, P.C.D. 215.9mm, D55
  • Twelve 6.4mm round mounting holes, 244mm I.D.
  • 48 vanes with a 17.5mm air vane gap
  • Weighs 7.67 kg (16.91 lbs)
  • CM-250 high carbon alloy cast iron
  • Run-out within 0.03mm, balanced within 2 grams
  • Replaces AP Racing CP4542-106/7 and -306/7, Alcon DIV2146X717C24L/R

Specifications

  • Brand: Paragon Performance
  • Product Type: Rotor Rings (pair)
  • Size: 355mm x 32mm (13.98" x 1.26")
  • P.C.D.: 215.9mm
  • Mounting: 12 x 6.4mm, round
  • Diameters: Internal 244mm, inside flange 195mm
  • Flange: 6.5mm mounting flange thickness, step up +0.02mm face
  • Pad Depth and Vanes: Max pad depth 55.5mm; 48 vanes, 17.5mm air vane gap
  • Weight: 7.67 kg (16.91 lbs)
  • Replaces: AP Racing CP4542-106/7 (CP4542-106 / CP4542-107 / CP4542-106/107) and CP4542-306/7 (CP4542-306 / CP4542-307 / CP4542-306/307); Alcon DIV2146X717C24L/R (DIV2146X717 / DIV2146X717C24L / DIV2146X717C24R)
  • Part Number: PRR.8010.355.2440.320.21590.05.01.L/R

Vehicle Compatibility: Suits 2-piece rotor assemblies that use a 355mm x 32mm ring with a 215.9mm P.C.D., 244mm I.D. and 12 x 6.4mm mounting, D55 specification (replaces AP Racing CP4542-106/7 and CP4542-306/7, and Alcon DIV2146X717C24L/R); not vehicle specific. Check your rotor assembly before ordering.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
