Paragon Performance Rotor Rings 365mm x 32mm (14.37" x 1.26") - P.C.D. 235mm - 10x9mm Mounting - D54
Order In
Paragon Performance

Paragon Performance Rotor Rings 365mm x 32mm (14.37" x 1.26") - P.C.D. 235mm - 10x9mm Mounting - D54

$1,134.99

Seen this item cheaper somewhere else? Send us the link and we'll do our best to match or beat the price. We'll reply by email.

Product details
  • Type Braking
  • Vendor Paragon Performance
  • SKU PRR.8014.365.2570.320.23500.05.01.L/R
Description Reviews

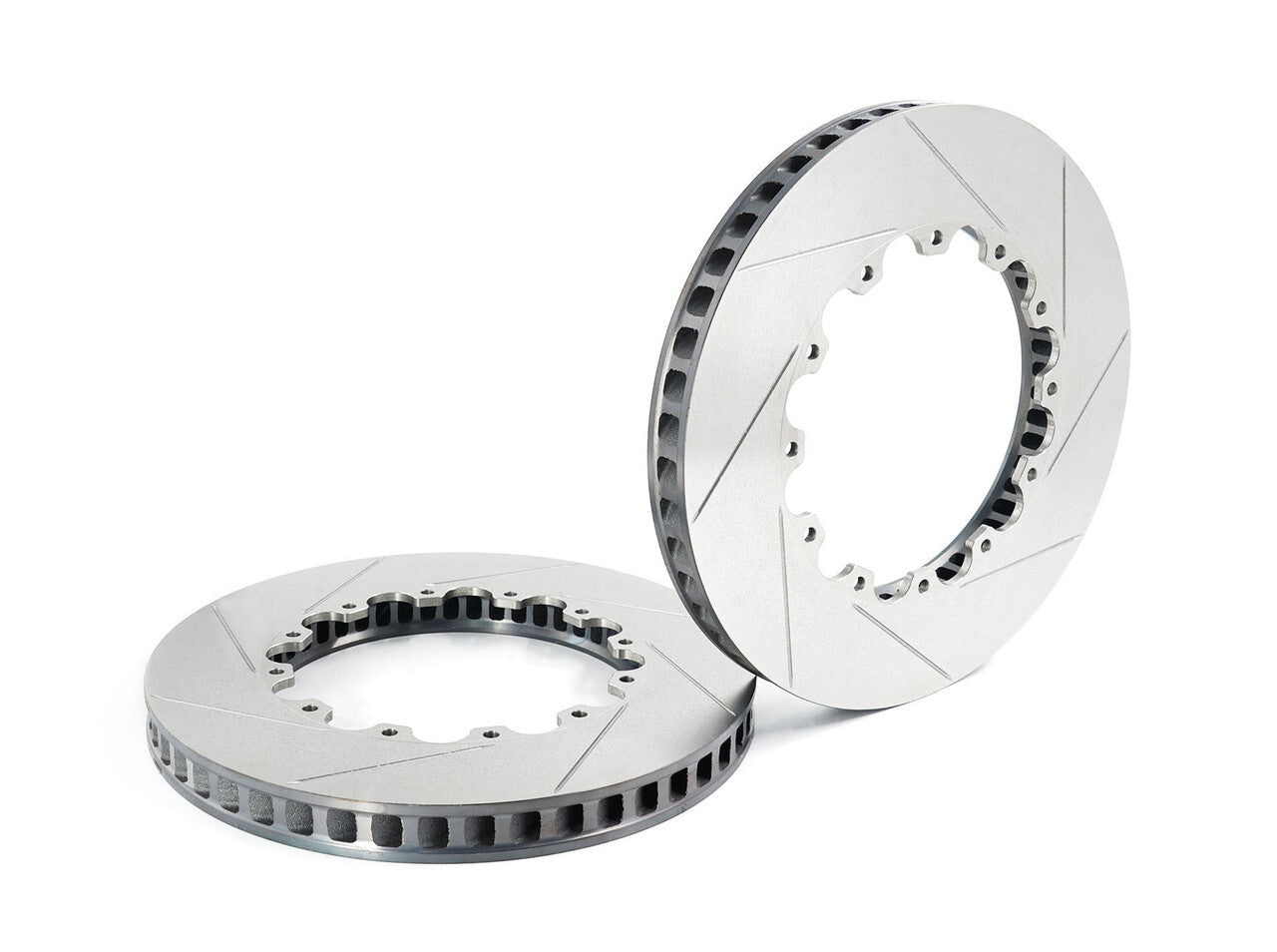

These Paragon Performance rotor rings measure 365mm x 32mm with a 235mm P.C.D., ten 9mm mounting holes and a D54 specification, and they are supplied as a left and right pair. Paragon lists them as a replacement for Alcon DIV2202X576C24L/R and names Alcon Advantage Extreme ADeX 6-piston front big brake kits as a common application. Paragon says the rings are made from CM-250 high carbon alloy cast iron, heat treated to relieve stress and CBN machined, with lateral run-out held within 0.03mm and balance within 2 grams. They are slotted with 48 directional ventilation vanes and a 19.3mm air vane gap, and Paragon says they run up to 30% cooler than OE rotors.

Features

  • 365mm x 32mm rotor rings, P.C.D. 235mm, D54
  • Ten 9mm round mounting holes
  • 48 vanes with a 19.3mm air vane gap
  • CM-250 high carbon alloy cast iron
  • Heat treated and CBN machined
  • Run-out within 0.03mm, balanced within 2 grams
  • Replacement for Alcon DIV2202X576C24L/R

Specifications

  • Brand: Paragon Performance
  • Product Type: Rotor Rings (pair)
  • Size: 365mm x 32mm (14.37" x 1.26")
  • P.C.D.: 235mm
  • Mounting: 10 x 9mm, round
  • Diameters: Internal 257mm, inside flange 216mm
  • Flange: 6mm mounting flange thickness, step up +0.15mm face
  • Pad Depth and Vanes: Max pad depth 54mm; 48 vanes, 19.3mm air vane gap
  • Replaces: Alcon DIV2202X576C24L/R
  • Part Number: PRR.8014.365.2570.320.23500.05.01.L/R

Vehicle Compatibility: Suits Alcon Advantage Extreme ADeX 6-piston front big brake kits and other 2-piece rotors that use a 365mm x 32mm ring with a 235mm P.C.D. and D54 specification (replaces Alcon DIV2202X576C24L/R); not vehicle specific. Check your rotor assembly before ordering.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
