Paragon Performance Rotor Rings 380mm x 28mm - P.C.D. 240mm - I.D. 266mm - D55

$1,324.99

Seen this item cheaper somewhere else? Send us the link and we'll do our best to match or beat the price. We'll reply by email.

Product details
  • Type Braking
  • Vendor Paragon Performance
  • SKU PRR.8016.380.2660.280.24000.19.01.L/R
Description Reviews

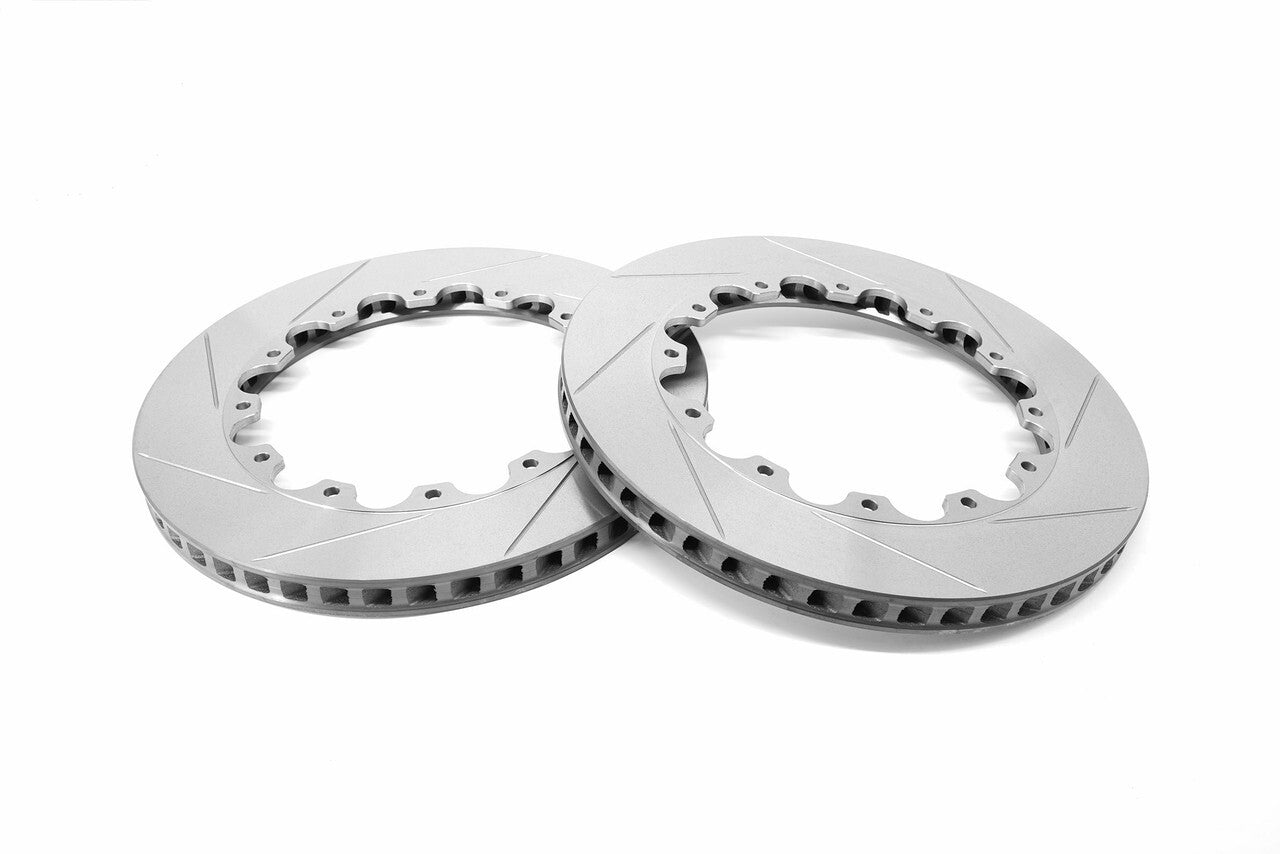

These Paragon Performance rotor rings are 380mm x 28mm with a 240mm P.C.D., a 266mm internal diameter and a D55 designation. Each ring has 12 round 8.1mm mounting holes, 48 directional ventilation vanes and a slotted face, and is made from CM-250 high carbon alloy cast iron that is heat treated and CBN surface machined. Paragon says the vanes let the rotors run up to 30% cooler than factory rotors, and the listing gives a maximum pad depth of 57mm. The kit supplies a pair of rings (left and right) with a detailed installation manual.

Features

  • 380mm x 28mm rotor rings
  • P.C.D. 240mm, internal diameter 266mm, D55
  • 12 round mounting holes of 8.1mm
  • 48 directional ventilation vanes, 14mm air vane gap
  • CM-250 high carbon alloy cast iron, slotted face
  • Maximum pad depth 57mm
  • 2-piece design

Specifications

  • Brand: Paragon Performance
  • Product Type: Rotor Rings

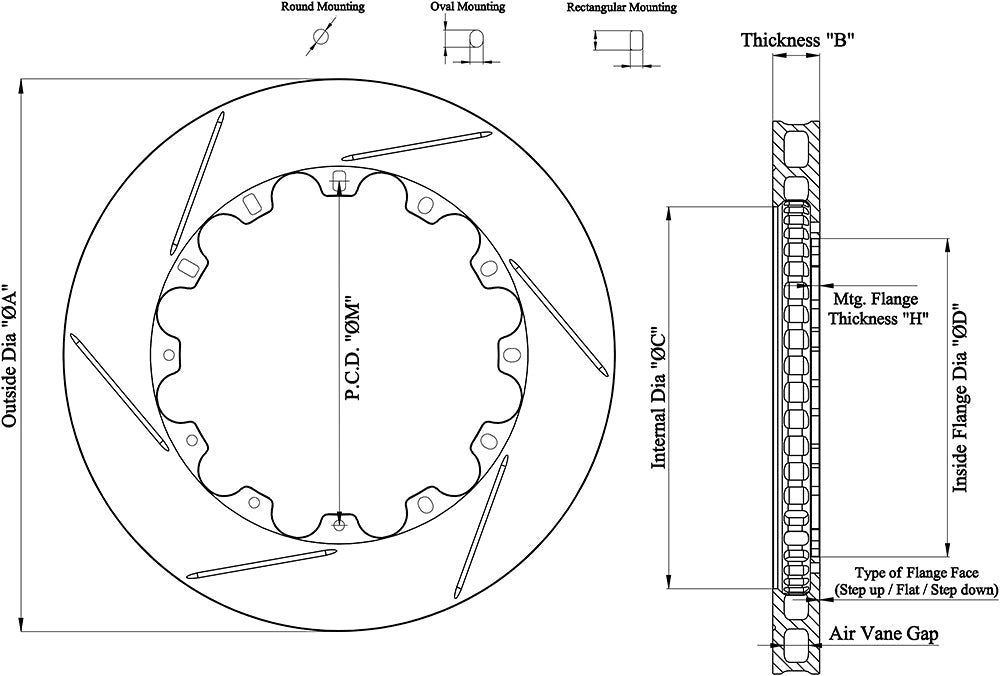

  • Size: 380mm x 28mm (outside diameter A x thickness B)
  • P.C.D. (M): 240mm
  • Mounting: 12 round holes, 8.1mm
  • Internal Diameter (C): 266mm
  • Flange: Inside flange diameter (D) 224mm, mounting flange thickness (H) 5.6mm, flange face step up +0.15mm
  • Max Pad Depth: 57mm
  • Vanes: 48, air vane gap 14mm
  • Designation: D55
  • Material: CM-250 high carbon alloy cast iron
  • Includes: One pair of rotor rings (LH and RH) and an installation manual
  • Part Number: PRR.8016.380.2660.280.24000.19.01.L/R

Vehicle Compatibility: Contact us with your vehicle details and we will confirm fitment before you order.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
