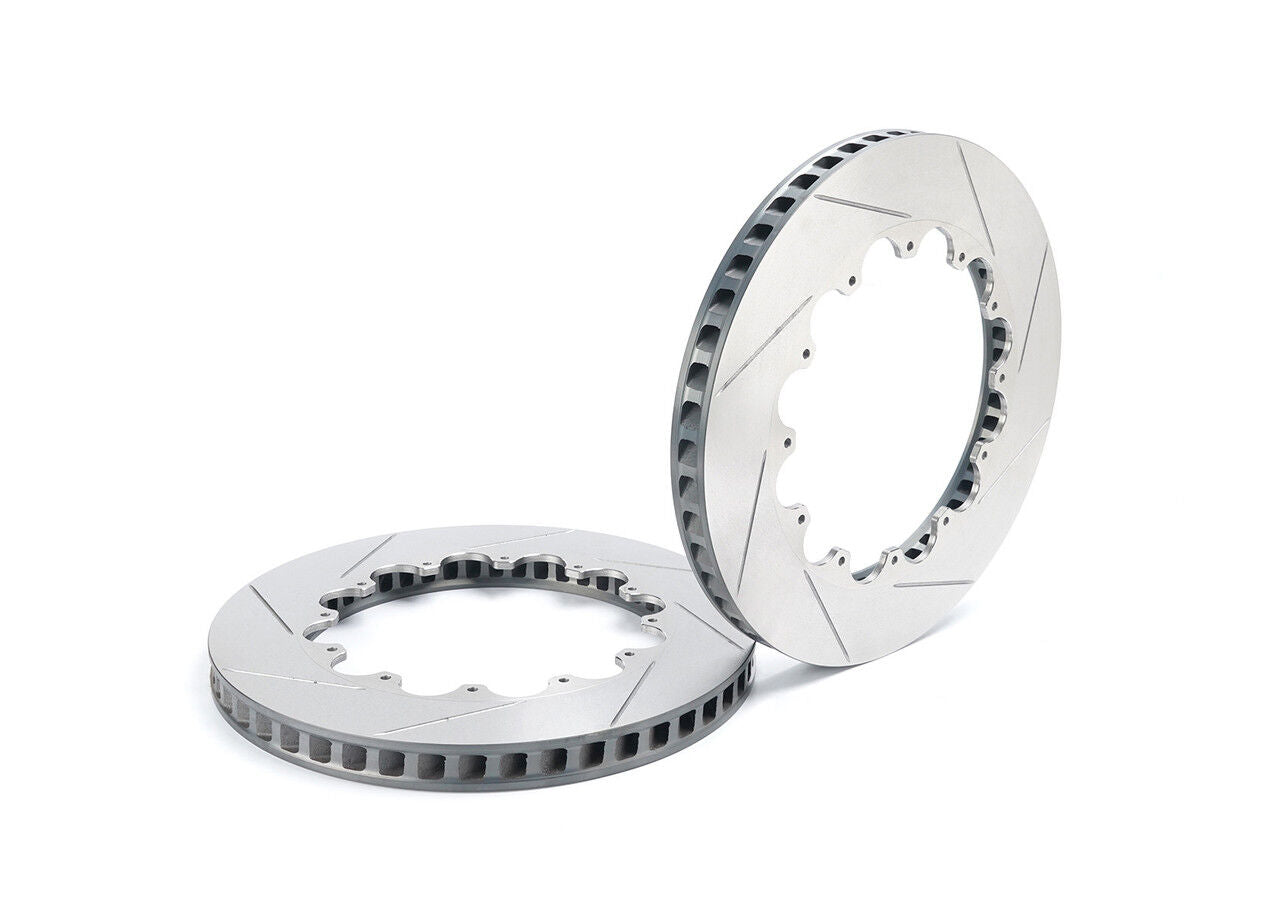

These Paragon Performance rotor rings measure 380mm x 34mm with a 223mm P.C.D. and a D63.5 specification, and they are supplied as a left and right pair. Paragon lists them as a replacement for Alcon rotor ring DIV2202X905. Paragon says the rings are made from CM-250 high carbon alloy cast iron, heat treated to relieve stress and CBN machined, with lateral run-out held within 0.03mm and balance within 2 grams. They are slotted with directional ventilation vanes, which Paragon says run up to 30% cooler than OE rotors, and the floating 2-piece design allows for thermal expansion.
Features
- 380mm x 34mm rotor rings, P.C.D. 223mm, D63.5
- Left and right pair
- CM-250 high carbon alloy cast iron
- Slotted with directional ventilation vanes
- Heat treated and CBN machined
- Run-out within 0.03mm, balanced within 2 grams
- Replacement for Alcon DIV2202X905
Specifications
- Brand: Paragon Performance
- Product Type: Rotor Rings (pair)
- Size: 380mm x 34mm (14.96" x 1.34")
- P.C.D.: 223mm
- Specification: D63.5
- Material: CM-250 high carbon alloy cast iron, slotted, heat treated, CBN machined
- Tolerances: Lateral run-out within 0.03mm, balanced within 2 grams
- Includes: One pair of rings (LH and RH)
- Replaces: Alcon DIV2202X905
- Part Number: PRR.8014.380.2450.340.22300.03.01.L/R
Vehicle Compatibility: Suits 2-piece rotor assemblies that use a 380mm x 34mm ring with a 223mm P.C.D. and D63.5 specification (replaces Alcon DIV2202X905); not vehicle specific. Check your rotor assembly before ordering.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
