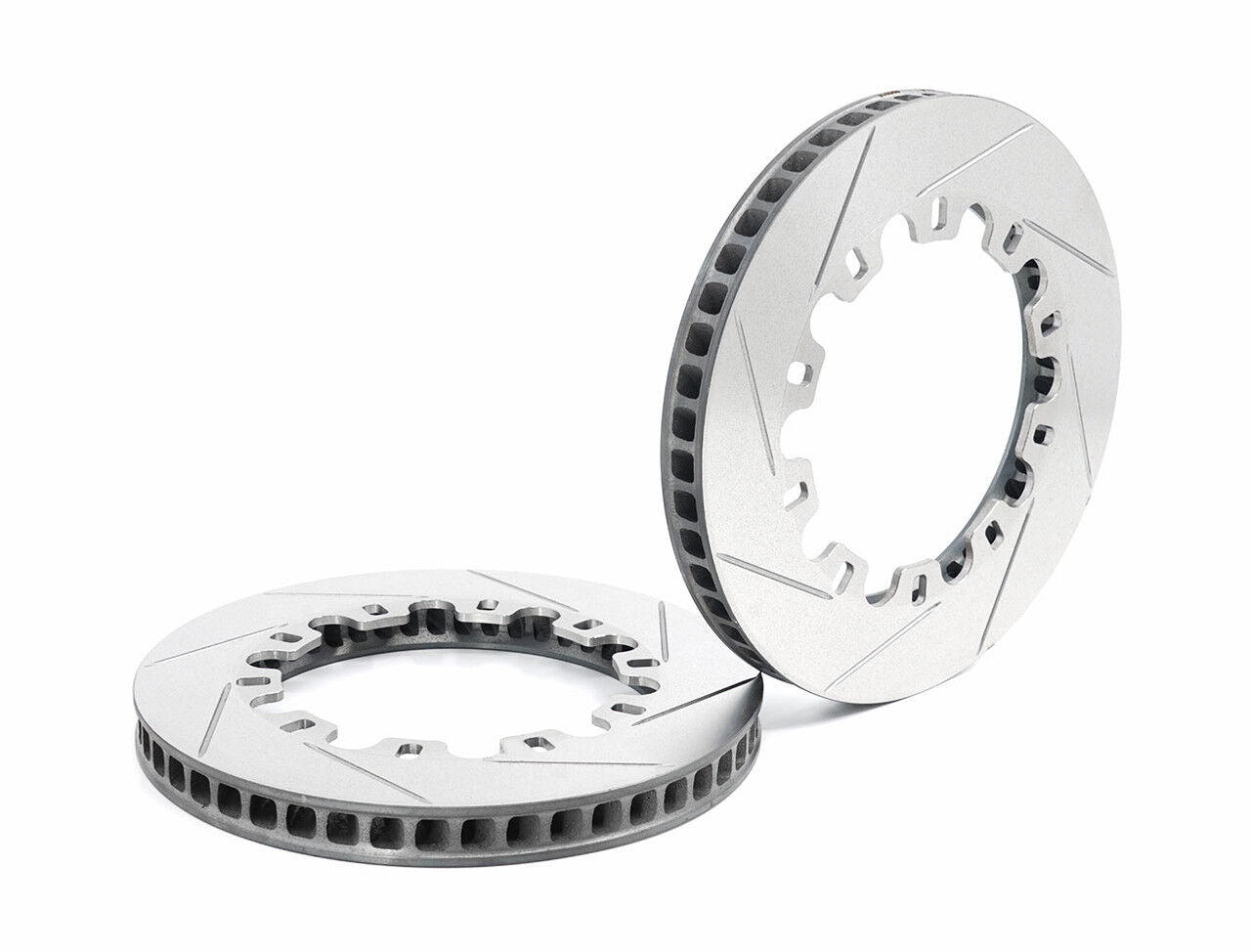

These Paragon Performance rotor rings measure 285mm x 27mm with a P.C.D. of 179mm and a D45 designation. They are listed as a replacement for AP Racing CP5254-104/5 and Alcon DIV2207X387C20 rotor rings. Paragon says the rings are made from a special formula high carbon alloy, heat treated and CBN surface machined, with directional ventilation vanes and a slotted face in a floating 2-piece design. The brand quotes a weight of 9.26 lbs (4.2 kg) and says the vanes let the rotors run up to 30% cooler than factory rotors.
Features
- 285mm x 27mm rotor rings
- P.C.D. 179mm, D45
- Special formula high carbon alloy
- Directional ventilation vanes and slotted friction face
- Floating 2-piece design allows thermal expansion
- Replacement for AP Racing CP5254-104/5 and Alcon DIV2207X387C20
- Weighs 9.26 lbs (4.2 kg)
Specifications
- Brand: Paragon Performance
- Product Type: Rotor Rings
- Size: 285mm x 27mm
- P.C.D.: 179mm
- Designation: D45
- Material: Special formula high carbon alloy
- Design: Floating 2-piece, slotted, directional ventilation vanes
- Weight: 9.26 lbs (4.2 kg)
- Replaces: AP Racing CP5254-104/5 (CP5254-104 / CP5254-105 / CP5254-104/105), Alcon DIV2207X387C20
- Includes: One pair of rotor rings (LH and RH)
- Part Number: PRR.8004.285.1945.270.17900.11.01.L/R
Vehicle Compatibility: Replacement rings for AP Racing CP5254-104/5 and Alcon DIV2207X387C20 rotors (285mm x 27mm, P.C.D. 179mm); not vehicle specific. Check your existing rotor before ordering.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
