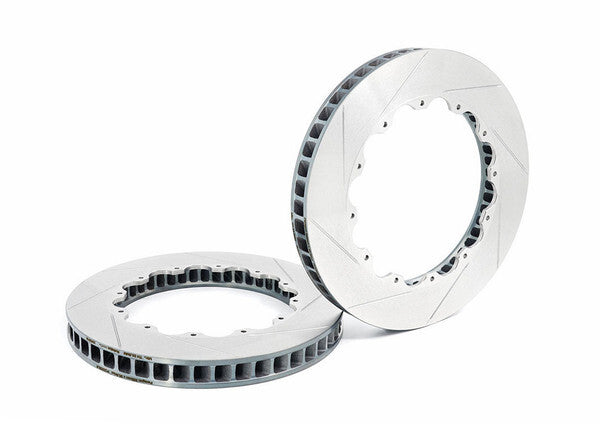

This Paragon Performance rotor ring set is 350mm x 32mm with a 215.9mm P.C.D. and a 239mm internal diameter. The rings use a floating 2-piece design with 48 directional ventilation vanes, 12 round 6.4mm mounting holes and a 55.5mm maximum pad depth. Paragon says the vanes let the rotors run up to 30% cooler than factory rotors and help minimise brake fade and judder during extended sessions. The kit supplies a pair of rings (left and right) with a detailed installation manual.
Features
- 350mm x 32mm rotor rings
- P.C.D. 215.9mm, internal diameter 239mm
- 12 round mounting holes of 6.4mm
- 48 directional ventilation vanes, 17mm air vane gap
- Floating 2-piece design
- Maximum pad depth 55.5mm
- Pair (LH and RH) with installation manual
Specifications
- Brand: Paragon Performance
- Product Type: Rotor Rings
- Size: 350mm x 32mm (outside diameter A x thickness B)
- P.C.D. (M): 215.9mm
- Mounting: 12 round holes, 6.4mm
- Internal Diameter (C): 239mm
- Flange: Inside flange diameter (D) 200.5mm, mounting flange thickness (H) 6.58mm, flange face step up +0.15mm
- Max Pad Depth: 55.5mm
- Vanes: 48, air vane gap 17mm
- Design: Floating 2-piece
- Includes: One pair of rotor rings (LH and RH) and an installation manual
- Part Number: PRR.8009.350.2390.320.21590.03.01.L/R
Vehicle Compatibility: Contact us with your vehicle details and we will confirm fitment before you order.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
