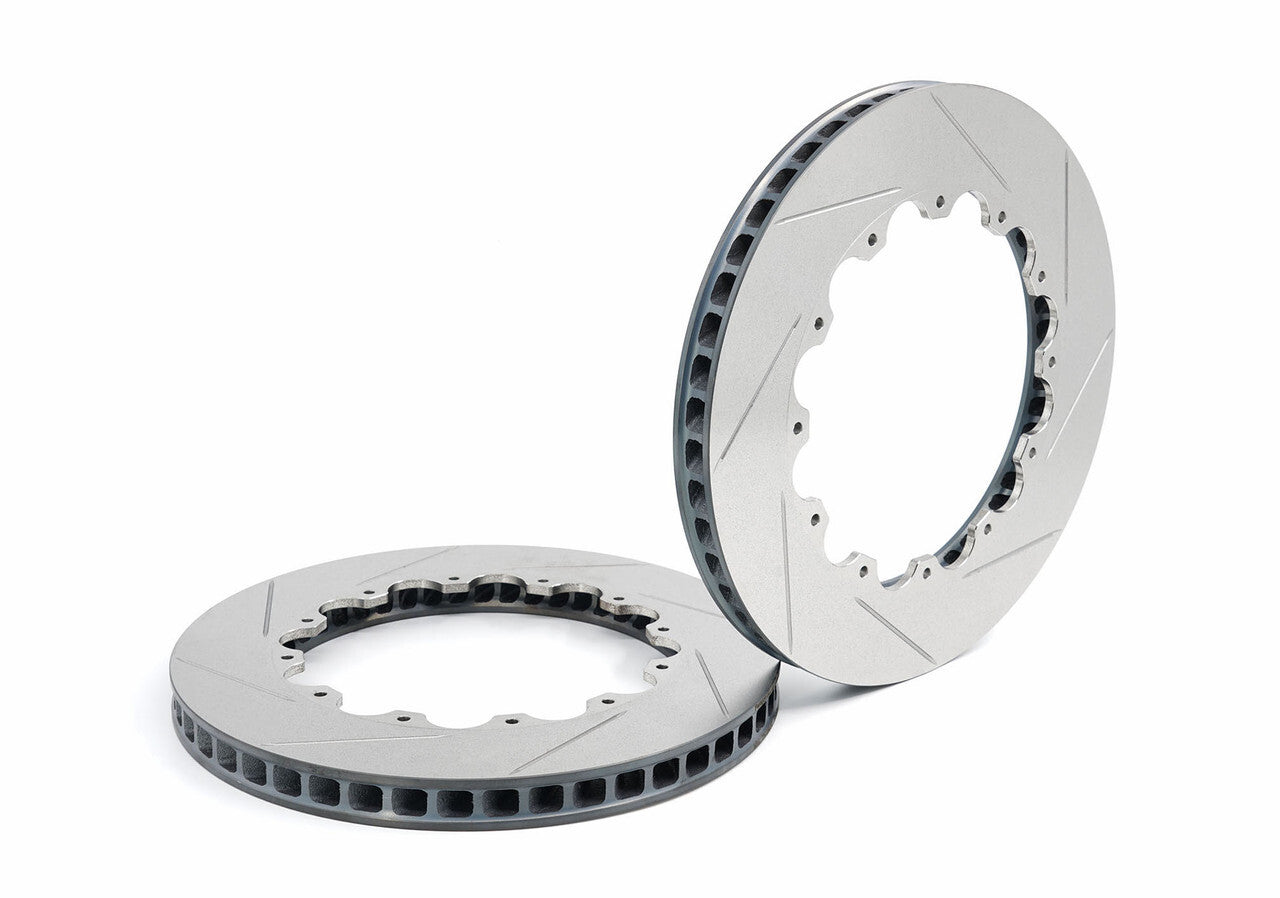

These are Paragon Performance rotor rings (friction rings) measuring 343mm x 25mm with a 222mm P.C.D., listed as D50 and sold as a pair. Paragon lists them as a replacement for the Alcon DIV2175X543 ring. The rings are made from CM-250 high carbon alloy cast iron that is heat treated and CBN turned, and Paragon says the directional ventilation vanes help them run up to 30% cooler than OE rotors. It also quotes lateral run-out within 0.03mm and balance within 2 grams.
Features
- 343mm x 25mm friction rings with 222mm P.C.D.
- Replaces Alcon DIV2175X543
- Sold as a pair
- CM-250 high carbon alloy cast iron, heat treated and CBN turned
- Directional ventilation vanes, up to 30% cooler than OE per Paragon
- Run-out within 0.03mm, balance within 2 grams
Specifications
- Brand: Paragon Performance
- Product Type: Rotor Rings (Friction Rings)
- Size: 343mm (13.5 inch) outside diameter x 25mm (0.98 inch) thick
- P.C.D.: 222mm
- Material: CM-250 high carbon alloy cast iron, heat treated and CBN turned
- Tolerances: Lateral run-out within 0.03mm, balanced within 2 grams
- Replaces: Alcon DIV2175X543
- Supplied As: Pair
- Part Number: PRR.8009.343.2410.250.22200.03.03.L/R
Vehicle Compatibility: Replacement rotor rings, 343mm x 25mm with a 222mm P.C.D., for Alcon DIV2175X543; not vehicle specific. Check your rotor assembly dimensions before ordering.
