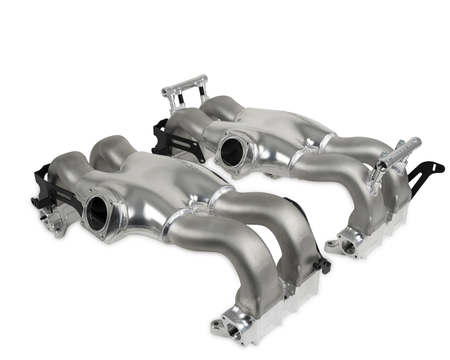

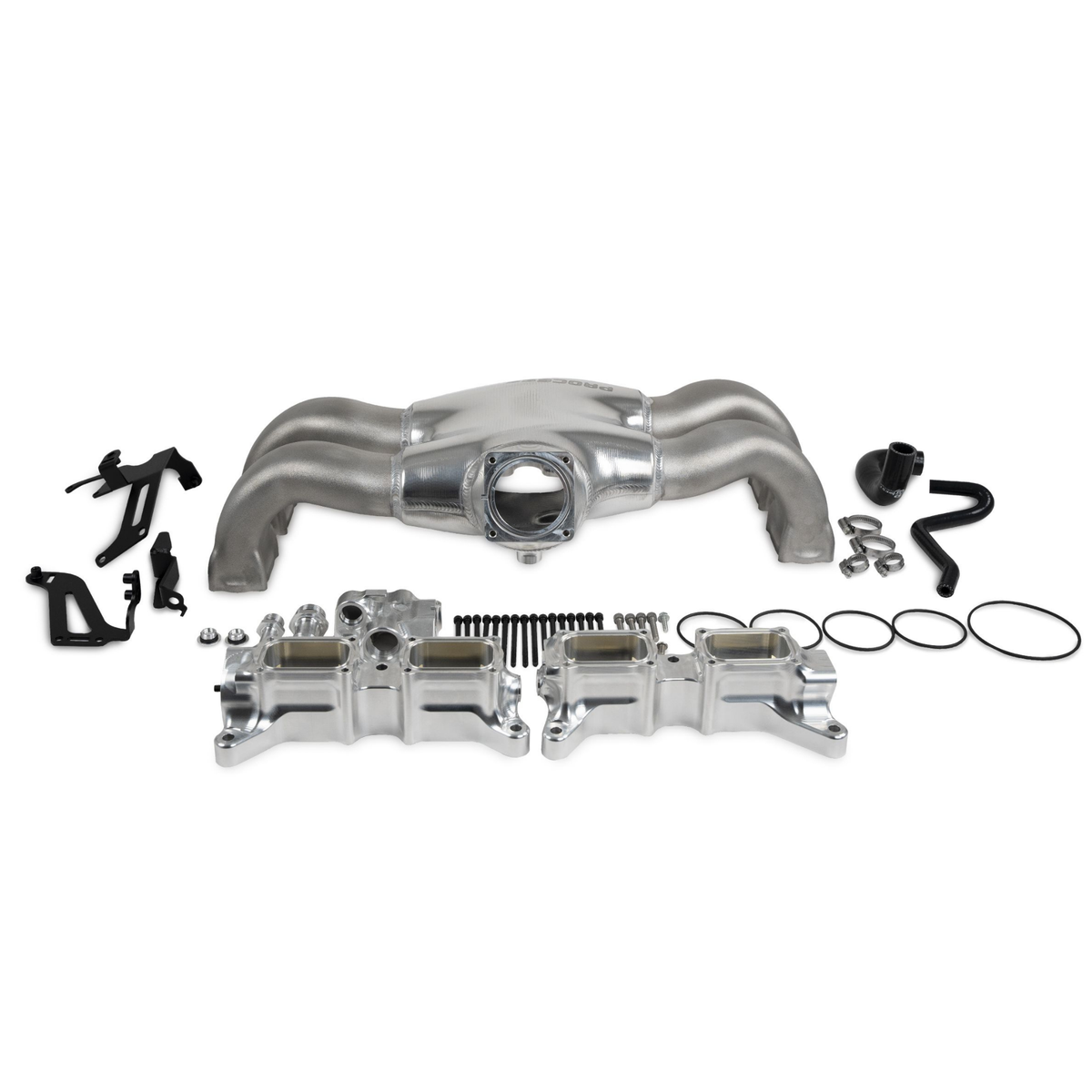

The Process West Intake Manifold for the 2022-on Subaru WRX (VB) with the FA24 engine combines a billet plenum, large-bore cast runners and a working billet TGV section, and was developed over more than a year of testing on Process West's own car. On their dyno it took the car from about 246 kW to about 275 kW at the wheels at the same boost target, roughly 12% more power and 10% more torque across most of the rev range, with gains said to grow at higher power levels. It needs a front mount intercooler because the throttle body sits lower and closer to the firewall, and many front mount kits, Process West's own included, also need the Process West throttle adaptor pipe (PWIM010AP). Choose the Standard Injection version, or the race-oriented Port Injection version that adds four port injector mounts.
Features
- Billet plenum with large-bore cast runners

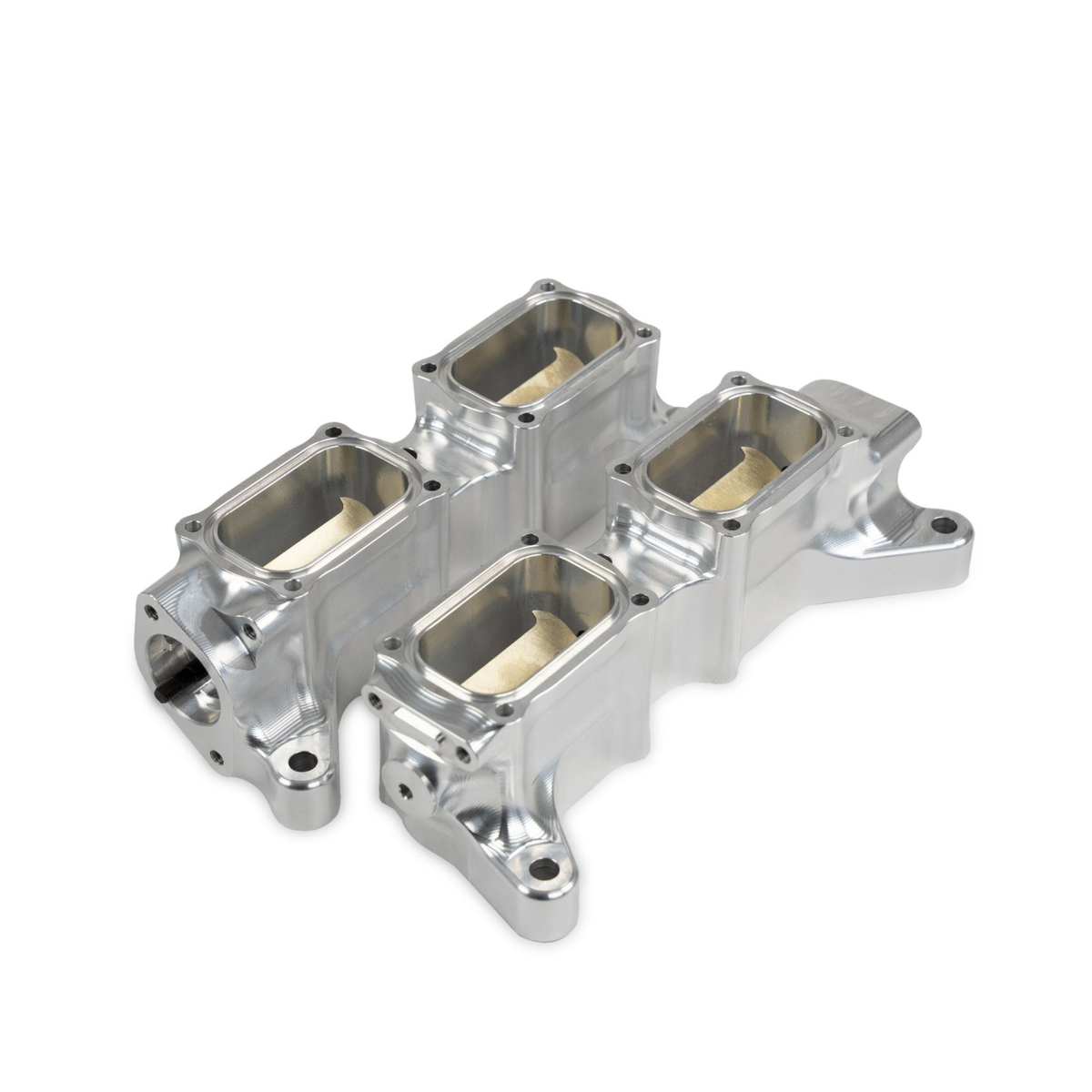

- Functional billet TGV section, as the factory TGV system cannot be removed
- Separate TGV delete kit (PWTD07) removes the shafts and butterflies while keeping the factory motors and sensors
- Designed to fit without triggering a check engine light
- Throttle adaptor pipe PWIM010AP offers several hose joint options for other intercoolers
- Port Injection version (PWIM010PI) adds four port injector mounts for race builds
- Developed over more than a year of testing on an in-house car
Specifications
- Brand: Process West
- Product Type: Intake Manifold
- Construction: Billet plenum, large-bore cast runners, billet TGV section
- Engine: FA24DIT
- Dyno Result (Process West): Approx. 246 kW to 275 kW at the wheels at the same boost target
- Requirement: Front mount intercooler
- Throttle Adaptor Pipe: PWIM010AP, needed with many front mount kits
- TGV Delete Kit: PWTD07, available separately
- Injection Options: Standard Injection, or Port Injection with four port injector mounts
- Part Numbers: PWIM010 (Standard Injection), PWIM010PI (Port Injection)
Vehicle Compatibility: 1 application across 1 make. Select a make to view.
Subaru (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| WRX | VB | FA24DIT | 2022-on | Front mount intercooler required; many kits need adaptor pipe PWIM010AP |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
