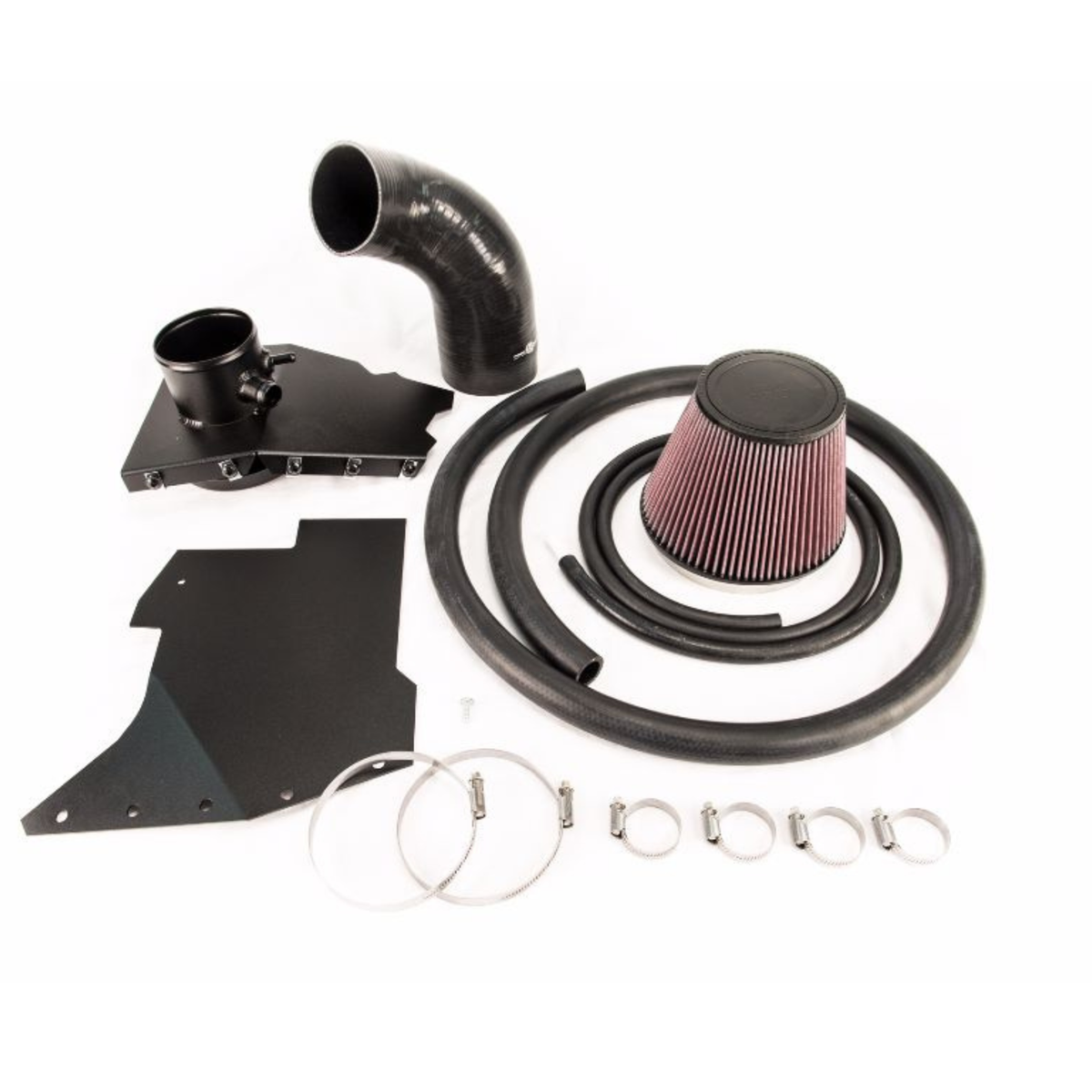

Process West Race Air Box Kit (4 Inch Turbo Inlet) - Ford Falcon XR6 Turbo (FG / FG X)

The Process West Race Air Box Kit is a cold air intake for high-output FG and FG X Ford Falcon XR6 Turbo builds running a turbo with a 4-inch inlet (0.7 A/R cover). It uses a 6-inch internal diameter K&N filter, a 6-inch to 4-inch bell-mouth and an internally wire-reinforced moulded silicone hose to the turbo, a setup Process West says is proven at 500 rwkW and beyond. The air box sits in the space freed up by relocating the battery, and its 4-inch outlet lines up at about the same height as most high mount turbo inlets. A battery relocation kit is required and sold separately, and the supplied hose is 4-inch to 4-inch.

Features

• 6-inch internal diameter K&N filter
• 6-inch to 4-inch bell-mouth
• Internally wire-reinforced moulded silicone hose to the turbo, 4-inch to 4-inch
• Proven at power levels of 500 rwkW and beyond
• Outlet height suits most high mount turbo inlets
• Uses the space freed by a relocated battery
• For turbos with a 4-inch inlet (0.7 A/R cover)

Specifications

• Brand: Process West
• Product Type: Race Air Box Kit (Cold Air Intake)
• Filter: 6-inch internal diameter K&N
• Bell-Mouth: 6-inch to 4-inch
• Turbo Hose: Internally wire-reinforced moulded silicone, 4-inch to 4-inch
• Turbo Inlet: 4-inch (0.7 A/R cover)
• Required: Battery relocation kit (sold separately)
• Vehicle: Ford Falcon FG / FG X XR6 Turbo
• Part Number: PWFGCAI03

Vehicle Compatibility: 2 applications across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
